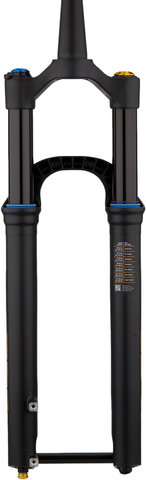

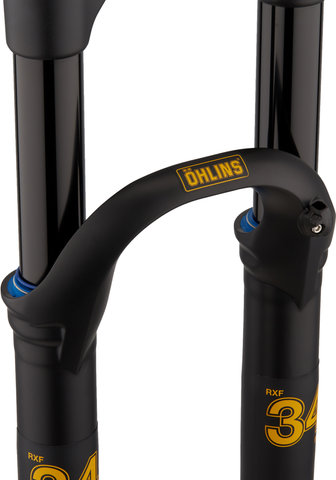

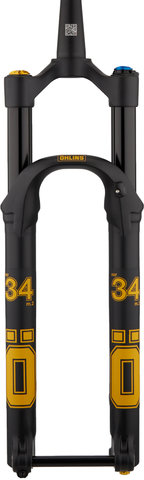

The RXF34 m.2 Air Boost Suspension Fork for 29" Trail Bikes

The ÖHLINS RXF34 m.2 Air Boost suspension fork goes well with lightweight trail bikes with 29" tyres. The OTX-18 damping cartridge used is based on the tried and tested TTX 18, but is 27% lighter and particularly specialised for fast flow trails. Compression and rebound damping can be easily adjusted.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm, 130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

230 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

Aluminium

Adjustment Options:

Compression:

Low-speed (15 positions), high-speed (3 positions)

Rebound:

low speed (15 positions)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Rotor Size (max.):

203 mm

Features:

• detachable for maintenance and repair
• floating thru-axle for minimum friction
• OTX 18 cartridge is 27% lighter than TTX 18, designed for fast flow trails
• optimal balance of traction, control, weight and stiffness
• precise steering
• suitable for e-bikes

Models:

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Offset:

44 mm

Axle to Crown:

531 mm

Manufacturer Number:

FGMTB 3412 2230

130 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

130 mm

Offset:

44 mm

Axle to Crown:

541 mm

Manufacturer Number:

FGMTB 3413 2230

Contents:

• 1 x ÖHLINS RXF34 m.2 Air 29" Suspension Fork
• 1 x thru-axle
• 1 x threaded wheel clamp
