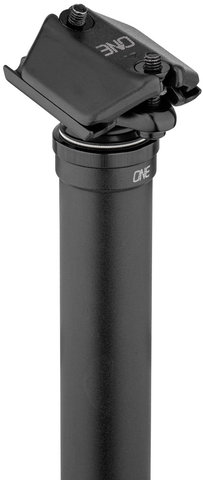

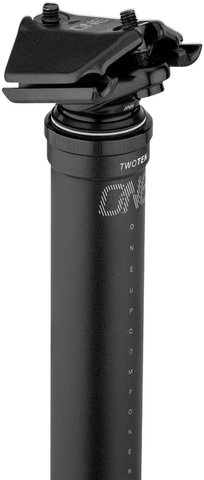

OneUp Components Dropper Post V2 180 mm

Item number: 74138
7
7

OneUp Components 180 mm Dropper Post - easier to adjust


With the OneUp Components Dropper Post V2 you get the completely revised version of the previous OneUp Dropper Post, a 2.0 version if you will. The travel - a maximum of 180 mm in this case - can be reduced by 10 mm or by 20 mm. OneUp Components was obsessed with trying to scrape off as many millimetres as possible from the dropper post to keep the stack height very low and the overall length very short. With this post you can adjust your saddle as low as never before.
The dropper is controlled via cable (remote not included), includes the metal pins for individual adjustment of the travel and of course the reliable sealed cartridge.
In contrast to a hydraulic seatpost, the OneUp dropper post works regardless of the outside temperature. Also: If the remote is damaged, you can still use it by removing it from the frame and operating the adjuster by hand.
Unlike earlier versions, this Dropper Post can even be installed in Santa Cruz bikes with Lower Link VPP damper linkage.
Do you want more from your dropper post? Then do the right thing and get one from OneUp.


Specifications:

Application:
All Mountain, Enduro
Stroke:
180 mm
Diameter:
30.9 mm, 31.6 mm, 34.9 mm
Length:
465 mm
Setback:
0 mm

Technical Information:

Actuation:
mechanical handlebar remote
Cable Routing:
internal
Clamp:
2-bolt clamp
Compatible Saddle Rails:
7 x 7 mm (standard), 7 x 9 mm (oval)
Material:
aluminium

Approved For:

Weight Limit:
125 kg
Insertion Depth (max.):
252 mm (267 mm with actuator)
Insertion Depth (min.):
120 mm

Features:

  • tons of travel (max. 180 mm) with a 213 mm stack height and a 465 mm effective length (without actuator = 15 mm)
  • 345 mm maximum extension length
  • travel can be adjusted by 10 or 20 mm by using metal pins that are placed in guide track (3 for 10 mm, 2x3 for 20 mm)
  • cable actuated for easy installation
  • reliable, sealed cartridge
  • cartridge can be replaced by user
  • easy to maintain at home
  • compared to previous model, has a lower total length and stack, also less weight
  • new DU bushing
  • increased bushing overlap for increased durability
  • Actuator V2.1 compatible with Santa Cruz Lower Link VPP

Models:

30.9 mm / 465 mm / SB 0 mm:
Diameter:
30.9 mm
Length:
465 mm
Setback:
0 mm
Manufacturer Number:
1C0575

31.6 mm / 465 mm / SB 0 mm:
Diameter:
31.6 mm
Length:
465 mm
Setback:
0 mm
Manufacturer Number:
1C0576

34.9 mm / 465 mm / SB 0 mm:
Diameter:
34.9 mm
Length:
465 mm
Setback:
0 mm
Manufacturer Number:
1C0661

Contents:

  • 1 x OneUp Components Dropper Post V2, 180 mm

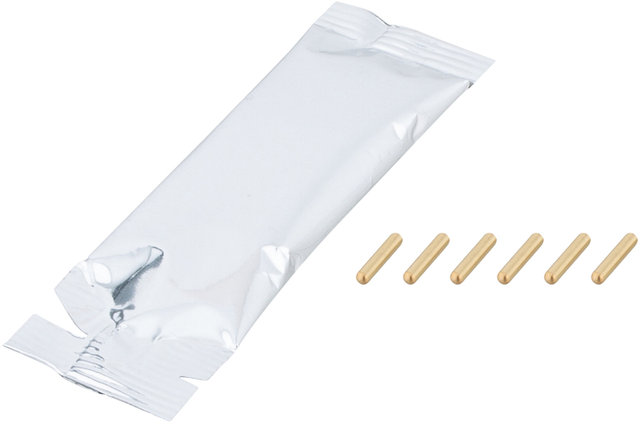

  • 6 x 10 mm metal pins
  • 1 x grease for tubes and seals
  • 1 x cable clamp sleeve

Order Together:



Weight:

  • black/30.9 mm / 465 mm / SB 0 mm: 525 g
  • black/31.6 mm / 465 mm / SB 0 mm: 545 g
  • black/34.9 mm / 465 mm / SB 0 mm: 660 g
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/30.9 mm / 465 mm / SB 0 mm, in stock
    232.83€
  • black/31.6 mm / 465 mm / SB 0 mm, in stock
    232.83€
  • black/34.9 mm / 465 mm / SB 0 mm, in stock
    232.83€

Customer Reviews (7)

5

Customer Reviews (7)

5.0/5.0
5
7
4
0
3
0
2
0
1
0

Give us your opinion on this product.

by Andreas G. on 24.11.2022
verified purchase
item: black/31.6 mm / 465 mm / SB 0 mm
1 of 1 customers found this review helpful.

Immer noch tadellose Funktion nach 3 Jahren im Einsatz. Ich mache im Jahr 80 - 100`000 Hm.

Is this review helpful?
by Jens K. on 06.07.2022
verified purchase
item: black/31.6 mm / 465 mm / SB 0 mm

m.M.n. die beste Sattelstütze in puncto Preis/Leistung

Is this review helpful?
by Oliver B. on 13.06.2022 (modified on 13.06.2022)
verified purchase
item: black/31.6 mm / 465 mm / SB 0 mm

Die Dropper funktioniert unauffällig geschmeidig und zuverlässig. Man hat von Beginn an etwas Spiel am Stützenkopf, aber das ist bei vielen Dropper-Stützen so und stört nicht beim Fahren.
Das Verhältnis Verstellbereich-Gewicht-Preis ist super! Gewicht für die 180-mm-Variante habe ich mit 554g gemessen.

Is this review helpful?
by Jürgen K. on 24.05.2022
verified purchase
item: black/30.9 mm / 465 mm / SB 0 mm
1 of 1 customers found this review helpful.

Funktioniert nun seit 2 Jahren tadellos.
Kein Seitenspiel und baut sehr niedrig.
Kann ich nur empfehlen.

Is this review helpful?
by Marco P. on 29.12.2021
verified purchase
item: black/34.9 mm / 465 mm / SB 0 mm

Ultra in jeder Hinsicht. Ultra leicht einzubauen, ultra leicht zu bedienen. Macht was es soll UND (!) hat für den Hub eine Ultra kurze Gesamtlänge. Sehr geiles feature ist übrigens die Möglichkeit, mit einer Dämpferpumpe den Druck und damit die Ausfahrgeschwindigkeit einzustellen. Richtig geil

Is this review helpful?
by Wolfgang M. on 08.08.2020
verified purchase
item: black/30.9 mm / 465 mm / SB 0 mm
1 of 1 customers found this review helpful.

Ich habe die 180er Stütze nun auf einigen Trails und seit ca 200km in Gebrauch. Kurz gesagt: Sie funktioniert wie sie soll, tadellos. Hatte vorher eine KS 100er, der Umstieg hat sich voll und ganz gelohnt. Mein Mtb ist in den Trails für mich deutlich besser und agiler zu fahren, dies ist auch ein Sicherheitsgewinn. Klasse.
Tipp zum Einbau: Ich hatte den Pro für Korjak Remotehebel auf der linken Seite oberhalb des Umwerfers (3*10 Schaltung) montiert, zur Bedienung von oben nach unten. Funktioniert problemlos, gefiel mir aber nicht. Nun habe ich einen KS Westy auf die rechte Seite oberhalb des Griffes montiert (steht praktisch auf dem Kopf). Bedienbarkeit in Fahrtrichtung nach vorn, also waagerecht. Das klappt prima. Ich bin überzeugt das ginge auch mit der 22er Schelle OneUp. Der Zugweg bis zum auslösen ist schön kurz, sehr angenehm.
Noch ein Tipp: In den Kopf der Sattelstütze passen Klemmnippel mit 6mm Länge. KS Nippel sind zu lang
Beste Grüße, Wg

Is this review helpful?
by Wouter W. on 02.05.2020
verified purchase
item: black/30.9 mm / 465 mm / SB 0 mm
1 of 1 customers found this review helpful.

I have always been a fan of Fox Transfer, till I discovered this dropperpost. With the Fox, I had room for a 150. With the oneup...180! The fox is great but this post beats it with lower stack, less expensive, easy to maintain and spareparts available. Plus service of oneup is great, I’ve experienced with other products of them. First use gives an excellent impression, will have to ride more to say something about the long-term durability.

Is this review helpful?
