ORTLIEB Quick Rack Pannier Rack

The Quick Rack Pannier Rack by ORTLIEB can be quickly attached and removed

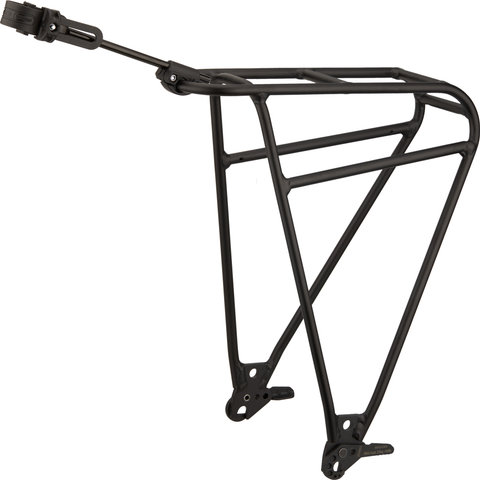

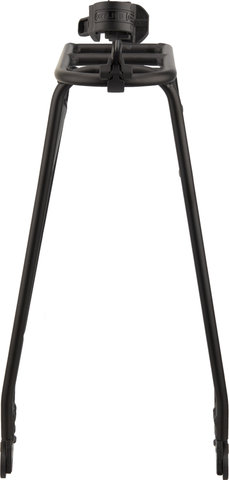

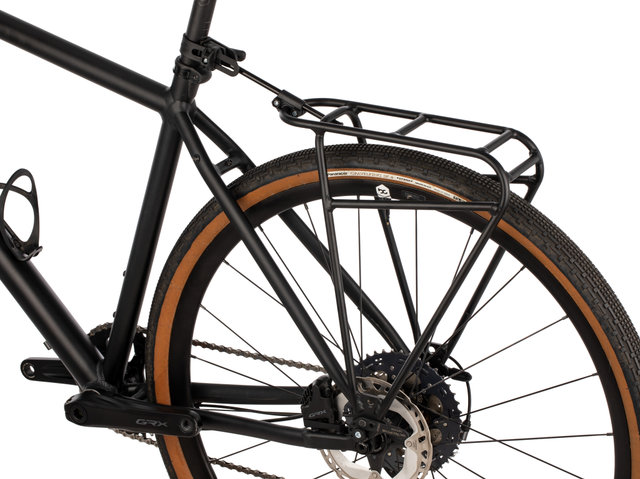

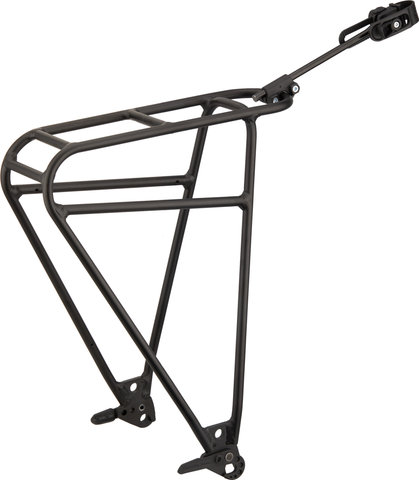

The ORTLIEB Quick Rack with a platform and an additional hanging rail on each side is the ideal solution if you also use your sporty road, gravel or hardtail mountain bike for everyday commuting. Minimalist support points are attached to the frame. Frames with M5 or M6 threads on the dropouts are suitable for this, but alternatively an optionally available Seat Stay Adapter can be used for mounting on the seat stays. Attaching or removing the rack is then a matter of seconds thanks to the quick-release system: 15 seconds to attach, 5 to remove. An additional stay secures it to the seatpost or seat tube. The upper platform with the second hanging level underneath allows the simultaneous use of side panniers with QL1 to QL3.1 system and a rack basket or bag on the top. Safety in the dark has also been made a priority: the pannier rack features a mount for a rear light. It is also remarkably lightweight.

Specifications:

Application:

City, Touring, Gravel

Upper Mount:

seatpost

Lower Mount:

Eyelets on dropouts

Wheel Size:

26" , 27.5" , 28" , 29"

Rail Diameter:

10 mm

Payload (max.):

20 kg

Compatibility:

Frames with M5 or M6 threaded attachment points (alternatively use Seat Stay Adapter), ORTLIEB bicycle bags with QL1-/QL2-/QL2.1/QL3-/QL3.1 mounting system, baskets and bags with Top-Lock adapter system

Technical Information:

Material:

aluminium

Tyre Width (max.):

3" , 2.35" for 29" tyres

Rear Light Hole Distance:

50 mm

Approved For:

Max. Width:

190 mm

Note from the manufacturer:

The pannier rack is not suitable for attaching and using child seats.

Features:

• with quick-release system for temporary use on sports bikes that are also used for everyday use or short trips
• attaches in 15 seconds, can be removed in 5 seconds
• only inconspicuous support points remain on the bike
• support surface for Top-Lock panniers and baskets, 100 mm wide on the outside

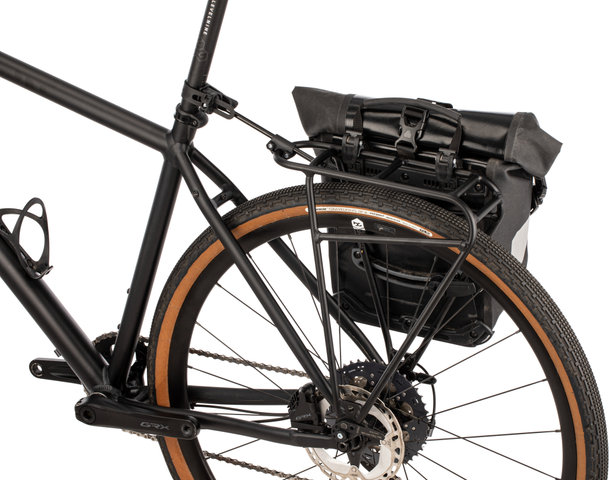

• two hanging levels per side for simultaneous attachment of e.g. basket and side panniers
• very light
• is attached to the seatpost or seat tube at the top by means of a length-adjustable brace, two brace lengths included (extra-long attachment brace with 300 mm length)
• clamp on seatpost or seat tube suitable for diameters from 20 - 40 mm
• attaches to M5 or M6 eyelets at the bottom of the dropout, alternative attachment with Seat Stay Adapter to seat stays possible (not included)
• mount for portable rear light
• attachment elements for QL3/3.1 bags can be screwed on or off as required

Manufacturer Number:

F78104

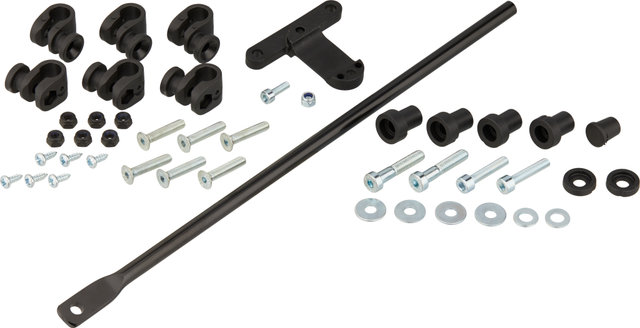

Contents:

• 1 x ORTLIEB Quick Rack pannier rack with short attachment stay
• 1 x ORTLIEB extra-long attachment stay
• 1 x ORTLIEB mounting set
• 1 x ORTLIEB rear light mount
• 1 x ORTLIEB mounting set for QL3/3.1 bags

Order Together:

Optional accessories:

• Quick Rack Seat Stay Adapter Mounting Set for frames without threaded attachment points
• Quick Rack Mudguard
