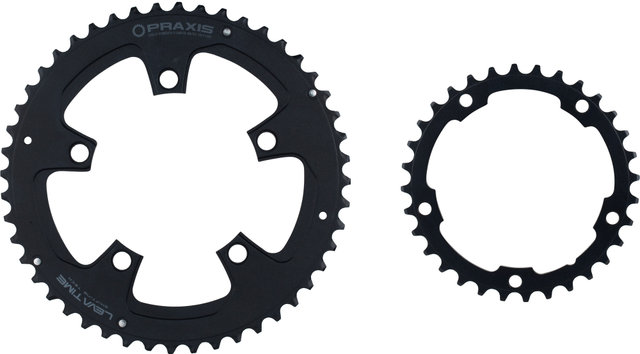

The five-arm Buzz Sport Road chainrings from Praxis Works with 110 mm bolt circle diameter are compatible with 10-speed, 11-speed and 12-speed drivetrains. They are cheaper than the conventional Buzz chainrings and are therefore suitable as quick spare parts.

Specifications:

Application:

Road

Mount:

110 mm bolt circle diameter, 5-arm

Teeth:

32-48 T, 34-50 T, 36-52 T

Gearing:

2x10-speed, 2x11-speed, 2x12-speed

Technical Information:

Material:

aluminium (7075-T6)

Compatibility:

Crank:
34-50 / 36-52:

• traditional 5-arm cranks with 110 mm bolt circle diameter
• also suitable for 4-arm cranks with hidden fifth bolt (e.g. SRAM Exogram)
• compatible with power meters such as Power2Max, SRM and QUARQ

32-48:

• special gradation for Praxis Works Road cranks with 110 mm bolt circle diameter
• also suitable for cranks from Specialized, Bingham and Cane Creek with Praxis Works Spider
• special chainring bolts required (included)

Shifters & Derailleurs:

• Shimano 10-/11-/12-speed, mechanical and Di2
• Campagnolo 10-/11-12-speed, mechanical and EPS
• SRAM 10-/11-12-speed, mechanical and eTap
• also compatible with SRAM Yaw front derailleurs

Note from the manufacturer:

The 32-48 tooth version is not compatible with older Turn cranks from Praxis Works.

Features:

• ideal as low-cost spare parts
• high shifting precision
• cold forged and hard anodised for long service life

Technology:

Cold Forging Process
The primary reason why Praxis Works chainrings are cold forged is because it allows you to produce unique tooth shapes and shifting ramps. In addition, the one-shot process makes the surface harder and more resistant, which is not possible with CNC chainrings. In practice, the process delivers high shifting precision and long service life. The individual angles of the teeth as well as the additional shifting ramps for the drivetrain make these chainrings unique.

LevaTime™
LevaTime shifting technology, developed by engineers in long series of tests, plays a large part in the high shifting comfort of Praxis Works chainrings. Both chainrings are adjusted and matched to each other, right down to the individual shape for each individual chainring tooth, so that its shape and angle are synchronized with the partner chainring.

Manufacturer Numbers:

32-48 tooth:

4832-3012

34-50 tooth:

5034-3012

36-52 tooth:

5236-3012

Contents:

• 1 x Praxis Works Buzz Sport small chainring (32, 34 or 36-tooth)
• 1 x Praxis Works Buzz Sport large chainring (48, 50 or 52-tooth)
• 5 x chainring bolt (only 32-48 t)
• 2 x chain catch bolts
