Specifications:

Application:

Enduro

Wheel Size:

29"

Suspension Type:

air

Travel:

150 mm, 160 mm, 170 mm, 180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (15 x 110 mm)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

42 mm, 51 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

561 mm (150 mm), 571 mm (160 mm), 581 mm (170 mm), 591 mm (180 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 3.2"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• Maxima Plush damping oil reduces friction and ensures less noise

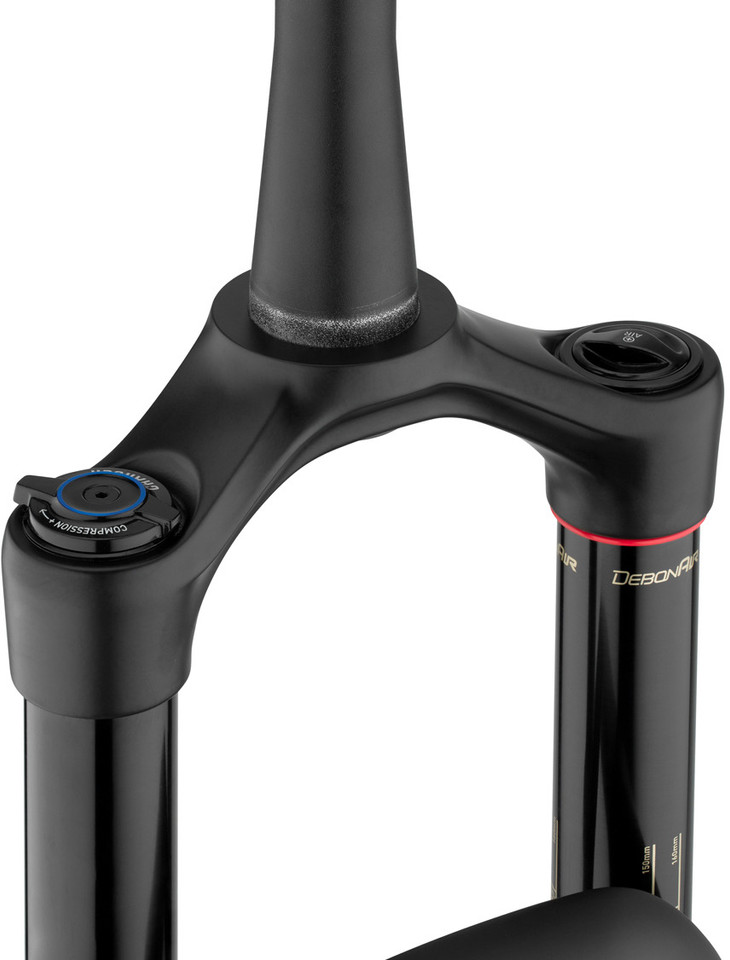

• Charger RC damper with low-speed compression adjustment
• improved and adjustable DebonAir air suspension for a smooth response
• crown adjust
• external rebound adjustment

Models:

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.015

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.014

Travel:

170 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.013

Travel:

180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.012

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.007

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.006

Travel:

170 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.005

Travel:

180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-LYRK-SEL-C3

Manufacturer Number:

00.4020.566.004

Contents:

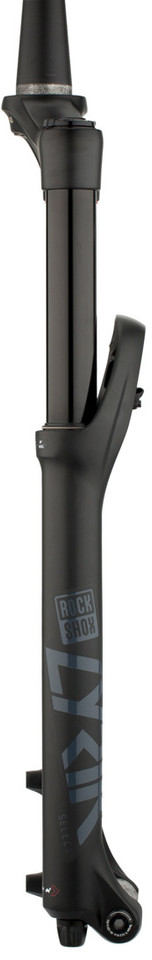

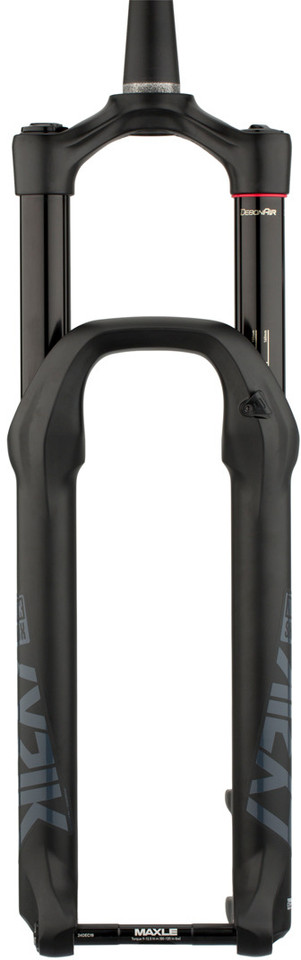

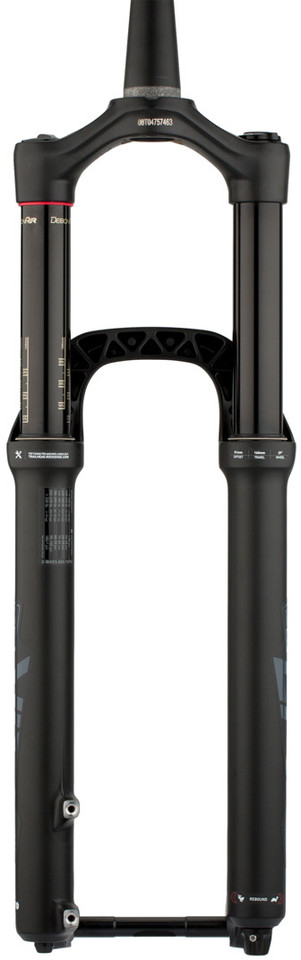

• 1 x RockShox Lyrik Select RC DebonAir suspension fork

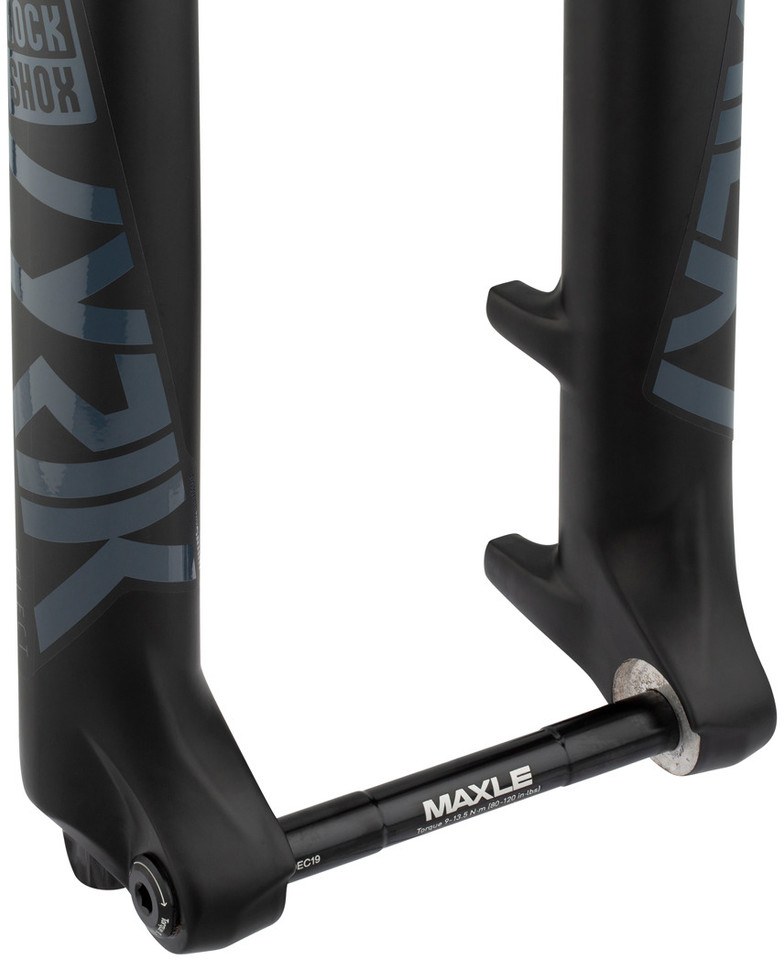

• 1 x RockShox Maxle Stealth thru-axle

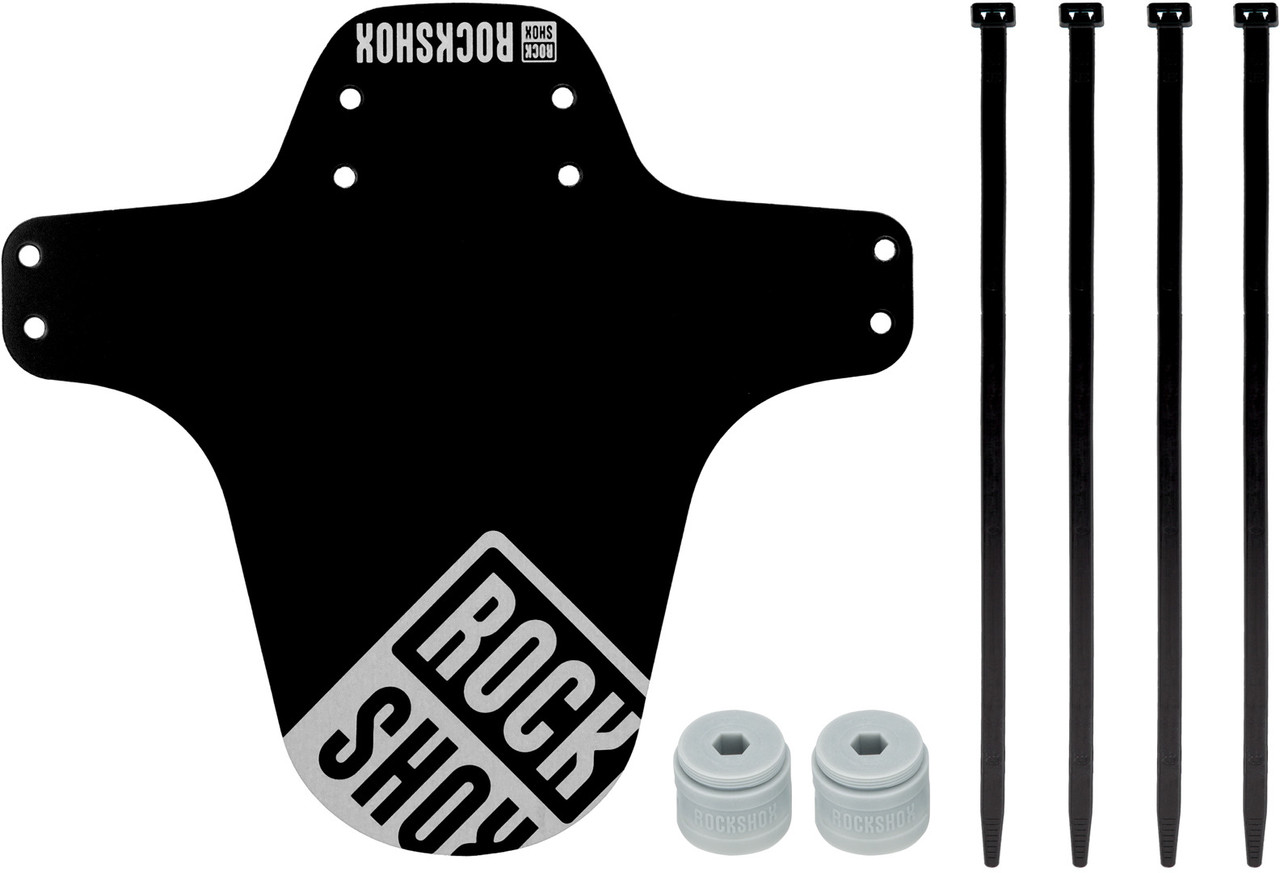

• 2 x RockShox bottomless tokens
• 1 x RockShox fender
• 1 x star nut
