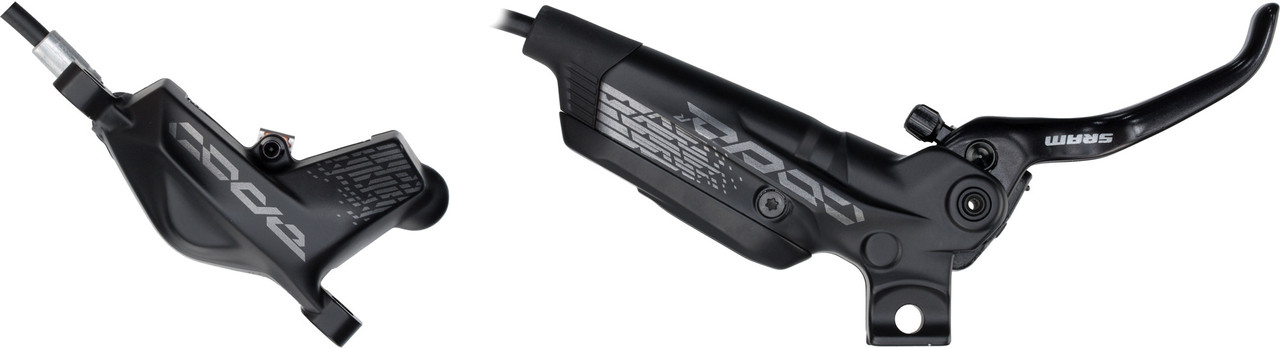

Code R Disc Brake - diffusion black/front

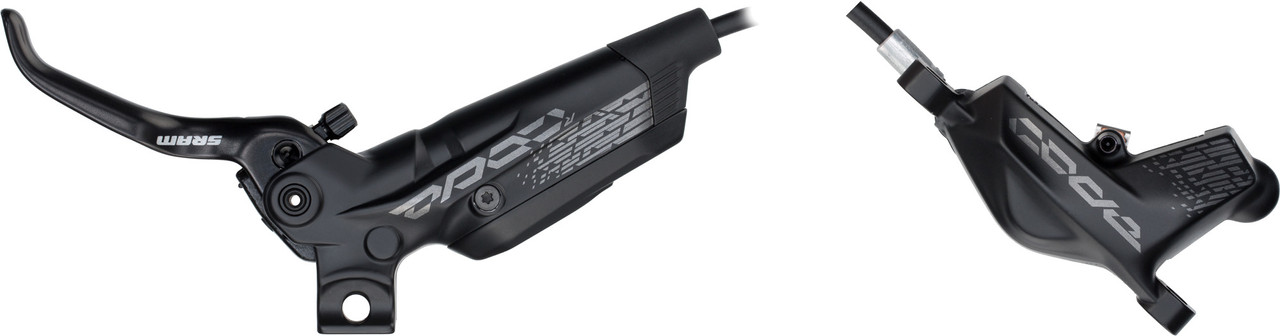

SRAM Code R Disc Brake

Item number: 56587

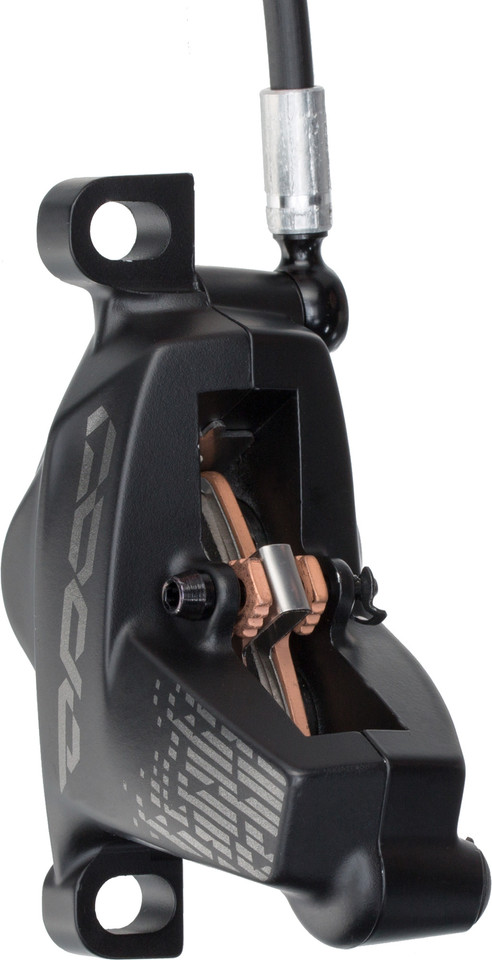

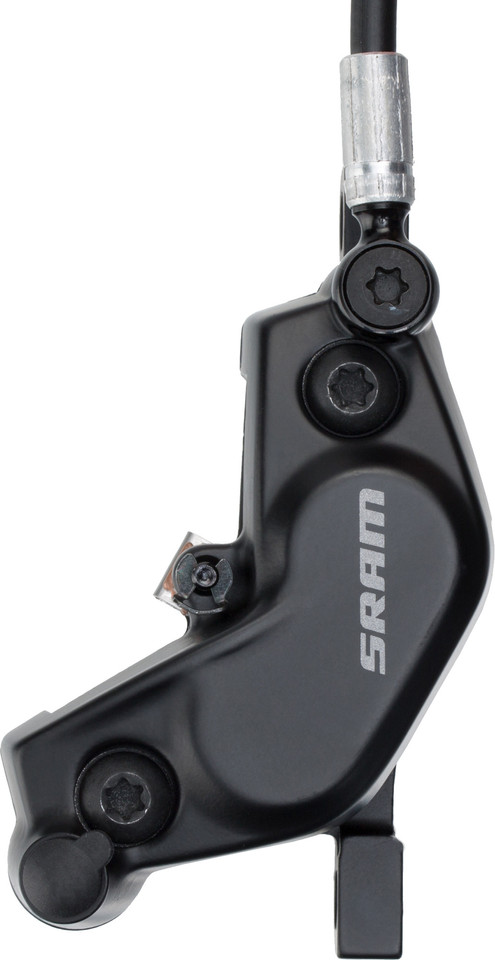

Braking can have different meanings. For the Code, braking means being fast enough to win the downhill world championship or tackle the steepest alpine descents. Or whizzing down a single-trail uphill - thanks to the new E-mountain bike options. The Code is the right tool to slow down riders who ride harder, faster and more intensively. It uses the proven SRAM Guide design and also its technologies. With the larger PiggyBack™ reservoir and a caliper with four larger diameter pistons, it offers consistent and reliable performance for all heavy duty applications. The Bleeding Edge™ technology makes maintenance very easy.

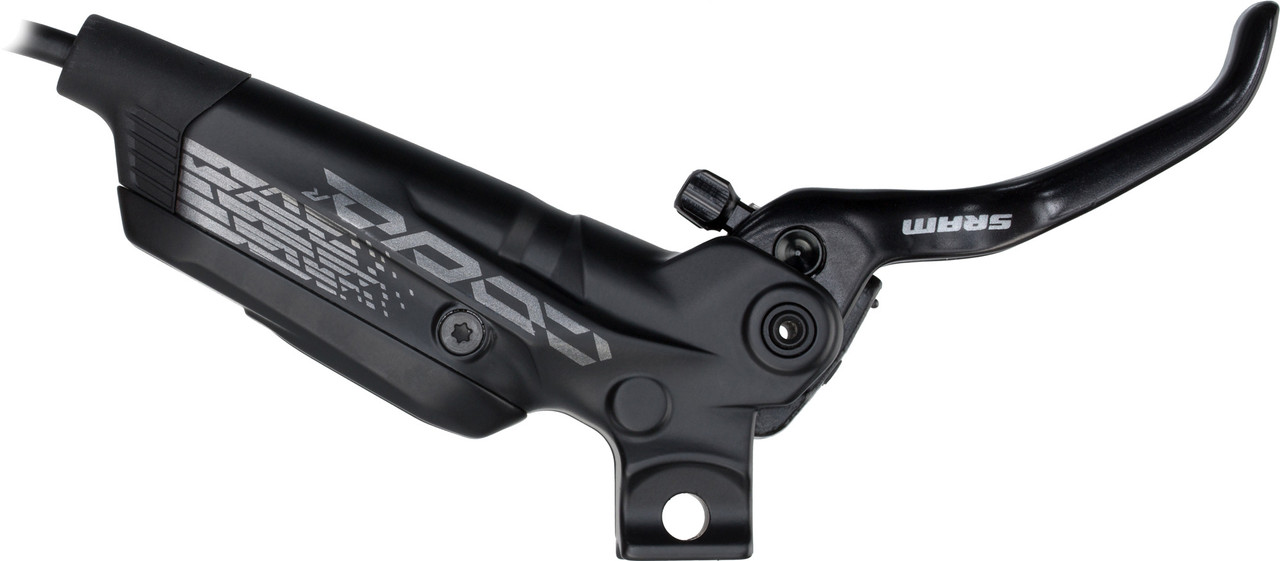

Elegant, easy to use and yet enormously powerful. The Code R features a DirectLink™ lever that perfectly matches the extra-large Code caliper with four pistons. SRAM's proven ergonomics are complemented by tool-free grip width adjustment, so that every rider can find their optimum fit and the first-class braking performance, consistency and modulation can be fully appreciated.


Code R
Enduro, Gravity
post mount (IS with adapter)
DOT 5.1
Brake Rotor:
not incl. (Centerline)
Brake Lever:
disc brake, hydraulic

Technical Information:

Brake Lever Material:
Lever Body Material:
Calliper Material:
Lever Mount:
right or left
reach adjust (with tools)
split / MMX compatible
Front Hose Length:
950 mm
Rear Hose Length:
1800 mm


  • offers maximum braking power, even under the most difficult conditions
  • based on the proven design of the SRAM Guide
  • compared to the SRAM Guide, has a larger Piggyback™ reservoir and 4 larger aluminium brake pistons
  • easy to service
  • practical handle width adjustment


Bleeding Edge™:
Bleeding Edge™ technology enables quick and easy brake bleeding. Thanks to the special fluid channel and specially designed bleeding vent, the fluid can be pumped through the caliper more easily. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

TPC Plus™ (Timing Port Closure):
The synchronisation port of a hydraulic brake is the connection between the reservoir and the master cylinder bore. When the lever is operated, a cup seal passes through this area and closes the opening, putting the system under pressure. SRAM's new TPC Plus™ synchroniser port closure system features durable seals and an ultra-soft cylinder bore surface for reliable and consistent braking performance.

Expandable Bladder:
SRAM's brake lever design includes a new bladder shape that allows air bubbles to be regulated and reduced. The bladder is specially shaped to pump air out of the lever and transport the liquid to exactly where it is needed. The result is improved back pressure relief for reliable and consistent braking performance.

PiggyBack™ Reservoir:
The brake fluid reservoir in SRAM's current lever design is designed for optimum performance and easy handling. The PiggyBack™ reservoir offers a simple and safe solution for checking brake fluid and also allows the levers to be mounted on both sides - so you can swap your levers on the handlebars and brake as easily as on a motorbike.

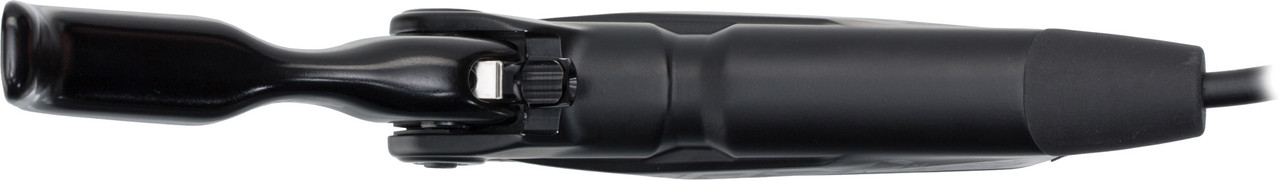

Reach Adjust:
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

DOT 5.1:
Heat is the enemy of every braking system. Through better heat management, your journey will also be much safer. It was found that DOT 5.1 takes three times longer to reach boiling point than DOT 4. This ensures smooth and unbroken braking power under even more extreme conditions.

SRAM's DirectLink™ lever design provides a solid, positive brake feel as soon as the brake lever is pulled - an uncompromising solution for precise control.


front / diffusion black:
  • Type: front
  • Brake Hose Length: 950 mm
  • Colour: black
  • Manufacturer Number: 00.5018.110.000

rear / diffusion black:
  • Type: rear
  • Brake Hose Length: 1800 mm
  • Colour: black
  • Manufacturer Number: 00.5018.110.001

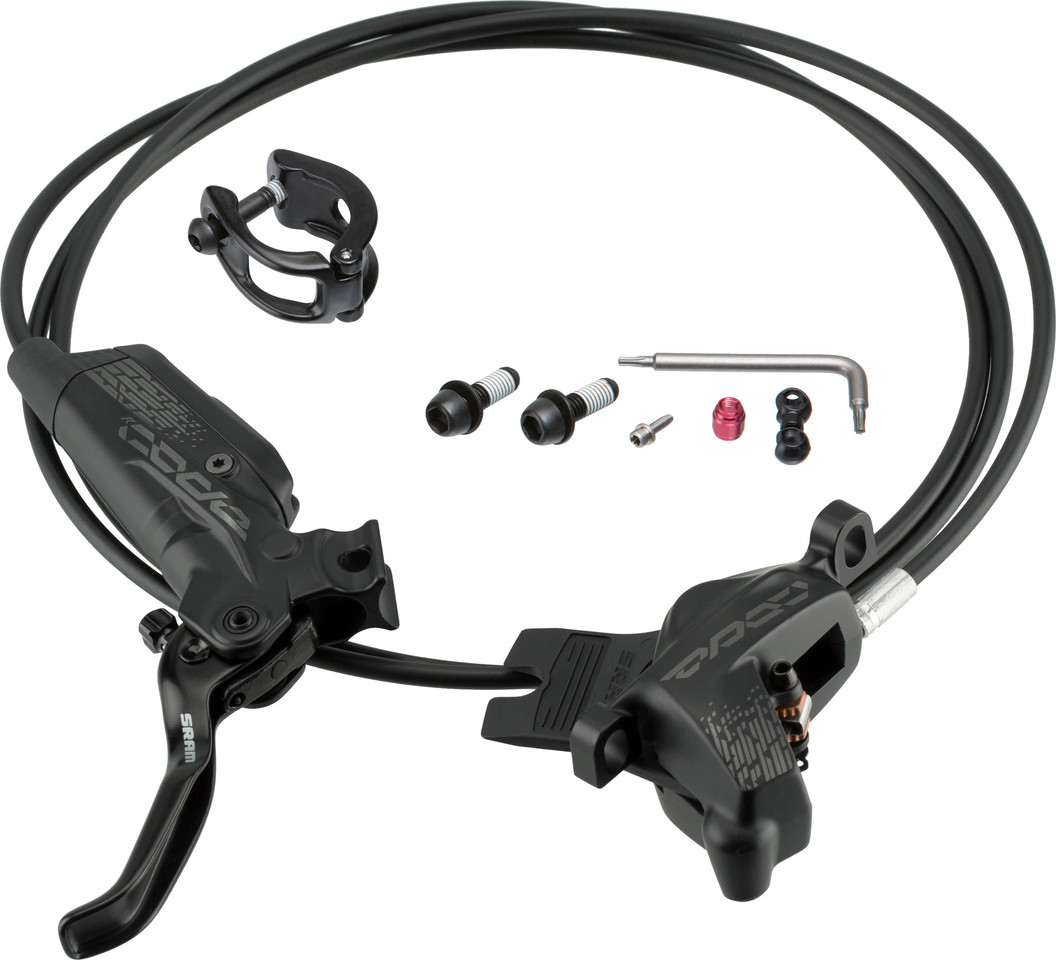

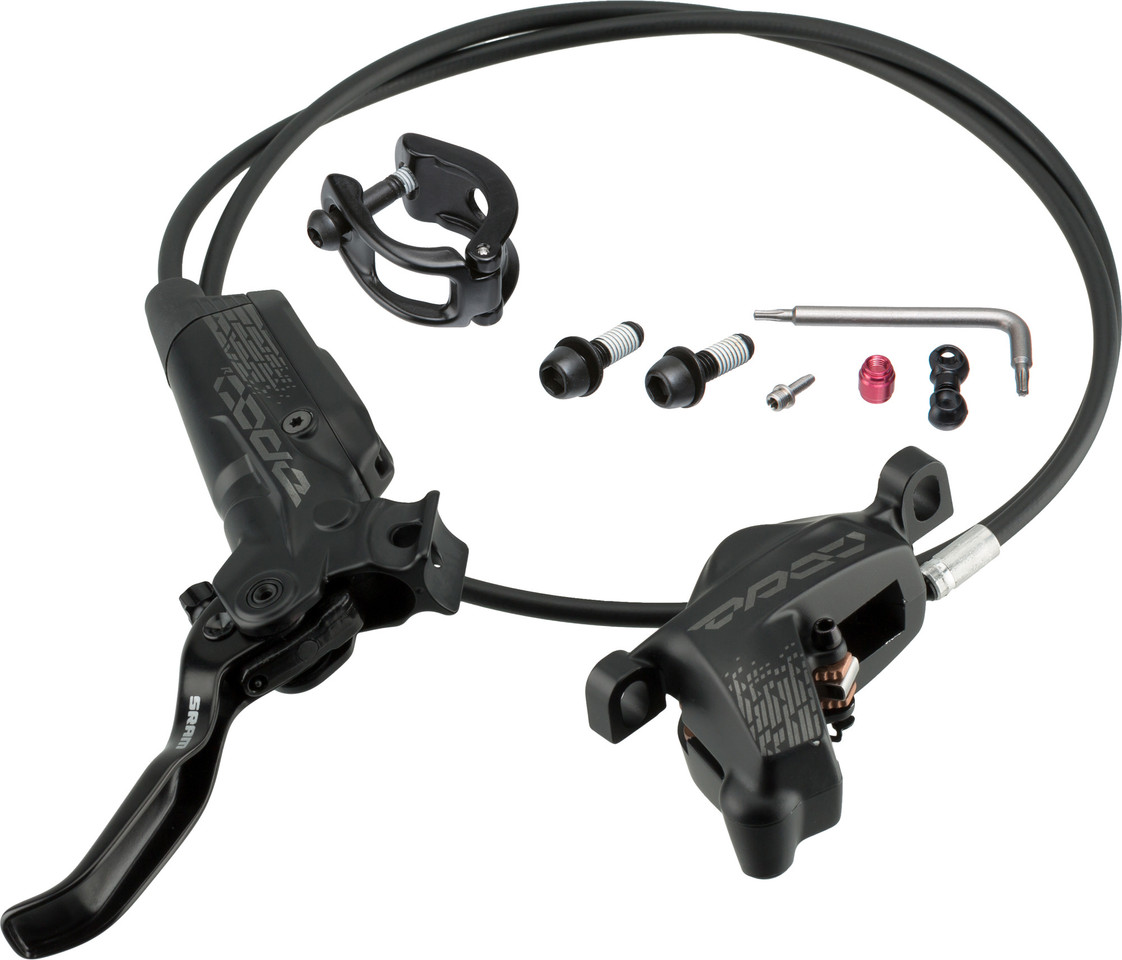

  • 1 x SRAM Code R disc brake, mount ready, filled & bled (front or rear wheel)
  • 1 pair of SRAM sintered brake pads
  • 1 x SRAM clamp
  • 1 x SRAM pad spacer
  • incl. olive + insert
  • incl. bolts
  • not incl. brake rotor
  • not incl. adapter


  • diffusion black/front: 443 g (inkl. Klemme, 160 mm Bremsscheibe)
  • diffusion black/rear: 443 g (inkl. Klemme, 160 mm Bremsscheibe)
