Shimano Acera RD-M3020 8-speed Rear Derailleur

Shimano Acera Rear Derailleur RD-M3020 - Wide compatibility for 8-speed derailleurs

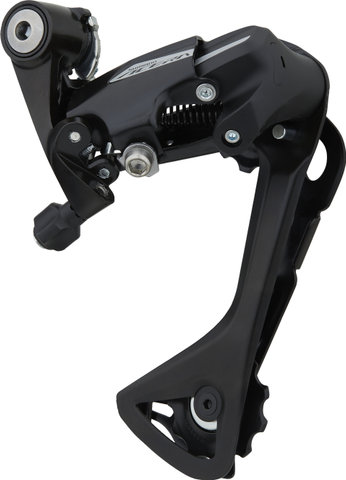

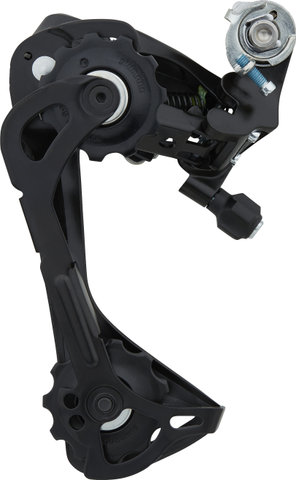

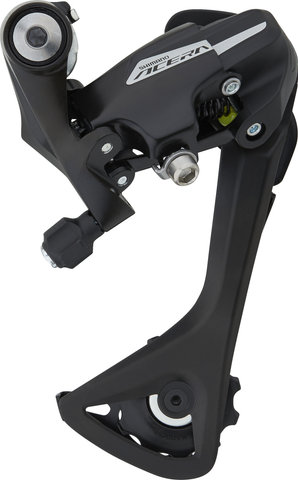

The RD-M3020 rear derailleur from Shimano's Acera series is used on mountain and urban bikes with 8-speed or certain 7-speed gears. Compared to the RD-M360 model, the wide compatibility is worth highlighting: The total capacity is 45 teeth, whereby the largest sprocket of the cassette can have a maximum of 40 teeth. A maximum of 12 teeth is possible on the smallest sprocket. The rear derailleur impresses with precise, fluid gear changes that are reliable even in rough terrain. It is mainly made of steel and has a cable adjuster. The derailleur pulleys have 11 teeth.

Specifications:

Series:

Acera M3000

Application:

All Mountain, Cross Country, City

Gearing:

8-speed, 7-speed

Attachment:

standard

Capacity:

45-tooth

Compatibility:

Shimano MTB / City & Touring 6-/7-/8-speed

Compatibility - Chains:

HG 6-/7-/8-speed

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

steel, stainless steel, aluminium

Compatibility:

MTB 8-speed:

Shifter:

SL-M360-R, SL-M310-8R, SL-M315-8R, SL-RS47-8R, SL-RS45-8R, SL-RV400-8R, ST-M310-8R2, ST-M310-8R4, ST-TX800-8R, ST-EF65-8R2, ST-EF65-8R4, ST-EF500-8R2A, ST-EF500-8R4A, ST-EF510-8R2A, ST-EF510-8R4A, ST-EF505-8R

Cassette:

• 11-40 T: CS-HG400-8
• 11-30 T: CS-HG51-8, CS-HG41-8, CS-HG31-8
• 11-32 T: CS-HG51-8, CS-HG41-8, CS-HG31-8
• 11-34 T: CS-HG41-8, CS-HG31-8
• 12-32 T: CS-HG200-8

Chain:

CN-HG71, CN-HG40

MTB 7-speed:

Shifter:

SL-M310-7R, SL-M315-7R, SL-RS47-7R, SL-RS45-7R, SL-RS36-7R, SL-RS35-7R, SL-RV400-7R, SL-RV300-7R, SL-RV200-7R, SL-FT55-7R, SL-TX50-7R, SL-TX30-7R, SL-TZ500-7R, SL-TZ20-7R, ST-EF65-7R2, ST-EF65-7R4, ST-EF500-7R2A, ST-EF500-7R4A, ST-EF510-7R2A, ST-EF510-7R4A, ST-EF505-7R, ST-EF41-7R

Cassette:

CS-HG200-7 (12-32 T)

Chain:

CN-HG71, CN-HG40

Features:

• double servo rear derailleur for smooth and precise shifting performance
• smooth shifting even in rough terrain
• broad compatibility
• with shift cable adjuster
• a fluorine-coated joint bushing
• recessed derailleur pulley screw

Models:

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

40-tooth

Min. Largest Sprocket Teeth:

30-tooth

Max. Smallest Sprocket Teeth:

12-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

20-tooth

Total Capacity:

45-tooth

Manufacturer Number:

E-RDM30208SGSL

Contents:

• 1 x Shimano Acera RD-M3020 rear derailleur
