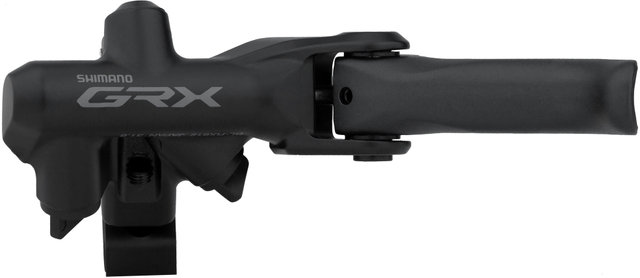

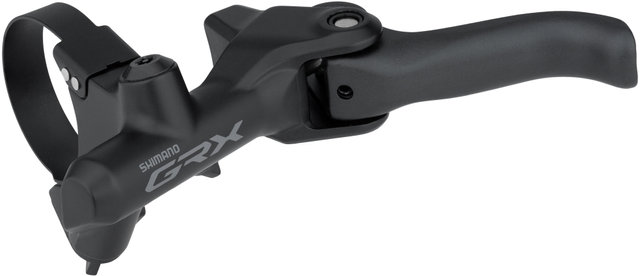

Shimano GRX BL-RX812 Brake Lever

The Shimano BL-RX812 brake lever - when you have to go fast

Shimano has designed the BL-RX812 brake lever as an auxiliary brake lever for the often unexpected challenges of Gravel riding. It is mounted on the upper tops and is connected to the hydraulic brake system. Thanks to this brake lever you can conquer unknown terrain with even more confidence.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX810

Application:

Gravel, Cyclocross, City & Touring

Type:

hydraulic

Actuation:

mineral oil

Hose:

SM-BH90-JK-SSR

Technical Information:

Lever Length:

1-finger

Adjustment Options:

reach adjust (bolt)

Mount:

clamp (closed)

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

Handlebar Type:

Dropbars

Shift/Brake Lever:

ST-R9270, ST-R8170, ST-R9120, ST-R9170, ST-R8020, ST-R8025, ST-R8070, ST-R7170, ST-R7120, ST-R7020, ST-R7025, ST-RX820, ST-RX820-LA, ST-RX810, ST-RX810-LA, ST-RX810-LE, BL-RX820-L, BL-RX810-L, ST-RX815, BL-RX610-L, ST-RX610, ST-RX600, BL-RX600-L, ST-RX400, ST-4720, ST-4725, ST-R9180, ST-R785, ST-RS685, ST-RS505, ST-RS405

Brake Caliper:

BR-RX810 (recommended), BR-R9270, BR-R8170, BR-RX820-LE, BR-R9170, BR-R8070, BR-R7170, BR-R7070, BR-RS785, BR-RX400, BR-4770, BR-R785, BR-RS785, BR-RS805, BR-RS505, BR-RS405

Features:

• hydraulic in-line brake lever for drop bars
• fast braking in upright position
• safer and easily accessible brake from multiple positions
• less fatigue on long distances
• funnel venting with M7 funnel (TL-BR002)
• anodised lever, painted body
• stainless steel clamp bolts

Manufacturer Numbers:

Right:

I-BLRX812R

Left:

I-BLRX812L

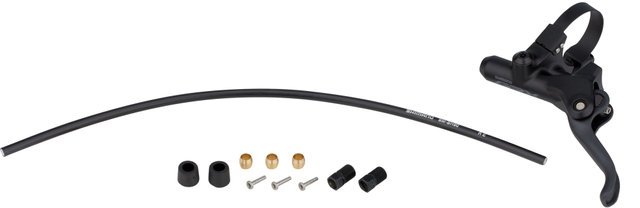

Contents:

• 1 x Shimano GRX BL-RX812 brake lever with left or right
• 1 x Shimano SM-BH90 brake hose
• 3 x olive
• 3 x insert
• 2 x M8 connection screw, black
• 2 x cover

• anthracite/Left (side-specific): 79 g
• anthracite/Right (side-specific): 79 g
