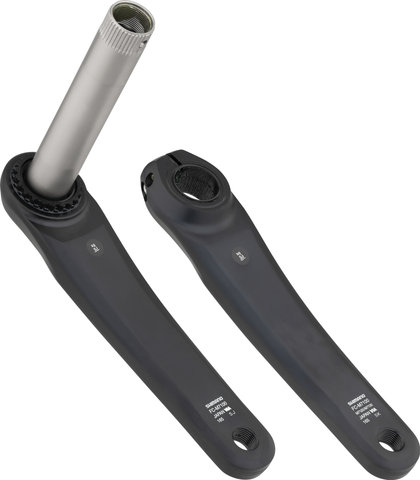

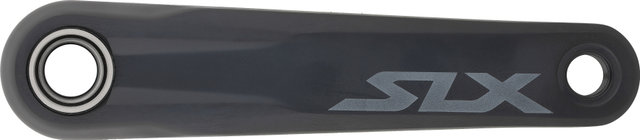

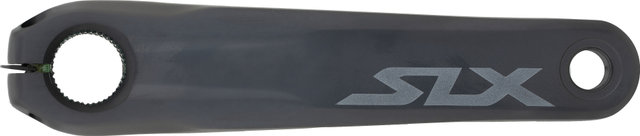

Shimano SLX FC-M7100-1 Hollowtech II Crank

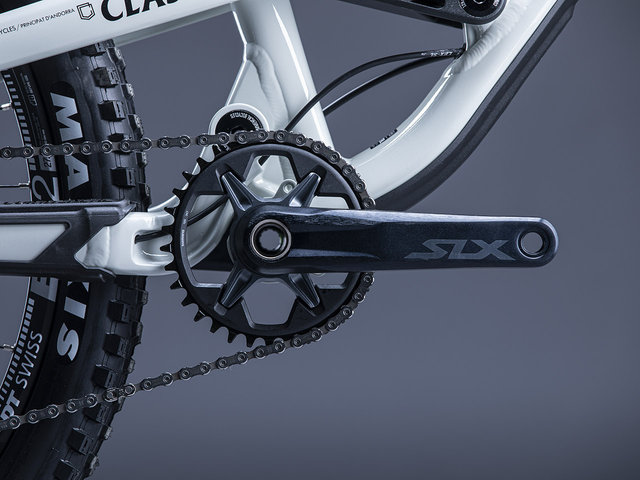

The Shimano SLX FC-M7100-1 cranks - an efficient, safe drivetrain

The Shimano SLX FC-M7100 12-speed crank produces a chainline of 52mm when ridden with a single chainring. It is based on a direct-mount system, which significantly speeds up chainring changes. In combination with a single chainring that has Shimano Dynamic Chain Engagement+ technology (not included), good chain retention, efficiency and low noise are guaranteed. Hollow-forged crank arms reduce weight while providing highly-efficient power transmission. The FC-M7100 crank was designed for leisure and training, not so much for racing. It can also be fitted with two chainrings, resulting in the model FC-M7100-2 for a 48.8 mm chainline.

Specifications:

Application:

All Mountain, Enduro, Cross Country

Compatibility:

1x, 2x

Chainring Mount:

Shimano Direct Mount

Technical Information:

Series:

SLX M7100

Crank Arm Material:

aluminium

Axle Material:

steel

Crank Arm Length:

165.0 mm, 170.0 mm, 175.0 mm

Chainline:

52 mm (1x), 48.8 mm (2x)

Q-Factor:

172 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT801 or BB-MT800-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG 12-speed (e.g. CN-M7100)

Compatibility:

MTB 12-speed:
Rear Over Locknut Dimension:

• quick release / 1x: 135 mm, 141 mm
• quick release / 2x: 135 mm
• thru-axle / 1x: 142 mm, 148 mm
• thru-axle / 2x: 142 mm

Shifter:

SL-M9100, SL-M8100, SL-M7100 (with 2x)

Front Derailleur:

FD-M9100, FD-M8100, FD-M7100 (with 2x)

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chainrings:

• 1-speed: SM-CRM75
• 2-speed: Y-0JB26000, Y-0JB98010

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100-12

Features:

• smoother riding on rough terrain
• stiff, lightweight design increases fun riding on trails
• hollow forged crank arms maximise power transfer without increasing weight
• lighter gear ratios than competition cranksets
• anodised crank arms

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

165.0 mm:

I-FCM71001AXXT

170.0 mm:

I-FCM71001CXXT

175.0 mm:

I-FCM71001EXXT

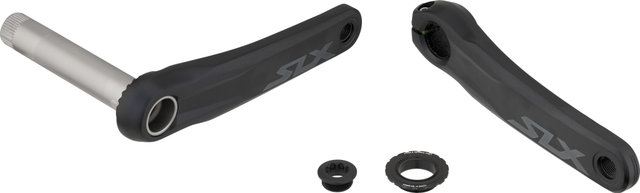

Contents:

• 1 x Shimano SLX FC-M7100-1 crank
• 1 x Shimano lockring
• 1 x Shimano crank bolt

Order Together:

• SM-CRM75 Single Chainrings (30, 32, 34 T)
• TL-FC41 Chainring Assembly Tool
