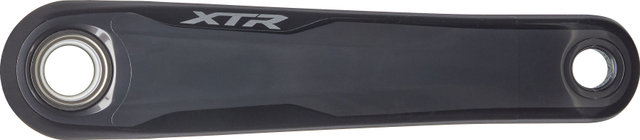

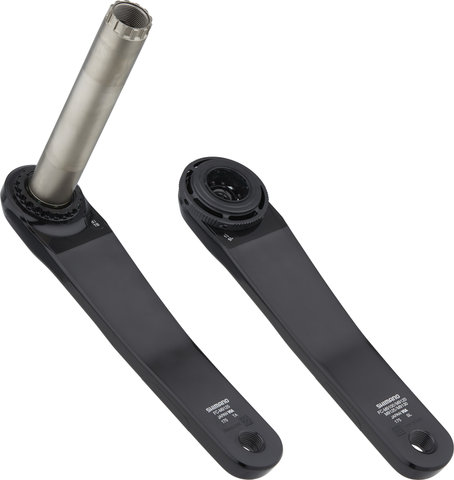

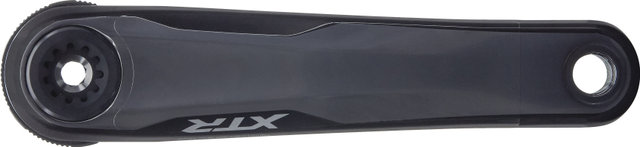

Shimano XTR Enduro FC-M9125-1 Hollowtech II Crank

The Shimano XTR Enduro FC-M9125-1 Crank - For 148 mm Over Locknut Dimension, Large Q-factor

The FC-M9125-1 Enduro crank from Shimano's XTR series is, in contrast to the FC-M9120, only compatible with frames with 148 mm over locknut dimension. It produces a chainline of 55 mm and has a significantly wider Q-factor of 174 mm. This supports manoeuvrability in aggressive trail riding. The tried-and-tested Hollowtech II construction ensures an ideal ratio of stiffness and weight, especially since everything is done to save as much ballast as possible in the high-end XTR series. For example, the FC-M9125 weighs approx. 570 grams and is thus clearly below the level of comparable XT or SLX cranks. The model is based on a direct-mount system that ensures a quick chainring change. Combine it with a Shimano Dynamic Chain Engagement+ chainring with a high-precision manufactured tooth profile (not included) and you get a front drive of highest efficiency and low noise that guarantees good chain retention.

Specifications:

Application:

Enduro

Compatibility:

1x

Chainring Mount:

Shimano Direct Mount

Technical Information:

Series:

XTR M9100

Crank Arm Material:

Aluminium

Axle Material:

steel

Crank Arm Length:

165.0 mm, 170.0 mm, 175.0 mm

Chainline:

55 mm

Q-Factor:

174 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

SM-BB93 or SM-BB94-41A Press Fit Hollowtech II (not included)

Recommended Chain:

HG 12-speed (e.g. CN-M9100)

Compatibility:

MTB 1x12-speed:
Rear Over Locknut Dimension:

• thru-axle: 148 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chainring:

SM-CRM95

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Features:

• Direct Mount chainring mount
• supports aggressive riding and improved manoeuvrability
• chain guide and retention excellent for comfortable riding in rough terrain (chainring not included)
• anodised crank arms

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

165.0 mm:

I-FCM91251AXX

170.0 mm:

I-FCM91251CXX

175.0 mm:

I-FCM91251EXX

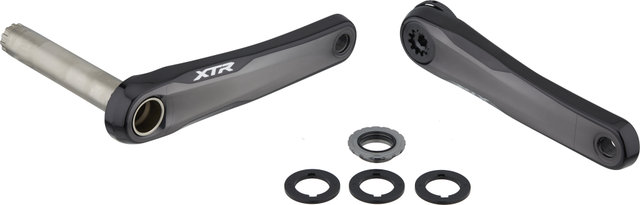

Contents:

• 1 x Shimano XTR FC-M9125-1 crank
• 1 x Shimano lockring
• 3 x spacers

Order Together:

• SM-CRM95 Single Chainrings (32 T, 34 T)
• TL-FC41 Chainring Assembly Tool
