Shimano SLX SL-M7000-I 2-/3-/10-/11-speed Shifter w/ I-Spec II

The SLX SL-M7000-I shifters by Shimano - With the advantages of I-Spec II

The Shimano SLX SL-M7000-I shifter now also uses the I-Spec II system, as was previously the case with the XTR and XT. This not only enables space-saving, weight-reducing and neat integration of the shift and brake levers on the handlebars, it also allows flexible positioning. Like the clamp version, the SL-M7000-I impresses with stable shifting, ergonomic design and minimal operating forces. Behind this is the proven Rapidfire Plus technology, with which up to three gear steps can be shifted down with one shift stroke, as well as the 2-Way Release function. This allows the release lever to be operated by pulling it with the index finger or pressing it with the thumb and the low-friction Optislick cable to be released in two directions. The SLX shifter is available in three versions - for the left as a 2-/3-speed shifter (no mode converter required) and for the right as a 10-speed or 11-speed shifter.

Specifications:

Series:

SLX M7000

Application:

Cross Country, Enduro, All Mountain

Gearing:

2/3x, 10-speed, 11-speed

Mount:

I-Spec II

Technical Information:

Type:

Rapidfire Plus

Body Material:

aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Housing:

OT-SP41

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 2x11-speed:

Front Derailleur:

FD-M9020, FD-M9025, FD-M8020, FD-M8025, FD-M7020-11, FD-M7025-11, FD-M5100

Crank:

FC-M9000-2, FC-M9020-2, FC-M9020-B2, FC-M8000-2, FC-M8000-B2, FC-M7000-2, FC-M7000-B2, FC-M5100-2, FC-M5100-B2, FC-MT700-2, FC-MT700-B2, FC-MT600-2, FC-MT600-B2

Rear Derailleur:

RD-M9000, RD-M8000, RD-M7000-11, RD-M5120, RD-M4120

Cassette:

CS-M9001, CS-M8000, CS-M7000-11, CS-M5100-11

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Lever:

I-Spec II

MTB 3x11-speed:

Front Derailleur:

FD-M9000, FD-M8000

Crank:

FC-M9020-3, FC-M8000-3

Rear Derailleur:

RD-M9000-SGS, RD-M8000-SGS

Cassette:

CS-M9001, CS-M8000, CS-M7000-11, CS-M5100-11

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Lever:

I-Spec II

MTB 2x10-speed:

Front Derailleur:

FD-M617, FD-M618, FD-M6020, FD-M6025, FD-M4100

Crank:

FC-M627, FC-M627-B, FC-M617, FC-M617-B2, FC-M6000-2, FC-M6000-B2, FC-M4100-2, FC-M4100-B2, FC-MT500-2, FC-MT500-B2

Rear Derailleur:

RD-M5120-SGS, RD-M6000-GS

Cassette:

CS-M4100-10, CS-HG500-10, CS-M771-10, CS-HG81-10, CS-HG50-10, CS-6700, CS-5700, CS-4600

Chain:

CN-HG95, CN-HG54

Brake Lever:

I-Spec II

MTB 3x10-speed:

Front Derailleur:

FD-M7000-10, FD-M7005-10, FD-M611, FD-M610, FD-M6000

Crank:

FC-M552, FC-M7000-10, FC-M622, FC-M523, FC-MT500-3, FC-M6000-3

Rear Derailleur:

RD-M7000-10, RD-T8000, RD-M6000-SGS, RD-T6000, RD-T780, RD-T670-A, RD-T610

Cassette:

CS-M4100-10, CS-HG500-10, CS-M771-10, CS-HG81-10, CS-HG50-10, CS-6700, CS-5700, CS-4600

Chain:

CN-HG95, CN-HG54

Brake Lever:

I-Spec II

Features:

• max. number of gears per shift: 3 (main lever, rear)
• ergonomic design for less shifting effort
• 20% easier rear shifting
• uniformly stable shifting operations
• tidy, adjustable cockpit
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

I-Spec II
I-Spec II describes a variant of the connection between the brake lever and the shift lever on MTB or, more precisely, flatbar gears from Shimano. This type of mount makes for a tidy cockpit as it reduces the number of clamps needed. On some models it is also possible to adjust the shift lever both horizontally and vertically in relation to the brake lever. Then there is 12 mm of adjustment travel in the longitudinal direction and/or up to 15° of rotation - for optimum ergonomic adaptation to your riding style, seat position and anatomy.

Models:

2/3x:

Mount:

left

Manufacturer Number:

I-SLM7000ILBP

10-speed:

Mount:

right

Manufacturer Number:

I-SLM700010IRAP

11-speed:

Mount:

right

Manufacturer Number:

I-SLM700011IRAP

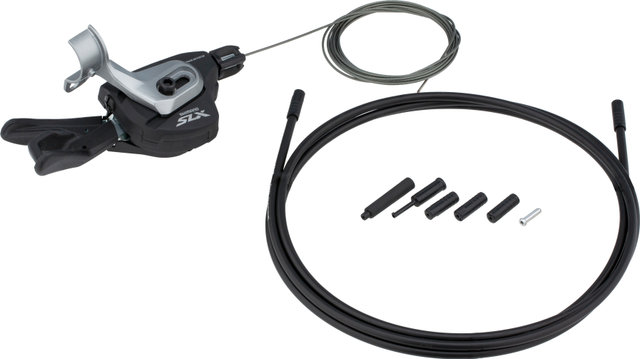

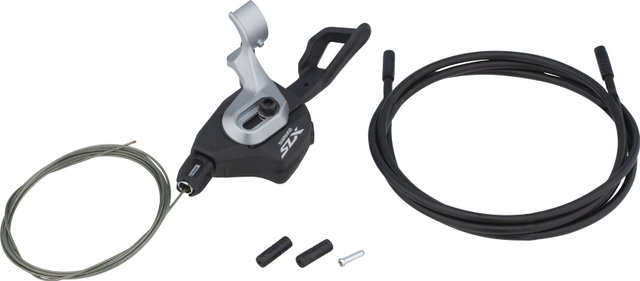

Contents:

• 1 x Shimano SLX SL-M7000-I shifter
• 1 x Shimano cable, 1800 mm or 2050 mm
• 1 x Shimano 1320 mm cable housing or 1880 mm
• 2 x or - 3 x Shimano 6 mm sealed end caps
• 1 x Shimano long nose end cap (not w/ 2/3x)
