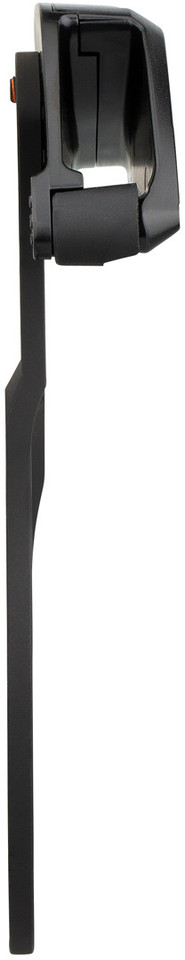

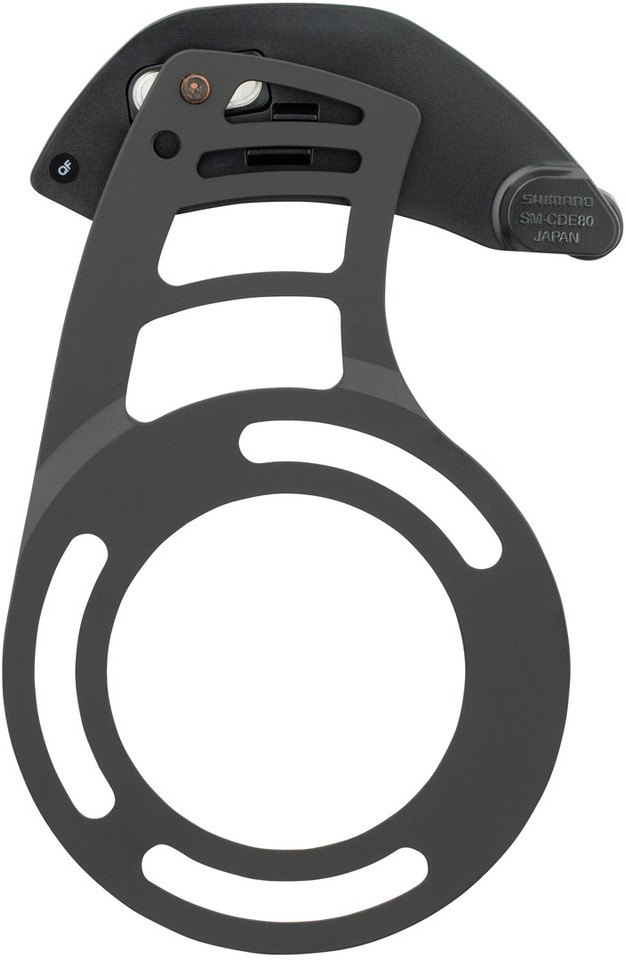

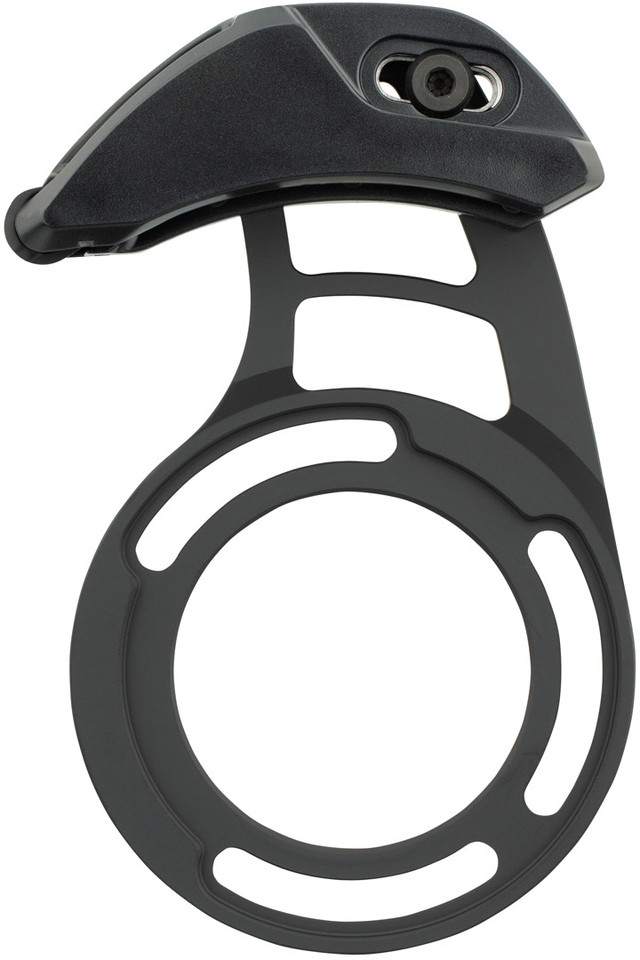

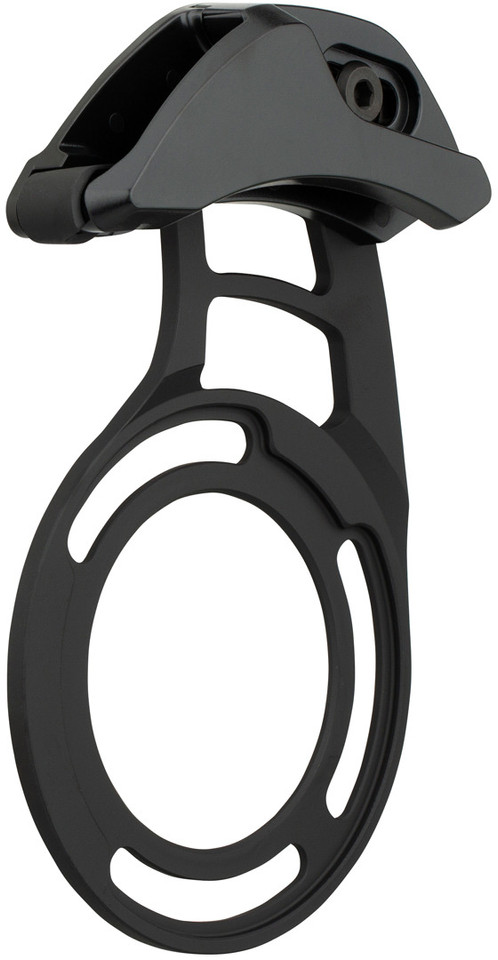

Shimano SM-CDE80 Chain Guide - With mounting plate for STEPS motor

The Shimano SM-CDE80 chain guide is compatible with DU-E8000 and other STEPS drive units and is mounted directly there, with the mounting plate included. The chain guide is made of aluminium and is suitable for a chainring with 34 or 38 teeth. Both 10- and 11- as well as 12-speed chains can be used with it.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country

Material:

aluminium, synthetic resin

Mount:

direct mount on drive unit (w/ plate)

Chain Guide Capacity:

34 T, 38 T

Compatibility:

10-speed, 11-speed, 12-speed

Compatibility:

Motors:

• EP8 DU-EP801
• EP8 DU-EP801-CRG
• EP8 DU-EP800
• EP6 DU-EP600
• EP6 DU-EP600-CRG
• STEPS DU-E8000
• STEPS DU-E7000
• STEPS DU-E8080 (Japanese market only)

Chainline:

• 53 mm (with plate)
• 50 mm (only without plate, for direct mounting on frame)

Recommended Cassette Gradation:

• 10-45 T
• 10-51 T
• 11-36 T
• 11-40 T
• 11-42 T
• 11-46 T

Rear Shock Travel:

• 0 to 170 mm

Features:

• resin chain guide
• anodised aluminium mounting plate

Manufacturer Number:

I-SMCDE80

Contents:

• 1 x Shimano SM-CDE80 chain guide
• 1 x mounting plate

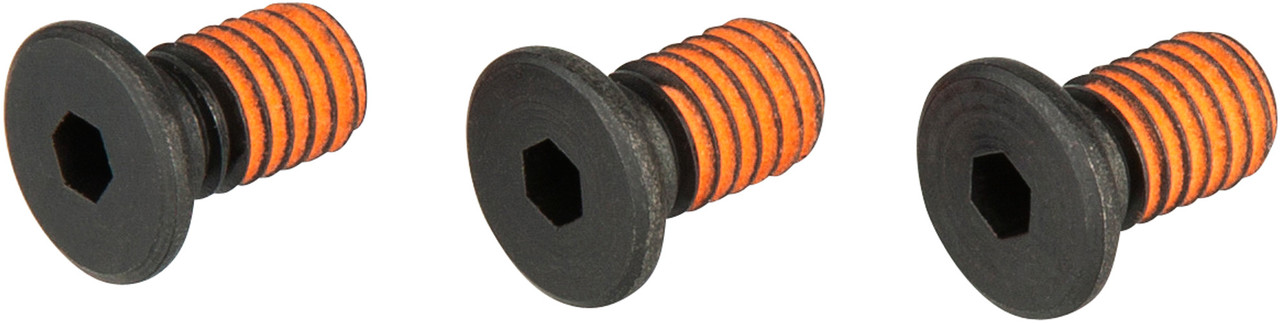

• 3 x M6 bolts
