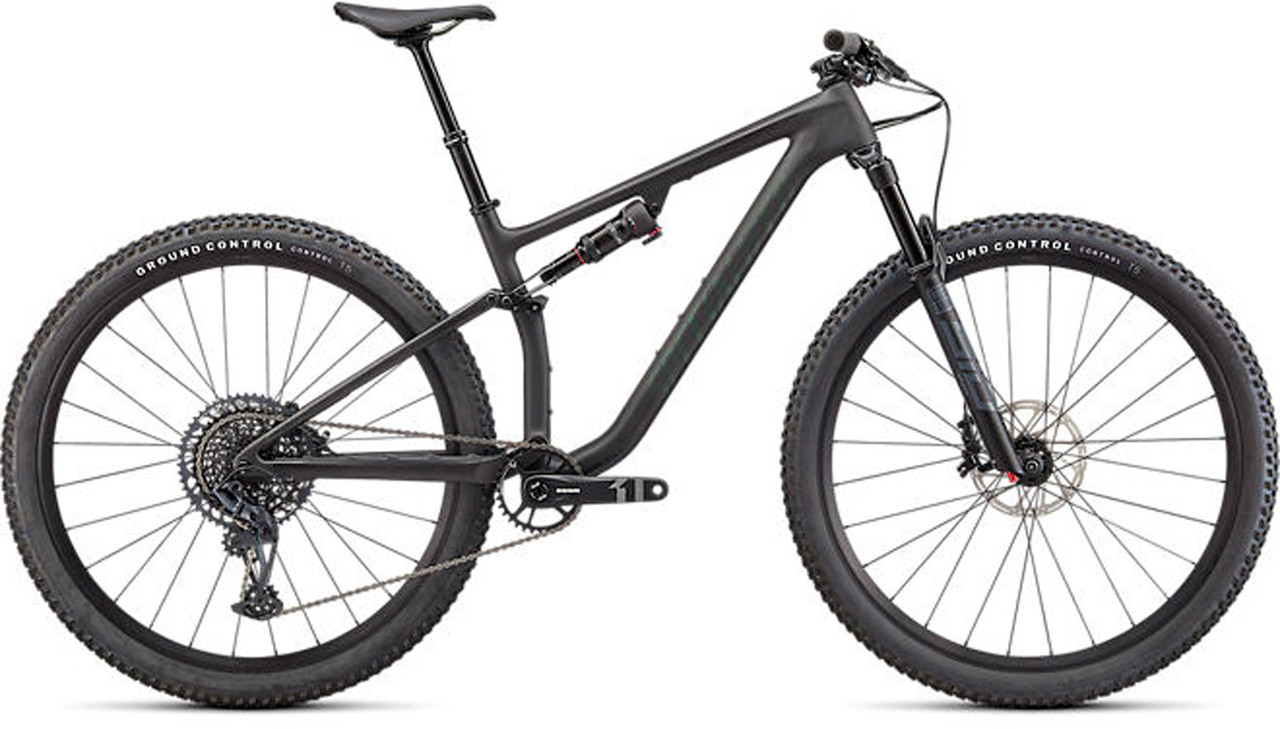

The Specialized Epic EVO Comp 29" Mountain Bike - Powerful and fun at the same time

The Epic EVO Comp from Specialized is a full-suspension carbon cross-country bike with SRAM GX Eagle 1x12-speed groupset, GS RS 4-piston brake, X-Fusion Manic Dropper Post and aluminium wheels. It stands for efficiency, an ideal stiffness-to-weight ratio and for performance and riding pleasure in equal measure. A Flip Chip allows you to adjust the head tube angle by half a degree and raise the bottom bracket by six millimetres, which lets you better adapt the handling to your riding style. The seatpost impresses with its infinitely adjustable travel, while the powerful disc brake ensures that safety is maintained at all speeds. Tubeless-compatible 30 mm rims and Ground Control tyres from Specialized help you achieve optimum traction.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Front Travel:

120 mm

Rear Travel:

110 mm

Sizes:

M, L, XL

Front Triangle Material:

carbon (11m)

Rear Triangle Material:

Carbon

Components:

Frame:

FACT™ 11m carbon, progressive XC race geometry, 12 x 148 mm boost

Fork:

RockShox SID Select+, Charger RL damping, DebonAir, 44 mm offset, 114 mm trail, 15 x 110 mm Boost

Stem:

Specialized, aluminium, 35.0 mm

Handlebars:

Specialized, aluminium, 20 mm rise, 35.0 mm

Grips:

Specialized Trail

Rear Shock:

RockShox Deluxe Select+, RX XC Tune, Two Position, Rebound Adjust, 190 x 40 mm

Remote System:

none

Headset:

Specialized S142500003 (1 1/8" top, 1.5" bottom, IS)

Seatpost:

X-Fusion Manic, 0 mm setback, 30.9 mm

Saddle:

Specialized Body Geometry Power Sport, steel struts

Crank:

SRAM X1 Alloy Eagle, 12-speed, SRAM DUB BSA 73 mm bottom bracket, 32 t chainring

Pedals:

none

Brakes:

SRAM G2 RS, hydraulic disc brake, 4 pistons, 180 mm/180 mm

Shift Lever:

SRAM GX Eagle, 12-speed

Rear Derailleur:

SRAM GX Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10-52 t

Chain:

SRAM NX Eagle, 12-speed

Rims:

Specialized 29, aluminium, hookless, 30 mm jaw width, tubeless ready

Spokes:

DT Swiss Industry

Front Hub:

aluminium, sealed cartridge bearings, 15 x 110 mm thru-axle, 28 holes

Rear Hub:

aluminium, sealed cartridge bearings, 12 x 148 mm thru-axle, 28 holes

Front Tyre:

Specialized Ground Control, Control carcass, 2Bliss Ready, 29 x 2.35"

Rear Tyre:

Specialized Ground Control, Control carcass, 2Bliss Ready, 29 x 2.35"

Approved For:

Weight Limit:

125 kg (rider + gear)

Chainrings:

1x

Features:

• light, stiff, powerful bike for lots of riding fun
• ride characteristics adjustable via flip chip (steerer tube angle by 0.5°, bottom bracket by 6 mm)
• seatpost with infinitely adjustable stroke
• 4-piston brake for well-controlled braking force
• tubeless-ready rims with 30 mm inner width
• tread pattern for optimum traction
• internal cable routing
• 34.9 mm aluminium seat clamp
• standard tubes (Presta)
• including Cage Mount multi-tool for attachment to SWAT™ bottle cages

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

Rider-First Engineered™
Rider-First Engineered describes the design approach used by Specialized to precisely match each frame size to the target group. Simply put, smaller frames for smaller riders are built in a different way than larger frames for larger riders. This is done on the basis of performance parameters determined in practical tests, taking into account the forces acting on different areas of the bike when riders of different sizes ride it. Based on this analysis, the optimum tube dimensions and the appropriate carbon fibre covering for the respective frame size are determined. This way you can be sure that no matter what your height is, you will receive a bike that delivers optimal and controllable performance suited to your size.

Geometry:

(based on a fork axle to crown length of 530 mm)
M:

Recommended Height:

165 - 178 cm

Stack:

597 mm

Reach:

436 mm

Seat Tube Length:

430 mm

Top Tube Length:

602 mm

Head Tube Length:

100 mm

Chainstay Length:

438 mm

Wheelbase:

1164 mm

Bottom Bracket Height:

336 mm

BB Drop:

36 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

66.5°

Standover Height:

781 mm

Stem Length:

60 mm

Handlebar Width:

760 mm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost adjustment travel:

125 mm

L:

Recommended Height:

178 - 185 cm

Stack:

611 mm

Reach:

460 mm

Seat Tube Length:

470 mm

Top Tube Length:

629 mm

Head Tube Length:

115 mm

Chainstay Length:

438 mm

Wheelbase:

1194 mm

Bottom Bracket Height:

336 mm

BB Drop:

36 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

66.5°

Standover Height:

793 mm

Stem Length:

60 mm

Handlebar Width:

760 mm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost adjustment travel:

150 mm

XL:

Recommended Height:

185 - 193 cm

Stack:

629 mm

Reach:

485 mm

Seat Tube Length:

520 mm

Top Tube Length:

659 mm

Head Tube Length:

115 mm

Chainstay Length:

438 mm

Wheelbase:

1227 mm

Bottom Bracket Height:

336 mm

BB Drop:

36 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

66.5°

Standover Height:

804 mm

Stem Length:

60 mm

Handlebar Width:

760 mm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost adjustment travel:

150 mm

Manufacturer Numbers:

satin carbon-oak green metallic:

94822-520

gloss ca white sage-sage green:

94822-500

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Epic EVO Comp Carbon 29" Mountain Bike
• 1 x Specialized SWAT EMT Cage Mount Tool
