Tektro TR-17 6-bolt Brake Rotor for E-bikes

Tektro TR-17 6-bolt Brake Rotor - 2.3 mm thick, for e-bike disc brakes

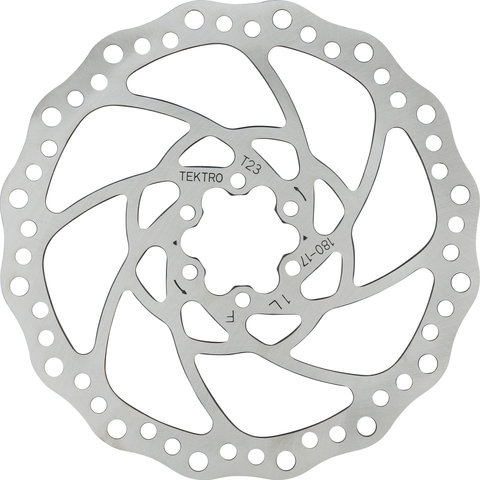

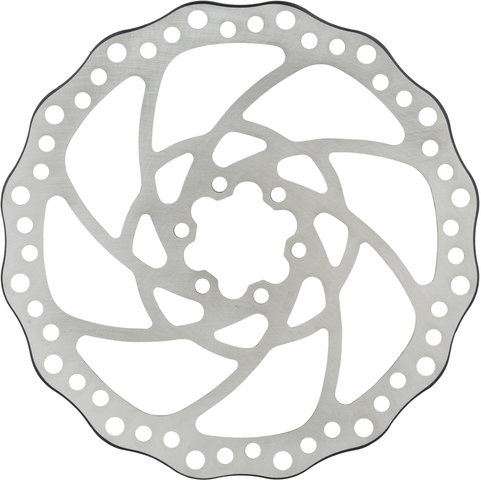

TR-17 is a one-piece 6-bolt brake rotor from Tektro made of 2.3 mm thick stainless steel, which is only compatible with Tektro e-bike brakes. It impresses with very good heat dissipation and heat tolerance.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Technical Information:

Mount:

6-bolt

Diameter:

180 mm, 203 mm

Design:

1-piece

Rotor Material:

stainless steel

Approved For:

Brake Compatibility:

HD-M750, HD-E745, HD-E740, HD-E735, HD-E730, HD-T390

Features:

• 2.3 mm thick
• only for e-bike brakes by Tektro
• very good heat dissipation and heat tolerance

Manufacturer Numbers:

180 mm:

ABRT000051TR180-17

203 mm:

ABRT000074TR203-17

Contents:

• 1 x Tektro TR-17 brake rotor
• 6 x bolts

• silver/180 mm: 192 g
