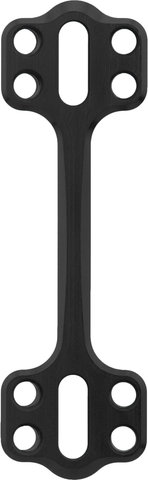

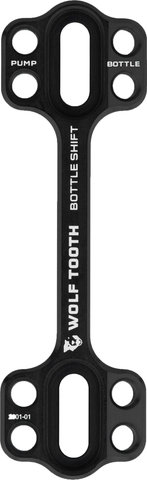

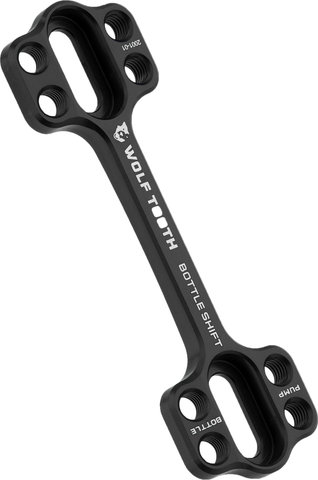

Wolf Tooth Components B-RAD Bottle Shift Bottle Cage Mount

The Wolf Tooth Components B-RAD Bottle Shift bottle cage mount allows offset positioning of the water bottle or mini pump, making it ideal for full suspension bikes.

Technical Information:

Material:

aluminium (6061-T6), stainless steel

Compatibility:

• every frame with at least one 2-hole bottle cage mount with a hole spacing of 64 mm
• holds loads of up to 1700 g

Features:

• designed for bicycles with difficult access to water bottles due to interference with the rear shock or top tube
• 18 mm adjustability of the bottle position downwards or upwards
• access to the bottle possible from left or right
• 9 mm offset of the bottle from the centre line, angle of 10°
• also simplifies access on hardtails or Road/Gravel bikes
• special mounting holes for mini-pumps
• including stainless steel bolts
• Made in the USA

Technology:

B-RAD™
B-RAD stands for Bottle Relocation & Accessory Device, a system for attaching bottles and accessories to your bike. The basis is a series of slotted base brackets to be mounted on the bottle cage braze-ons. Various B-RAD accessory brackets can be attached to it. There are countless conceivable configurations that allow you to adapt the transport options of your bike to your needs.

Manufacturer Number:

BRADBTLSHIFT

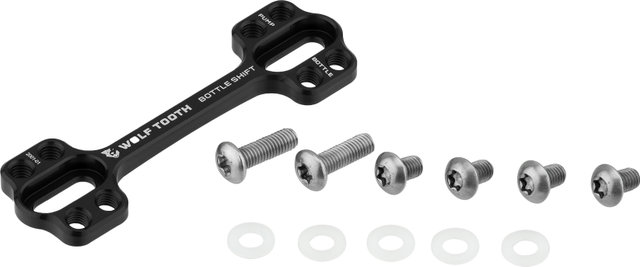

Contents:

• 1 x Wolf Tooth Components B-RAD Bottle Shift bottle cage mount
• 2 x long bolts
• 4 x short bolts
• 4 x washer
