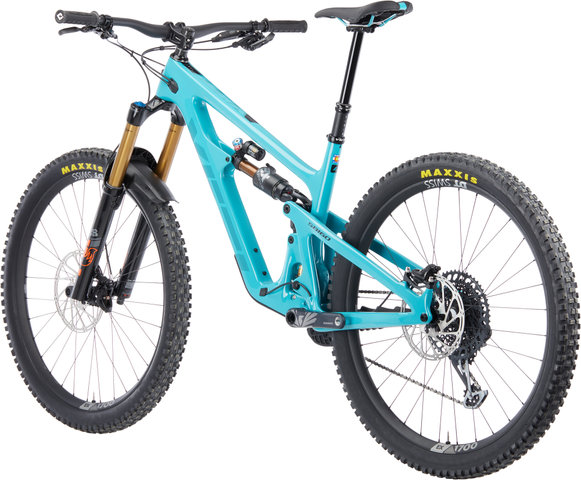

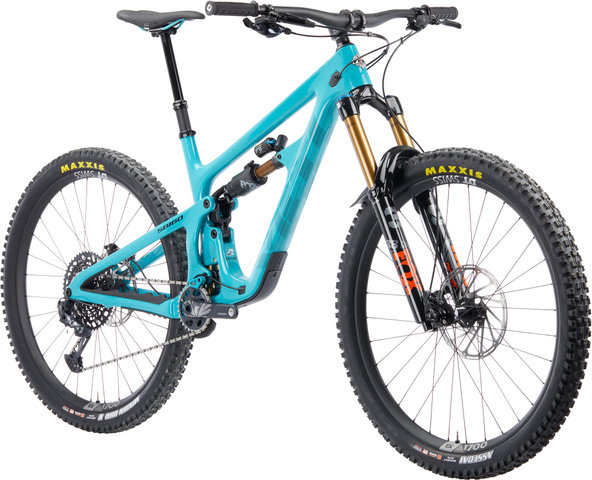

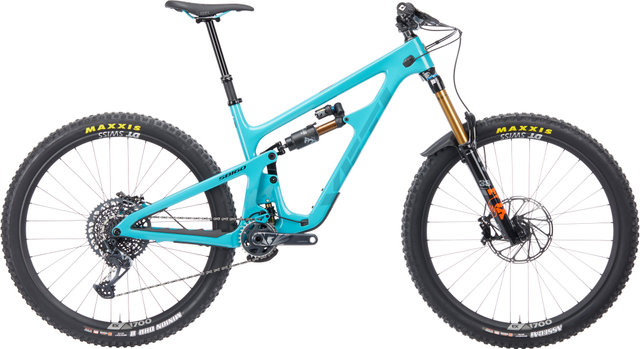

Yeti Cycles SB160 T1 TURQ Carbon 29" Mountain Bike

The Yeti Cycles SB160 T1 29" mountain bike made from TURQ carbon for Enduro Races

The SB160 29-inch mountain bike from Yeti Cycles in T1 equipment and made from high-quality TURQ carbon gives you a whopping 160 mm of suspension travel for your next enduro stages. Fox suspension at Factory level, SRAM X01/GX Eagle gears with wide cassette gradation and Code RSC brakes leave nothing to be desired. The proven Switch Infinity linkage design has been revised in details that improve function and durability and simplify service. Compared to the SB150, the ground clearance at the downtube of the SB160 is significantly increased, the seat tube is shorter for seatposts with longer stroke lengths and the longer reach results in more traction. The speed-tuned geometry is, by the way, just like the carbon layup, adapted to every frame size and lets you efficiently push the envelope. A bolted bottom bracket, cartridge bearings in standard sizes and the use of the SRAM UDH universal derailleur hanger underline the ease of maintenance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Front Travel:

170 mm

Rear Travel:

160 mm

Sizes:

M, L, XL

Front Triangle Material:

Carbon (TURQ Series)

Rear Triangle Material:

Carbon (TURQ Series)

Components:

Frame:

Yeti Cycles SB160, 12 x 148 mm (Boost)

Fork:

Fox Racing Shox 38 Factory, GRIP2, 44 mm offset

Stem:

Burgtec Enduro MK3, 35 mm clamp, 50 mm length

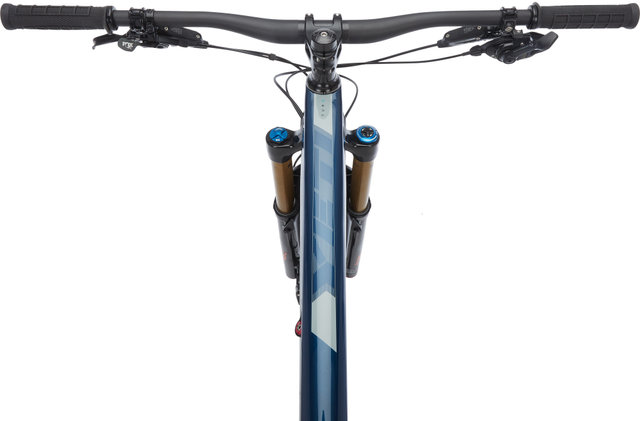

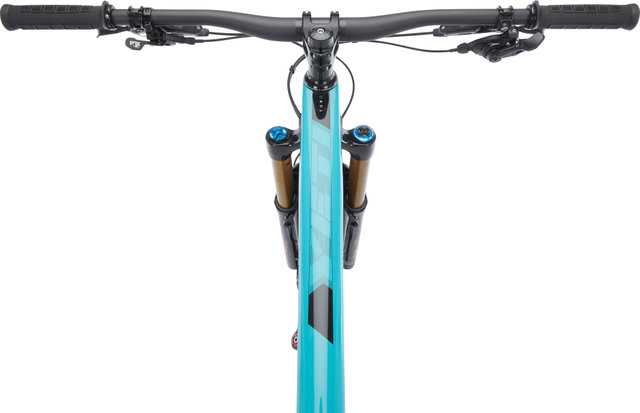

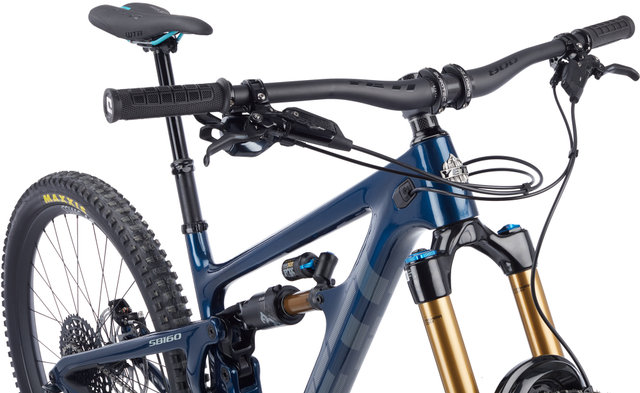

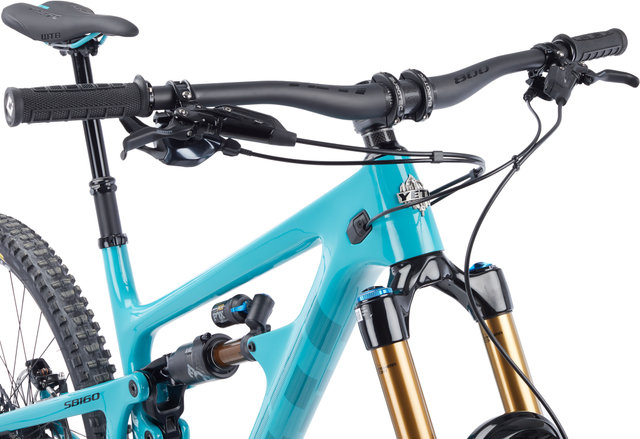

Handlebars:

Yeti Cycles Carbon, 35 mm clamp, 800 mm length

Grips:

ODI Elite Pro

Rear Shock:

Fox Racing Shox Float X2 Factory, 230 x 65 mm

Remote System:

none

Headset:

Cane Creek 40 integrated

Seatpost:

Fox Racing Shox Transfer, 31.6 mm, 175 mm stroke (M), 200 mm stroke (L, XL)

Saddle:

WTB Silverado Custom

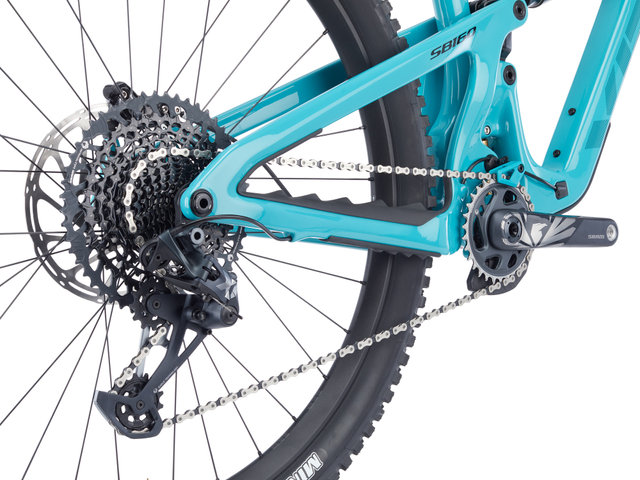

Crank:

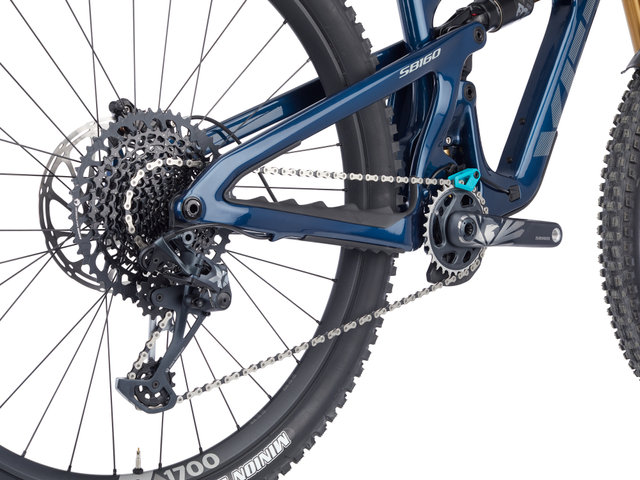

SRAM X1 Carbon Eagle, 170.0 mm, with 30-tooth chainring and SRAM DUB BSA73 bottom bracket

Pedals:

none

Brakes:

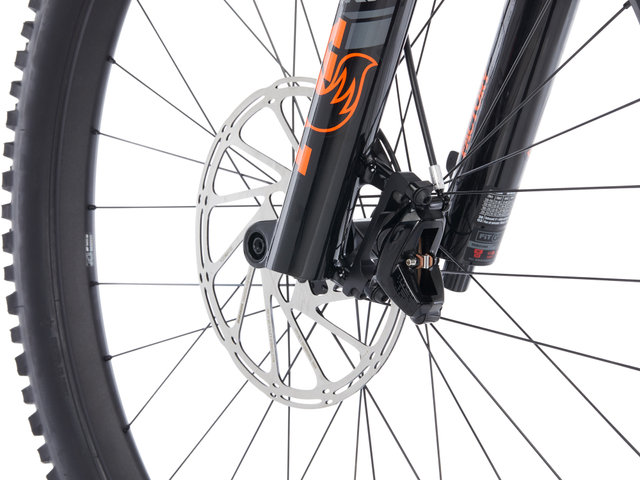

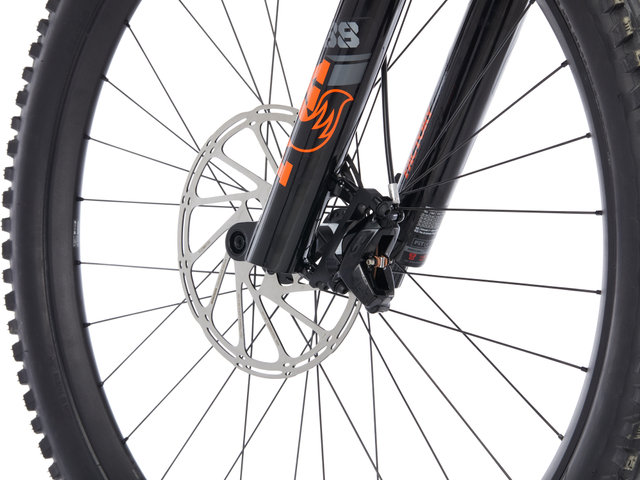

SRAM Code RSC, 4 pistons, with SRAM Centerline brake rotors 220 mm (front) / 200 mm (rear)

Shift Lever:

SRAM GX Eagle, 12-speed

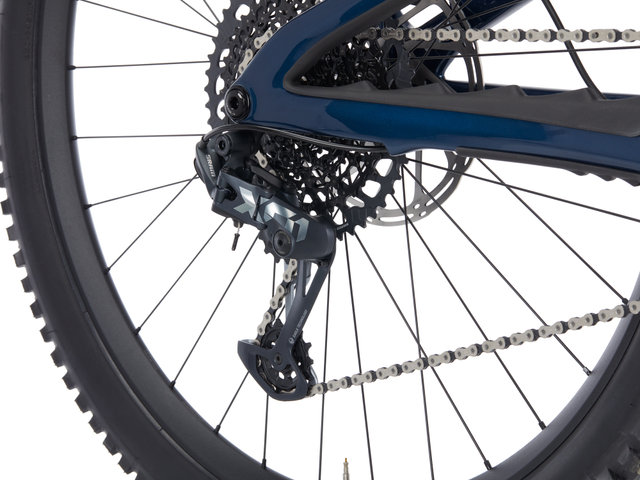

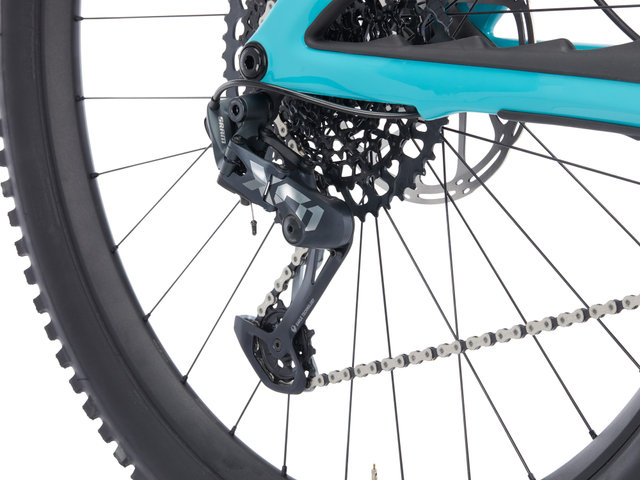

Rear Derailleur:

SRAM X01 Eagle, 12-speed

Cassette:

SRAM GX Eagle XG-1275, 12-speed 10-52 teeth

Chain:

SRAM GX Eagle, 12-speed

Rims:

DT Swiss Custom EX 1700, 30 mm

Spokes:

DT Swiss

Front Hub:

DT Swiss

Rear Hub:

DT Swiss

Front Tyre:

Maxxis Assegai EXO+, 29 x 2.5"

Rear Tyre:

Maxxis Minion DHR II EXO+, 29 x 2.4"

Approved For:

Rotor Size (max.):

203 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Chainring Size (max.):

for SRAM/Shimano Boost cranks with 55 mm chainline: 1-speed 34 teeth (round), 1-speed 32 teeth (oval)

Fork Axle to Crown Size (max.):

607 mm

Features:

• Enduro bike made from particularly high-quality carbon with Fox Factory suspension and SRAM X01 Eagle rear derailleur
• revised Switch Infinity Link V2 design with floating axle for increased stiffness and longer durability
• high-quality, extremely light and durable TURQ carbon with a balanced ratio of stiffness and compliance
• completely internal cable routing without rattling and chafing with secure cable exits
• bolted bottom bracket with ISCG-05 mount for a chain guide
• SRAM UDH universal derailleur hanger for easy replacement

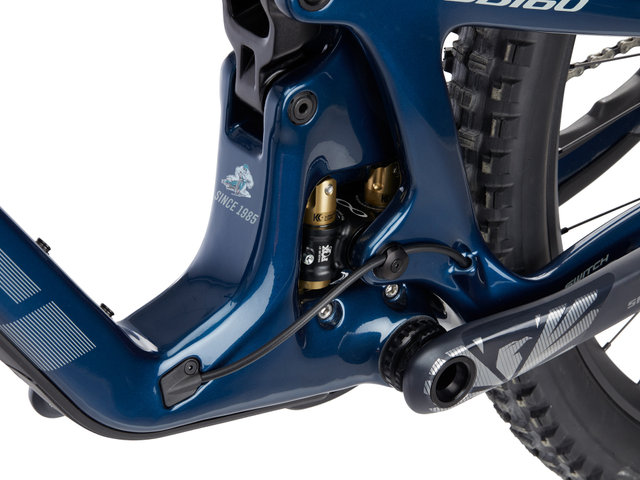

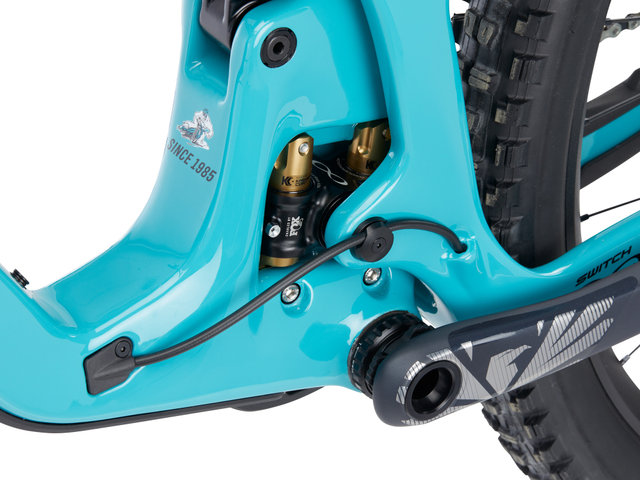

• two-piece Wishbone Shock Extender allows easy handling of the shock and positions it further forward
• sealed Enduro Max pivot bearings in standard sizes
• rather linear progression curve for predictable behaviour
• race-oriented geometry for fast, smooth descents
• size-specific geometry and carbon composition
• based on the EWS-proven SB150
• 25 mm more ground clearance on the downtube than on the SB150
• rather short seat tube for high freedom of movement, allows long-stroke seatposts
• central seat position
• rather long reach for increased traction
• with chainstay and downtube protection
• space for a bottle in the frame triangle
• carbon layup meets downhill standards

Technology:

Switch Infinity Link V2
The patented Switch Infinity design is characterised by the eye-catching link element at the main pivot point, which enables both radial and axial movement. At the beginning of the suspension travel, the pivot point moves upwards so that the rear triangle can avoid even the roughest obstacles on the trail. This position counteracts the effects of the drivetrain and lets your bike literally fly up the slope. However, when the bike is further down the suspension travel, the Switch Infinity Link lowers again and gives you a feeling of endless travel that makes you want to conquer every trail. The revised V2 variant scores with increased durability and easier maintenance. A floating axle secures the oxide-coated, particularly corrosion-resistant bearings on the Switch Infinity Link precisely and without play. Machine-made aluminium bearing caps keep dirt away from the bearings. The slide bushings, which provide the axial up and down movement, are provided with a wear-resistant and extremely low-friction coating and can be easily lubricated by grease nipples.

Geometry:

M:

Recommended Height:

165 - 180 cm

Stack:

620 mm

Reach:

465 mm

Seat Tube Length:

400 mm

Effective Top Tube Length:

602 mm

Head Tube Length:

101 mm

Chainstay Length:

439 mm

Wheelbase:

1246 mm

Bottom Bracket Height:

353 mm

Seat Angle (real):

72.6°

Seat Tube Angle (effective):

77.5°

Head Tube Angle:

64°

Standover Height:

744 mm

L:

Recommended Height:

178 - 191 cm

Stack:

625 mm

Reach:

485 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

624 mm

Head Tube Length:

107 mm

Chainstay Length:

441 mm

Wheelbase:

1270 mm

Bottom Bracket Height:

353 mm

Seat Angle (real):

72.7°

Seat Tube Angle (effective):

77.5°

Head Tube Angle:

64°

Standover Height:

750 mm

XL:

Recommended Height:

185 - 201 cm

Stack:

635 mm

Reach:

510 mm

Seat Tube Length:

470 mm

Effective Top Tube Length:

651 mm

Head Tube Length:

118 mm

Chainstay Length:

443 mm

Wheelbase:

1302 mm

Bottom Bracket Height:

353 mm

Seat Angle (real):

73.1°

Seat Tube Angle (effective):

77.5°

Head Tube Angle:

64°

Standover Height:

756 mm

Manufacturer Numbers:

cobalt / M:

YCB23160TMDPCBX2T018700

cobalt / XL:

YCB23160TXLPCBX2T018700

turquoise / L:

YCB23160TLGPTUX2T018700

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Yeti Cycles SB160 T1 TURQ Carbon 29" Mountain Bike
