Affordable speed: the 302 disc wheel by Zipp

Zipp has developed the 302 disc carbon clincher on the basis of the Spring Classics winner wheels. With a 45 mm high carbon rim, optimised for aerodynamics and handling, the 302 disc carbon clincher delivers the performance you would expect from Zipp. All of this at a price that makes Zipp carbon quality and performance more affordable than ever. The sleek 302 carbon rim is combined by hand with the Zipp 76D/176D hub set, using CX-Sprint spokes and brass nipples, resulting in a wheel that is both fast and reliable - a wheel strong enough for the Spring Classics or poorly built roads, but light enough for the steepest climbs.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

none

Technical Information - Rim:

Type:

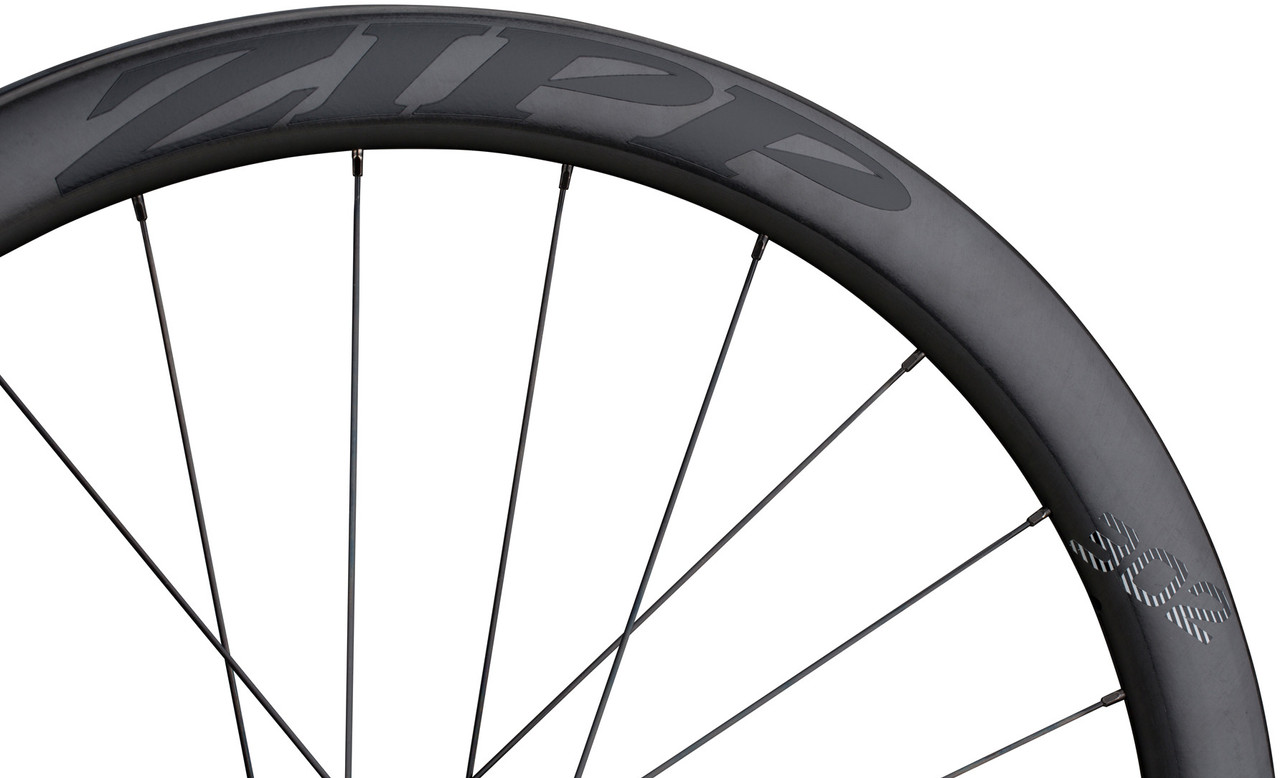

Zipp 302 Disc

Dimensions (ETRTO):

16-622

Inner Width:

16.25 mm

Outer Width:

25.6 mm

Depth:

45 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

Technical Information - Front Hub:

Type:

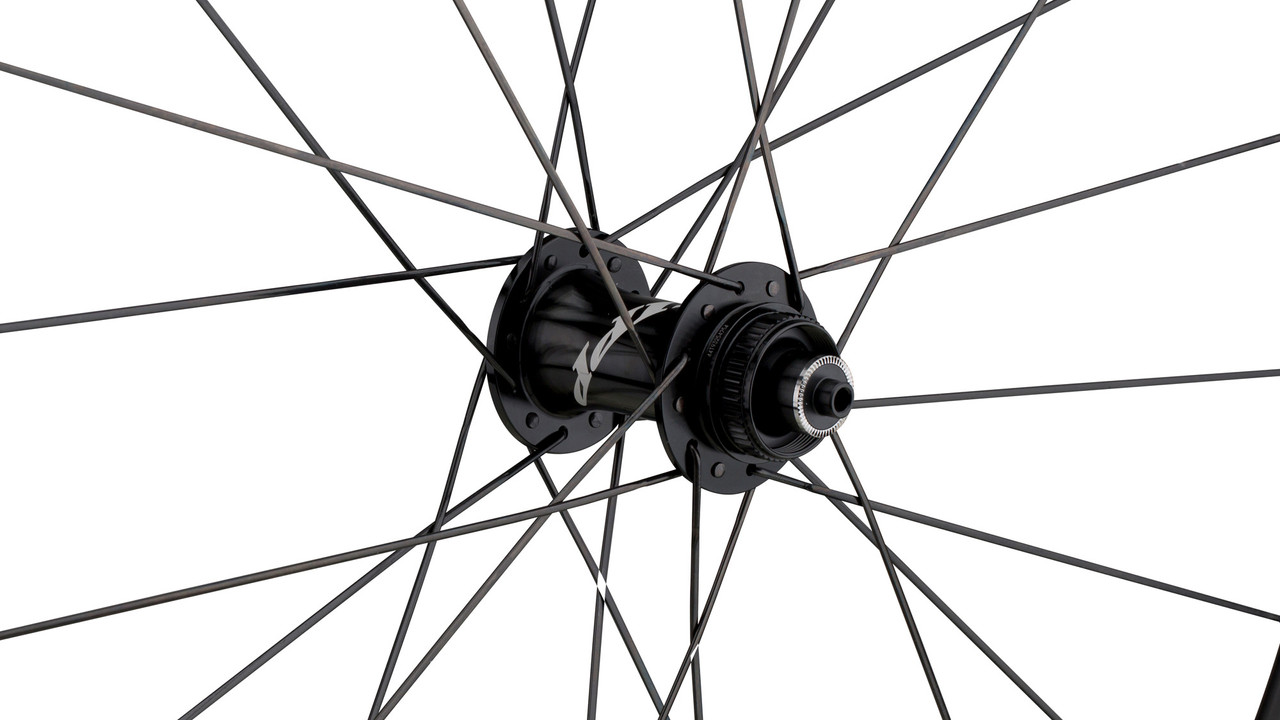

Zipp 76D

Over Locknut Dimension:

9 x 100 mm quick release, convertible to 12 x 100 mm thru-axle and 15 x 100 mm thru-axle

Body Material:

Aluminium

Technical Information - Rear Hub:

Type:

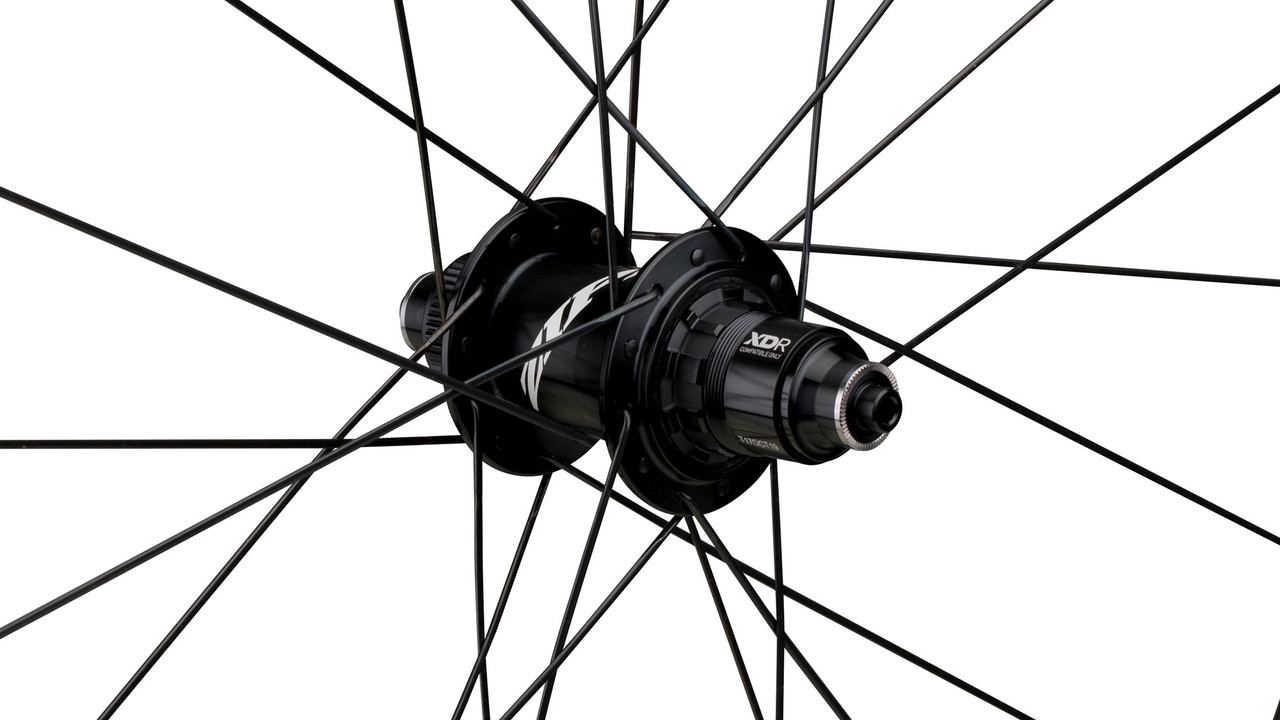

Zipp 176D

Over Locknut Dimension:

10 x 135 mm quick release, convertible to 12 x 142 mm thru-axle (Shimano and Campa version), 12 x 142 mm thru-axle (SRAM XDR version)

Body Material:

Aluminium

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Sprint / J-bend / double butted

Spoke Size:

266 mm/268 mm (front l/r), 266 mm/262 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

Sapim secure-lock / external

Nipple Material:

brass

Approved For:

Weight Limit:

113 kg total weight

Air Pressure (max.):

8.6 bars

Tyre Width (max.):

23 - 32 mm (according to ETRTO)

Features:

• also compatible with a thru-axle
• maintenance-friendly
• J-bend hubs
• aluminium axles
• white or black decals
• handmade in the USA

Models:

28" front 9x100:

Manufacturer Numbers:

00.1918.347.000 (matt white), 00.1918.347.007 (black)

28" rear 10x135 Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Over Locknut Dimension:

10 x 135 mm quick release

Manufacturer Numbers:

00.1918.348.000 (matt white), 00.1918.348.011 (black)

28" rear 10x135 Campa: sold out

Freehub:

Campagnolo

Gearing:

9-/10-/11-/12-speed

Over Locknut Dimension:

10 x 135 mm quick release

Manufacturer Numbers:

00.1918.348.002 (matt white), 00.1918.348.012 (black)

28" rear 12x142 SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Over Locknut Dimension:

12 x 142 mm thru-axle

Manufacturer Numbers:

00.1918.348.013 (matt white), 00.1918.348.014 (black)

Only available to European & Russian customers.

Contents:

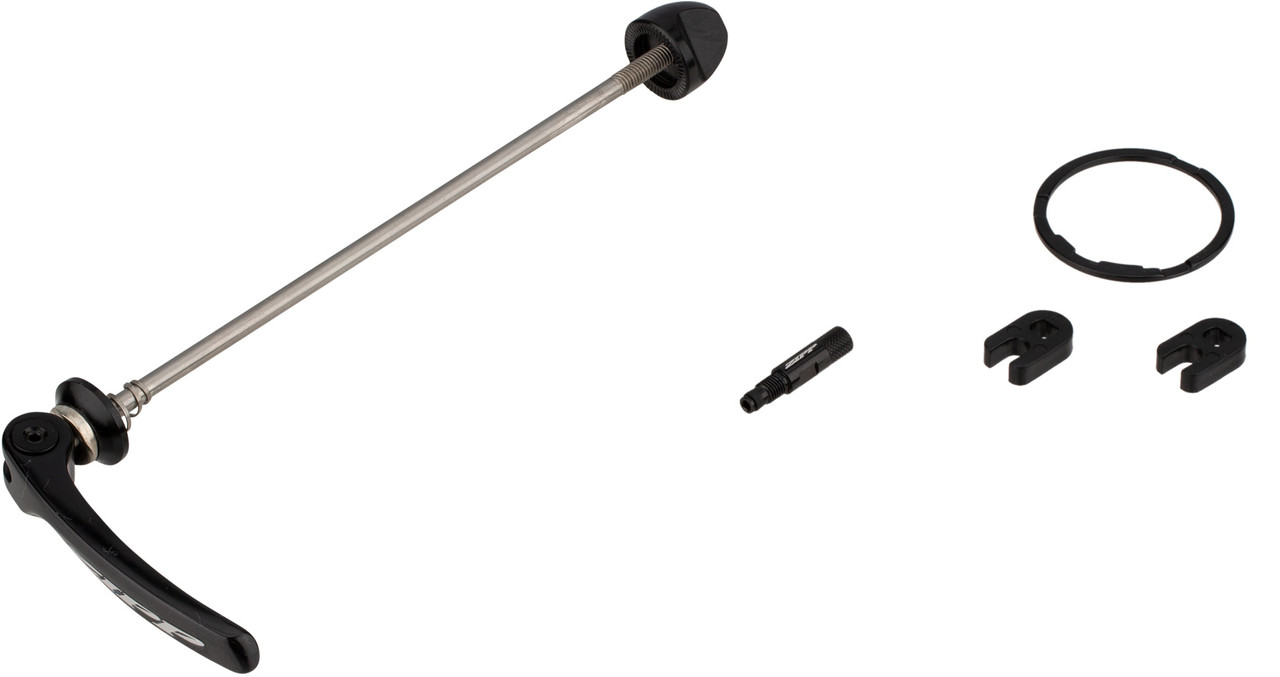

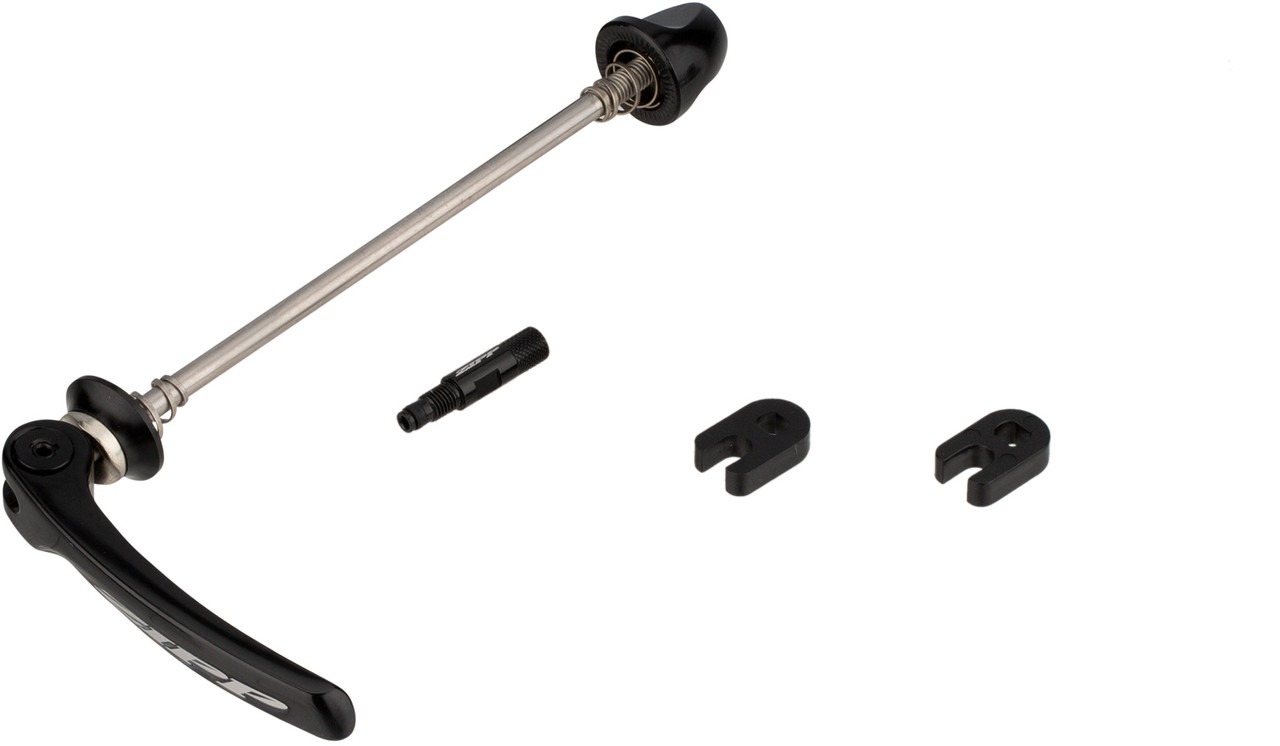

• 1 x Zipp 302 disc wheel (front or rear wheel)
• 1 x Zipp Tangente quick release (not for HR SRAM XDR)
• 1 x valve extender
• 1 x rolls Zipp rim tape
• 1 x Zipp 15 mm conversion kit (front wheel only)
• 1 x Zipp 12 mm conversion kit (front wheel only)
• 1 x Zipp 12 x 142 mm rear wheel conversion kit (not for HR SRAM XDR)
