busch+müller IQ-X E LED front light with StVZO approval

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

universal mounting bracket

Light Source:

1 x LED

Brightness:

150 lux

Power Source:

E-bike battery

Technical Information:

Voltage:

6 - 60 V DC voltage

Material:

aluminium

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K ~~ 1192

Manufacturer's Notice:

Prerequisite: at least 7.5 W nominal power on the light connector of the drive system

Features:

• IQ Technology
• aluminium housing
• splash and rainwater proof
• excellent and homogeneous illumination of the road

Technology:

IQ Technology

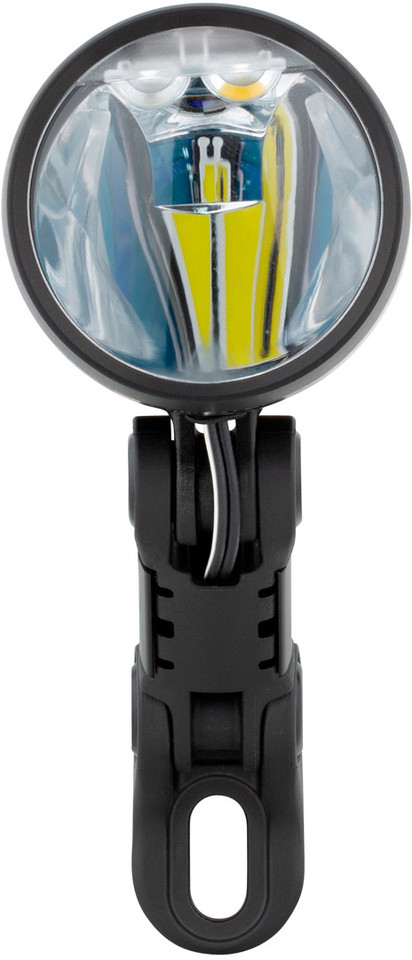

The light revolution from busch+müller: a special reflector with an optimised cooling system uses a high-performance LED as an indirect light source. The LED is not visible any longer in the middle of the reflector. This creates a light field that is extremely evenly illuminated and can be twice as wide as conventional technology. Light effects can be positioned more precisely - for example, the near field in front of the front wheel can be additionally brightened.

Manufacturer Number:

164R60TS7-01

Contents:

• 1 x busch+müller IQ-X E front light
• 1 x busch+müller mount
• incl. mounting material
