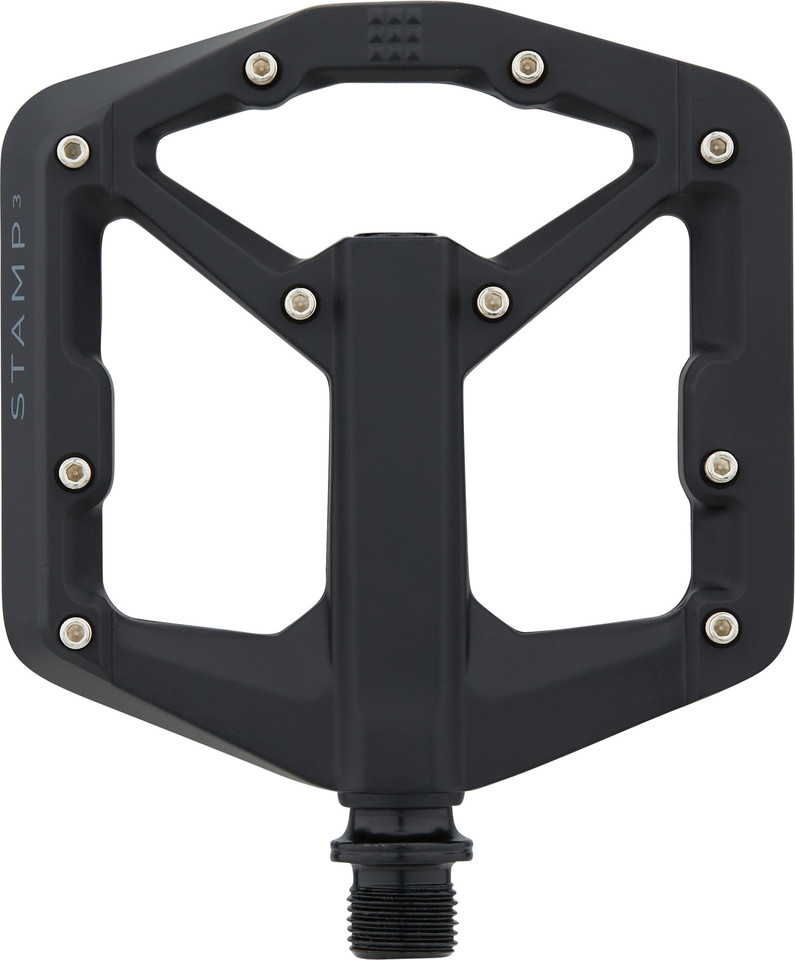

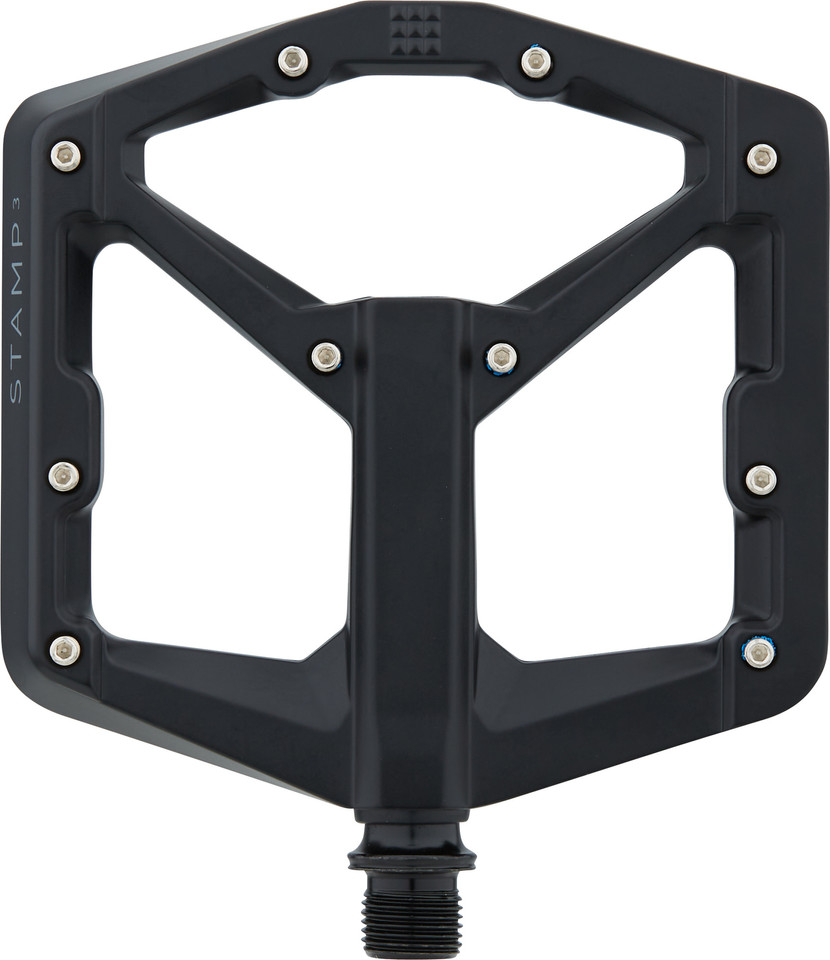

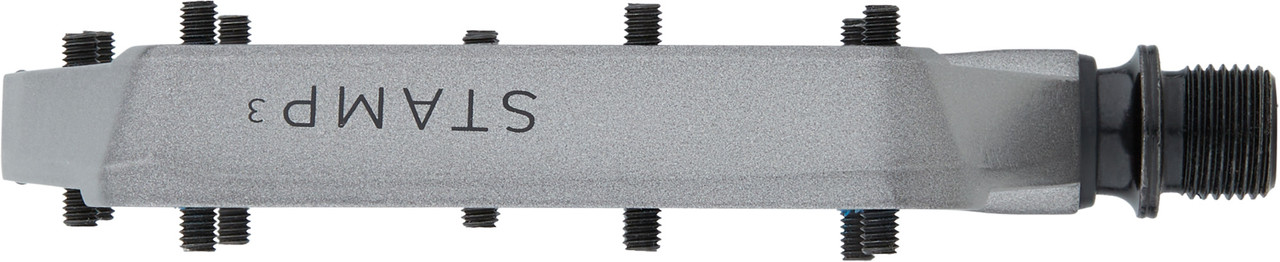

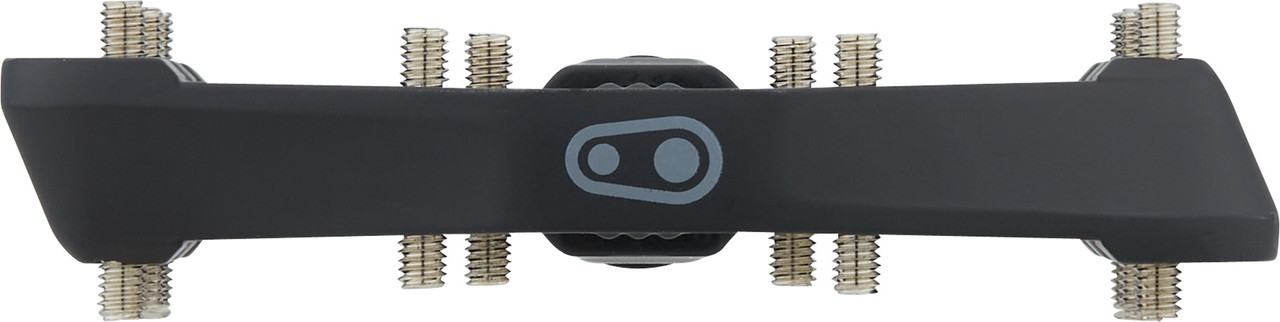

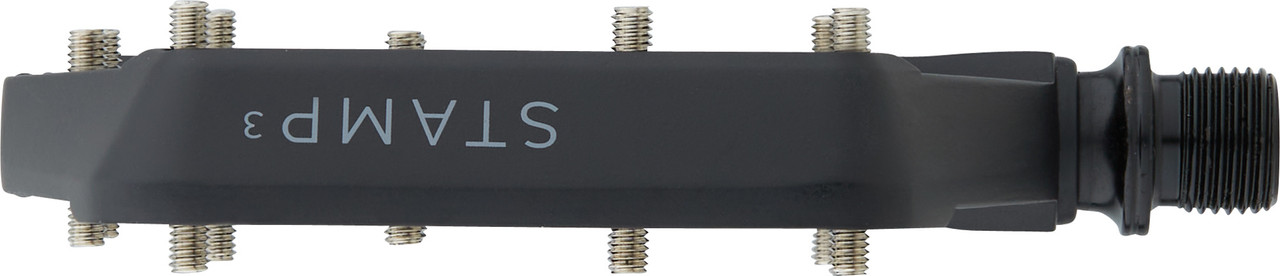

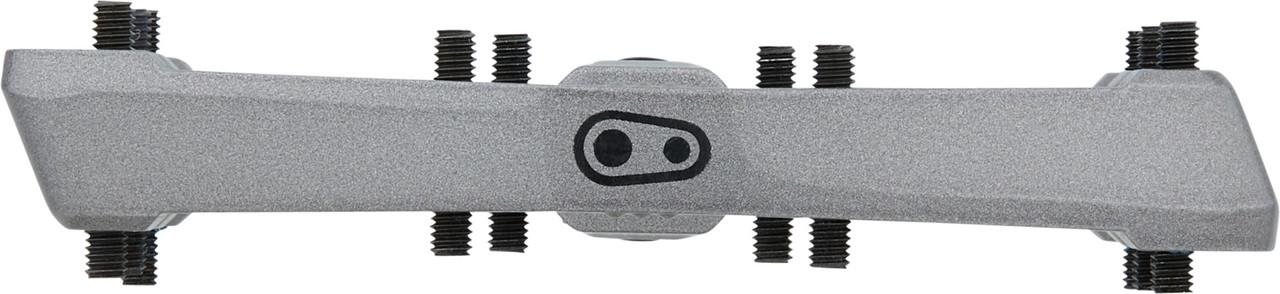

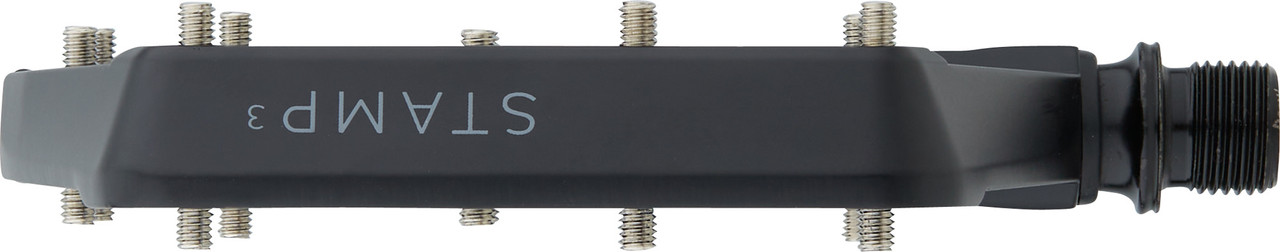

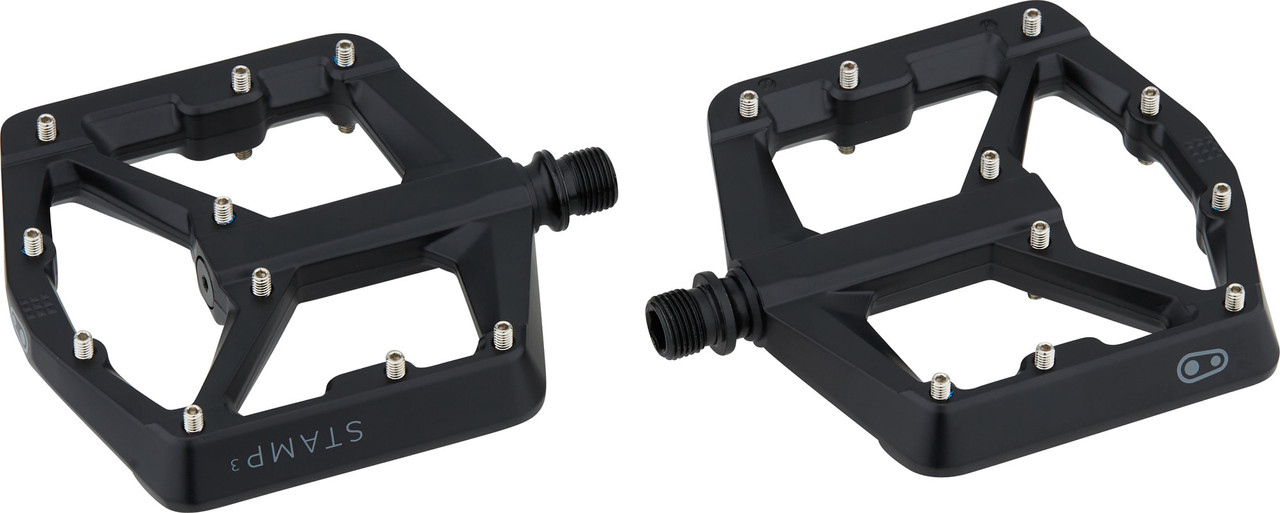

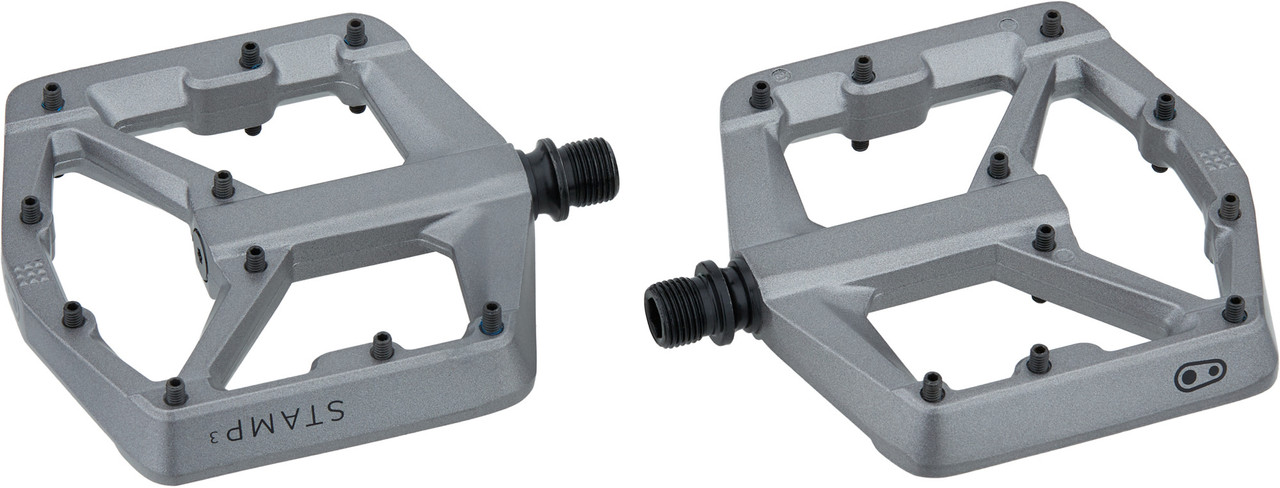

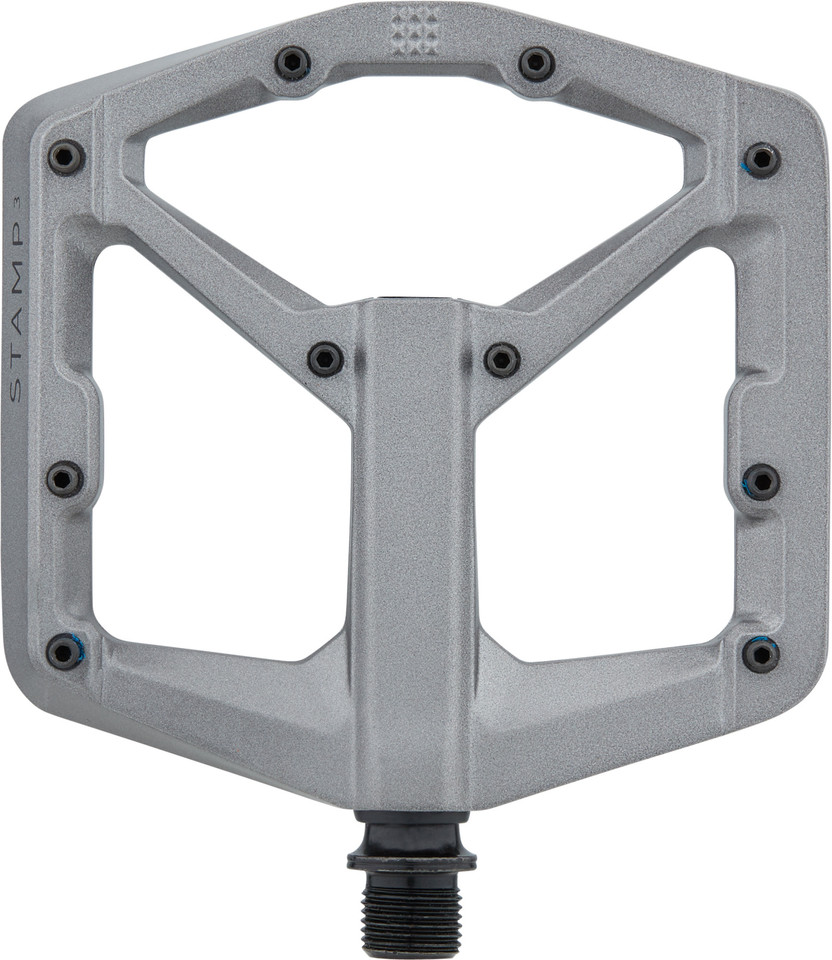

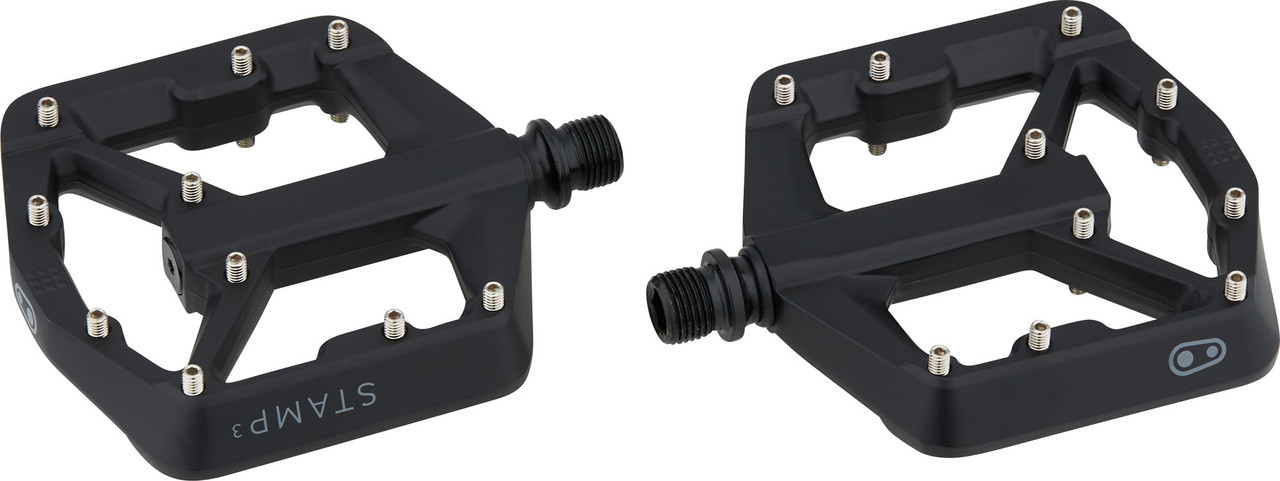

crankbrothers Stamp 3 platform pedals - Adjusted to your shoe size

The Stamp 3 platform pedals by crankbrothers are available with a larger or a smaller platform, adapted to different shoe sizes. Their body is made of a light magnesium-aluminium alloy and convinces with its flat design. Slanted edges minimise the risk of getting stuck in Trail, Enduro or Freeride use. The Stamp 3, each equipped with 20 pins and high-quality sealed bearings, is also approved for e-bikes thanks to its shorter axis.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read the guidelines for component replacement for CE-marked e-bikes, pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro, Downhill

Type:

platform pedals

Technical Information:

Body Material:

magnesium, aluminium (AM60B)

Axle Material:

steel (SCM 415 CrMo)

Bearings:

Igus bushings (inner), cartridge (outer)

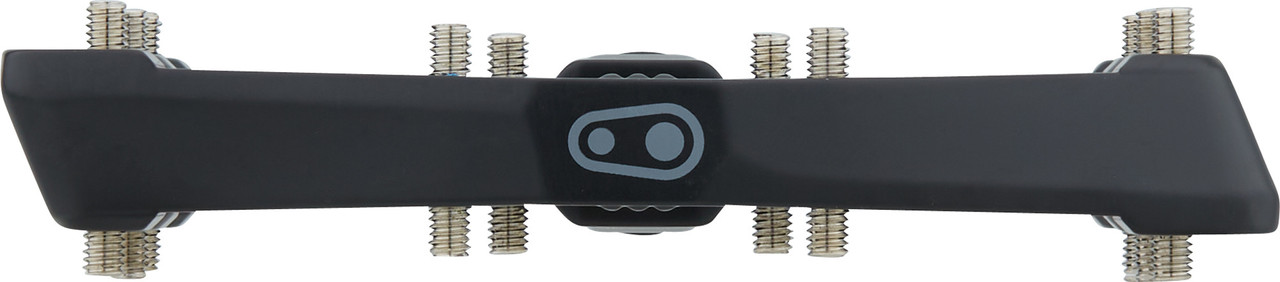

Height:

16 mm (without pin height)

Dimensions (L x W):

100 x 100 mm (small), 114 x 111 mm (large)

Number of Pins per Pedal:

20

Features:

• shorter ChroMoly axle, optimised for E-MTB use
• magnesium-aluminium alloy pedal body
• forged steel axle
• flat height
• bevelled pedal body corners prevent rock and stone contact
• 10 adjustable pins on each side of the pedal for optimum grip
• premium bearings and seals
• T15 end caps
• no rider weight limit
• available in 2 sizes, optimised for different shoe sizes

Models:

small:

Size:

100 x 100 mm

Shoe Size:

37 - 43

Manufacturer Numbers:

16368 (black), 16369 (grey)

large:

Size:

114 x 111 mm

Shoe Size:

43 - 49

Manufacturer Numbers:

16366 (black), 16367 (grey)

Contents:

• 1 x pair crankbrothers Stamp 3 platform pedals
