3T Exploro RaceMax ITALIA Carbon Frame Kit

The Exploro RaceMax ITALIA carbon frame kit - gravel frame made in Italy

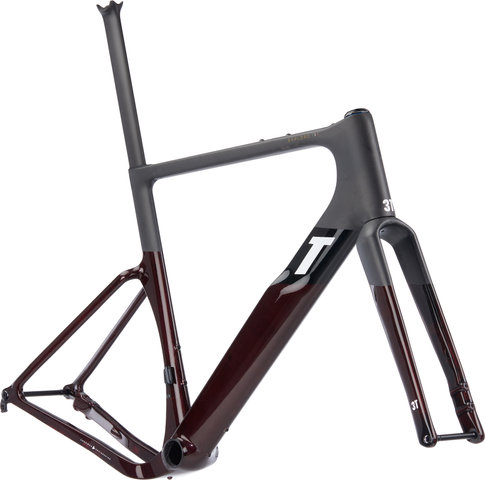

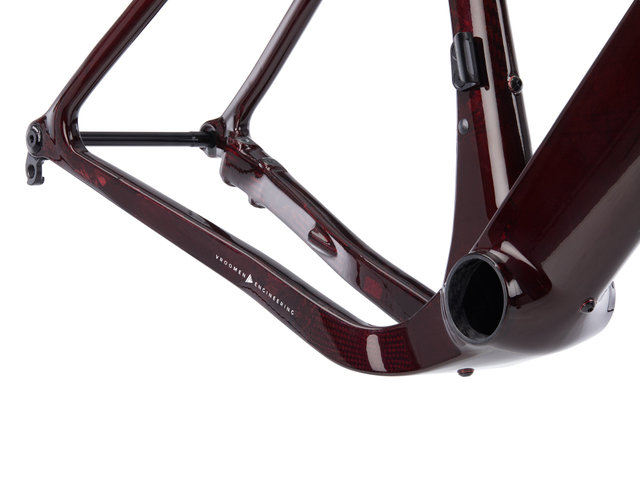

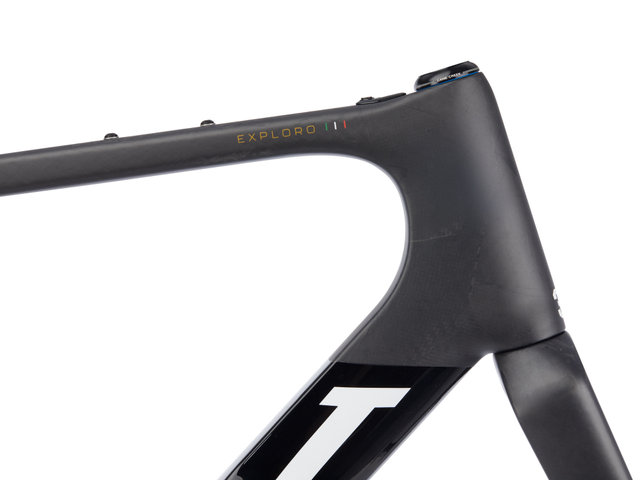

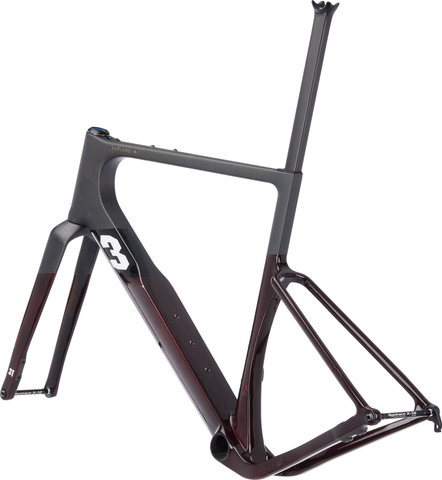

The Exploro RaceMax Italia frameset from 3T is the foundation for a carbon gravel bike. With this frame made in Italy, you can build a fast all-road bike or a gravel machine with really wide tyres, depending on the equipment. The aerodynamic frame has a particularly strong down tube and a very narrow head tube. However, this head tube contains a resilient 1.5" steerer tube, which gives the bike smoothness and stability. It is also important to have sufficient tyre clearance. Among other things, this is achieved through a minimalistic fork crown. The frame itself has chain stays which are lowered on both sides; this also allows for greater tyre clearance.

Specifications:

Application:

Gravel

Wheel Size:

28" / 27.5" (650B)

Size:

XS, S, M, L

Frame Material:

carbon

Fork Material:

carbon

Technical Information - Frame:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Headset:

IS42/28.6 - IS47/38

Bottom Bracket Standard:

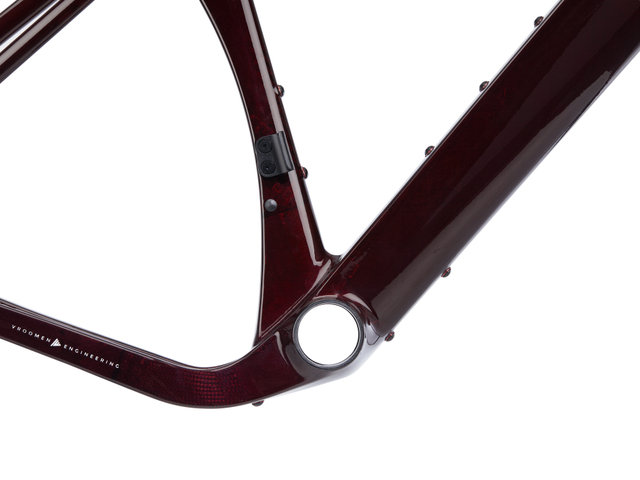

BB386 Evo

Shell Width:

86.5 mm

Brake Mount:

flat mount

Cable Routing:

internal, mechanical / electrical

Bottle Cage Mounts:

4

Technical Information - Fork:

Steerer Tube:

1.5"

Wheel Standard:

12 x 100 mm (standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Axle to Crown:

375 mm

Over Locknut Dimension:

100 mm

Crown Race Diameter:

35 mm

Steerer Tube Material:

carbon

Crown Material:

carbon

Blade Material:

carbon

Dropout Material:

carbon

Approved For:

Weight Limit:

110 kg (rider weight)

Rotor Size (max.):

160 mm

Tyre Size (max.):

27.5 x 2.1" / 650B x 54 mm, 28 x 1.6" / 700C x 42 mm

Chainrings:

1x

Features:

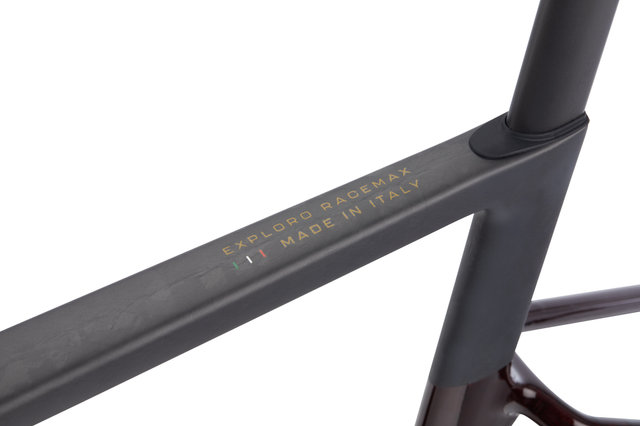

• carbon gravel frameset, made in Italy

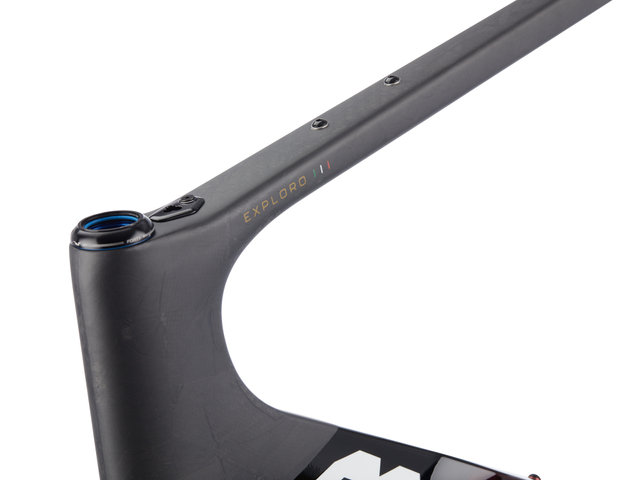

• narrow head tube like on road bikes with 1 1/4" steerer tubes
• large 1.5" steerer tube for more stability

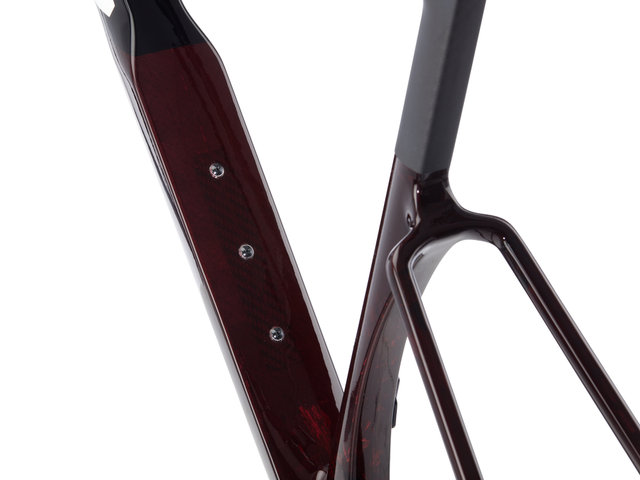

• reduced fork crown for less weight and better aerodynamics

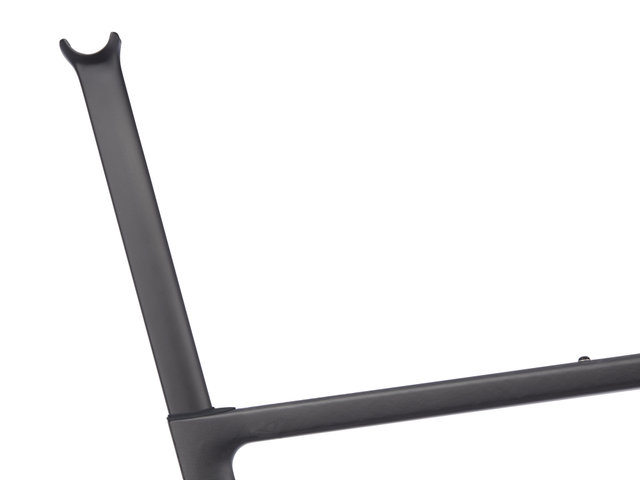

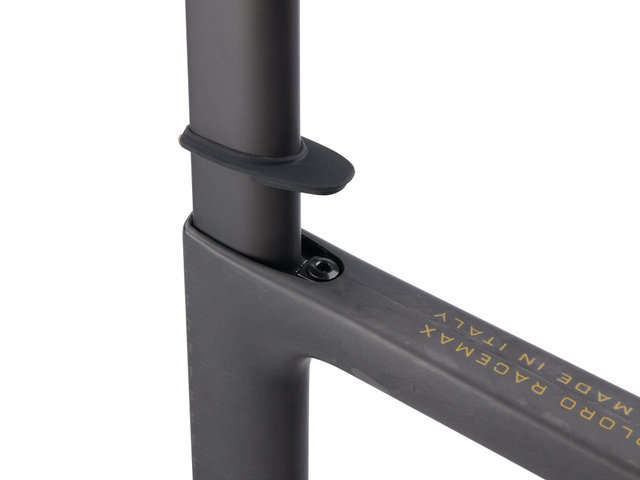

• self-aligning seatpost clamp

Geometry:

XS:

Manufacturer Designation:

51

Recommended Height:

157 - 171 cm

Stack:

544 mm

Reach:

364 mm

Seat Tube Length:

463 mm

Effective Top Tube Length:

518 mm

Head Tube Length:

147 mm

Chainstay Length:

418 mm

Wheelbase:

1018 mm

BB Drop:

77 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

69.5°

S:

Manufacturer Designation:

54

Recommended Height:

168 - 180 cm

Stack:

566 mm

Reach:

382 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

536 mm

Head Tube Length:

161 mm

Chainstay Length:

418 mm

Wheelbase:

1013 mm

BB Drop:

77 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

70.7°

M:

Manufacturer Designation:

56

Recommended Height:

176 - 186 cm

Stack:

586 mm

Reach:

382 mm

Seat Tube Length:

518 mm

Effective Top Tube Length:

549 mm

Head Tube Length:

180 mm

Chainstay Length:

418 mm

Wheelbase:

1019 mm

BB Drop:

75 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

71.7°

L:

Manufacturer Designation:

58

Recommended Height:

183 - 195 cm

Stack:

606 mm

Reach:

390 mm

Seat Tube Length:

545 mm

Effective Top Tube Length:

563 mm

Head Tube Length:

201 mm

Chainstay Length:

418 mm

Wheelbase:

1028 mm

BB Drop:

73 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72.2°

Manufacturer Numbers:

XS:

9265DADJ37L

S:

9265DADK37L

M:

9265DADL37L

L:

9265DADM37L

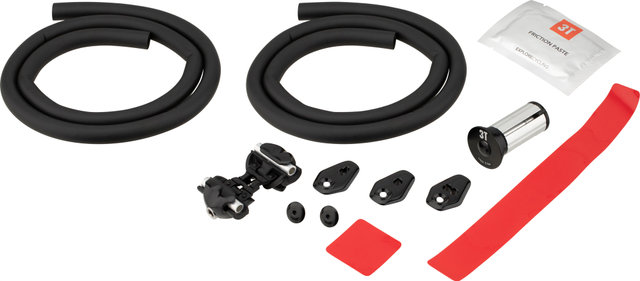

Contents:

• 1 x 3T RaceMax 418 ITALIA frame
• 1 x 3T Fango RaceMax fork
• 1 x 3T seatpost
• 1 x 3T MinMax headset
• 1 x headset expander
• 2 x foam covers
