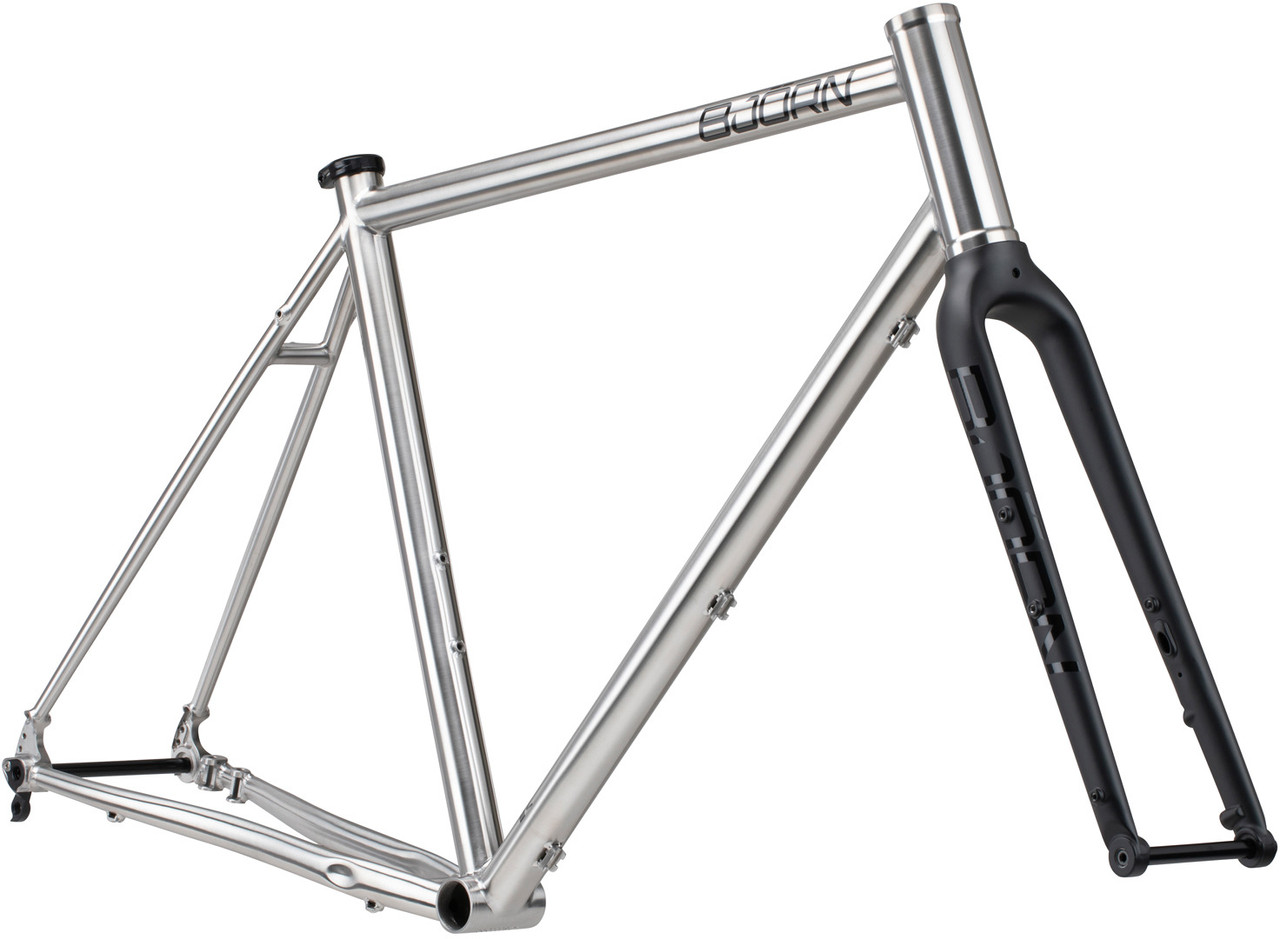

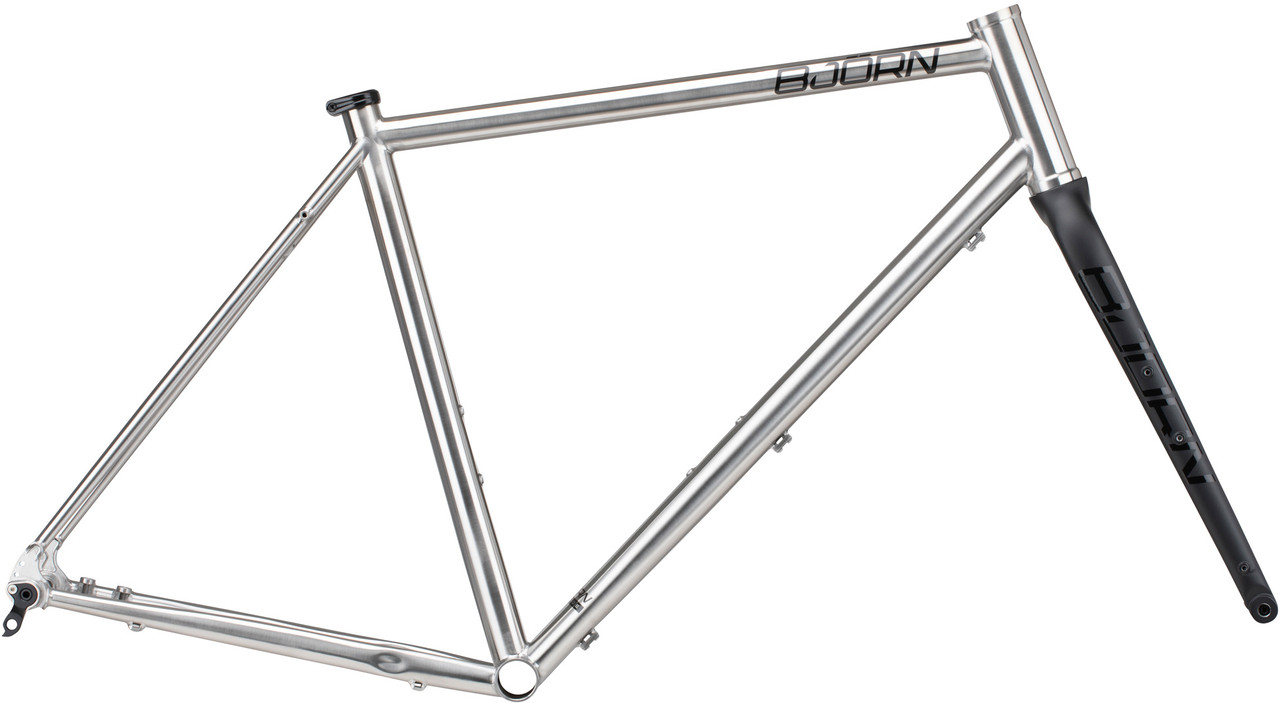

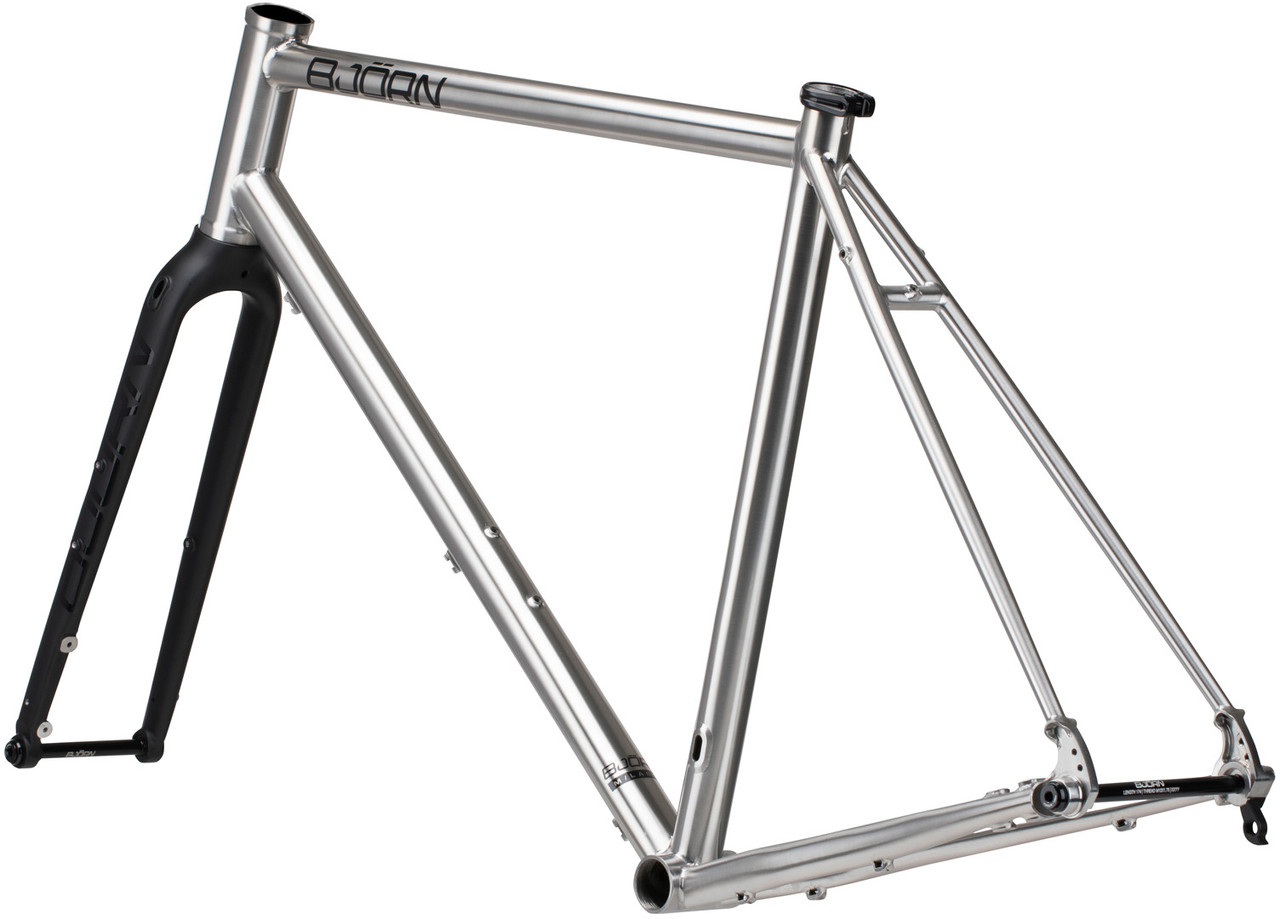

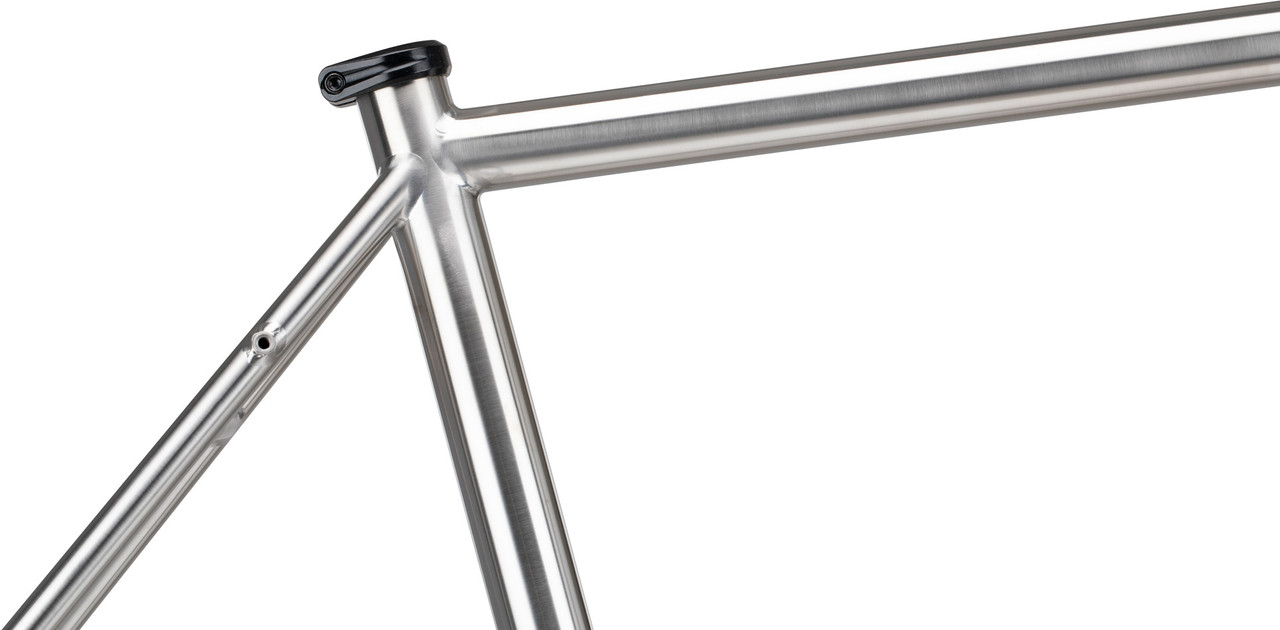

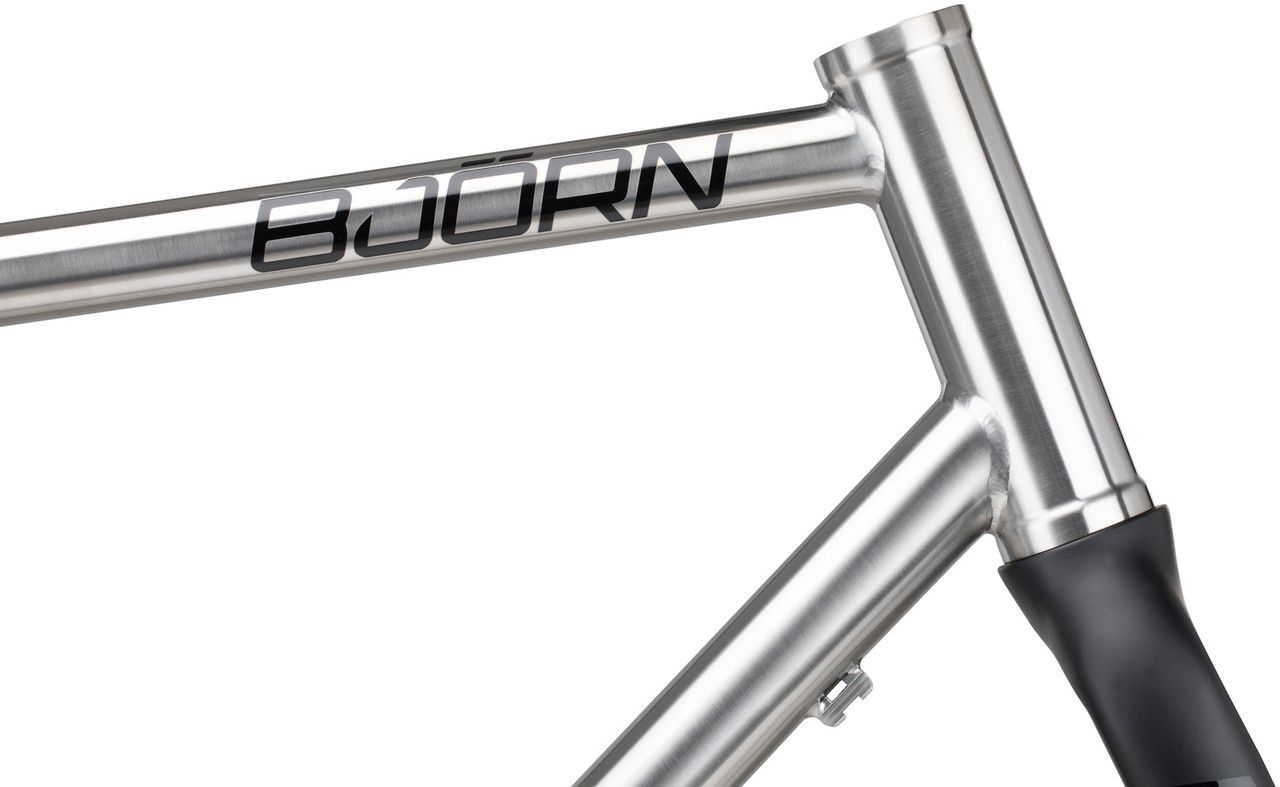

The Bjorn Bikes Frameset in stainless steel with lowrider eyelets on the fork

With the stainless steel frameset by Bjorn Bikes, your ecological footprint is kept as low as possible because it is produced with very low emissions. To make this possible, both frame and fork are made of recycled materials. The packaging, which is made of 100 % recycled cardboard, also focuses on sustainability. The paint for the fork and the decals are also environmentally friendly. But what would a sustainable bike be without the corresponding riding fun? The top tube has been lengthened a little so that you have a particularly safe riding feel. Together with a short stem, this contributes to enormous riding stability. The robust stainless steel of the frame moves with gravel, potholes and many more bumps. Therefore you can ride almost everywhere without fear of damage. You can also enjoy a high level of riding comfort.
The sporty but comfortable frame geometry is ideal for bikepacking tours. Should your trip be longer, you can use the lowrider eyelets on the fork to carry even more luggage.
Commuter, city speedster or gravel racing machine - your Bjorn bike is what you make of it!

Specifications:

Application:

Gravel

Wheel Size:

28"

Size:

S, M, M/L, L, XL

Frame Material:

stainless steel

Fork Material:

aluminium (7005)

Technical Information - Frame:

Rear Over Locknut Dimension:

142 mm

Axle Type:

12 mm thru-axle

Seatpost (Ø):

30.9 mm

Seatpost Clamp(Ø):

34.9 mm

Headset:

ZS44/28.6 - EC44/40

Fork Axle to Crown:

413 mm

Fork Offset:

40 mm

Bottom Bracket Standard:

BSA

Shell Width:

68 mm

Brake Mount:

flat mount

Front Derailleur Mount:

low clamp (34.9 mm)

Cable Routing:

external, mechanical

Bottle Cage Mounts:

2

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (12 x 100 mm)

Brake Mount:

flat mount

Axle to Crown:

413 mm

Steerer Tube Material:

aluminium (7005)

Crown Material:

aluminium (7005)

Blade Material:

aluminium (7005)

Dropout Material:

aluminium (7005)

Approved For:

Tyre Size (max.):

45-622 (700x45c)

Chainrings:

1x, 2x

Features:

• frame made of 60 % recycled stainless steel
• fork made of 70 % recycled aluminium

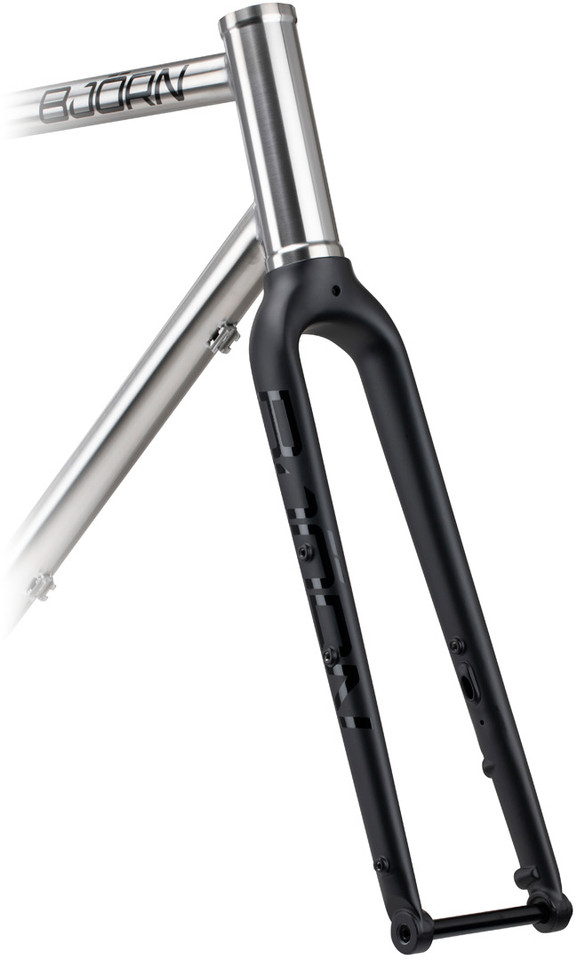

• fork with three lowrider eyelets
• environmentally friendly paint for fork and decals
• corrosion resistant material, no protective paint required

Geometry:

S:

Stack:

555 mm

Reach:

390.7 mm

Seat Tube Length:

500 mm

Effective Top Tube Length:

550 mm

Head Tube Length:

125 mm

Chainstay Length:

435 mm

Wheelbase:

1055 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

69°

Standover Height:

765 mm

Manufacturer Number:

BBRSS

M:

Stack:

574 mm

Reach:

405.4 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

570 mm

Head Tube Length:

144 mm

Chainstay Length:

435 mm

Wheelbase:

1079 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

69°

Standover Height:

784 mm

Manufacturer Number:

BBRSM

M/L:

Stack:

592.8 mm

Reach:

420 mm

Seat Tube Length:

540 mm

Effective Top Tube Length:

590 mm

Head Tube Length:

165 mm

Chainstay Length:

435 mm

Wheelbase:

1099 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

69°

Standover Height:

592.8 mm

Manufacturer Number:

BBRSML

L:

Stack:

611.4 mm

Reach:

434.7 mm

Seat Tube Length:

560 mm

Effective Top Tube Length:

610 mm

Head Tube Length:

185 mm

Chainstay Length:

435 mm

Wheelbase:

1120 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

69°

Standover Height:

821.2 mm

Manufacturer Number:

BBRSL

XL:

Stack:

619.8 mm

Reach:

449.4 mm

Seat Tube Length:

580 mm

Effective Top Tube Length:

630 mm

Head Tube Length:

200 mm

Chainstay Length:

435 mm

Wheelbase:

1141 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

69°

Standover Height:

839.6 mm

Manufacturer Number:

BBRSS

Contents:

• 1 x Bjorn Bikes stainless steel frame
• 1 x Bjorn Bikes rigid fork
