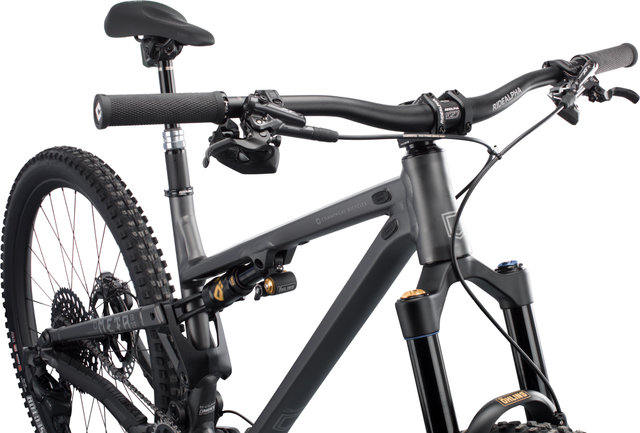

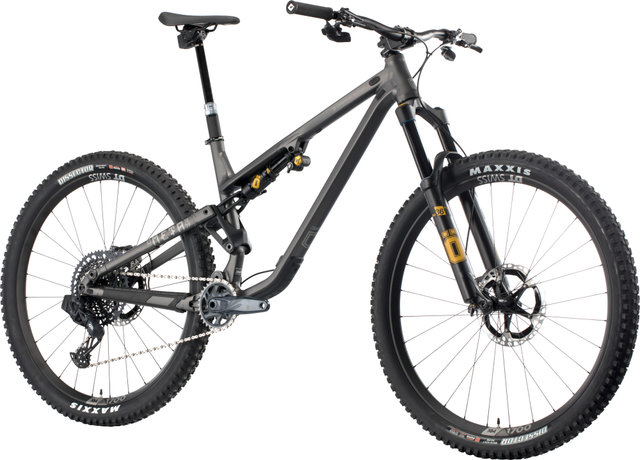

The COMMENCAL Meta TR ÖHLINS AXS 29" mountain bike with ÖHLINS suspension elements and an electronic SRAM GX Eagle AXS drivetrain is the right bike for sporty trail and enduro rides. The ÖHLINS TTX1 Air shock and the RXF36 suspension fork with 150 mm travel score with a wide range of adjustment options and sensitive, precise damping response. The electronic drivetrain with wireless control not only provides a clean look, but also offers fast shifting, easy maintenance as well as personalisation and provides analysis of your usage. The RockShox Reverb AXS dropper post is also electronically controlled and does not require cables. The playful linkage design makes the Meta TR dynamic, while double-row bearings on the frame prevent the loss of rigidity at the joints. All of this results in a bike that can deliver high performance on any terrain, and won't let you down on difficult passages.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Front Travel:

150 mm

Rear Travel:

140 mm

Sizes:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Components:

Frame:

COMMENCAL 2021 Meta TR 29, triple butted, 12 x 148 mm (Boost)

Fork:

ÖHLINS RXF36 m.2 Air, TTX 18 cartridge, 3 positions high speed compression, low speed compression, rebound, 44 mm Offset, 15 x 110 mm (Boost)

Stem:

Ride Alpha Freeride 50

Handlebars:

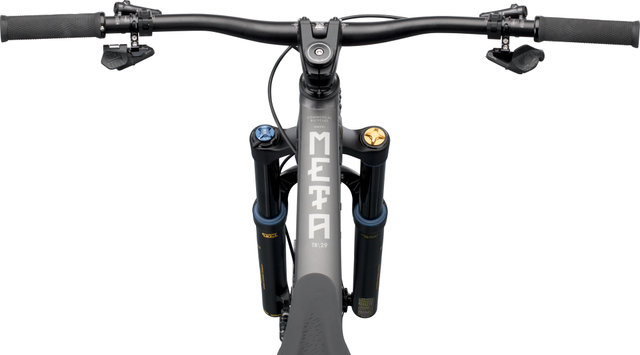

Ride Alpha R27, 31.8 mm diameter, 780 mm width, 27 mm rise, aluminium (7050)

Grips:

ODI Elite Motion

Rear Shock:

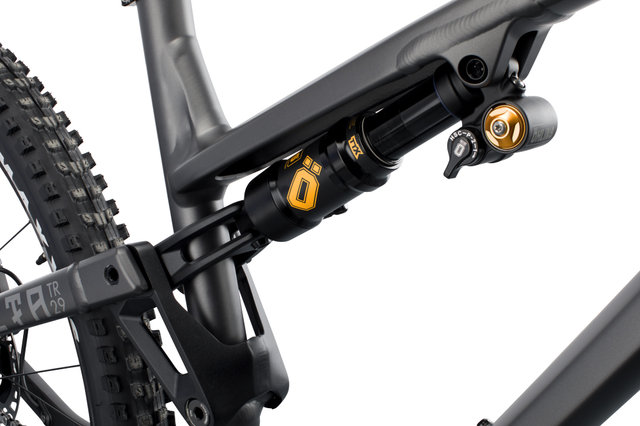

ÖHLINS TTX1 Air, 210 x 55 mm, Climb Mode, adjustable High- and low speed compression, adjustable rebound

Remote System:

none

Headset:

Acros ZS44/ZS56

Seatpost:

RockShox Reverb AXS, 31.6 mm, travel: 125 mm (S), 150 mm (M), 170 mm (L, XL)

Saddle:

Fizik Terra Alpaca X5

Crank:

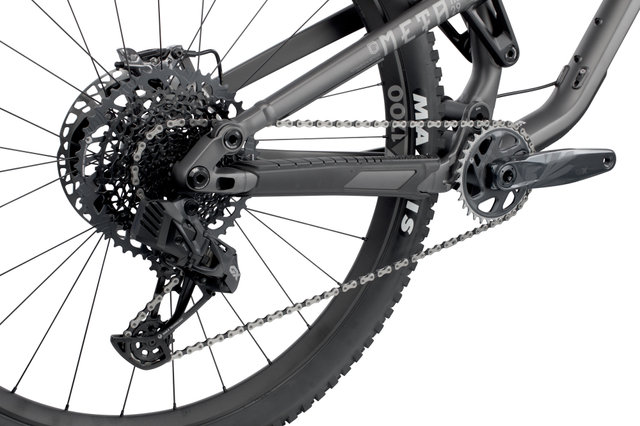

SRAM GX Eagle, 170 mm, DUB, Boost, 32-tooth Narrow-Wide chainring

Pedals:

none

Brakes:

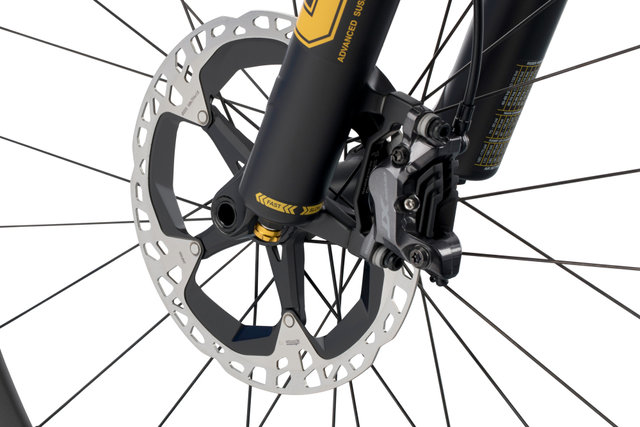

Shimano XT 4-piston, I-Spec EV compatible with Shimano RT-MT900 Centre Lock Ice Technology Freeza brake rotors, 203 mm/203 mm

Shift Lever:

SRAM GX Eagle AXS,12-speed

Rear Derailleur:

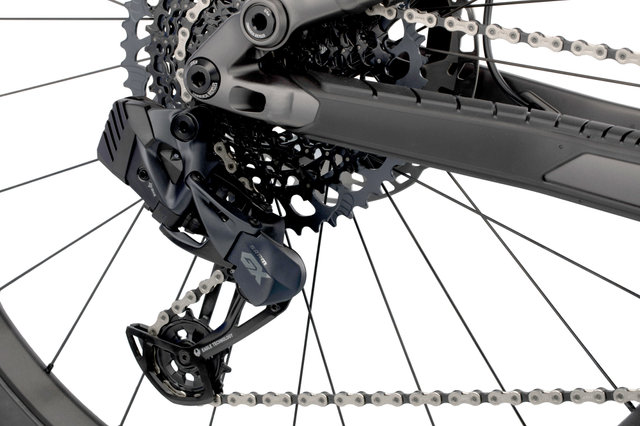

SRAM GX Eagle AXS, 12-speed

Cassette:

SRAM GX Eagle, 12-speed, 10-52 teeth

Chain:

SRAM GX Eagle, 12-speed

Rims:

DT Swiss XM 1700 SPLINE, 28 holes, 30 mm jaw width

Spokes:

DT Swiss Competition, straight pull, 2.0 - 1.8 - 2.0 mm, double butted, stainless steel, with Nylok, black

Front Hub:

DT Swiss 350, 28-bolt, sealed bearings

Rear Hub:

DT Swiss 350, 28 holes, ratchet 36-tooth disc freehub, sealed bearings

Front Tyre:

Maxxis Dissector, 29 x 2.4" , 3C, MaxxTerra, EXO+ Tubeless Ready

Rear Tyre:

Maxxis Dissector, 29 x 2.4" , 3C, MaxxTerra, EXO+, Tubeless Ready

Approved For:

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

65 mm (rear)

Chainrings:

1x

Fork Axle to Crown Size (max.):

571 mm

Features:

• optimised linkage design for less fatigue

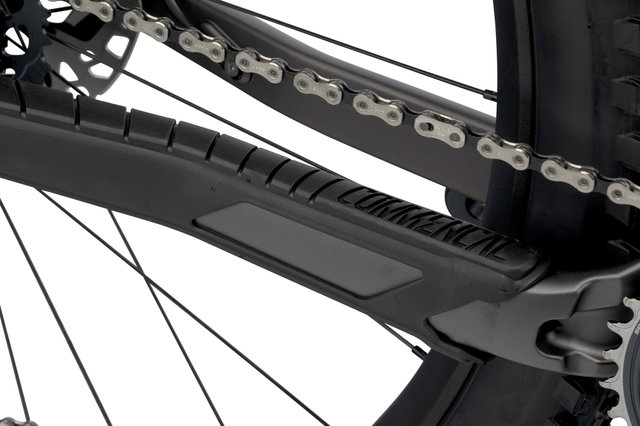

• compact chainstays for heel clearance

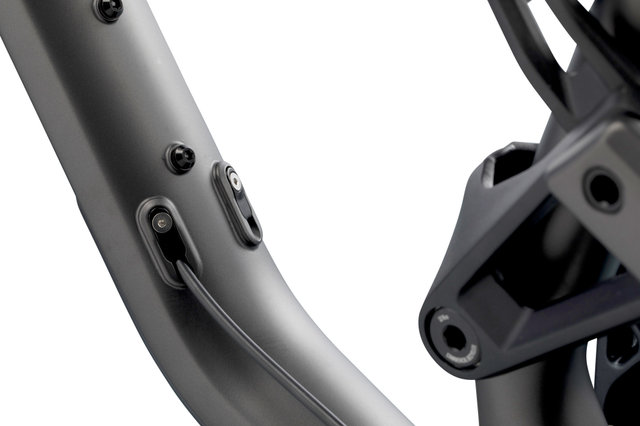

• optimised cable routing
• simple bottle holder assembly
• high manoeuvrability thanks to a short stem and flatter steering angle
• stability through longer reach
• short fork travel and steeper seat angle for good seated position on uphill
• enduro bearings for high rigidity and performance

Geometry:

(based on a fork axle to crown length of 561 mm)
S:

Recommended Height:

160 - 171 cm

Stack:

626 mm

Reach:

440 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

566 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1203 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

M:

Recommended Height:

170 - 181 cm

Stack:

630 mm

Reach:

465 mm

Seat Tube Length:

420 mm

Effective Top Tube Length:

592 mm

Head Tube Length:

115 mm

Chainstay Length:

435 mm

Wheelbase:

1230 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

L:

Recommended Height:

180 - 191 cm

Stack:

634 mm

Reach:

490 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

618 mm

Head Tube Length:

120 mm

Chainstay Length:

435 mm

Wheelbase:

1257 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

XL:

Recommended Height:

190 - 203 cm

Stack:

638 mm

Reach:

515 mm

Seat Tube Length:

460 mm

Effective Top Tube Length:

644 mm

Head Tube Length:

125 mm

Chainstay Length:

435 mm

Wheelbase:

1284 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

Manufacturer Number:

21METATR29RISR

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

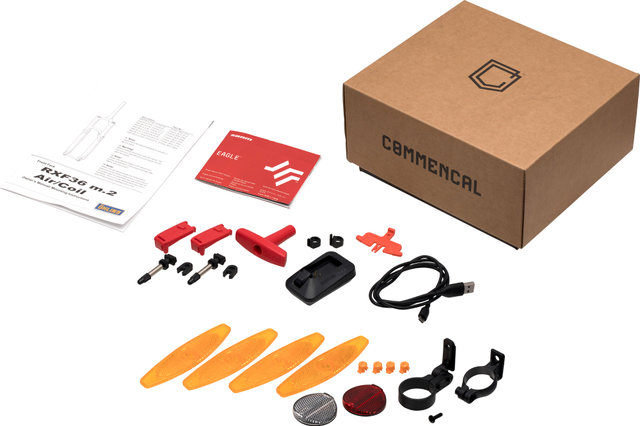

Contents:

• 1 x COMMENCAL Meta TR ÖHLINS AXS 29" Mountain Bike
