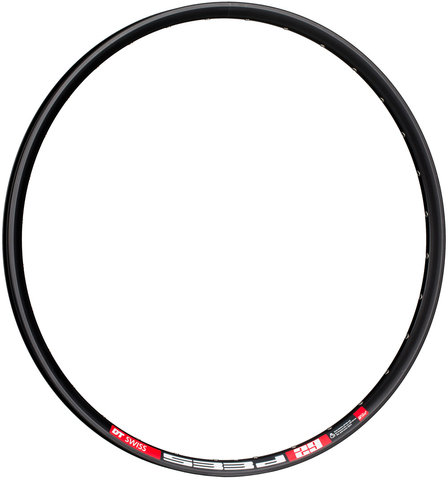

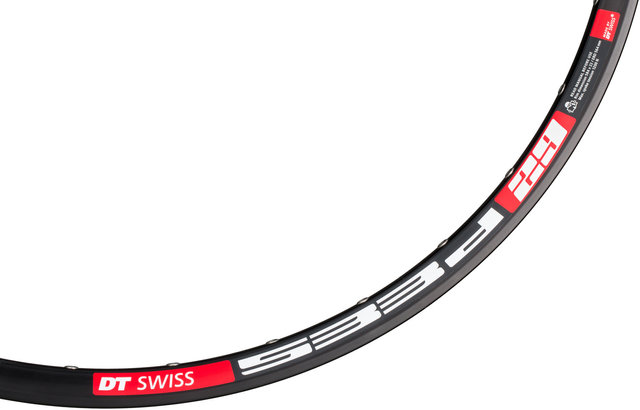

DT Swiss 533 D Disc 29" Rim

The 533 D Disc rim by DT Swiss - uphill with muscle power, downhill attack mode

The DT Swiss 533 D is a disc rim in 29" for Enduro use. The Pin Joint Technology, in which two steel inserts are pressed into the ends of the profile with a positive fit, makes the connection precise, durable and economical. Manufactured with the highest precision and from extremely resistant aluminium alloys, DT Swiss 533 D rims can handle even the most demanding trails.

Specifications:

Application: Enduro
Wheel Size: 29"
Tyre Type: clincher
Number of Spokes: 28, 32
Brake Type: disc
Tubeless System: Tubeless Ready

Technical Information:

Dimensions (ETRTO): 22-622
Inner Width: 22 mm
Outer Width: 28 mm
Depth: 20.5 mm
ERD: 602 mm
Valve Hole Diameter: Presta (6.5 mm)
Material: aluminium

Approved For:

Weight Limit: 130 kg (system weight)
Air Pressure (max.): 8.5 bar
Recommended Tyre Width: 1.0 - 2.5" / 25 - 64 mm

Features:

- adhesive type: vinyl
- drilling: eyelets
- rim joint: Pin Joint
- rim tape: 622x27 mm
- 1200 N max. spoke tension
- ASTM category 4: for off-road use with jumps up to 122 cm in height
- spokes: DT Competition®, DT Champion®, DT Aero Comp®

Technology:

Pin Joint:
Two steel inserts are pressed positively into the ends of the profile. The resulting joint is precise, durable and economical.

Models:

29" / 28 hole:
- Wheel Size: 29"
- Number of Spokes: 28
- Manufacturer Part Number: RPE53329P28S026043

29" / 32 hole:
- Wheel Size: 29"
- Number of Spokes: 32
- Manufacturer Part Number: RPE53329P32S026044

Contents:

- 1 x DT Swiss 533 D rim
