FOCUS ATLAS 8.9 Carbon 28" Gravel Bike

The ATLAS 8.9 is a very lightweight gravel bike with a carbon frame and carbon fork, equipped by FOCUS with an electronic SRAM Rival XPLR 1x12-speed groupset and DT Swiss GR 1600 28" wheels. Because it weighs less than ATLAS 6-series models and has a more agile endurance geometry, it is ideally suited for competition use. The disc brakes, the 45 mm wide tyres and the handlebars with 16° flare ensure full control on gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

XS, S, M, L, XL

Frame Material:

carbon

Fork Material:

carbon

Components:

Frame:

FOCUS ATLAS, Carbon, C.I.S. Integration, Flat Mount Disc, 12 x 148 mm thru-axle (Boost)

Fork:

FOCUS ATLAS, Carbon, Disc Flat Mount, 425 mm axle to crown length, 50 mm offset, 12 x 110 mm thru-axle (Boost)

Stem:

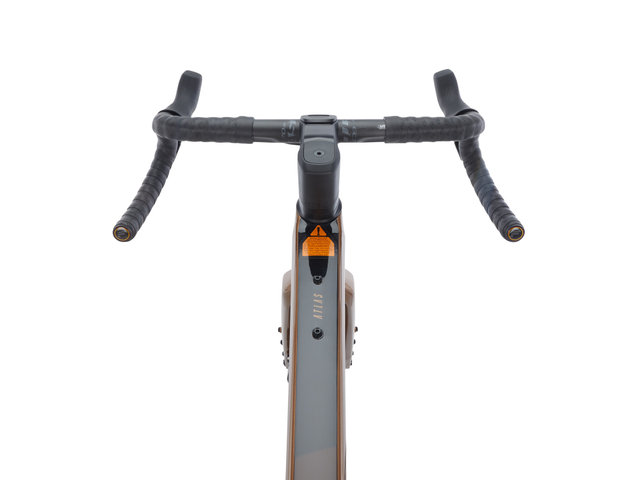

FOCUS C.I.S. integrated, aluminium, 31.8 mm

Handlebars:

Easton EC70 AX, carbon, 125 mm drop, 80 mm reach, 16° flare, 31.8 mm

Headset:

Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.

Seatpost:

Easton EC70, carbon, 27.2 mm, 0 mm setback, insertion depth min. 100 mm

Saddle:

Fizik Taiga

Crank:

SRAM Rival AXS Wide, 12-speed, SRAM DUB PF 86 mm bottom bracket, 40 T chainring

Pedals:

none

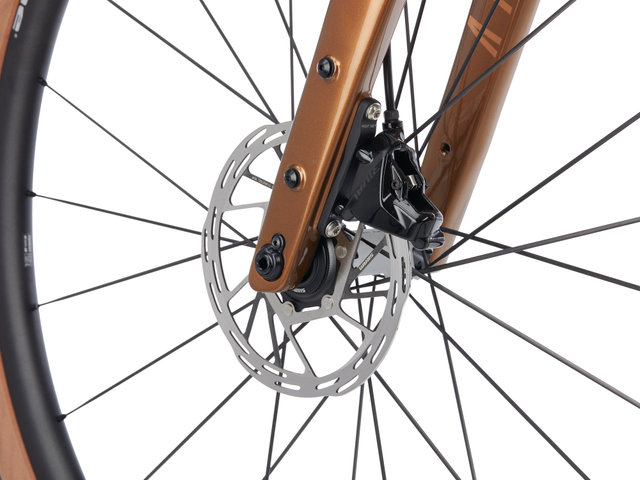

Brakes:

SRAM Rival eTap AXS, 160 mm/160 mm

Shift/Brake lever:

SRAM Rival eTap AXS

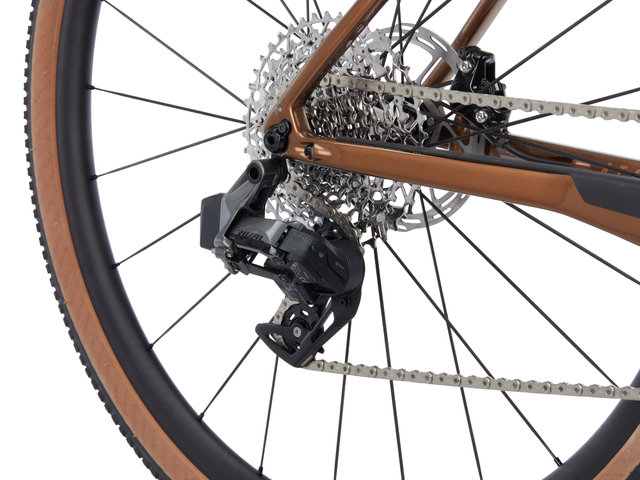

Rear Derailleur:

SRAM Rival eTap AXS XPLR, 12-speed

Cassette:

SRAM XG-1251, 12-speed, 10-44 tooth

Chain:

SRAM Rival AXS, 12-speed

Wheels:

DT Swiss GR 1600, 24-622, 25 mm rim height, 12 x 110 mm / 12 x 148 mm

Tyres:

WTB Riddler, 700 x 45C, folding tyre

Approved For:

Weight Limit:

120 kg

Rotor Size (max.):

180 mm

Tyre Size (max.):

27.5" x 2.0" , 47-622 (700 x 47C), with fenders: 40-622 (700 x 40C)

Chainrings:

1x, 2x

Chainring Size (max.):

1x 42 T w/ 49.7 mm (Shimano) and 45 mm (SRAM) chainline, 2x 30-46 T w/ 47 mm (Shimano) chainline, 2x 30-43 T w/ 47.5 mm (SRAM) chainline

Features:

• lightweight gravel bike with carbon frame (only 1050 g) for adventure and bikepacking
• compared to the 6-series, more agile endurance geometry for fast rides and for competitive use
• comfort and control on changing surfaces and in all weather conditions
• extremely large tyre clearance up to 47 mm, 650B compatible
• sRAM Rival eTap AXS XPLR 1x12-speed electronic groupset and Rival disc brakes
• DT Swiss GR 1600 wheels with 24 mm wide aluminium rims
• wide handlebars with flare
• internal cable routing, innovative C.I.S. aero stem

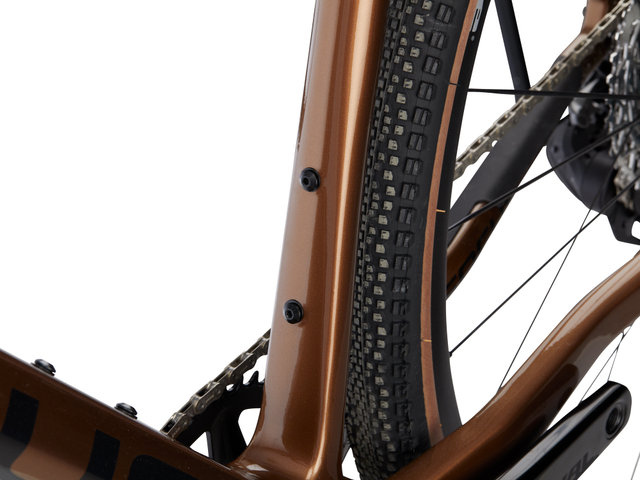

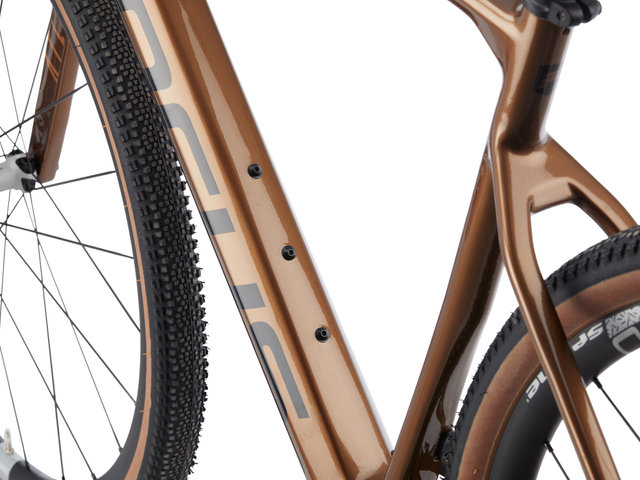

• numerous mounting options
• includes top tube bag
• EN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/h

Technology:

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.

Geometry:

XS:

Recommended Height:

160 - 170 cm

Stack:

569 mm

Reach:

370 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

532 mm

Head Tube Length:

115 mm

Chainstay Length:

425 mm

Wheelbase:

1016 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

70.5°

Standover Height:

774 mm

Stem Length:

80 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

Seatpost Insertion Depth (max.):

200 mm

S:

Recommended Height:

171 - 175 cm

Stack:

574 mm

Reach:

380 mm

Seat Tube Length:

485 mm

Effective Top Tube Length:

549 mm

Head Tube Length:

120 mm

Chainstay Length:

425 mm

Wheelbase:

1028 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

795 mm

Stem Length:

90 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

Seatpost Insertion Depth (max.):

200 mm

M:

Recommended Height:

176 - 185 cm

Stack:

583 mm

Reach:

395 mm

Seat Tube Length:

515 mm

Effective Top Tube Length:

567 mm

Head Tube Length:

130 mm

Chainstay Length:

425 mm

Wheelbase:

1046 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

811 mm

Stem Length:

90 mm

Handlebar Width:

44 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

230 mm

L:

Recommended Height:

186 - 190 cm

Stack:

611 mm

Reach:

410 mm

Seat Tube Length:

545 mm

Effective Top Tube Length:

591 mm

Head Tube Length:

150 mm

Chainstay Length:

425 mm

Wheelbase:

1068 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

832 mm

Stem Length:

90 mm

Handlebar Width:

44 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

260 mm

XL:

Recommended Height:

191 - 199 cm

Stack:

630 mm

Reach:

420 mm

Seat Tube Length:

585 mm

Effective Top Tube Length:

606 mm

Head Tube Length:

180 mm

Chainstay Length:

425 mm

Wheelbase:

1088 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

865 mm

Stem Length:

100 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Seatpost Insertion Depth (max.):

300 mm

Manufacturer Numbers:

XS:

644012500

S:

644012501

M:

644012502

L:

644012503

XL:

644012504

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

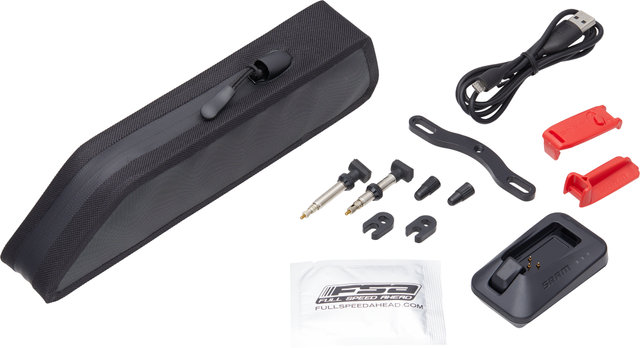

Contents:

• 1 x FOCUS ATLAS 8.9 Carbon 28" gravel bike
• 1 x FOCUS top tube bag
