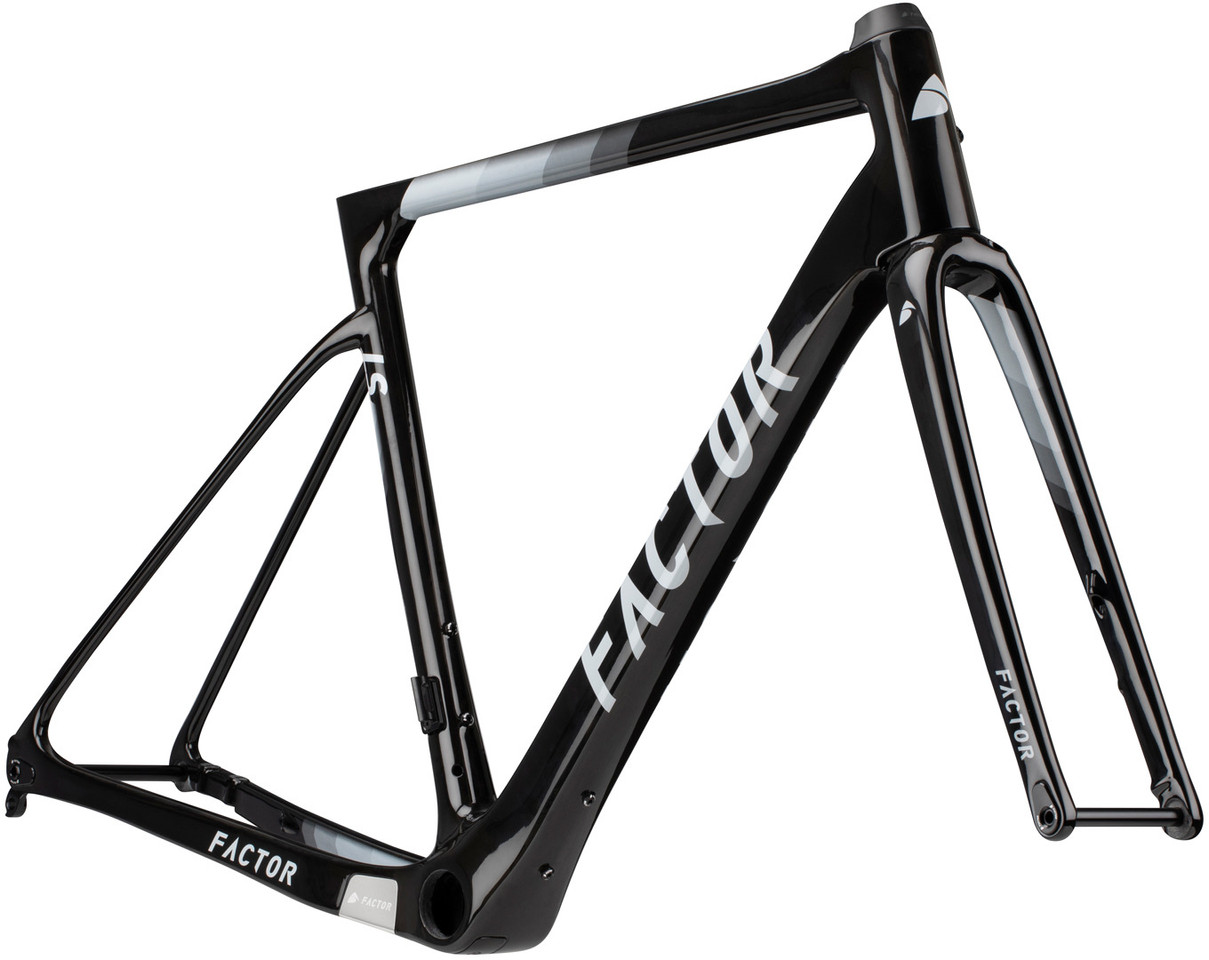

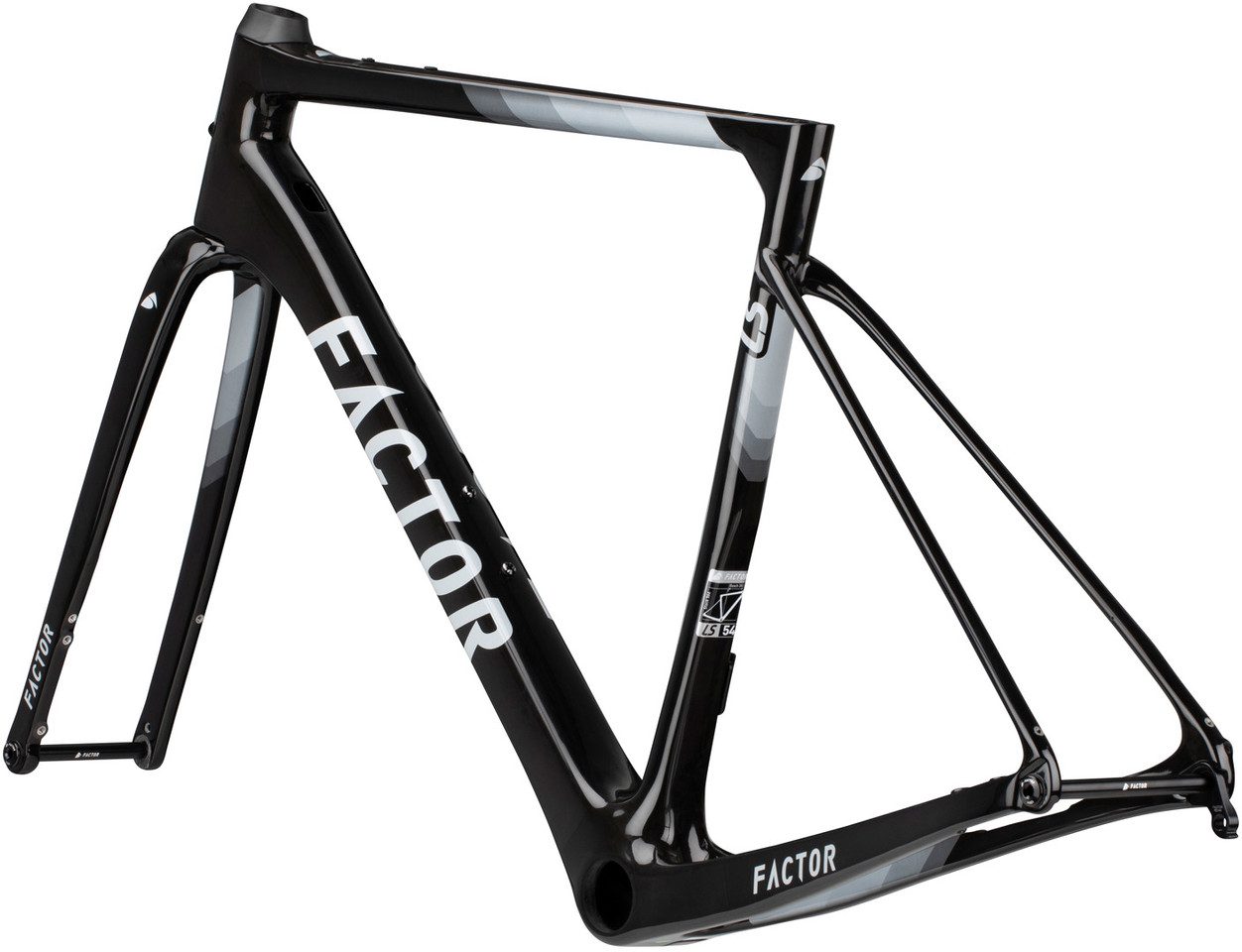

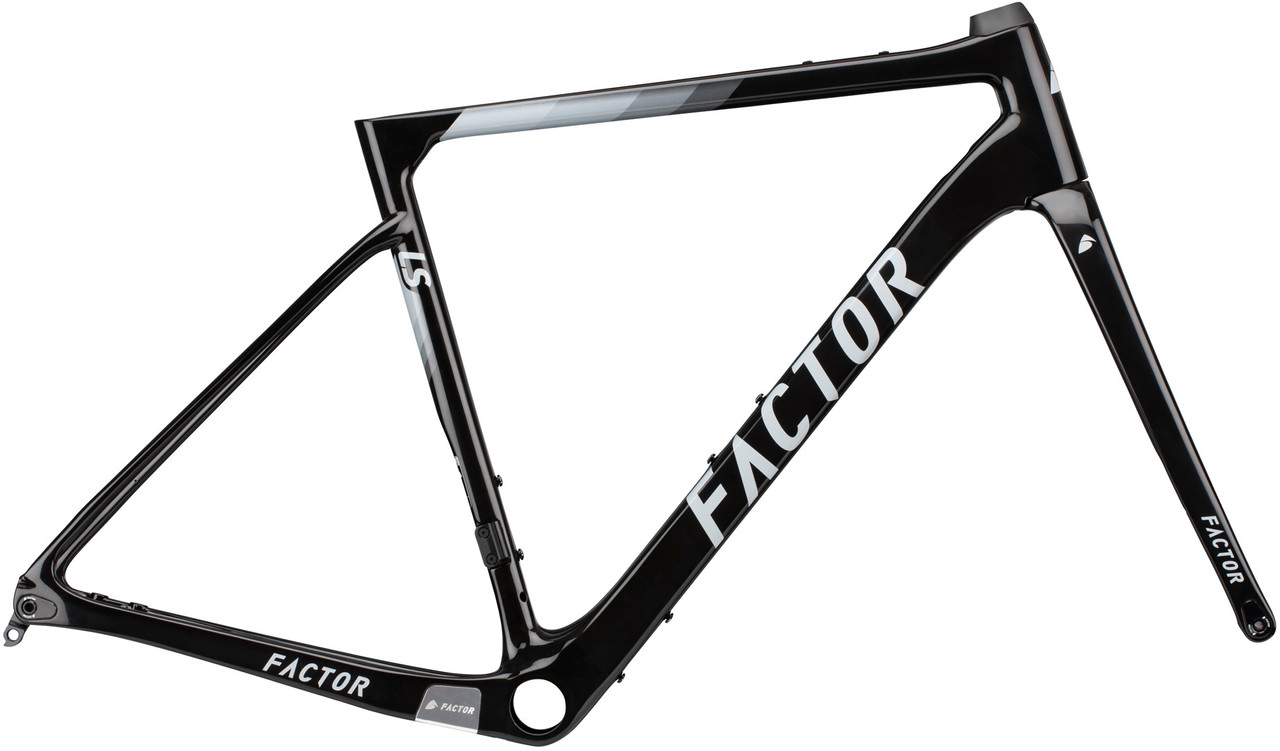

The Factor LS Gravel Frameset - Form follows function

The LS frameset by Factor is designed for gravel riders who like to take part in long, demanding competitions or want to tackle routes with a lot of cumulative elevation. It is not designed for cycling tours with luggage, but rather for competitive use in small and larger groups.
The design of the carbon frame, which weighs only 950 g, is therefore characterised by optimum stiffness values and an aggressive geometry. Balanced handling and a steeper steering angle ensure that you can react in seconds to the special challenges of natural roads, such as potholes and stones. The very low-set bottom bracket compensates the large outer diameter of wide 700C Gravel tyres. The wheelbase was kept as small as possible so as not to impair manoeuvrability on gravel. In addition, the adjusted seat angle and the linearity of the stack/reach ratio allows a perfect fitting for riders of all heights.
Like the frames of the Factor OS series, the LS bridges the gap between a World Tour-tested geometry and the requirements of amateur racers. However, despite the integrated design, regular seatposts, stems and handlebars can be mounted, so you can easily adapt the bike to your needs.
The frameset was named for Larry Shahboz, who introduced Rob Gitelis (owner of Factor Bikes) and many others to the cycling community and supported aspiring athletes. He inspired the ethos that the Gravel community was founded upon--an ethos which is embodied by the functional design of the LS. Reduced to the essentials, this framework is focused on a single thing: to make you the strongest contender possible in Gravel racing.

Specifications:

Application:

Gravel

Wheel Size:

28"

Size:

49 cm, 52 cm, 54 cm, 56 cm, 58 cm

Frame Material:

carbon (UD)

Fork Material:

carbon (UD)

Technical Information - Frame:

Wheel Standard:

12 x 100 mm (standard), 12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

integrated

Headset:

IS41/28.6 - IS49/37 (top to bottom)

Head Tube:

1 1/8" - 1 3/8" tapered

Fork Axle to Crown:

395 mm

Fork Offset:

50 mm

Bottom Bracket Standard:

BBright

Shell Width:

79 mm

Brake Mount:

flat mount

Front Derailleur Mount:

braze-on

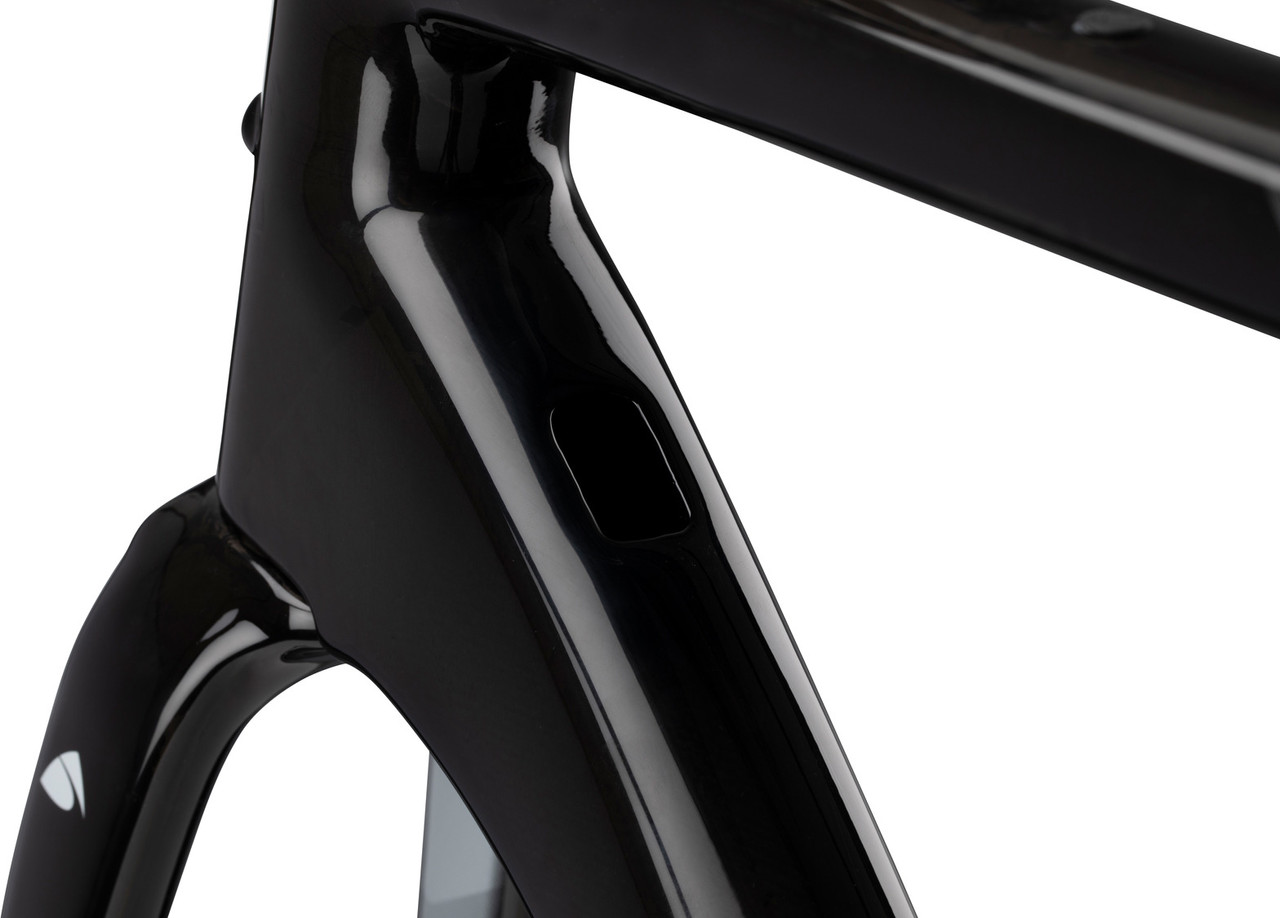

Cable Routing:

internal, mechanical / electrical

Bottle Cage Mounts:

3

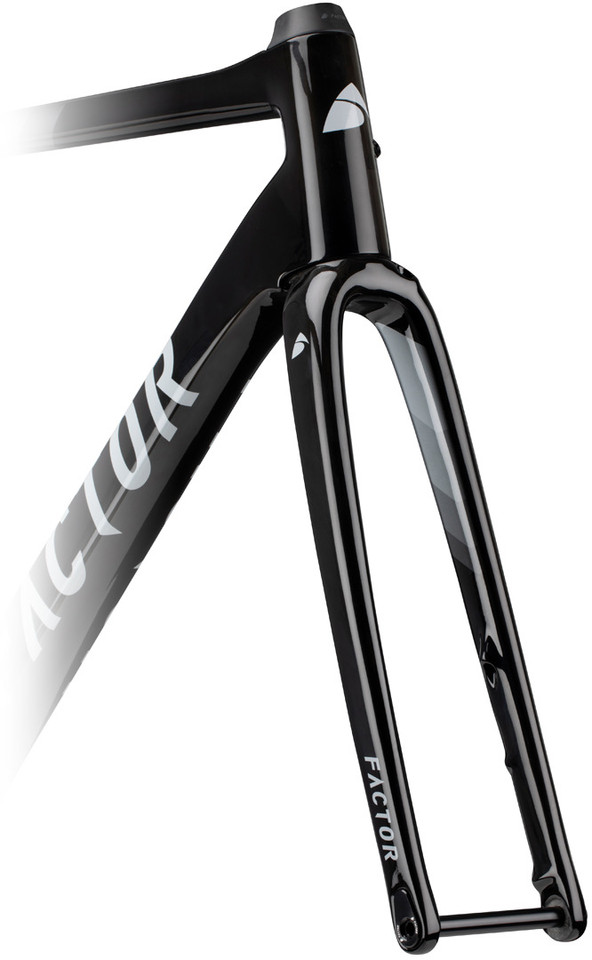

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1 3/8" tapered

Axle Type:

thru-axle (12 x 100 mm)

Brake Mount:

flat mount

Offset:

50 mm

Axle to Crown:

395 mm

Over Locknut Dimension:

100 mm

Steerer Tube Material:

carbon (UD)

Blade Material:

carbon (UD)

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

40-622 (700x40c)

Chainrings:

1x, 2x

Chainring Size (max.):

1x 44 T, 2x 50 T

Features:

• performance-oriented frame for Gravel mass start races
• low weight as an advantage on hilly routes
• rigid design and aggressive geometry
• responsive handling on natural roads
• low bottom bracket, optimal wheelbase

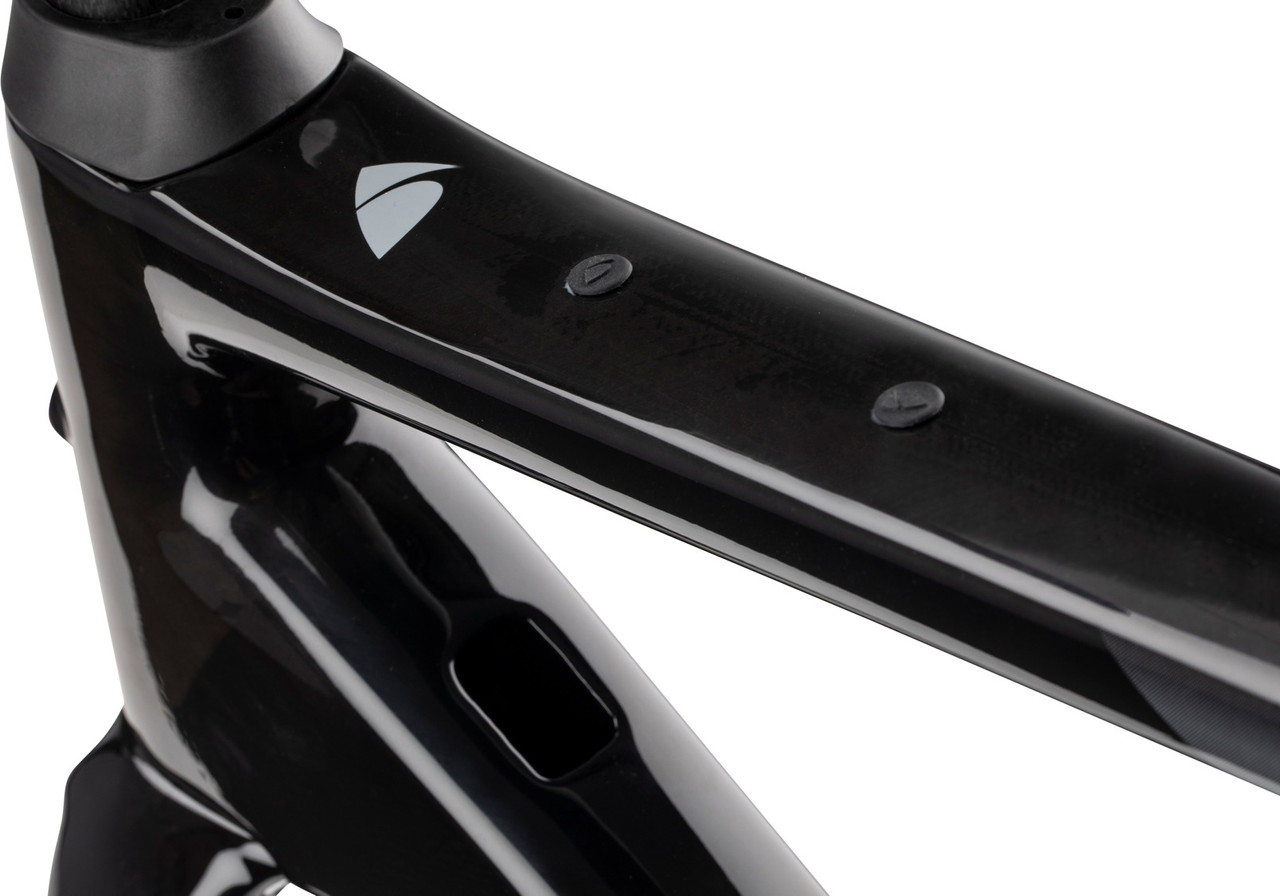

• eyelets for bottle holder and triathlon bag
• suitable for racing in winter and for training

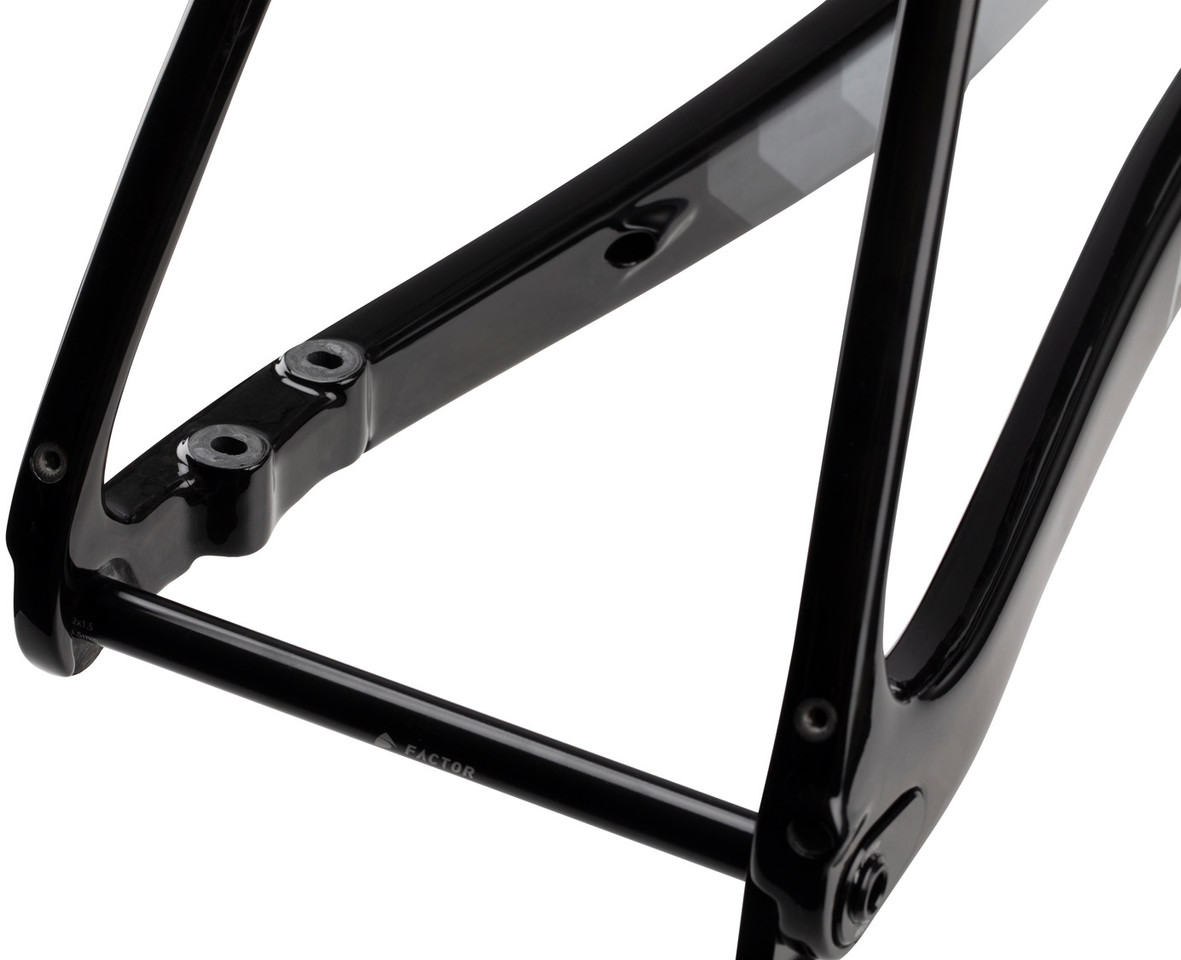

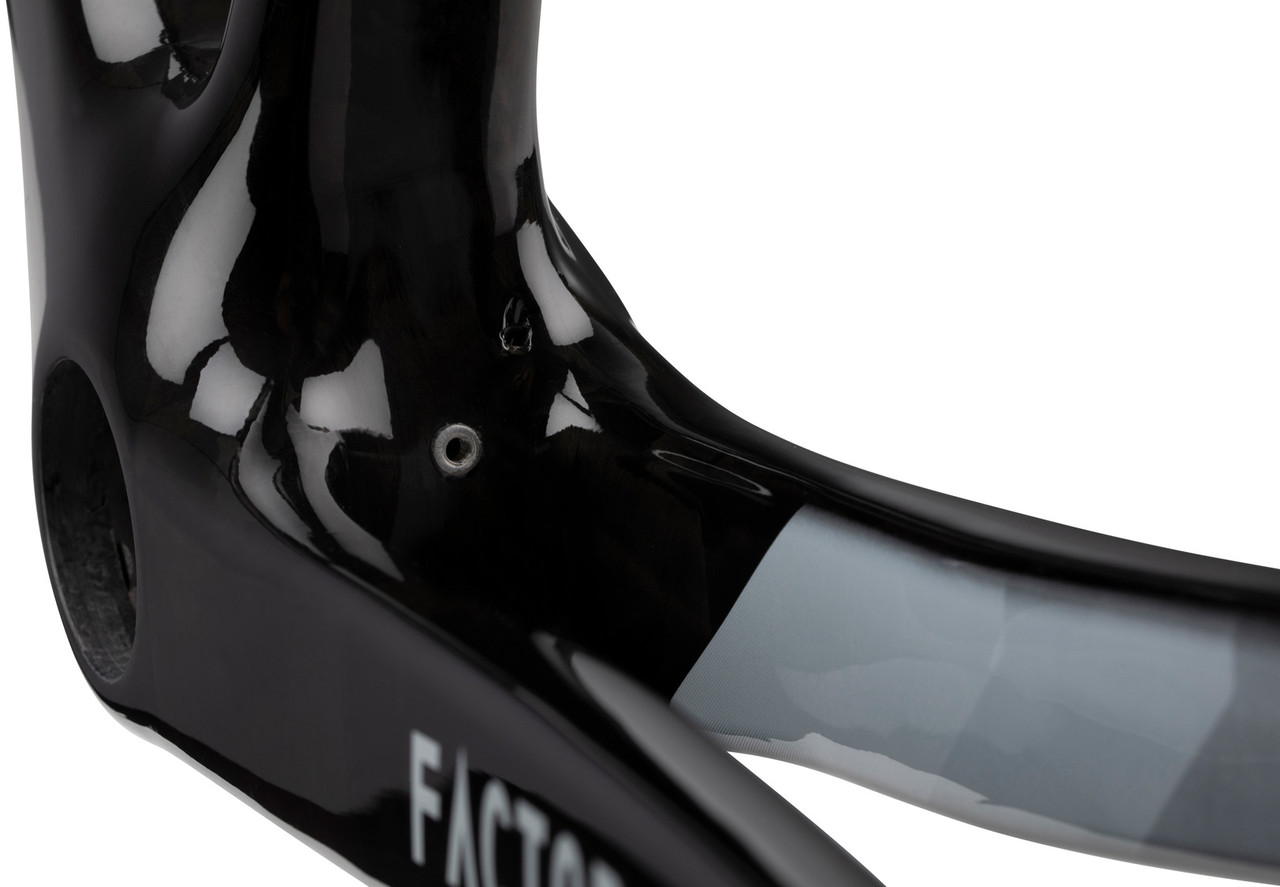

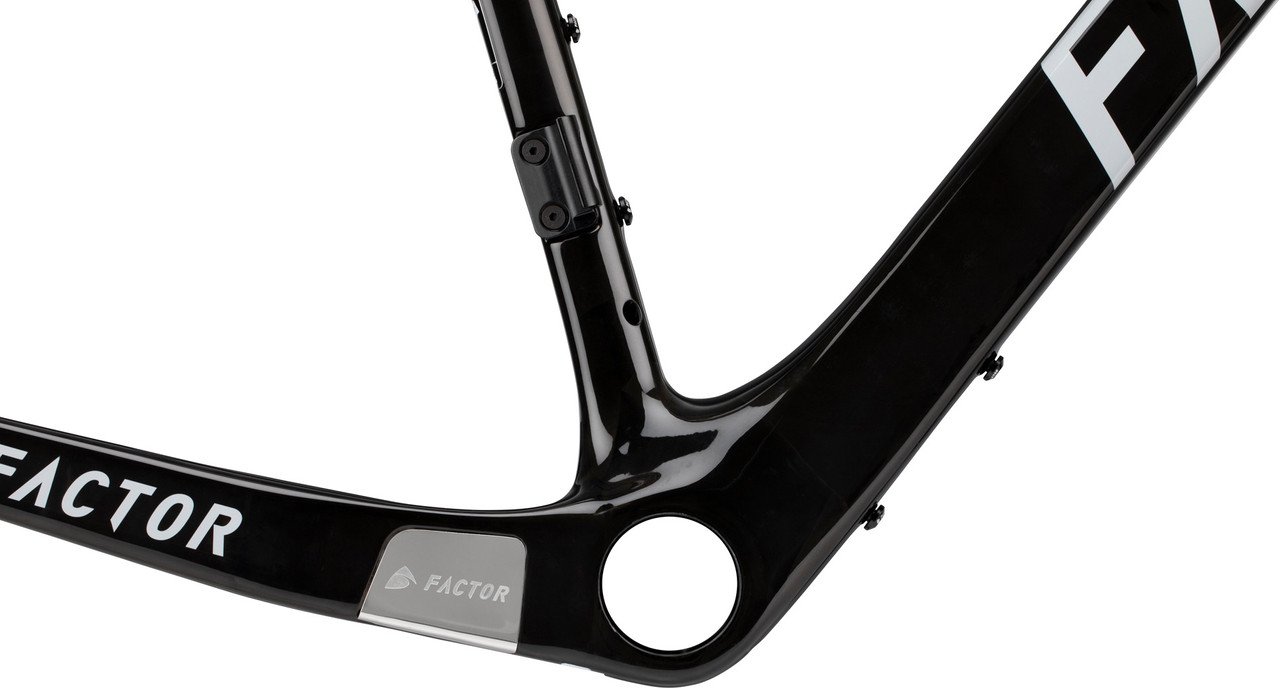

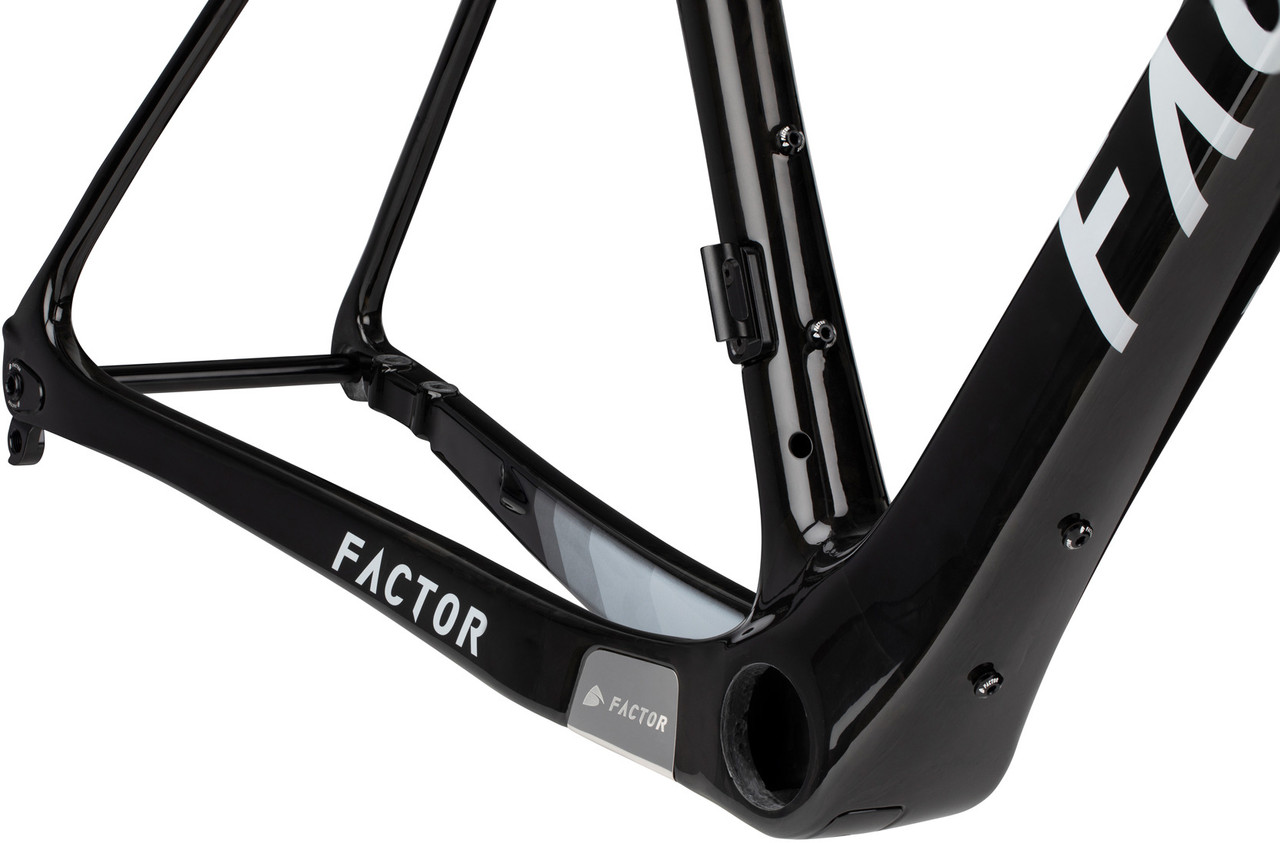

• asymmetrical bottom bracket connection for maximum stiffness

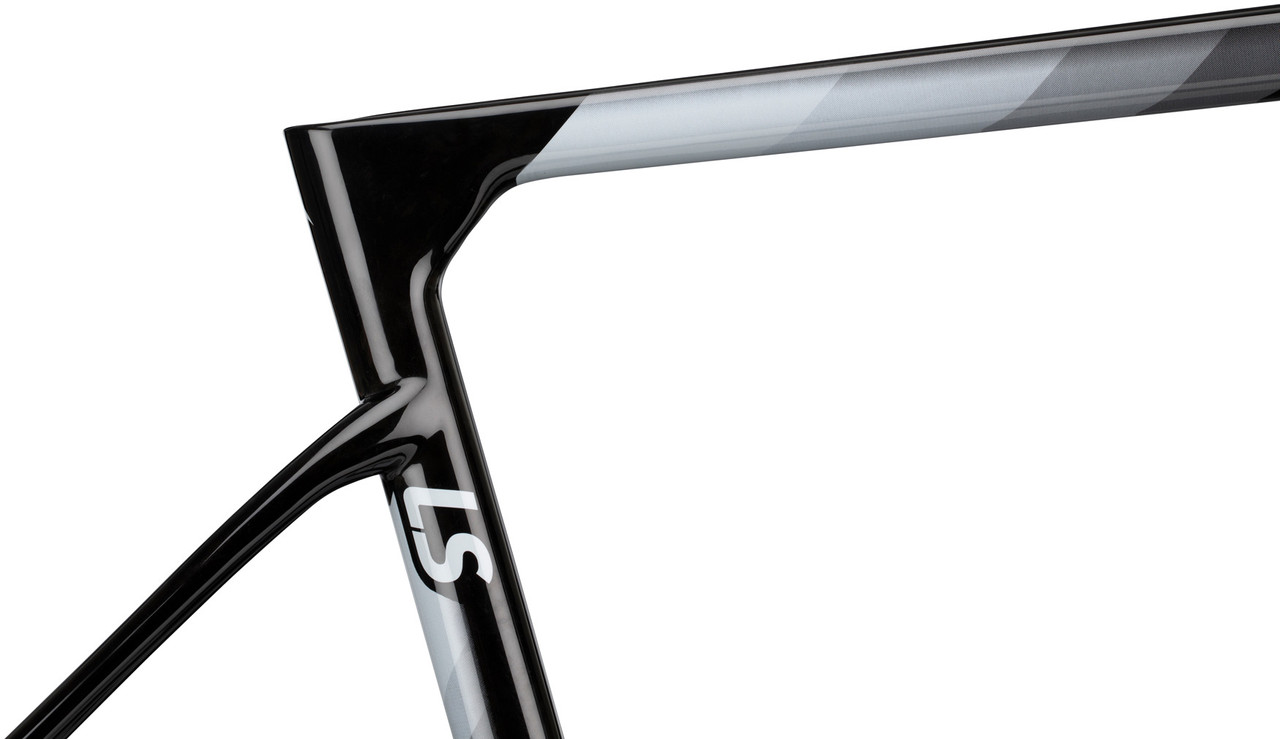

• seatstays with kink and curved seat tube for increased comfort
• integrated mudguard holders
• removable front derailleur mount and cover plate

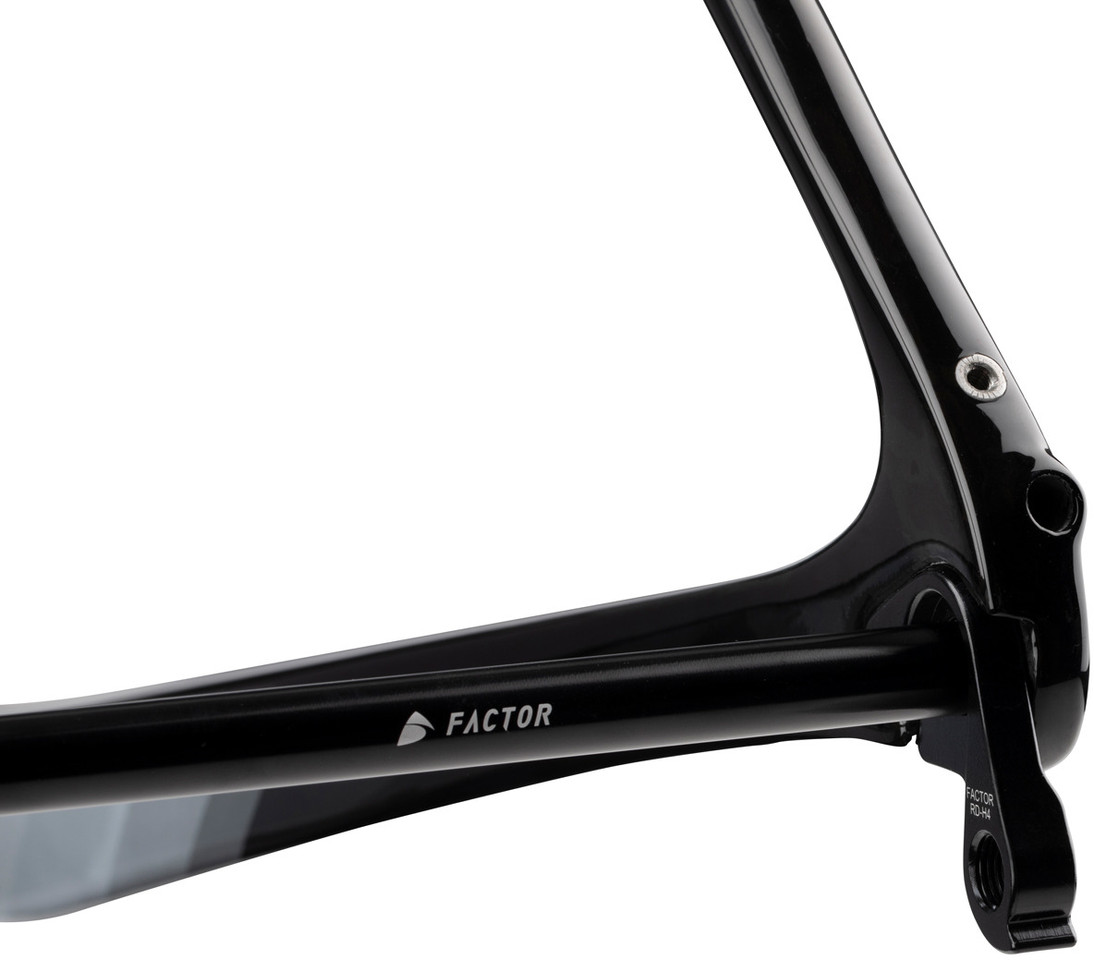

• chainstay protection
• painted UD carbon

Geometry:

49 cm:

Stack:

530 mm

Reach:

372 mm

Seat Tube Length:

455 mm

Effective Top Tube Length:

519 mm

Head Tube Length:

104 mm

Chainstay Length:

420 mm

Wheelbase:

990 mm

BB Drop:

76 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

71.5°

Standover Height:

748 mm

52 cm:

Stack:

547 mm

Reach:

378 mm

Seat Tube Length:

481 mm

Effective Top Tube Length:

535 mm

Head Tube Length:

120 mm

Chainstay Length:

420 mm

Wheelbase:

998 mm

BB Drop:

76 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.9°

Standover Height:

772 mm

54 cm:

Stack:

566 mm

Reach:

383 mm

Seat Tube Length:

507 mm

Effective Top Tube Length:

550 mm

Head Tube Length:

137.5 mm

Chainstay Length:

420 mm

Wheelbase:

1005 mm

BB Drop:

76 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.3°

Standover Height:

789 mm

56 cm:

Stack:

585 mm

Reach:

392 mm

Seat Tube Length:

527 mm

Effective Top Tube Length:

566 mm

Head Tube Length:

158.5 mm

Chainstay Length:

420 mm

Wheelbase:

1020 mm

BB Drop:

76 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.3°

Standover Height:

809 mm

58 cm:

Stack:

605 mm

Reach:

401 mm

Seat Tube Length:

552 mm

Effective Top Tube Length:

580 mm

Head Tube Length:

179.5 mm

Chainstay Length:

420 mm

Wheelbase:

1035 mm

BB Drop:

76 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.3°

Standover Height:

831 mm

Manufacturer Numbers:

49 cm:

FFH-R49LS

52 cm:

FFH-R52LS

54 cm:

FFH-R54LS

56 cm:

FFH-R56LS

58 cm:

FFH-R58LS

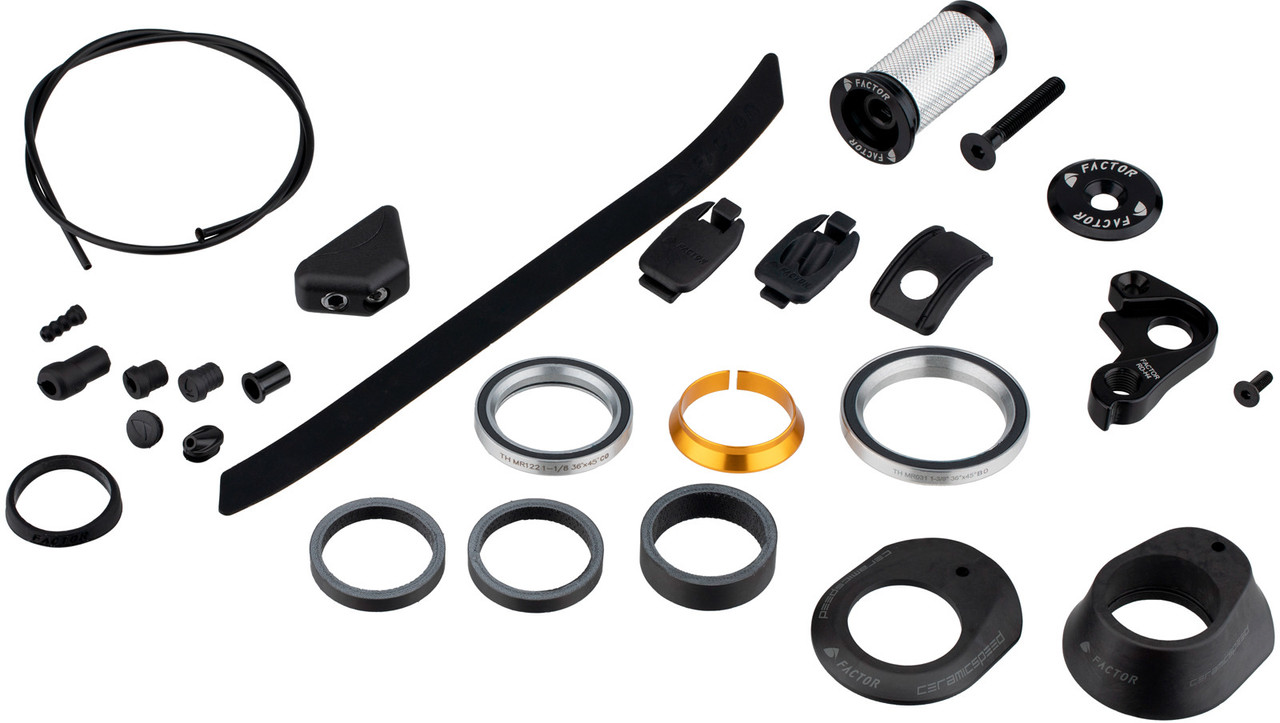

Contents:

• 1 x Factor LS frame
• 1 x Factor LS fork
• 1 x headset
• 1 x rubber lip for seatpost
• 1 x spacer kit for stem
