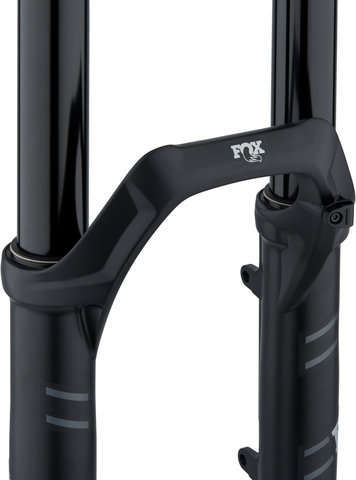

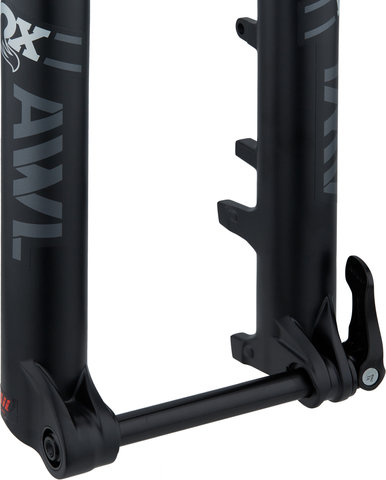

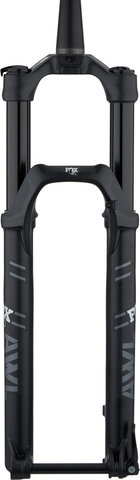

Fox Racing Shox 34 Float AWL 29" RAIL Boost Suspension Fork - 2022 Model

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, City, Touring

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm, 140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

51 mm

Steerer Tube Length:

244 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

2-Position Sweep Adjust (Open / Firm), Open Mode Adjust

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

230 mm

Weight Limit:

169 kg (system weight)

Compatibility:

• Bosch ABS system

Features:

• all-rounder suspension fork with chassis adapted for E-MTBs
• AWL = Adventure Without Limits
• reliable, easy-care RAIL cushioning technology offers good grip even during emergency braking
• 2-Position Sweep Adjust with the possibility of adjusting the compression damping in several stages from Open to Firm
• mounting options for fender and light
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase

Models:

100 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

100 mm

Offset:

51 mm

Axle to Crown:

521.6 mm

Manufacturer Number:

910-20-210

140 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

140 mm

Offset:

51 mm

Axle to Crown:

561.6 mm

Manufacturer Number:

910-21-045

Contents:

• 1 x Fox Racing Shox 34 Float AWL 29" RAIL Boost suspension fork
• 1 x Fox Racing Shox thru-axle with quick release
• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut
