Specifications:

Application:

Cross Country

Product Line:

Factory

Suspension Type:

air

Size x Stroke:

185 x 50 mm, 185 x 52.5 mm, 185 x 55 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

DPS (Dual Piston System)

Bushing Material:

composite

Body Material:

aluminium

Shaft Material:

aluminium

Air Chamber Volume:

EVOL, LV

Adjustment Options:

Compression:

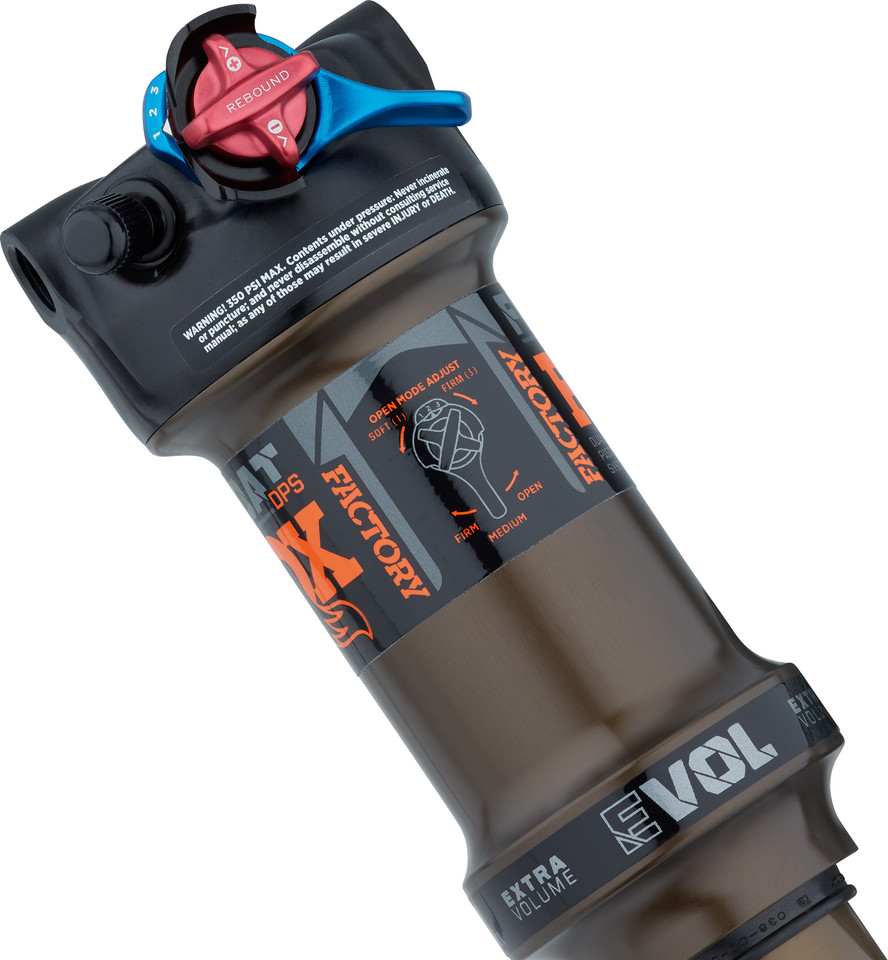

3-position lever (Open / Medium / Firm), Open Mode Adjust (3 levels)

Rebound:

yes

Remote:

no

Approved For:

Air Pressure (max.):

350 psi (24.1 bar)

Features:

• Factory series with Kashima coating for minimised friction and optimised responsiveness
• EVOL air chamber for sensitive behaviour with small impacts
• Large Volume (LV) Eyelet for larger positive air chamber

Technology:

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Models:

185 mm x 50 mm:

Size x Stroke:

185 x 50 mm

Tune:

0.8 Spacer LCM LRM CMF

Manufacturer Number:

972-01-478

185 mm x 52.5 mm:

Size x Stroke:

185 x 52.5 mm

Tune:

0.4 Spacer LCM LRM CMF

Manufacturer Number:

972-01-479

185 mm x 55 mm:

Size x Stroke:

185 x 55 mm

Tune:

0.4 Spacer LCM LRM CMF

Manufacturer Number:

972-01-480

Contents:

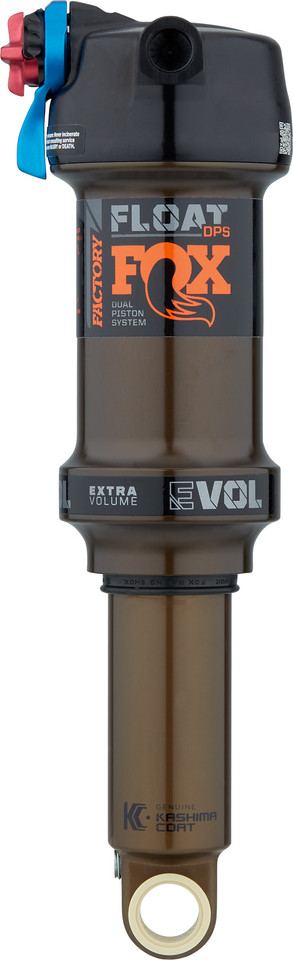

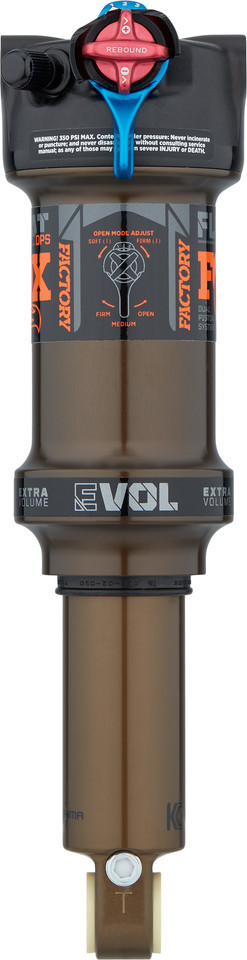

• 1 x Fox Racing Shox Float DPS EVOL LV 3POS Factory Trunnion shock
