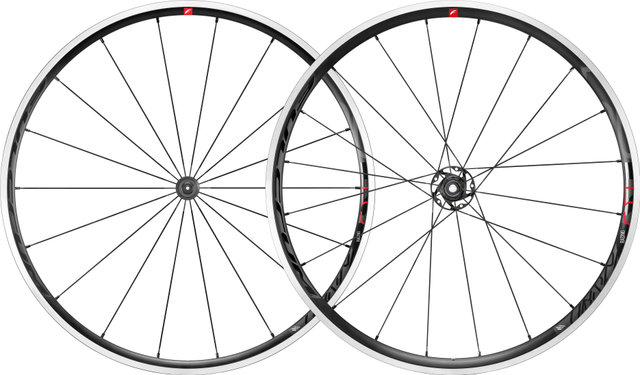

Fulcrum Racing 5 C17 Wheelset

Stiffer, more powerful, lighter: The Racing 5 wheelset by Fulcrum

Thanks to a completely novel concept, the tried-and-tested Racing 5 wheel now delivers even higher performance. The features that have made the Racing 5 such a popular wheel have been further enhanced, making this model not only accessible to all, but now even more ideal for racing. The new asymmetrical profile of the rear rims and a new 20-spoke design provide significant performance advantages in terms of lateral and torsional rigidity, but also in terms of increased reaction speed. This design offers a better distribution of spoke tension, resulting in a more rigid and powerful wheel.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

18 (front), 20 (rear)

Brake Type:

rim brake

Tubeless System:

none

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Campy Freehub:

9-/10-/11-/12-speed Campagnolo

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

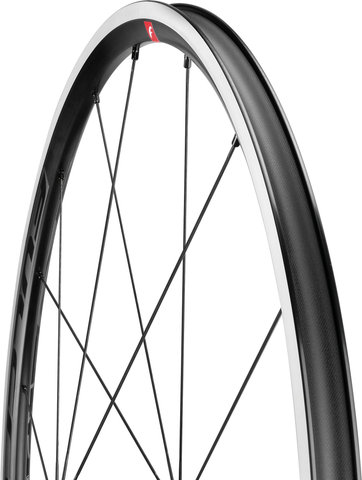

Technical Information - Rim:

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

23 mm

Front Depth:

24.5 mm

Rear Depth:

27.5 mm

Rim Material:

aluminium

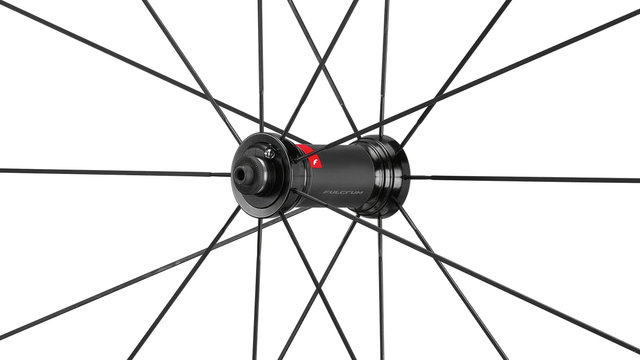

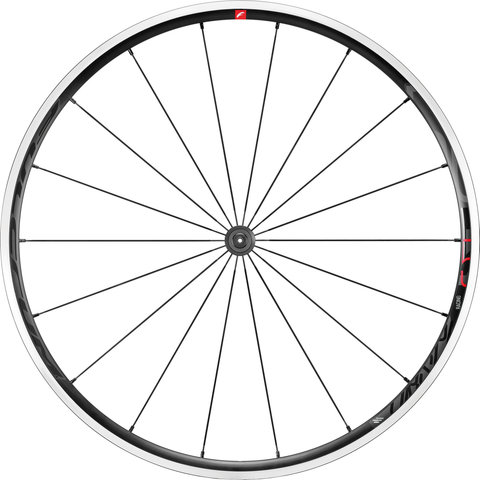

Technical Information - Front Hub:

Over Locknut Dimension:

9x100 mm, standard quick release

Bearings:

adjustable cartridge, sealed

Body Material:

aluminium

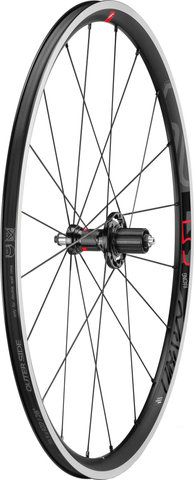

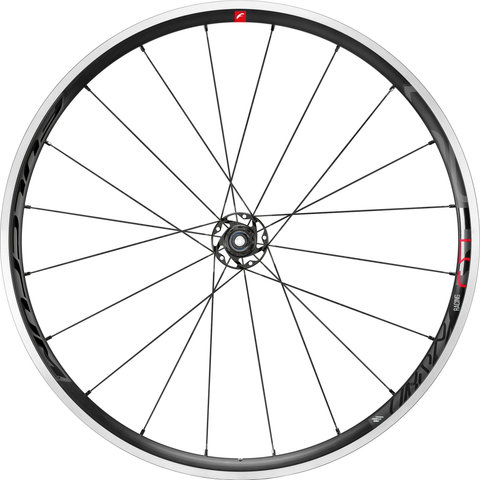

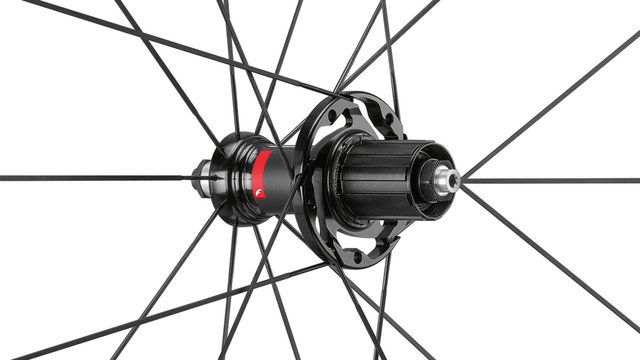

Technical Information - Rear Hub:

Over Locknut Dimension:

10x130 mm, standard quick release

Bearings:

adjustable cartridge, sealed

Body Material:

aluminium

Freehub Body Material:

Plasma treated

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

aero / straight pull

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

109 kg total weight

Recommended Tyre Width:

25 - 28 mm

Features:

• different rims heights
• front hub with aluminium flanks
• rear hub with aluminium flanks
• milled brake flanks
• bevelled rim sides

Technology:

Anti-Rotation System™
Fulcrum's technicians have redesigned the spokes and hub shells to create a strong and solid unit. In this way, the spokes never lose their initial tension, keeping the wheel perfectly reactive and centred, and the wheel remains in the position developed in the wind tunnel to ensure the best possible aerodynamics.

Colour Index:

• Rim: black, black / red decals
• Hubs: black, black / red decals
• Spokes: black
• Nipples: silver

Manufacturer Number:

Campy Freehub:

R5-19CFRBC

Shimano Freehub:

R5-19CFRBS

Contents:

• 1 x Fulcrum Racing 5 C17 Clincher wheelset (front and rear wheel)

• black/130 mm/100 mm/28"/Shimano Road/100 mm/Shimano Road/100 mm/130 mm: 1650 g

Fulcrum Wheels S.r.l.
Via dell' Economia 103
36100 Vicenza
Italy
info@fulcrumwheels.com
