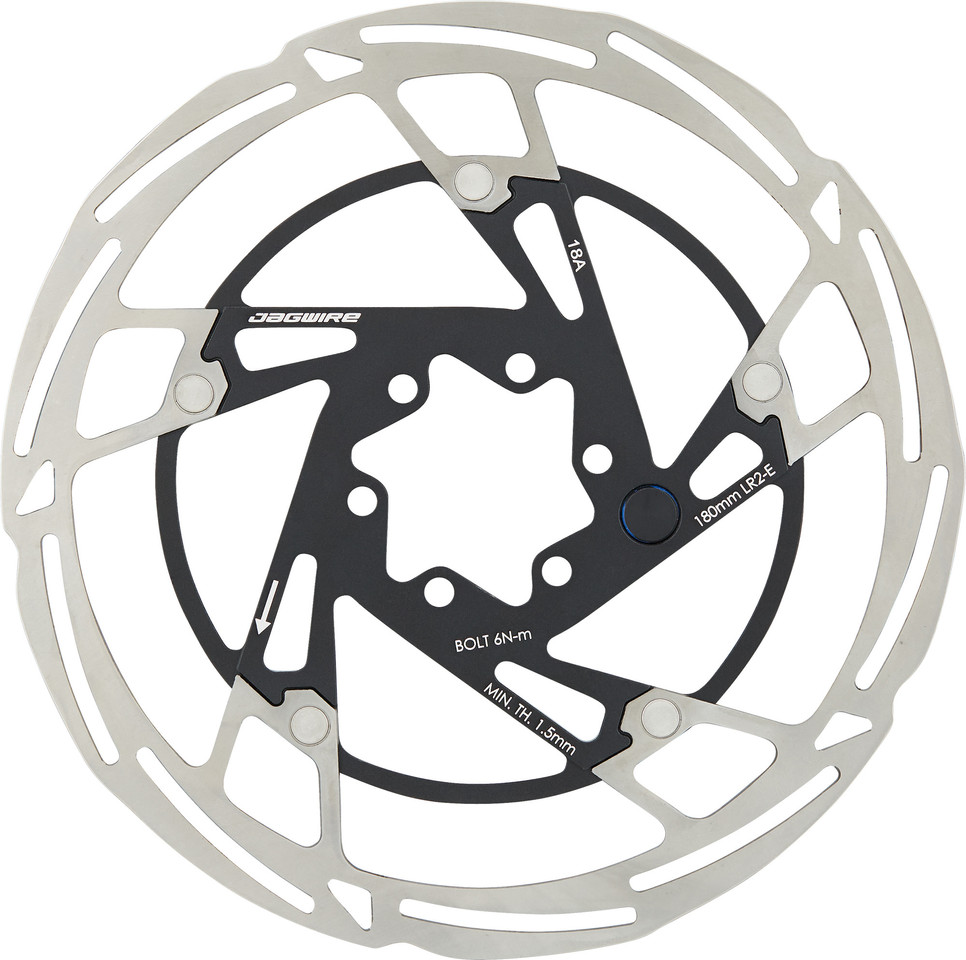

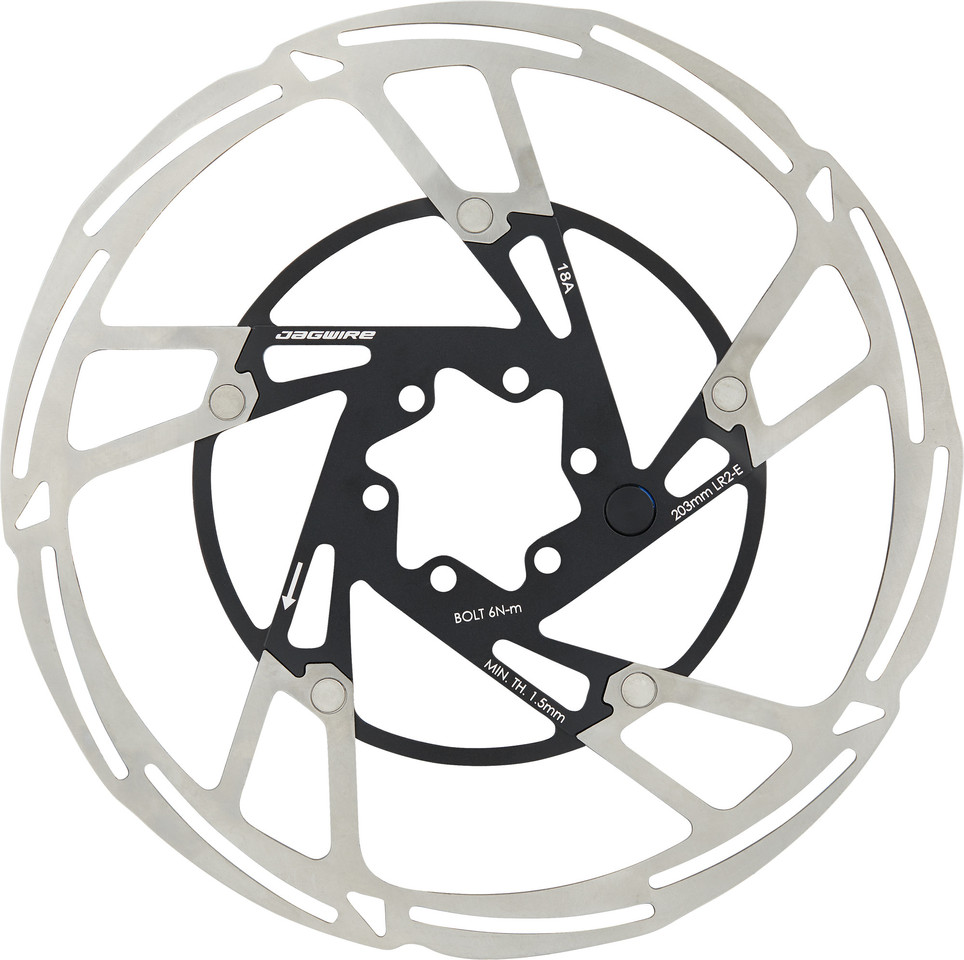

Jagwire Pro LR2-E Disc 6-Bolt Brake Rotor with Magnet

The two-piece Jagwire Pro LR2-E 6-bolt brake rotor comes with an integrated magnet that can be used in combination with the speed sensor of an e-bike. The design, which combines a constant and quiet braking stainless steel friction surface with a lightweight aluminium spider, has high torsional rigidity for increased durability.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Technical Information:

Mount:

6-bolt

Diameter:

160 mm, 180 mm, 203 mm

Design:

2-piece

Rotor Material:

stainless steel

Spider Material:

aluminium

Approved For:

Brake Pad Compatibility:

organic, sintered, semi-metallic

Note from the manufacturer:

These brake rotors are not suitable for brakes whose brake pads have a guide lug below the brake caliper, such as Avid BB7, Avid Juicy, Hayes HFX and Hayes MX1.

Features:

• 1.8 mm thick 6-bolt brake rotor
• integrated magnet for use with the speed sensor on the e-bike
• two-piece construction with spider and inner ring as well as reinforced rivets prevent distortion of the rotor
• less rotating mass and longer durability
• CNC-machined stainless steel braking surface prevents corrosion, promotes quiet braking
• lightweight aluminium spider saves weight compared to one-piece steel rotors

Technology:

Level 3 - Pro
The Pro level is the third and second highest of Jagwire's four performance levels. It stands for high-performance components that offer significantly better performance compared to conventional products.

Manufacturer Numbers:

160 mm:

DCR081

180 mm:

DCR080

203 mm:

DCR083

Contents:

• 1 x Jagwire Pro LR2-E Disc 6-bolt brake rotor with magnet

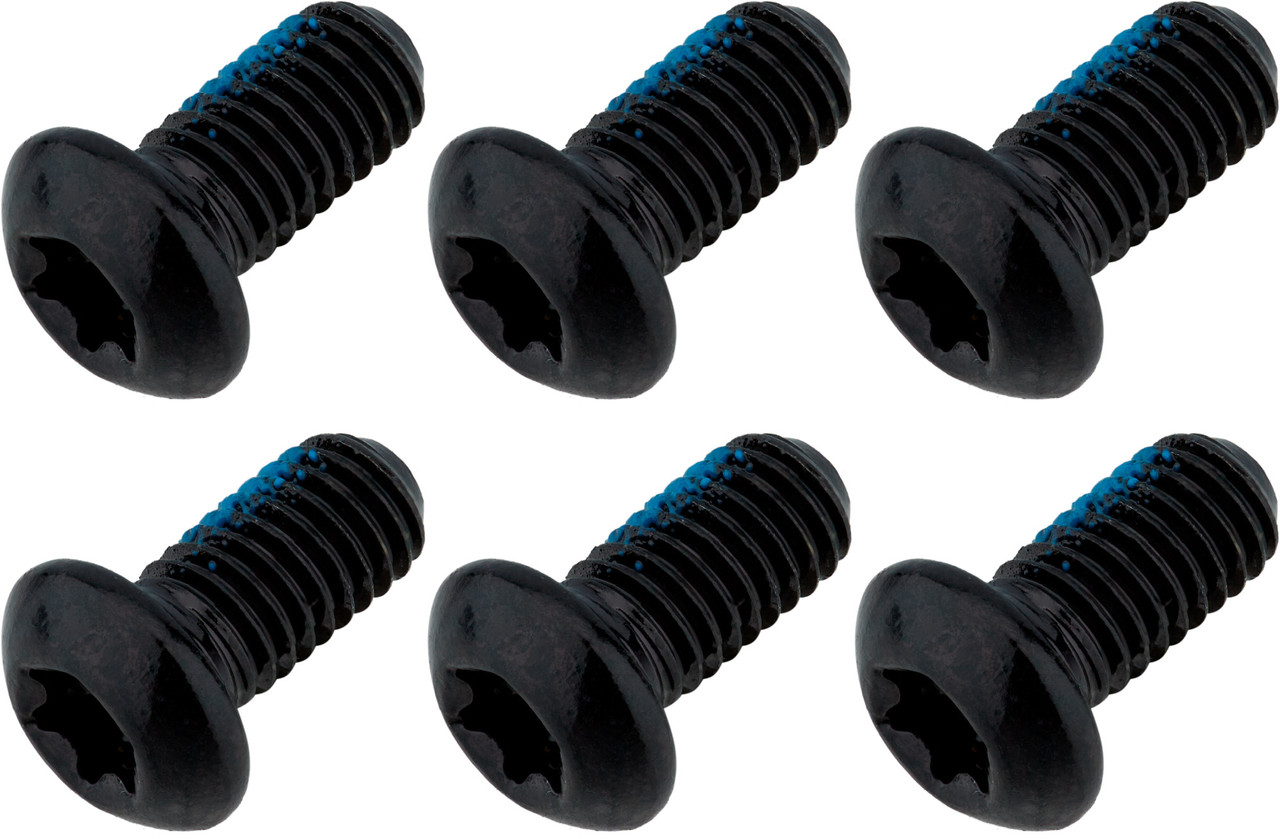

• 6 x T25 bolts
