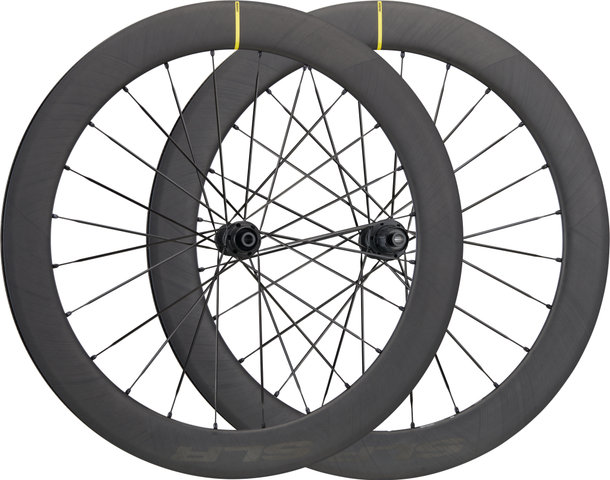

Mavic Cosmic SLR 65 Center Lock Disc Carbon Wheelset

The Mavic Cosmic SLR 65 Disc Carbon - Lightweight, tubeless-compatible aero wheelset

The Cosmic SLR 65 Center Lock Disc wheelset from Mavic is based on 19 mm wide and 65 mm high, extra-light carbon rims, which provide top speed due to their aeroefficiency on flat ground. Tubeless compatibility opens up further advantages such as more puncture resistance, less rolling resistance and weight savings. Thru-axle hubs with self-aligning bearings and optimised spoke holes are used, with 24 double butted straight pull spokes at the front and rear. Due to a special rim bed technology, tubeless rim tape is not necessary.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Road Tubeless

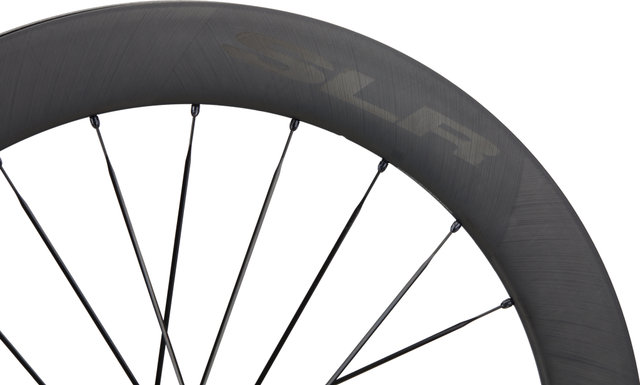

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

26 mm

Depth:

65 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

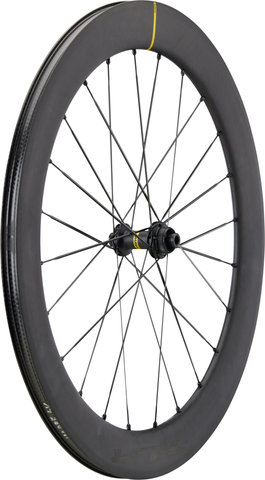

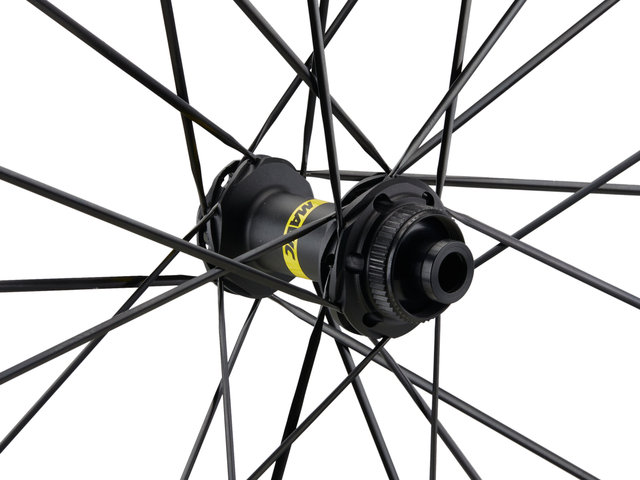

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

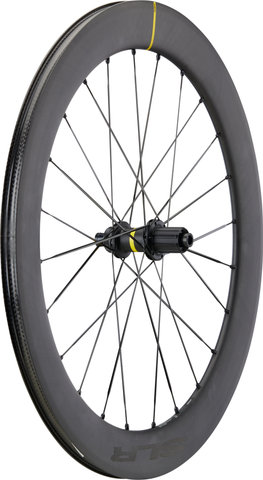

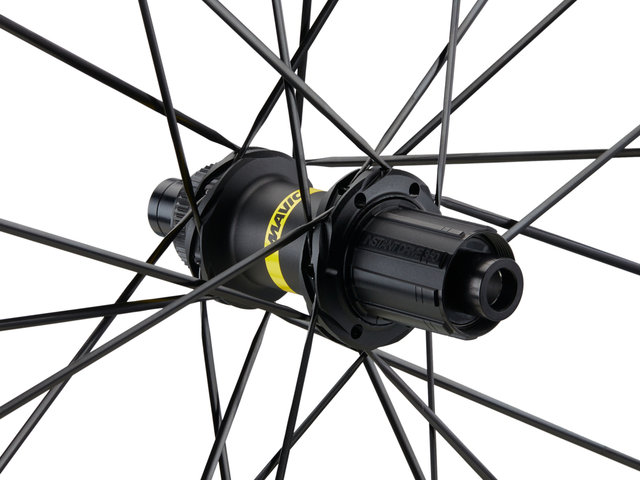

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / double-butted

Spoke Size:

259 mm

Spoke Material:

steel

Nipple Type:

Fore, integrated

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

25 - 32 mm

* recommended for increased durability

Features:

• unbeatable aero efficiency and more stability in crosswinds
• faster acceleration and safer braking thanks to disc brake optimisation
• user-friendly UST-Road system for more speed, control and comfort
• Infinity hub design for optimal lacing
• aluminium axles
• front can be converted to quick release (with supplied adapters), not compatible with 15 mm thru-axles
• rear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adapters
• rear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapter
• extra-light Shimano freehub body optionally available
• no rim tape required thanks to Fore technology
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Carbon Tapeless Tubeless
Instead of a rim hole, a metal threaded insert is wrapped in the carbon layers of the lower rim base, into which the spoke nipple can be screwed directly. The outer rim base remains intact, so no rim tape is required for sealing.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

P1517155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

P1518160

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

Contents:

• 1 x Mavic Cosmic SLR 65 Disc Carbon Wheelset (front and rear)
• 1 x pair end caps for quick release, front
• 2 x UST valve with accessories
