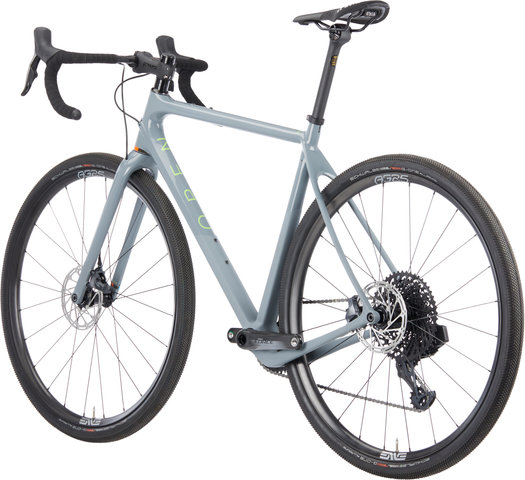

OPEN WI.DE Force Eagle AXS ENVE 28" Carbon Gravel Bike

The WI.DE. 28" carbon gravel bike from OPEN with Force Eagle AXS ENVE wheelset for adventurous gravel rides

The OPEN WI.DE. 28" gravel bike, equipped with SRAM Force Eagle AXS and ENVE wheels, is proof that pure adventure and electronic gears are by no means mutually exclusive. It also equips you perfectly for technical passages and descents. The WI.DE. carbon frame convinces with generous tyre clearance, whereby the space is created by the lowered chainstays and the consistent 1-speed frame design. The seat and head tube angle are aligned so that you sit slightly more upright than on a race-oriented gravel bike. This allows you to maintain control even on bumpy trails. You are still fast on smooth asphalt. The cables are routed internally to protect your shifting and braking system from dirt and moisture. With four mounting options for bottle cages, bags or lamp batteries, you are well-equipped for day-long tours and night rides.

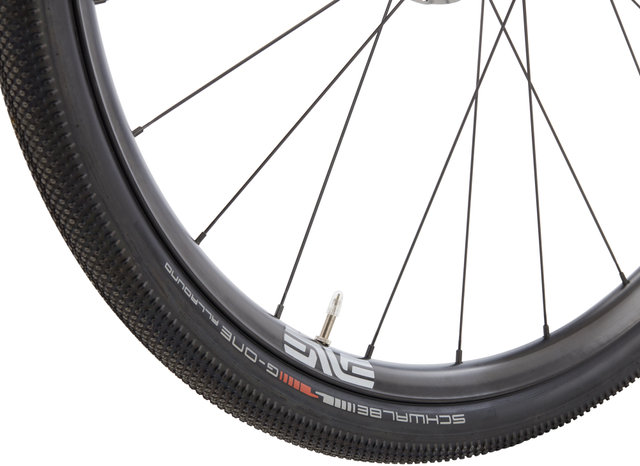

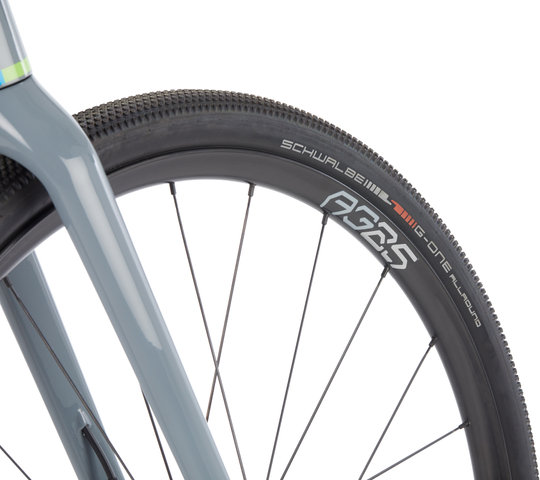

The AG25 wheelset by ENVE has 25 mm wide carbon rims and is specially designed for gravel and bikepacking. Equipped with 45 mm wide Schwalbe G-One tyres, it masters any terrain. The Force chainring with 40 teeth in combination with the small 10-tooth sprocket is a guarantee for high speeds. Thanks to the largest Eagle sprocket with 50 teeth, even very steep climbs are child's play for you. Components from ENVE and Fizik keep the weight extremely low, so that this adventure bike weighs only 8.2 kg.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

S, M, L, XL

Frame Material:

carbon

Fork Material:

carbon

Components:

Frame:

OPEN WI.DE.

Fork:

OPEN U-Turn

Stem:

ENVE Road

Handlebars:

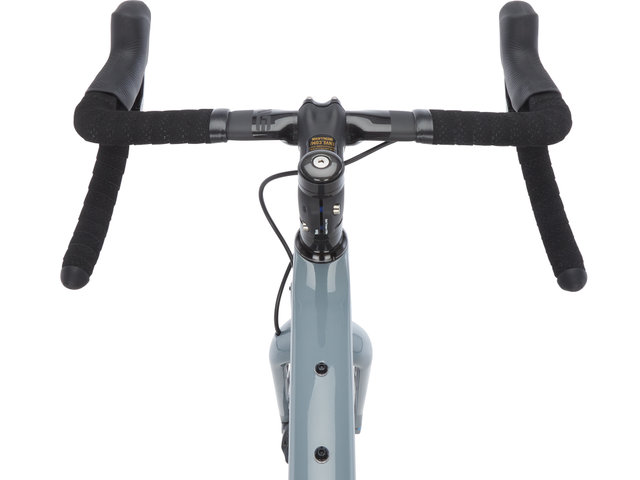

ENVE SES AR Road, Fizik Tempo Microtex

Headset:

Cane Creek 40, IS42/28.6 - IS52/40 (top to bottom)

Seatpost:

ENVE 0-Offset, 27,2 mm, 300 mm

Saddle:

Fizik Antares R7

Crank:

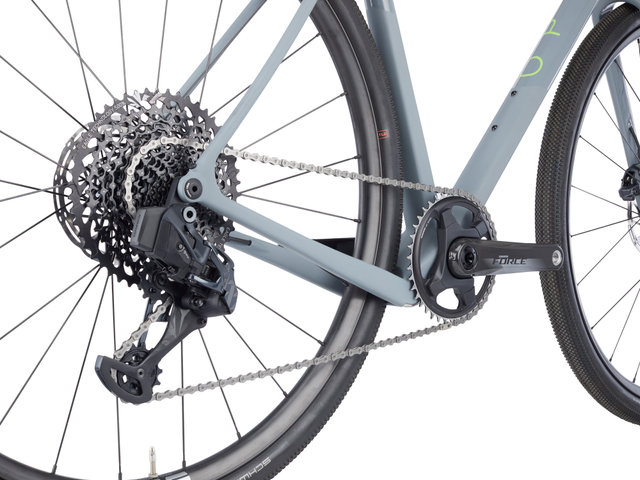

SRAM Force 1 D1, DUB BB386, 40 t

Pedals:

none

Brakes:

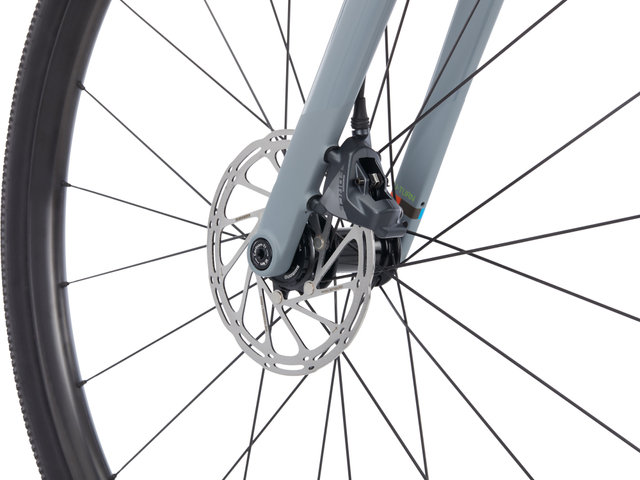

SRAM Force eTap AXS D1, 160 mm/160 mm

Shift/Brake lever:

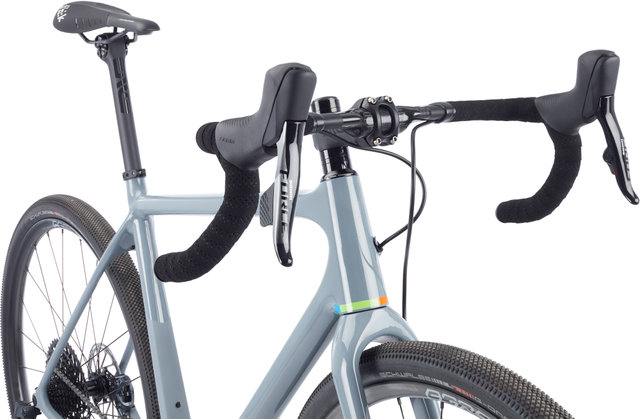

SRAM Force eTap AXS D1

Rear Derailleur:

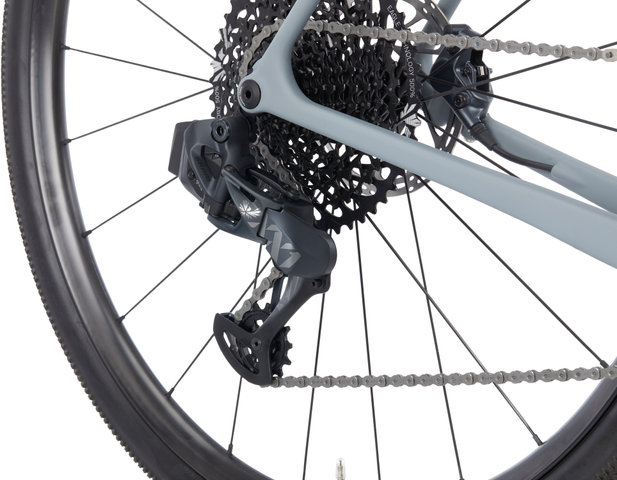

SRAM Eagle XX1 AXS, 12-speed

Cassette:

SRAM XG-1275, 10-50 T, 12-speed

Chain:

SRAM Eagle NX, 12-speed

Wheels:

ENVE AG25 28" , Tubeless Optimized, carbon, 25 mm jaw width, 21 mm rim depth, 12 x 100 mm / 12 x 142 mm, 24 spokes

Tyres:

Schwalbe G-One Allround, 45-622

Approved For:

Rotor Size:

only 160 mm

Tyre Size (max.):

27.5 x 2.4" , 46-622 (700x40c)

Chainrings:

1x

Chainring Size:

1x 46 T, 1x 42 T (SRAM)

Features:

• gravel bike with lightweight carbon frame-fork set
• lowered chainstays for generous tyre clearance
• geometry designed for comfort and control
• internal cable routing
• four mounting options for bottle cages and more
• SRAM Force eTap AXS / Eagle groupset with optimum transmission ratio
• sturdy ENVE AG25 carbon wheels (28" ) with 45 mm wide Schwalbe tyres
• high-quality components from ENVE
• can also be ridden with 27.5 inch wheels

Geometry:

S:

Recommended Height:

160 cm - 171 cm

Stack:

545 mm

Reach:

358 mm

Top Tube Length:

530 mm

Effective Top Tube Length:

515 mm

Seat Tube Length:

500 mm

Head tube angle:

69.0°

Seat tube angle:

72.5°

Effective seat tube angle:

74.0°

BB Drop:

77 mm

Head Tube Length:

125 mm

Wheelbase:

1004 mm

Standover Height:

739 mm

Stem Length:

80 mm

Handlebar Width:

400 mm

Crank Arm Length:

170.0 mm

M:

Recommended Height:

169 cm - 180 cm

Stack:

570 mm

Reach:

370 mm

Top Tube Length:

550 mm

Effective Top Tube Length:

540 mm

Seat Tube Length:

530 mm

Head tube angle:

71.0°

Seat tube angle:

72.5°

Effective seat tube angle:

73.5°

BB Drop:

75 mm

Head Tube Length:

150 mm

Wheelbase:

1009 mm

Standover Height:

777 mm

Stem Length:

90 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

L:

Recommended Height:

178 cm - 191 cm

Stack:

595 mm

Reach:

382 mm

Top Tube Length:

570 mm

Effective Top Tube Length:

560 mm

Seat Tube Length:

560 mm

Head tube angle:

71.5°

Seat tube angle:

72.5°

Effective seat tube angle:

73.5°

BB Drop:

75 mm

Head Tube Length:

170 mm

Wheelbase:

1022 mm

Standover Height:

794 mm

Stem Length:

100 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

XL:

Recommended Height:

188 cm - 205 cm

Stack:

620 mm

Reach:

394 mm

Top Tube Length:

590 mm

Effective Top Tube Length:

580 mm

Seat Tube Length:

590 mm

Head tube angle:

71.5°

Seat tube angle:

72.5°

Effective seat tube angle:

73.5°

BB Drop:

75 mm

Head Tube Length:

196 mm

Wheelbase:

1042 mm

Standover Height:

817 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

S:

OPENWIDESAXSENV29GRY

M:

OPENWIDEMAXSENV29GRY

L:

OPENWIDELAXSENV29GRY

XL:

OPENWIDEXAXSENV29GRY

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.

Contents:

• 1 x OPEN WI.DE. Force Eagle AXS ENVE 28" Carbon gravel bike
