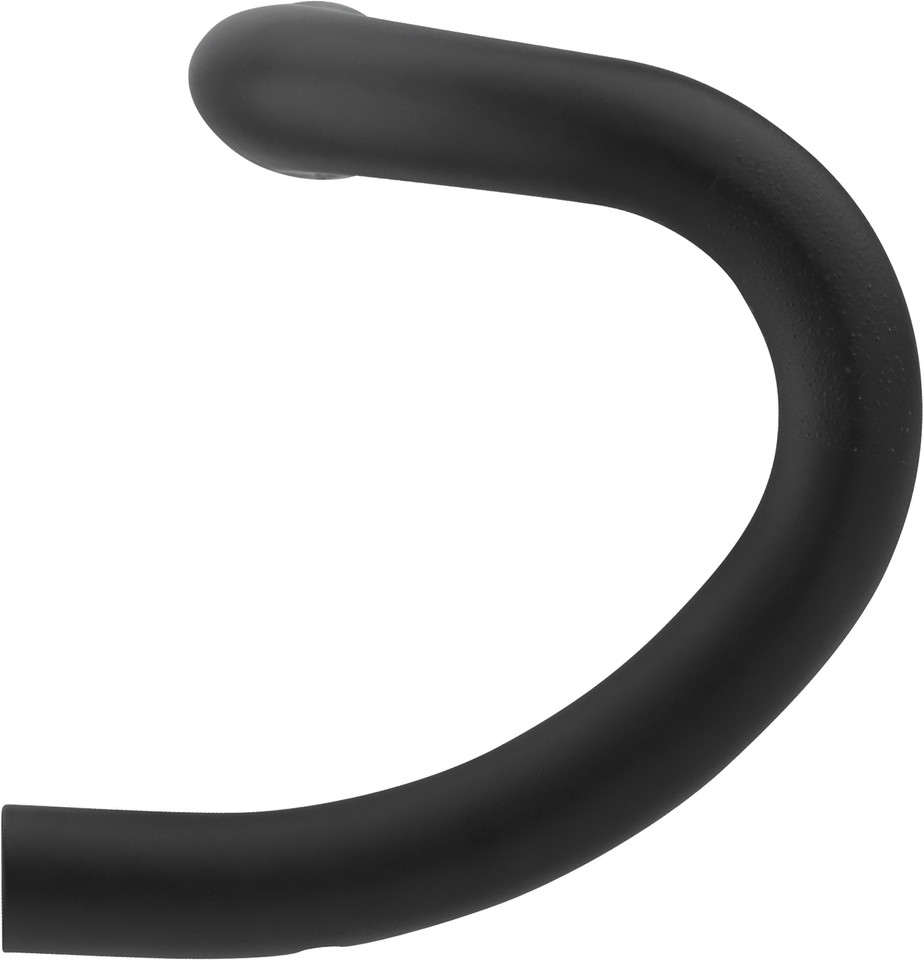

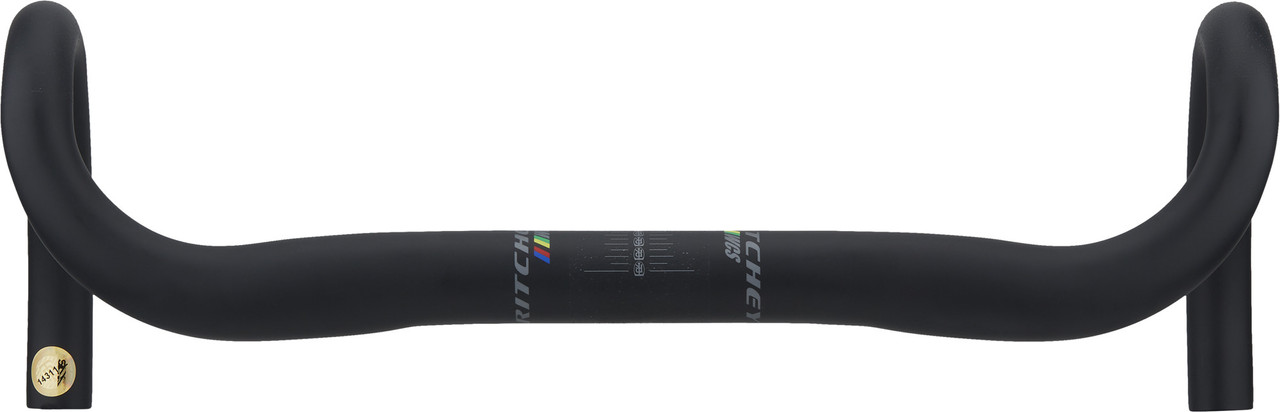

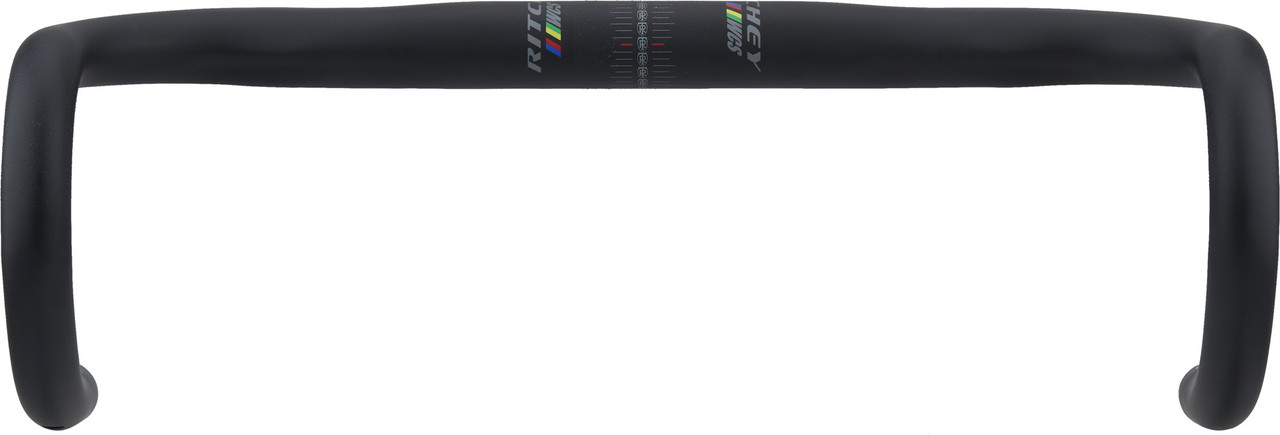

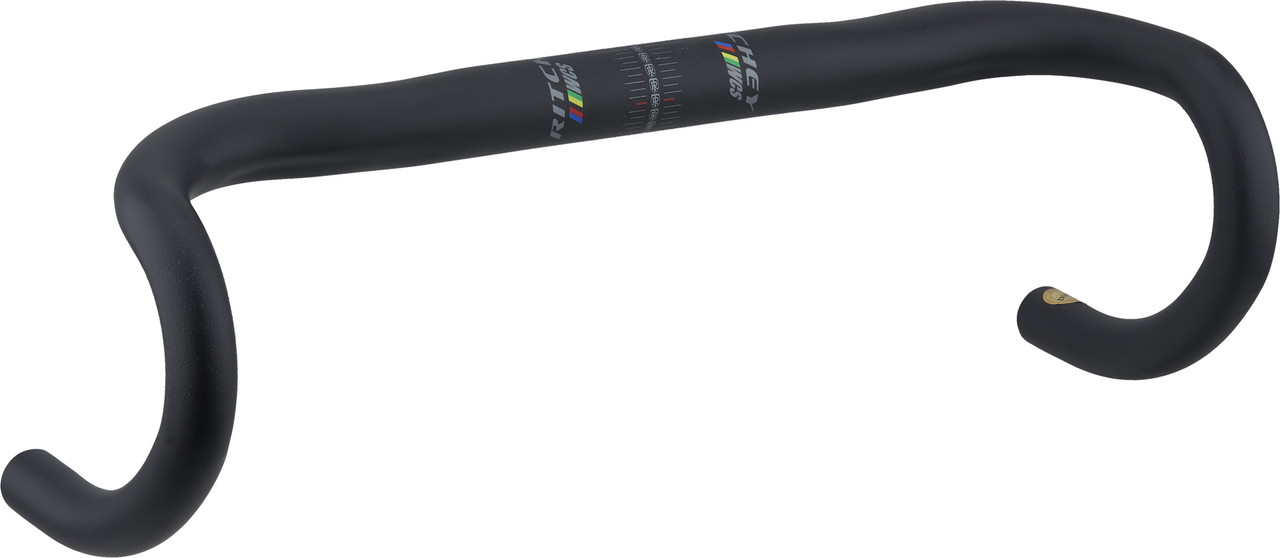

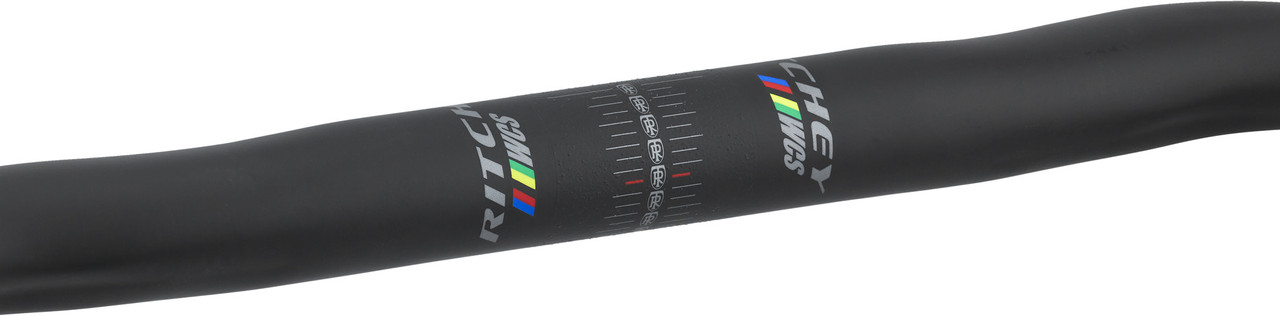

Short reach, flat drop: the WCS EvoCurve Handlebars by Ritchey

The Ritchey WCS EvoCurve handlebars feature a short reach and flat drop, as well as a 5-degree cranked oval top section. Aero attachments can be fitted to the centre section. In addition, the EvoCurve is textured in the clamp areas to prevent slipping and has channels for easier cable routing. A special feature is its compatibility with the Shimano Di2 EW-RS910 junction box.

Specifications:

Application:

Road

Width:

40 cm, 42 cm, 44 cm (centre-to-centre)

Stem Clamp:

31.8 mm

Technical Information:

Drop:

128 mm

Reach:

83 mm

Cable Routing:

cable routing channels

Material:

aluminium (7050)

Approved For:

Weight Limit:

110 kg (gear + rider)

Features:

• Series: WCS (World Championship Series)
• triple-butted
• clip-on compatible
• Di2 cable routing
• compatible with Shimano Di2 electrical junction EW-RS910

Colour Index:

blatte:

black without gloss finish

Manufacturer Numbers:

40 cm:

30355427087

42 cm:

30355427088

44 cm:

30355427089

Contents:

• 1 x Ritchey WCS EvoCurve Road handlebars
