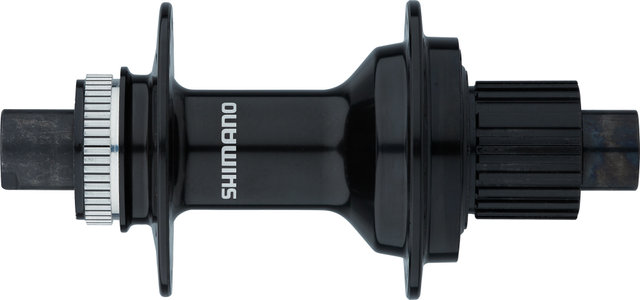

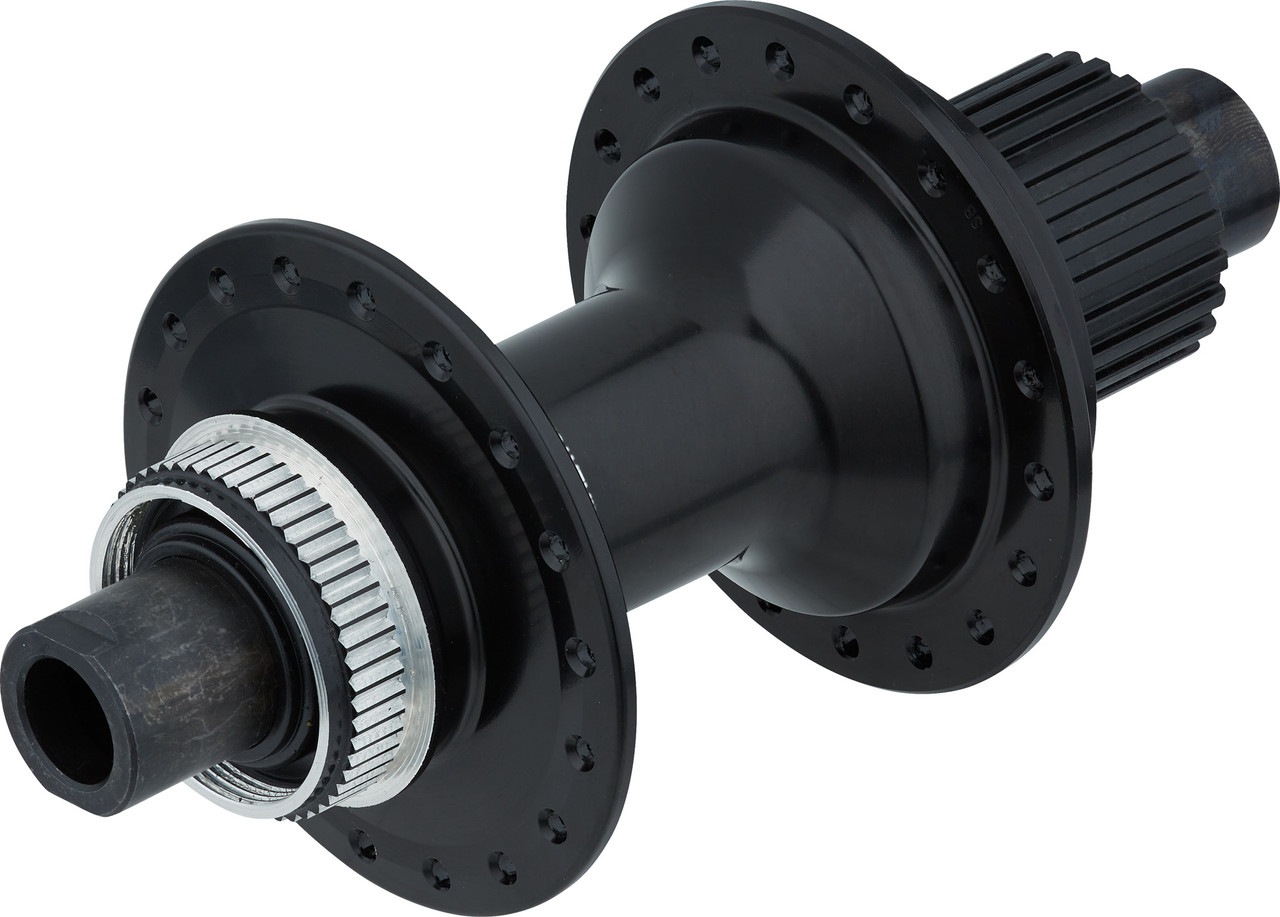

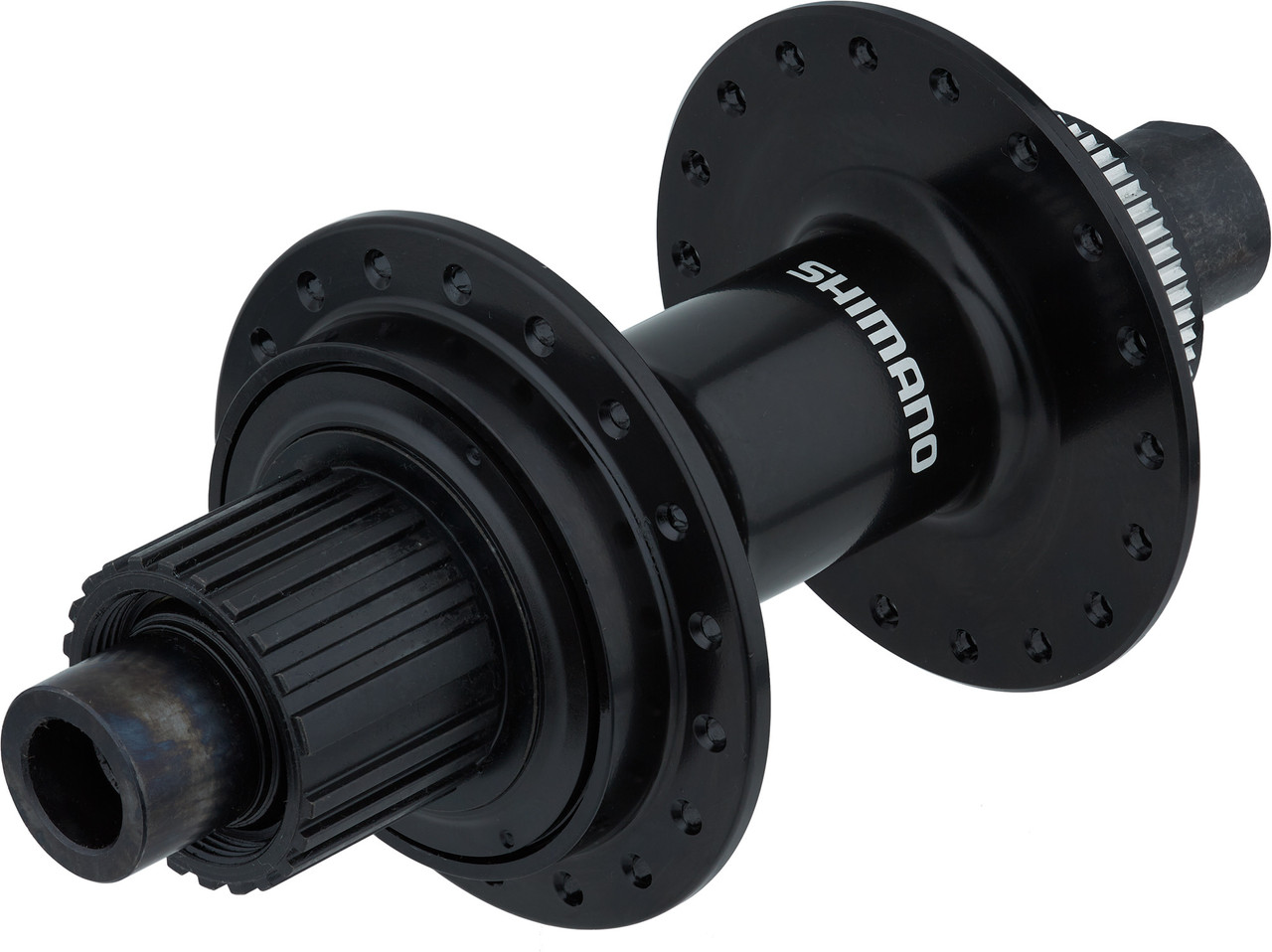

Shimano FH-MT410-B Center Lock Disc Rear Hub for 12 mm Thru-Axles

The FH-MT410-B Rear Hub by Shimano - For thru-axle frames with 148 mm over locknut dimension

The Shimano FH-MT410-B is an Deore-level, groupless rear hub that is compatible with 12 x 148mm rear over locknut dimension and is intended for trail and touring use. Compared to FH-MT400-B, it has a larger partial bolt circle diameter and comes with cartridge bearings. Thanks to the Micro-Spline freehub body, it can be combined with 12-speed cassettes with 10-tooth sprockets. The pawl design offers 36 engagement points for rapid force closure. The Center Lock mount also makes it very easy to attach the brake rotor to the hub. The body of the FH-MT410-B is made of aluminium, while the axle and freehub are made of steel. According to the Shimano E-Thru system for thru-axles, the model also impresses with an optimal ratio of stiffness and weight.

Specifications:

Application:

All Mountain, City & Touring, Cross Country

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Freehub Body Type:

Steel; pawls (Quick Engagement: 36 engagement points, 360°)

Technical Information:

Body Material:

aluminium

Bearings:

Cartridge bearing

Seals:

Labyrinth, Contact

Features:

• smaller diameter of the freehub body for 10-tooth sprockets
• stiff and light 12 mm E-Thru thru-axle system
• enables better handling for aggressive riding
• easy brake rotor mounting due to toothing and lockring
• quick engagement
• 6.6 mm offset
• 68.8 mm flange diameter left, 69.8 mm right
• steel axle
• freehub body with contact seal
• painted hub body

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

12 x 148 mm / 32 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

61.6 mm (37.4 mm/24.2 mm)

Partial Bolt Circle Diameter (L/R):

60 mm/61 mm

Manufacturer Number:

E-FHMT410BB

12 x 148 mm / 36 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

36 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

61.6 mm (37.4 mm/24.2 mm)

Partial Bolt Circle Diameter (L/R):

60 mm/61 mm

Manufacturer Number:

E-FHMT410BA

Contents:

• 1 x Shimano FH-MT410-B rear hub
