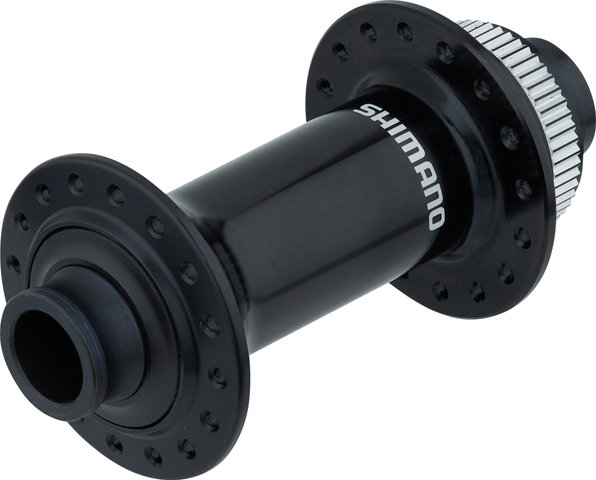

Shimano HB-MT410-B Disc Center Lock Front Hub for 15 mm Thru-Axles

The HB-MT410-B Center Lock Disc Front Hub by Shimano - For thru-axle frames with 110 mm over locknut dimension

The Shimano HB-MT410-B is an Deore-level, groupless rear hub that is compatible with 15 x 110mm front over locknut dimension and is intended for trail and touring use. Unlike the HB-MT400, it comes with cartridge bearings. The hub body is made of lightweight aluminium, so that this model also impresses with an optimal ratio of stiffness to weight according to the Shimano E-Thru thru-axle system. The Center Lock mount also makes it very easy to attach the brake rotor to the hub.

Specifications:

Application:

All Mountain, City & Touring, Cross Country

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Technical Information:

Body Material:

aluminium

Bearings:

Cartridge bearing

Seals:

Labyrinth, Contact

Features:

• stiff and light 15 mm E-Thru thru-axle system
• easy brake rotor mounting due to toothing and lockring
• enables better handling for aggressive riding
• 5.3 mm offset
• 52.8 mm flange diameter left and right
• painted hub body

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

15 x 110 mm / 32 hole:

Over Locknut Dimension:

15 x 110 mm thru-axle

Spoke Hole Count:

32 hole

Flange Distance (L/R):

70.2 mm (29.8 mm/40.4 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/44 mm

Manufacturer Number:

E-HBMT410BB

Contents:

• 1 x Shimano HB-MT410-B front hub
