Shimano Ultegra R8000 Climbing Kit

The Ultegra R8000 Climbing Kit by Shimano - Let's head for the mountains

The Shimano Ultegra R8000 climbing kit helps you to convert existing bikes with Dura-Ace or another 11-speed road bike groupset to a more mountain-compatible gear ratio. It includes a cassette with 11-32 or 11-34 teeth and the (long) Ultegra GS rear derailleur required for these gradations. The matching Ultegra Quick-Link chain is also included. So nothing stands in the way of a trip to mountainous regions.

Specifications:

Series:

Ultegra R8000

Application:

Road, Cyclocross

Shifters & Derailleurs:

11-speed (mechanical)

Technical Information - Cassette:

Type:

Ultegra CS-R8000 or CS-HG800-11 (HG-EV)

Gearing:

11-speed

Gradation:

11-32 T (11-12-13-14-16-18-20-22-25-28-32 T) or 11-34 T (11-13-15-17-19-21-23-25-27-30-34 T)

Sprocket Material:

steel

Freehub Compatibility:

Shimano Road

Note:

the 11-34 T (not the 11-32 T) requires a 1.85 mm spacer (incl. with the 11-34 cassette)

Spider:

2 (1 x carbon, 1 x aluminium)

Technical Information - Rear Derailleur:

Type:

Ultegra RD-R8000 (GS)

Mount:

standard (Direct Mount compatible)

Capacity:

39 tooth (long)

Max. Largest Sprocket Teeth:

34-tooth

Min. Largest Sprocket Teeth:

28-tooth

Max. Smallest Sprocket Teeth:

12-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

16-tooth

Compatibility:

Shimano Road 11-speed

Compatibility - Chains:

HG-EV 11-speed, HG-X11

Derailleur Pulleys:

11-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

aluminium, carbon (CFRP), stainless steel

Technical Information - Chain:

Type:

Ultegra / XT CN-HG701-11 (HG-X11)

Number of Links:

116

Closure Type:

master link (Quick-Link)

Pin Type:

chromium-plated, solid

Directional:

yes

Material:

steel

Compatibility:

Shifter:

ST-R9100, ST-R9120, ST-9001, ST-9000, SL-BSR1, ST-R8000, ST-R8020, ST-R8025, ST-6800, ST-R7000, ST-R7020, ST-R7025, ST-5800, SL-RS700, ST-RS685, ST-RS505, ST-U5060, SL-U5000, ST-RX810, ST-RX600

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11, FC-RX810-1, FC-RX600-1, FC-U5000-1

Contents:

The Shimano Ultegra climbing kit includes:

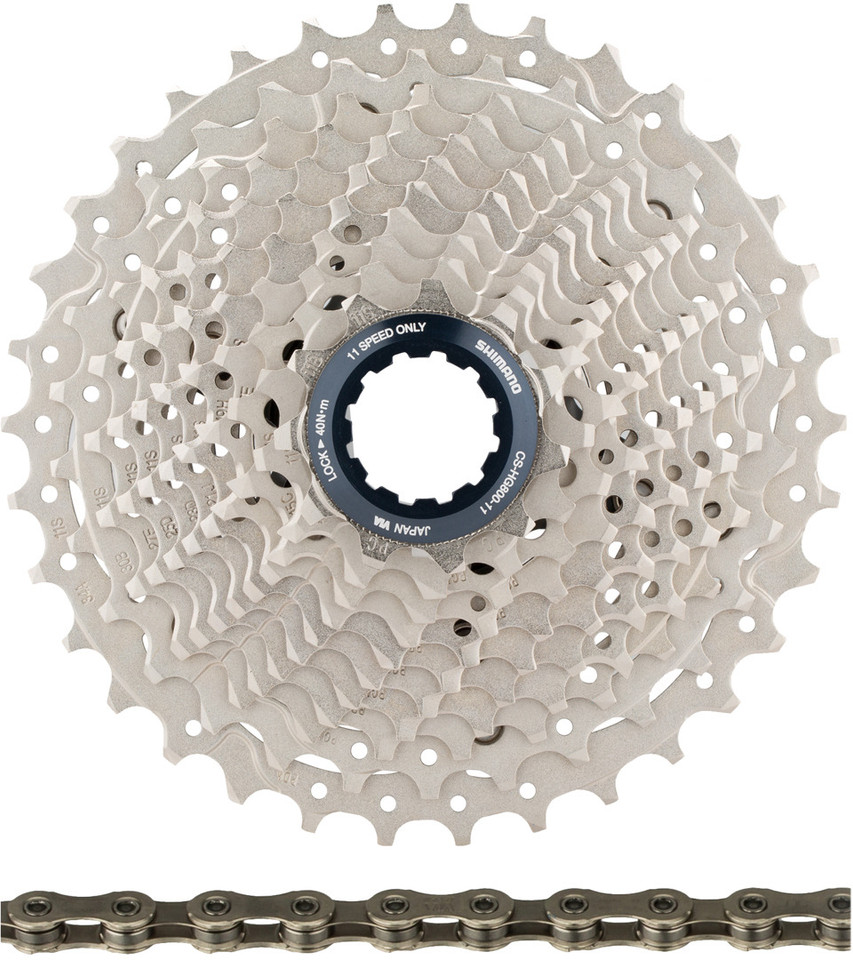

• 1 x Shimano Ultegra CS-R8000 cassette or CS-HG800-11

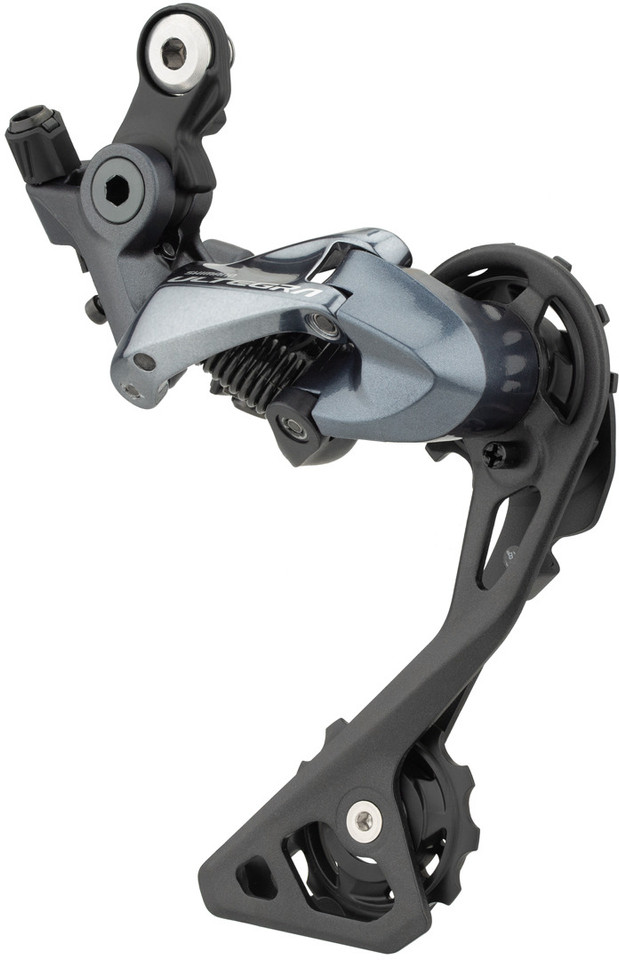

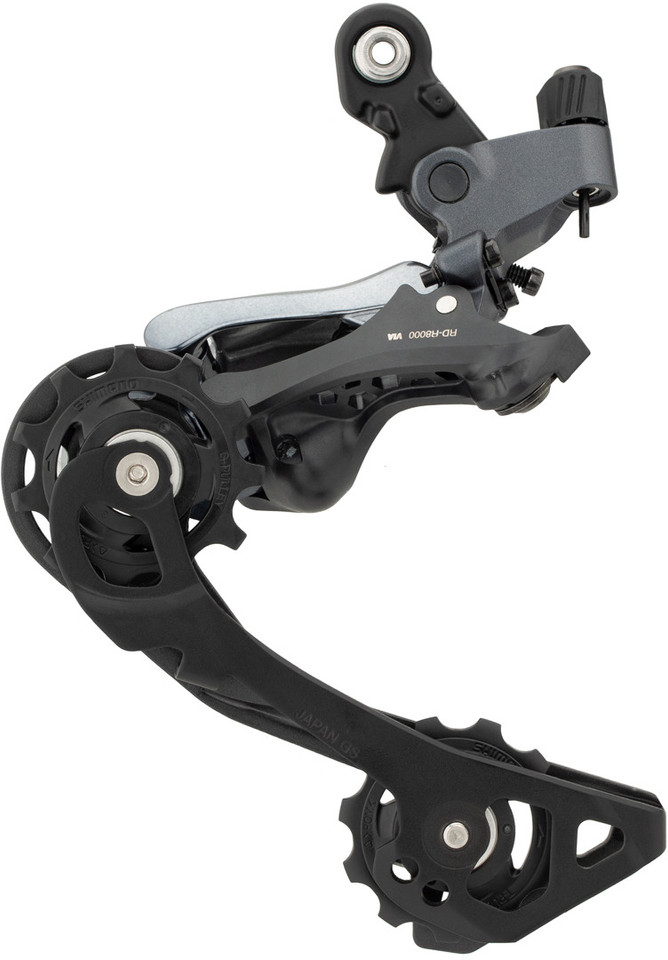

• 1 x Shimano Ultegra RD-R8000 Shadow long rear derailleur
• 1 x Shimano Ultegra / XT CN-HG701-11 chain
• 1 x Shimano OT-RS900 240 mm cable housing
• 1 x extended end cap for rear derailleurs
• 1 x Shimano 1.85 mm cassette spacer for road freehub (only for 11-34)
• 1 x Shimano aluminium cassette lockring
• 1 x Shimano SM-CN900-11 Quick-Link master link
