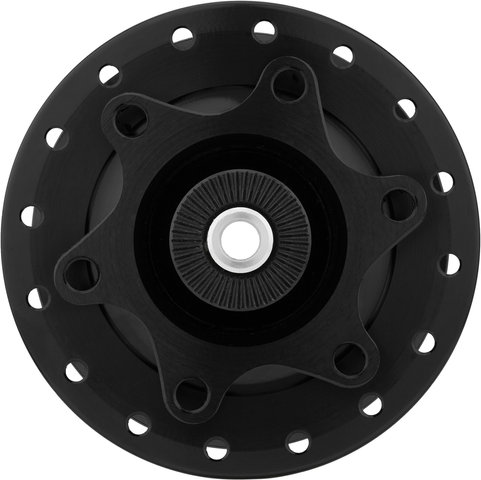

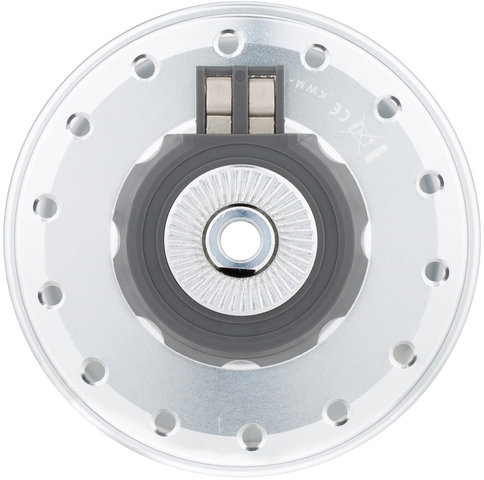

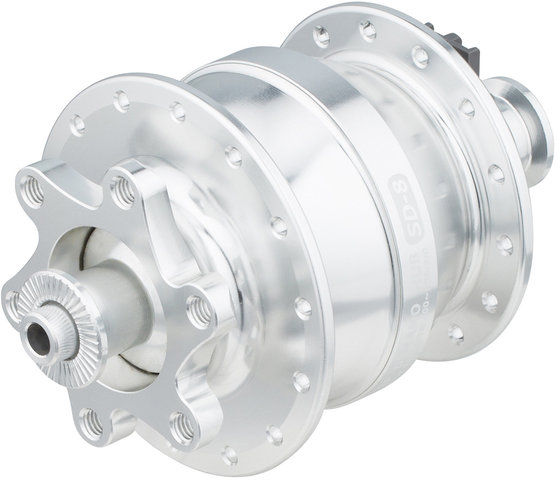

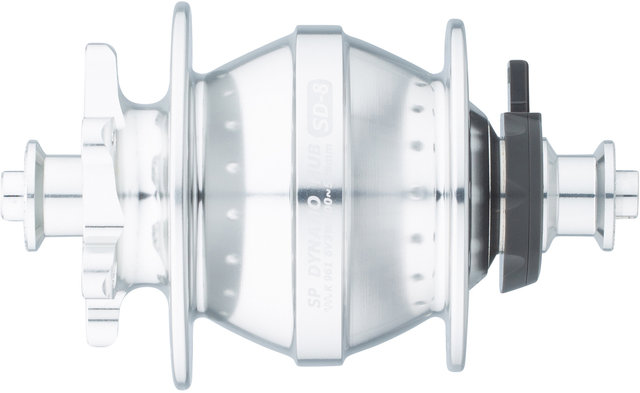

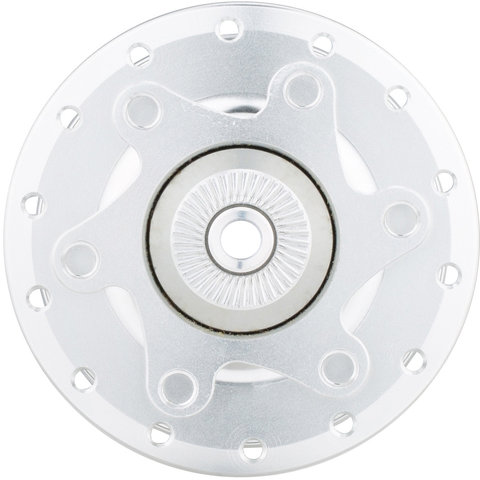

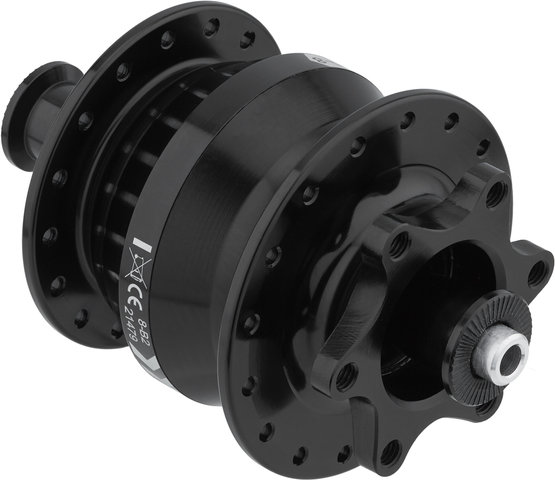

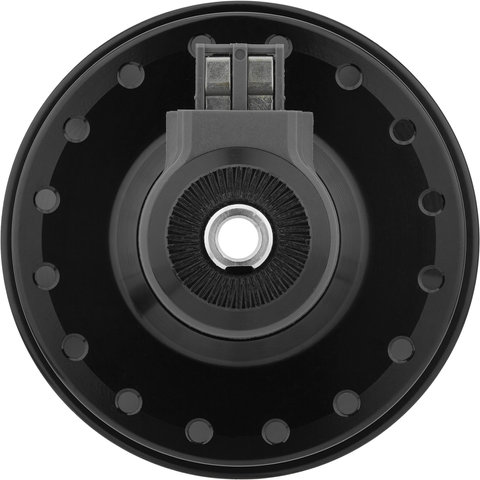

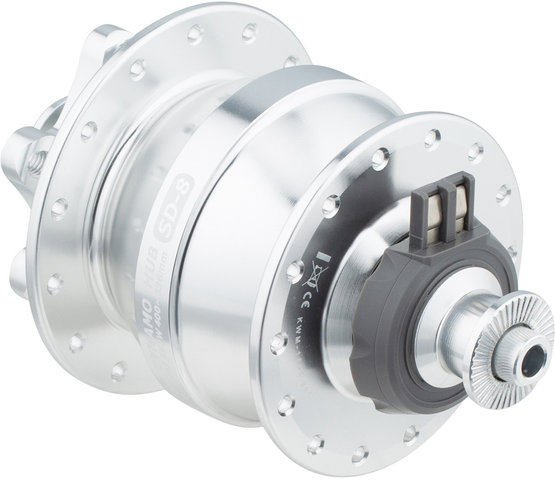

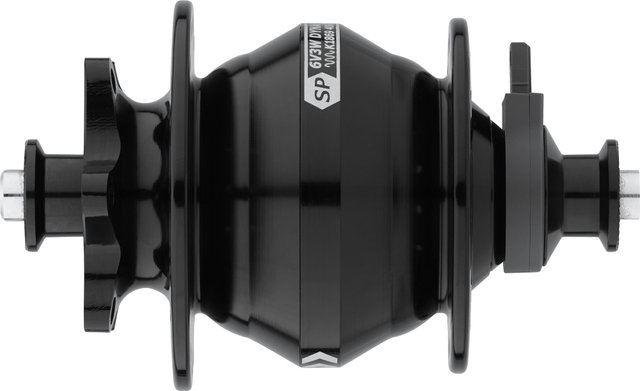

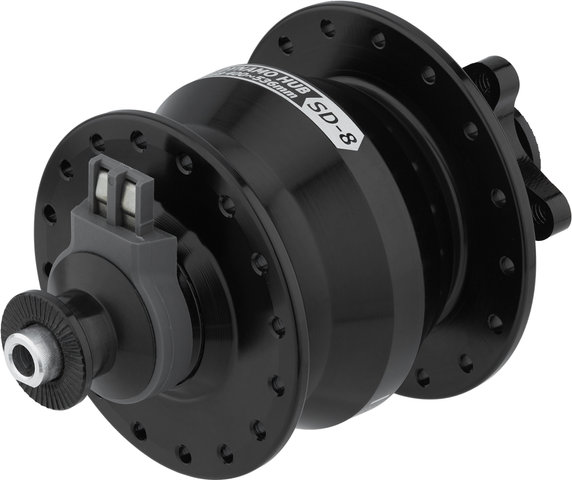

Shutter Precision SD-8 6-Bolt Dynamo Disc Hub

The Shutter Precision SD-8 Disc 6-bolt hub dynamo consists of two intelligently-connected hub sleeves, providing extra strength without compromising its tidy appearance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Series:

8 S-series

Application:

Touring, City, All Mountain

Output:

6V/2.4W (according to StVZO)

Efficiency:

min. 30%

Over Locknut Dimension:

9 x 100 mm quick release

Spoke Hole Count:

24 hole, 28 hole, 32 hole

Brake Type:

6-bolt disc

Technical Information:

Body Material:

aluminium

Flange Distance (L/R):

50 mm (25 mm/25 mm)

Partial Bolt Circle Diameter (L/R):

58 mm/52 mm

Spoke Hole Diameter:

2.7 mm

Wire Connector:

plug, 2-poles

Approved For:

Street Use in Germany:

yes, when connected to LED lights

Check Number:

K~~961

Compatibility:

• for wheel diameters measuring from 400 to 536 mm (16" -20" ) and 646 to 716 mm (26" -29" )
• StVZO approval applies to wheels from 26" only in combination with LED lighting

Features:

• high resilience is ideal for disc brakes
• double sealed
• flange diameter 66 mm left, 60 mm right
• maximum hub diameter 58 mm

Contents:

• 1 x Shutter Precision SD-8 dynamo hub

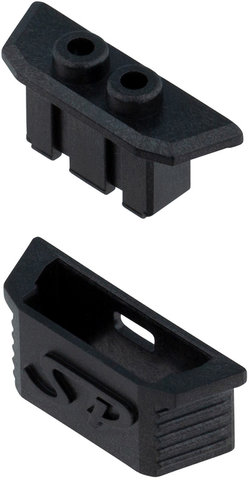

• 1 x connector plug
