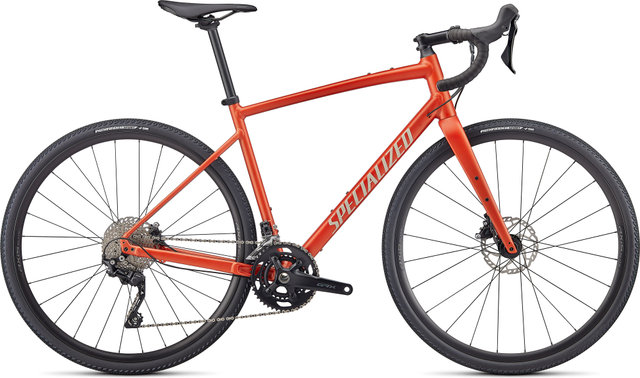

The Specialized Diverge Elite E5 Gravel Bike - Optimised for off-road use

The Diverge Elite E5 from Specialized is a gravel bike with a lightweight aluminium frame, stiff carbon fork and Shimano GRX 2x10-speed groupset, GRX 810 brakes and 38 mm tyres. The geometry, with its longer reach, flat head tube angle and larger fork offset, has not only been optimised for off-road use: its modern construction ensures stability in all riding situations. Of course, even wider tyres and 650B wheels are no problem. You also benefit from numerous accessories. With the Diverge Elite E5 you climb faster, keep control riding downhill and have a lot of fun off-road.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

aluminium (E5)

Fork Material:

Carbon

Components:

Frame:

Specialized Diverge E5 Premium Aluminium, Flat Mount Disc, 12 x 142 mm

Fork:

FACT™ Carbon, Flat Mount Disc, 390 mm installation length, 55 mm offset, 12 x 100 mm

Stem:

Specialized, 7° Rise, aluminium (3D forged), 4 bolts

Handlebars:

Specialized Shallow Drop, 31.8 mm, 70 x 125 mm, aluminium (6061)

Seatpost:

Specialized, aluminium, 27.2 mm, 12 mm setback, 2-speed clamping, anti-corrosion hardware

Saddle:

Specialized Body Geometry Bridge, steel struts

Crank:

Shimano GRX RX600, Shimano 68 mm bottom bracket, 30-46 t

Pedals:

none

Brakes:

Shimano GRX 810, hydraulic disc brake

Shift/Brake lever:

Shimano GRX RX400 mechanical 2x10-speed / hydraulic

Rear Derailleur:

Shimano GRX RX400, 10-speed

Front Derailleur:

Shimano GRX RX400, braze-on

Cassette:

Shimano CS-HG50-10, 10-speed, 11-36 t

Chain:

KMC X10, 10-speed, with reusable missing link

Wheels:

AXIS Elite Disc

Tyres:

Specialized Pathfinder Sport, 700 x 38C

Approved For:

Weight Limit:

125 kg (rider + gear)

Rotor Size (max.):

160 mm

Tyre Size (max.):

700 x 47C, 27.5" x 2.1"

Chainrings:

2-speed, 1-speed

Features:

• geometry optimised for gravel
• agile and versatile bike
• Smooth Boat Design for a clean transition from the head tube to the stem
• confidence and stability while riding in rough terrain
• dynamic steering through the shorter stem
• maximum tyre clearance
• can be driven with 700C and 27.5" (650B) wheels
• numerous mounting points for bottle cages and bags
• internal cable routing
• Specialized S-Wrap handlebar tape
• aluminium seat clamp, 30.8 mm
• 700 x 28-38 mm inner tubes, 48 mm Presta valve

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

Geometry:

49 cm:

Recommended Height:

152 - 163 cm

Stack:

545 mm

Reach:

365 mm

Seat Tube Length:

390 mm

Top Tube Length:

521 mm

Head Tube Length:

125 mm

Chainstay Length:

432 mm

Wheelbase:

1017 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

74°

Head Tube Angle:

70°

Standover Height:

703 mm

Stem Length:

60 mm

Handlebar Width:

38 cm

Crank Arm Length:

165.0 mm

Saddle width:

155 mm

Seatpost length:

350 mm

52 cm:

Recommended Height:

163 - 170 cm

Stack:

577 mm

Reach:

374 mm

Seat Tube Length:

430 mm

Top Tube Length:

542 mm

Head Tube Length:

104 mm

Chainstay Length:

432 mm

Wheelbase:

1033 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

73.75°

Head Tube Angle:

70.5°

Standover Height:

722 mm

Stem Length:

70 mm

Handlebar Width:

40 cm

Crank Arm Length:

170.0 mm

Saddle width:

155 mm

Seatpost length:

350 mm

54 cm:

Recommended Height:

170 - 178 cm

Stack:

592 mm

Reach:

383 mm

Seat Tube Length:

470 mm

Top Tube Length:

558 mm

Head Tube Length:

116 mm

Chainstay Length:

432 mm

Wheelbase:

1039 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.25°

Standover Height:

738 mm

Stem Length:

80 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

Seatpost length:

400 mm

56 cm:

Recommended Height:

175 - 183 cm

Stack:

610 mm

Reach:

392 mm

Seat Tube Length:

500 mm

Top Tube Length:

573 mm

Head Tube Length:

133 mm

Chainstay Length:

432 mm

Wheelbase:

1049 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.75°

Standover Height:

777 mm

Stem Length:

90 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

Seatpost length:

400 mm

58 cm:

Recommended Height:

180 - 188 cm

Stack:

634 mm

Reach:

401 mm

Seat Tube Length:

530 mm

Top Tube Length:

589 mm

Head Tube Length:

159 mm

Chainstay Length:

432 mm

Wheelbase:

1066 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.75°

Standover Height:

800 mm

Stem Length:

100 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost length:

400 mm

61 cm:

Recommended Height:

188 - 196 cm

Stack:

659 mm

Reach:

410 mm

Seat Tube Length:

560 mm

Top Tube Length:

605 mm

Head Tube Length:

185 mm

Chainstay Length:

432 mm

Wheelbase:

1083 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.75°

Standover Height:

823 mm

Stem Length:

100 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost length:

400 mm

Manufacturer Numbers:

gloss lagoon blue-smoke-chrome-clean:

95422-40

gloss slate-cool grey-chrome-wild:

95422-41

satin redwood-gloss white-chrome-clean:

95422-42

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Diverge Elite E5 28" Gravel Bike
