Specialized Turbo Levo SL Expert - E-MTB for even more trail fun

The Specialized Turbo Levo SL Expert 29" carbon e-bike comes with SRAM X01 Eagle components and behaves just as nimbly, lively and agile as a mountain bike without pedal assistance. It is not without reason that its geometry is based on that of the Stumpjumper, including the Sidearm Design on the rear triangle. With the Turbo Levo SL Expert you can go further, unleash even more power on the trail and experience maximum riding pleasure. This is because the ultra-light SL 1.1 motor with a 320 Wh battery always provides flawless support and does not show any additional resistance even when switched off. This e-bike was equipped with suspension elements from Fox Racing Shox and a Roval aluminium wheelset, and can be custom adjusted to meet your needs using the Specialized Mission Control app.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Front Travel:

150 mm

Rear Travel:

150 mm

Sizes:

S, M, L, XL

Front Triangle Material:

carbon (11m)

Rear Triangle Material:

Carbon

E-Motor:

Type:

mid drive

Motor Type:

Specialized SL 1.1, 35 Nm (1.9 kg)

Pedal Assist (max.):

25 km/h

Power:

240 W

Battery Type:

Specialized SL1-320, fully integrated, 48 V*

Capacity:

320 Wh

Display:

Specialized TCU, 10-LED battery status, 3-LED ride mode, ANT+ / Bluetooth

* The battery is located in the down tube and is charged directly there, which is why a bicycle parking space with an electrical socket is advantageous. Removal is possible, but requires tools or a workshop and possibly in-depth technical knowledge.

Components:

Frame:

Specialized Turbo Levo SL, FACT™ 11m full carbon, trail geometry, 12 x 148 mm

Fork:

Fox Racing Shox Float 36, Performance Elite, GRIP2 cushioning, 51 mm lead, 111 mm trail, HSC, LSC, HSR, LSR, Kabolt thru-axle

Stem:

Alloy Trail, 35 mm handlebar clamp

Handlebars:

Specialized Trail, 7050 Aluminium, 8° Backsweep, 6° Upsweep, 30 mm Rise, 35 mm

Grips:

Deity Knuckleduster, black

Rear Shock:

Fox Racing Shox Float DPX2 Performance Elite, 3-Position adjustment, 52.5 x 210 mm, RX Trail Tune

Remote System:

none

Headset:

IS42/28.6 - IS52/40

Seatpost:

X-Fusion Manic, 34.9 mm, infinite adjust adjustable, 2-bolt clamp, cable routing from below, SRL LE remote lever

Saddle:

Specialized Bridge Comp, hollow CrMo struts

Crank:

Praxis Works M30 Custom, SRAM X-Sync Eagle, 94 BCD, 30 t

Pedals:

none

Brakes:

SRAM Code RS, hydraulic disc brake, 4 pistons, 200 mm/200 mm

Shift Lever:

SRAM X01, Trigger, 12-speed

Rear Derailleur:

SRAM X01 Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10-52 t

Chain:

SRAM GX Eagle, 12-speed

Rims:

Roval Transverse 29, aluminium, 30 mm rim width, handmade, 2Bliss Ready

Spokes:

DT Swiss Competition Race

Front Hub:

Roval, sealed industrial bearings, 15 x 110 mm, 28-bolt

Rear Hub:

Roval DT Swiss 360, 3 pawl design, SRAM XD freehub body, 12 x 148 mm, 28-bolt

Front Tyre:

Specialized Butcher, Grid Trail carcass, GRIPTON rubber® compound, 2Bliss Ready, 29" x 2.3"

Rear Tyre:

Specialized Eliminator, Grid Trail carcass, GRIPTON rubber compound, 2Bliss Ready, 29" x 2.3"

Approved For:

Weight Limit:

125 kg (rider + gear)

Rotor Size (max.):

203 mm

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Chainring Size (max.):

34 t

Features:

• just like a Stumpjumper, but with a little more power: Sidearm frame with great, well-balanced stiffness and a 150 mm perfectly tuned suspension
• 2x you: doubles pedalling power with up to 240 watts of additional support
• responsive, lightweight motor provides perfect support with its homogeneous torque curve, matching your normal cadence
• no additional resistance when riding without support
• capacity is expandable to 480 Wh with a Range Extender (not included in the delivery)
• with 48 V charger
• standard tubes with SV / Presta valves
• Specialized aluminium seat clamp with bolt, 38.6 mm
• Mission Control 2.0 App is available on the App Store or Google Play Store
• Turbo Control Display (TCD) bicycle computer for mounting on the stem is available as an optional accessory

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

FSR
The Specialized FSR linkage design is based on a four-joint design with Horst Link in the chainstay, which separates the seat stay from the main pivot point of the rear triangle. This allows the pedal and brake force to be decoupled from the suspension, so that the compression and rebound are solely dependent on the nature of the terrain. This not only converts more energy into forward drive which is direct and without rocking, but also leads to more traction and thus more control. In addition, the FSR system can be fine-tuned to all the possible areas of applications and terrains.

E-Bikes by Specialized
Specialized e-bikes are designed in California and developed with Swiss technology. They take the " It's you, only faster" approach, which means that you have the impression of riding a " normal" bike without motor assistance, but with at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Due to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well protected integrated in the down tube. An innovative Battery Management System (BMS) is used to maximise battery life and protect the cell structure. The bike communicates with the rider via the Turbo Connect Unit (TCU), which connects via Bluetooth and ANT+ to a Turbo Connect display, third-party devices and/or the Specialized Mission Control app. This offers additional options such as route planning, route recording or automatic capacity management.

Geometry:

(based on a fork axle to crown length of 560 mm)
S:

Recommended Height:

158 - 165 cm

Stack:

606 mm

Reach:

415 mm

Seat Tube Length:

390 mm

Top Tube Length:

574 mm

Head Tube Length:

95 mm

Chainstay Length:

437 mm

Wheelbase:

1165 mm

Bottom Bracket Height:

348 mm

BB Drop:

27 mm

Seat Tube Angle:

75.3°

Head Tube Angle:

66°

Standover Height:

787 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

Saddle width:

155 mm

Seatpost length:

361.5 mm

Seatpost adjustment travel:

125 mm

M:

Recommended Height:

165 - 178 cm

Stack:

606 mm

Reach:

435 mm

Seat Tube Length:

410 mm

Top Tube Length:

597 mm

Head Tube Length:

95 mm

Chainstay Length:

437 mm

Wheelbase:

1185 mm

Bottom Bracket Height:

348 mm

BB Drop:

27 mm

Seat Tube Angle:

75°

Head Tube Angle:

66°

Standover Height:

790 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

Saddle width:

143 mm

Seatpost length:

425.5 mm

Seatpost adjustment travel:

150 mm

L:

Recommended Height:

178 - 185 cm

Stack:

633 mm

Reach:

455 mm

Seat Tube Length:

455 mm

Top Tube Length:

629 mm

Head Tube Length:

125 mm

Chainstay Length:

437 mm

Wheelbase:

1217 mm

Bottom Bracket Height:

348 mm

BB Drop:

27 mm

Seat Tube Angle:

74.6°

Head Tube Angle:

66°

Standover Height:

807 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170.0 mm

Wheel Size:

29"

Saddle width:

143 mm

Seatpost length:

425.5 mm

Seatpost adjustment travel:

150 mm

XL:

Recommended Height:

185 - 193 cm

Stack:

647 mm

Reach:

480 mm

Seat Tube Length:

505 mm

Top Tube Length:

663 mm

Head Tube Length:

140 mm

Chainstay Length:

437 mm

Wheelbase:

1248 mm

Bottom Bracket Height:

348 mm

BB Drop:

27 mm

Seat Tube Angle:

74.2°

Head Tube Angle:

66°

Standover Height:

814 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170.0 mm

Wheel Size:

29"

Saddle width:

143 mm

Seatpost length:

470.5 mm

Seatpost adjustment travel:

170 mm

Manufacturer Numbers:

cast battleship-black:

96821-300

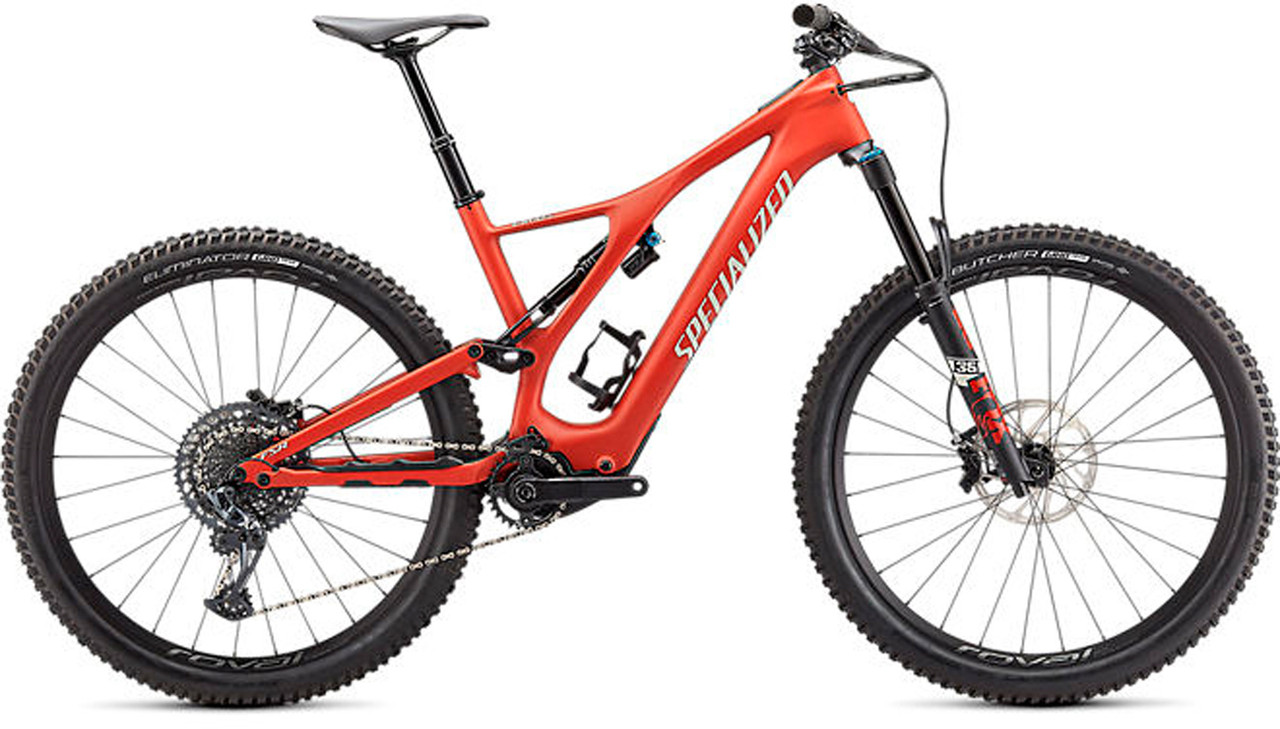

satin redwood-white mountains:

96821-310

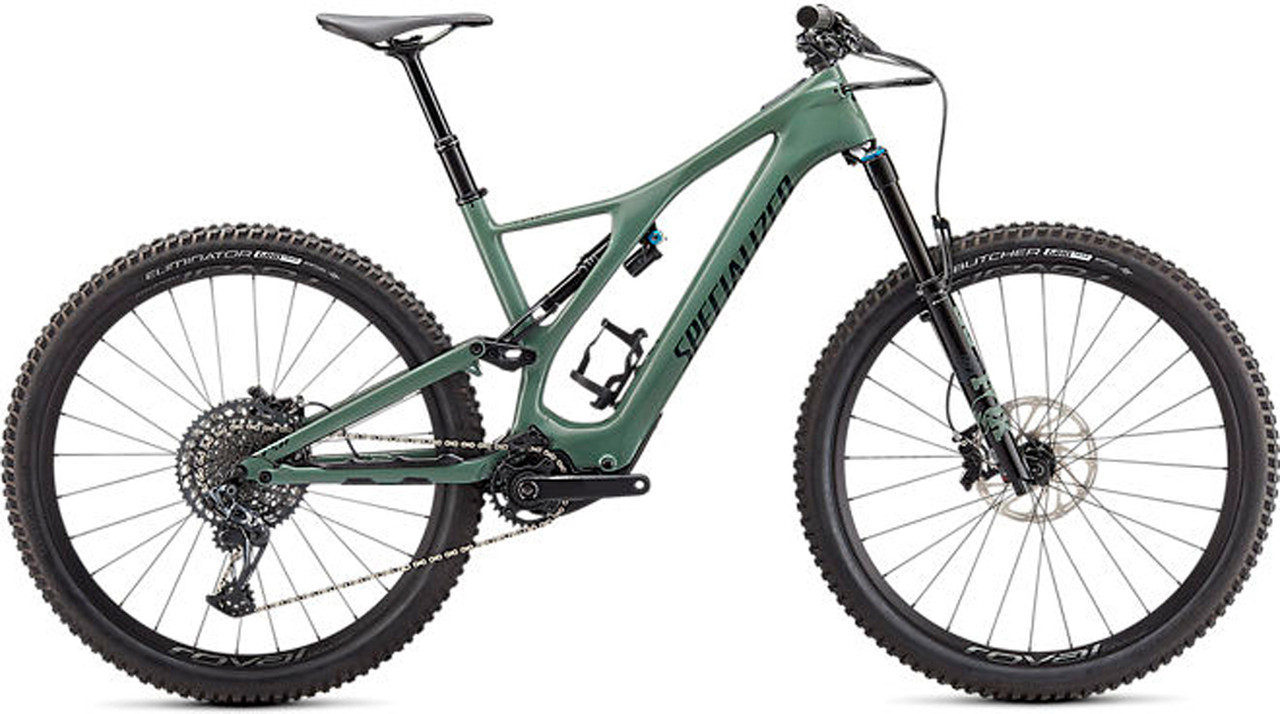

gloss sage-forest green:

96821-320

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Levo SL Expert Carbon 29" E-Mountain Bike
• 1 x 48 V charger
