Trickstuff Piccola Carbon HD Front+Rear Disc Brake Set - black/set (front+rear)

Trickstuff Piccola Carbon HD Front+Rear Disc Brake Set

Item number: 89633

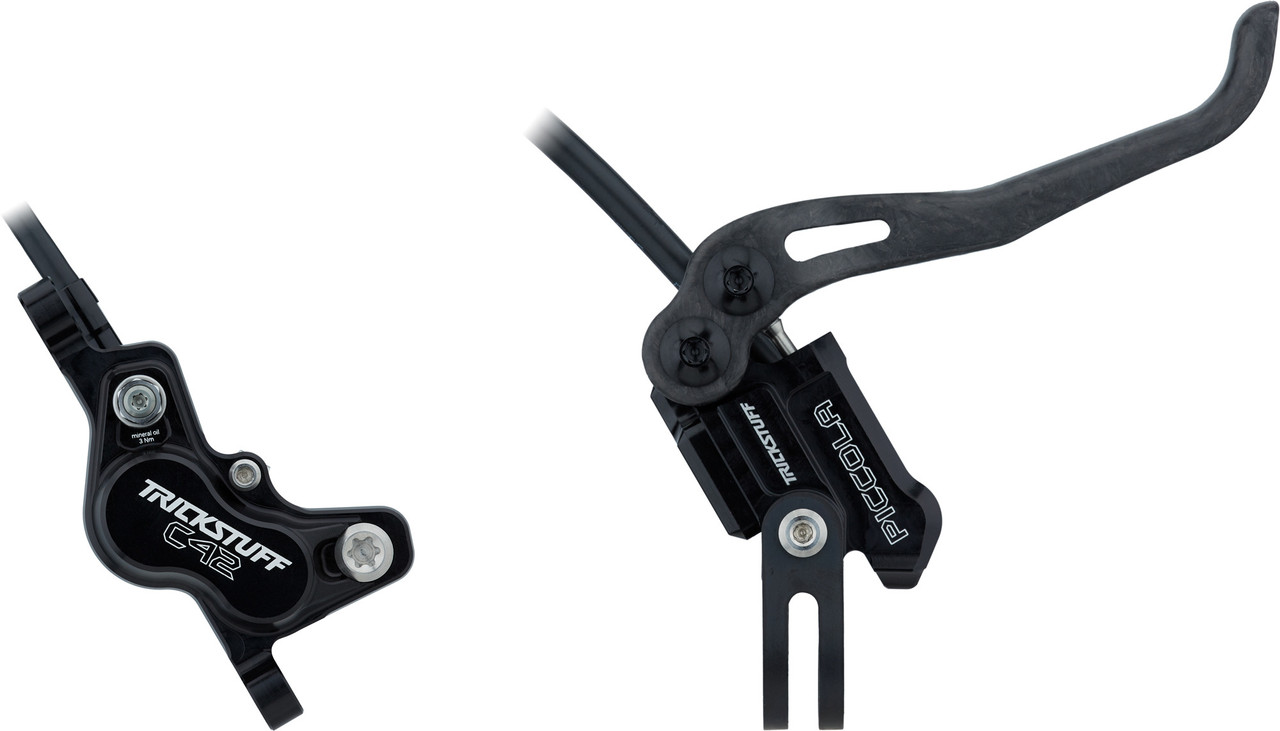

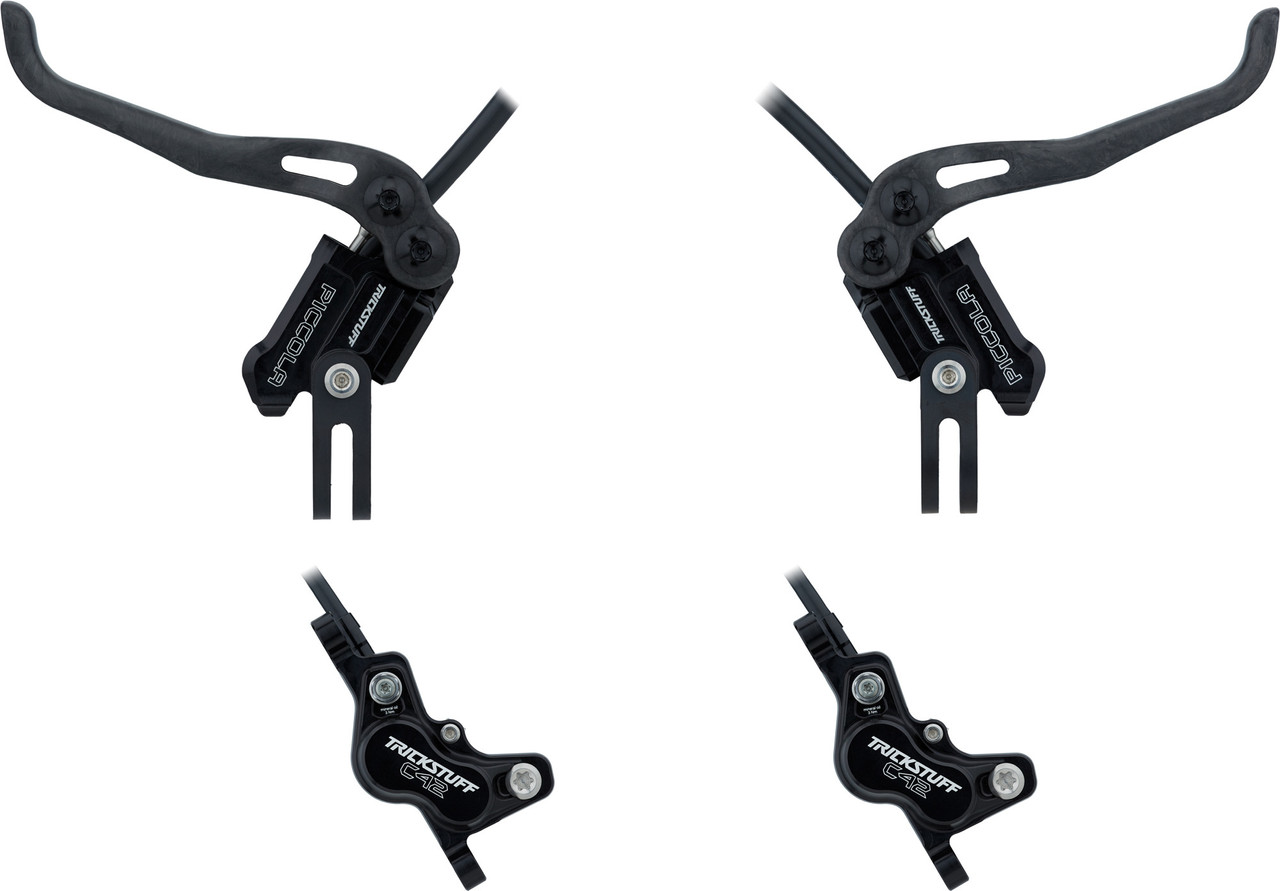

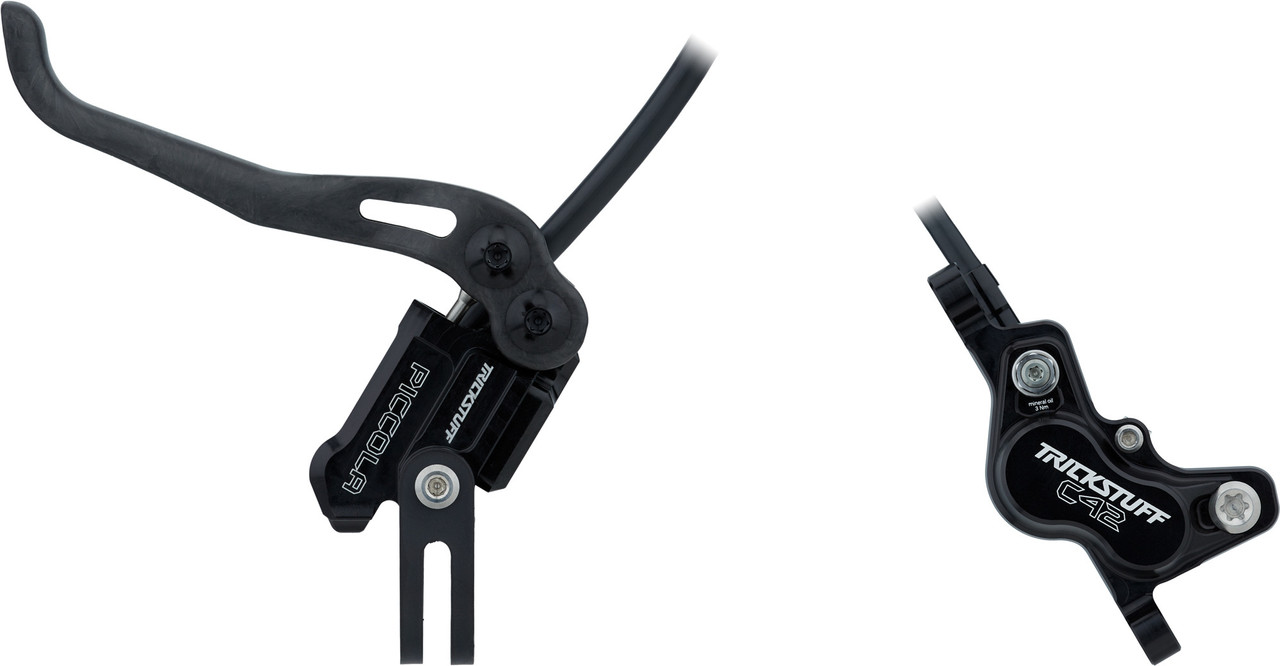

The Trickstuff Piccola Carbon HD Disc Brake - Small construction with big effect

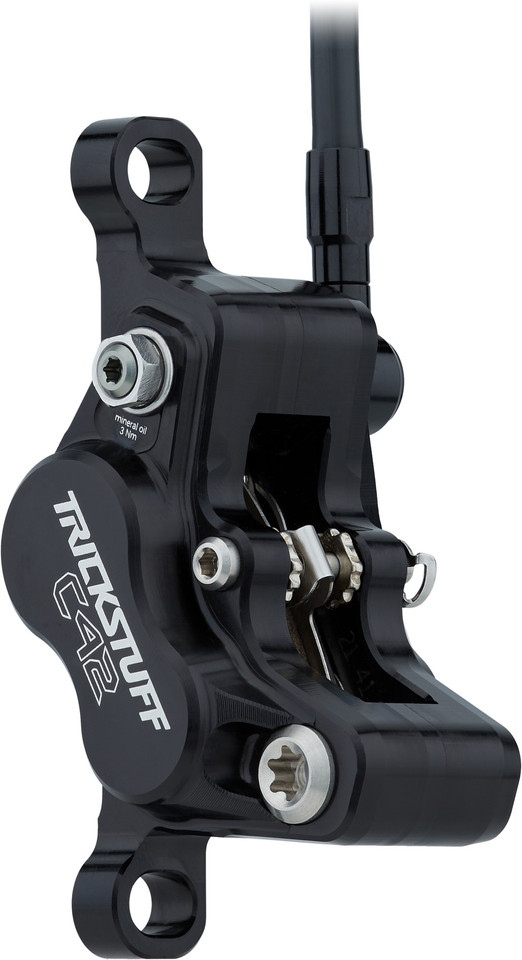

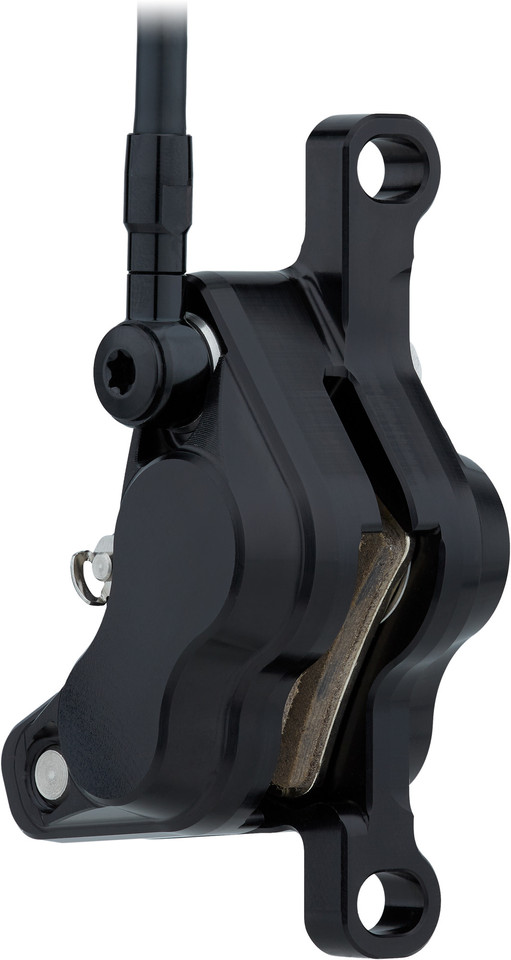

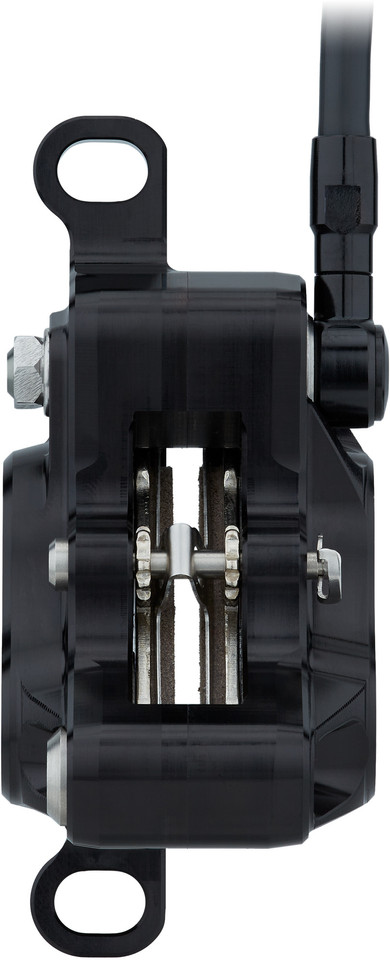

The Piccola Carbon HD disc brake from Trickstuff delivers strong, reliable braking power with its four pistons in mountain bike use and scores points with its very low weight. The minimalist design and the carbon lever give the brake handle its name, and makes it particularly lightweight. The C42 brake caliper, which is also used on the Direttissima, offers a clear pressure point and is extremely heat-resistant thanks to its polished stainless steel pistons. The bionol used affords temperature stability as well as biodegradability. The grip width can be adjusted as needed, while the lever with 4-point contact ball bearings is smooth-running and makes dosing the brake power easy.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
Cross Country, All Mountain, Enduro, Downhill
Type:
hydraulic, 4 pistons
Actuation:
mineral oil (Bionol)
Hose:
Kevlar high pressure hose
Hose Length (Front/Rear):
900 mm / 1700 mm

Technical Information - Caliper:

Caliper Mount:
post mount
Pads:
POWER+ organic
Calliper Material:
aluminium (7075-T6)
Piston Material:
stainless steel

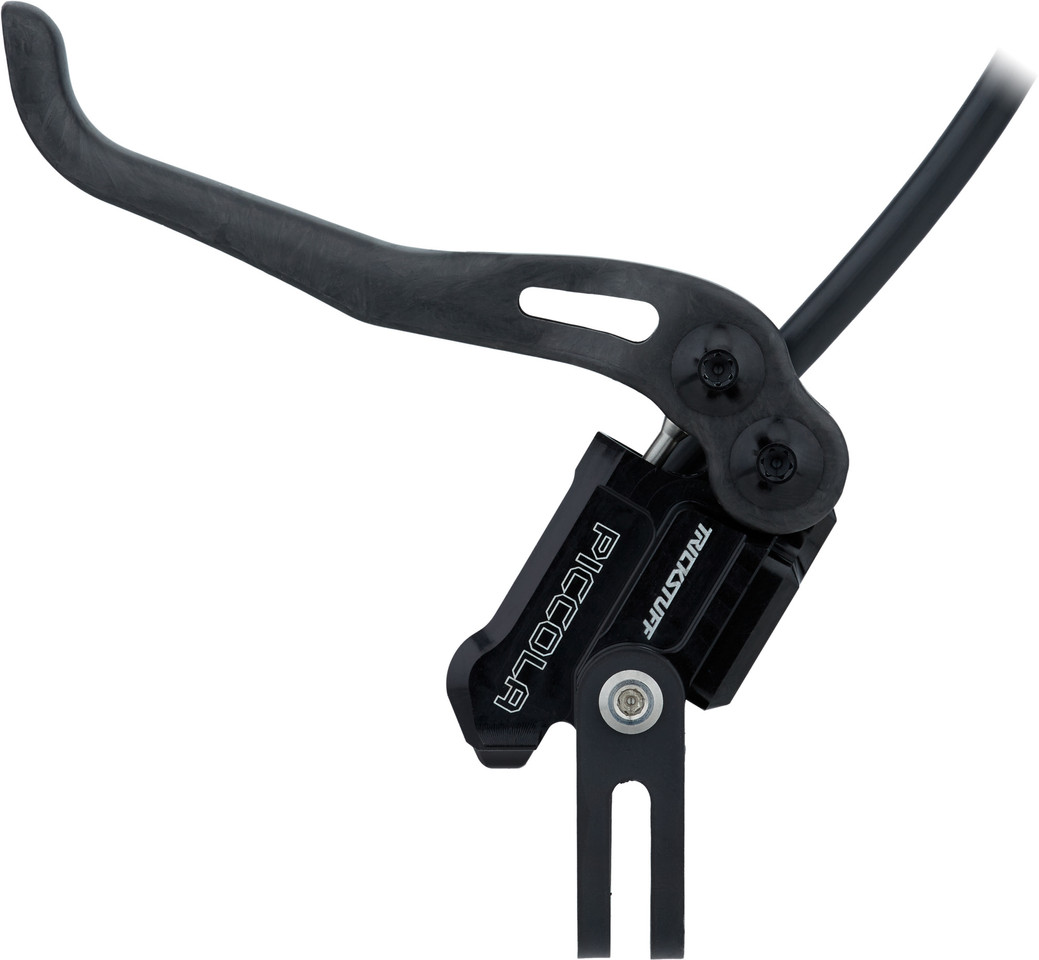

Technical Information - Lever:

Lever Length:
1-finger
Adjustment Options:
reach adjust
Mount:
clamp (closed)
Design:
Flip-Flop (without specific side)
Brake Lever Material:
Carbon
Brake Lever Housing Material:
Aluminium

Features:

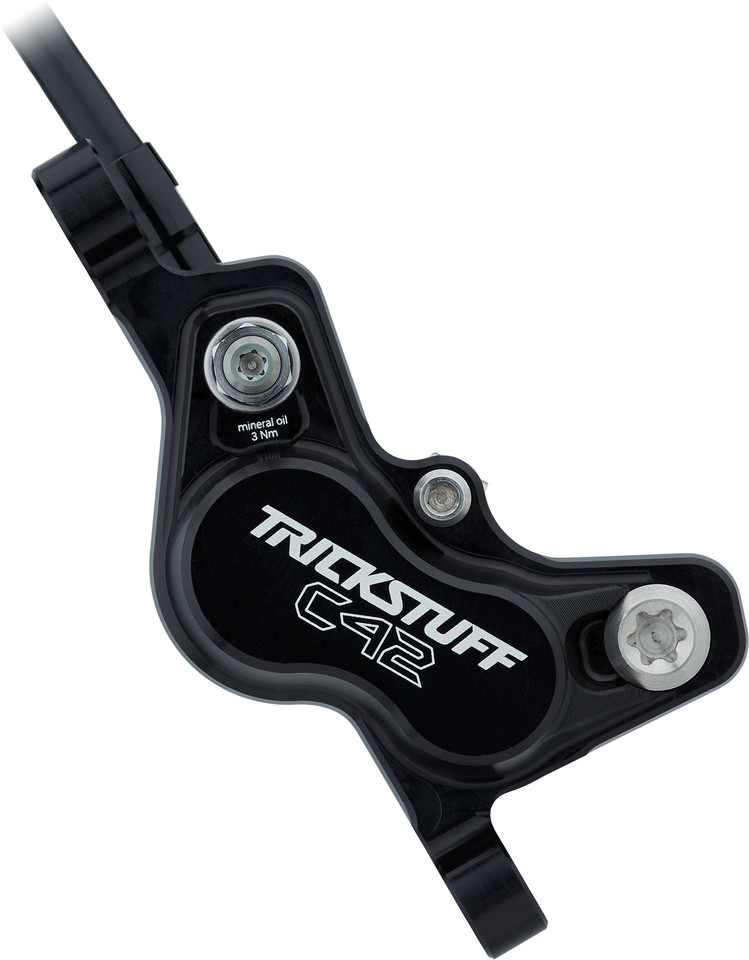

  • stiff four-piston brake caliper C42
  • lightweight hose clamp with large contact surface for particularly gentle clamping also on carbon handlebars
  • defined pressure and finely-adjustable braking force
  • made of CNC-milled 7075-T6 aircraft aluminium
  • high heat resistance due to polished stainless steel pistons
  • strong and low-noise POWER+ pads with reduced risk of fading
  • pad distance to the disc of 0.2 mm to counteract grinding
  • with temperature-stable, biodegradable bionol with an extremely high boiling point of 420 °C
  • easy, fast and clean bleeding

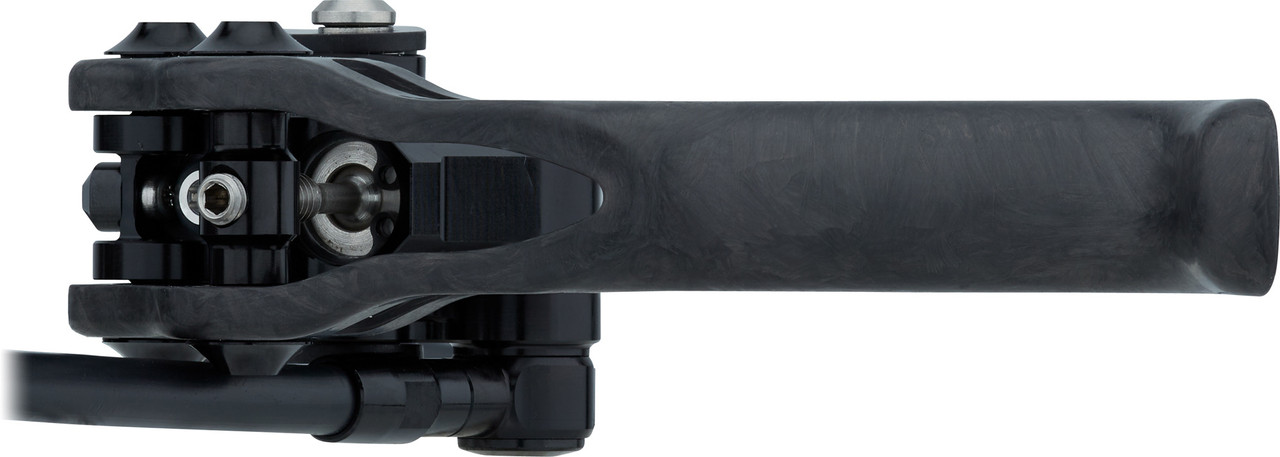

  • carbon lever with 4 ball bearings
  • very large grip width adjustment range for perfectly tuned ergonomics
  • minimalist brake lever design with angle connection for uncomplicated cable routing
  • suitable for the increased requirements of e-bikes
  • common brake pad shape for easy replacement
  • with optionally available interfaces, direct mount for various SRAM or Shimano shift levers is possible
  • " HD" stands for " Heavy Duty"
  • made in Germany

Manufacturer Number:

BPCHDFSKPQBSA0002S

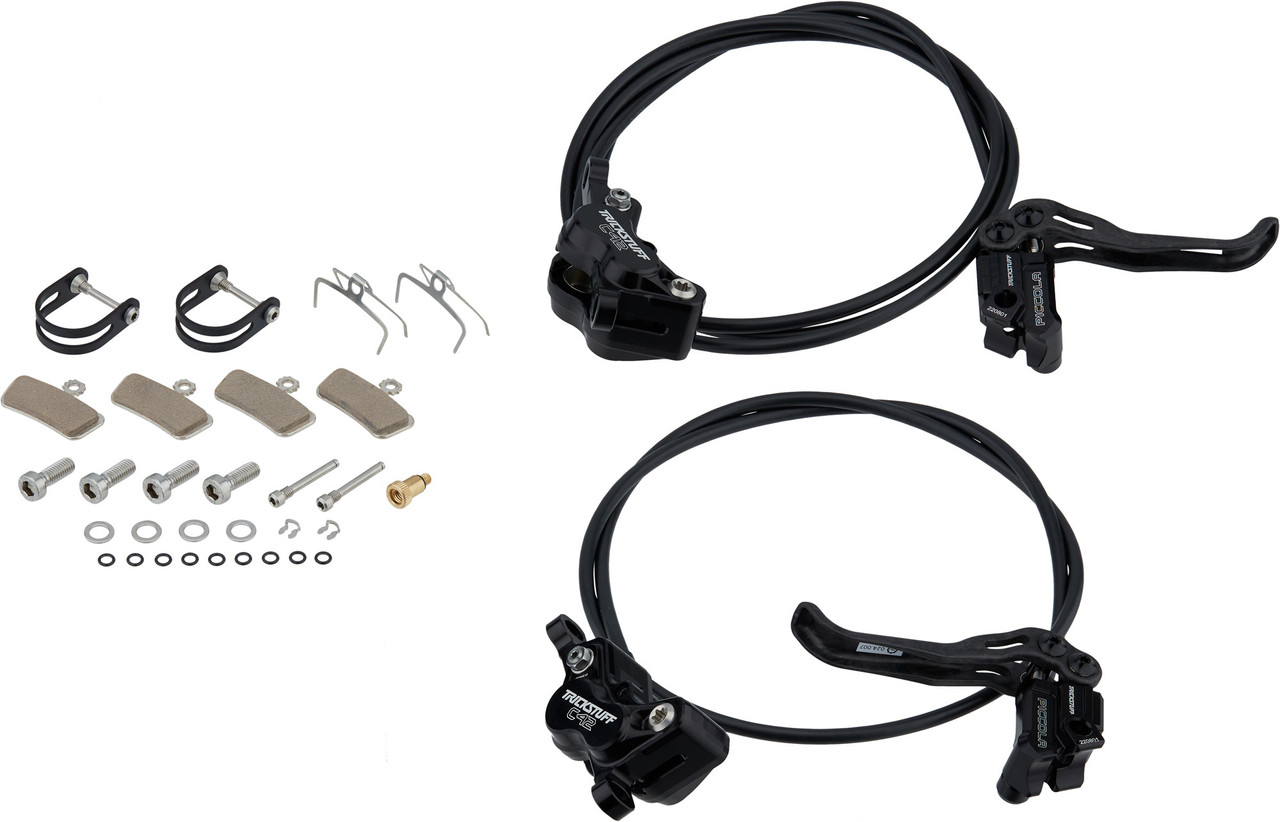

Contents:

  • 1 x pair Trickstuff Piccola Carbon HD Disc Brakes, filled and bled, ready to install (front and rear wheel)
  • 2 pairs of Trickstuff POWER+ brake pads
  • 2 x Trickstuff hose clamps
  • 2 x Trickstuff brake pad retaining bolts
  • 4 x Trickstuff M6x16 brake caliper bolts
  • 2 x Trickstuff pad retaining clips
  • 2 x Trickstuff clip
  • 4 x Trickstuff M6 washers
  • 9 x Trickstuff washers, small
  • 1 x Trickstuff M4 Bleed Kit connection

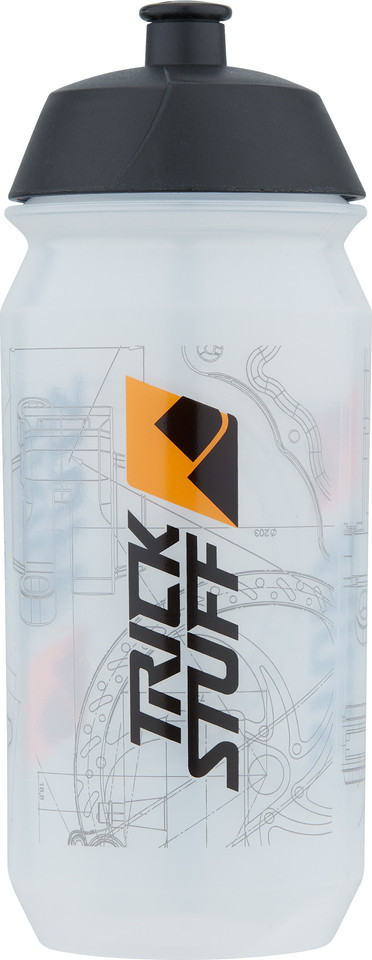

  • 1 x Trickstuff drink bottle
