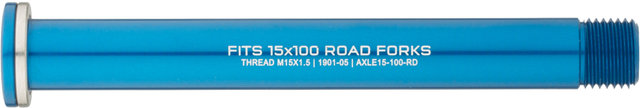

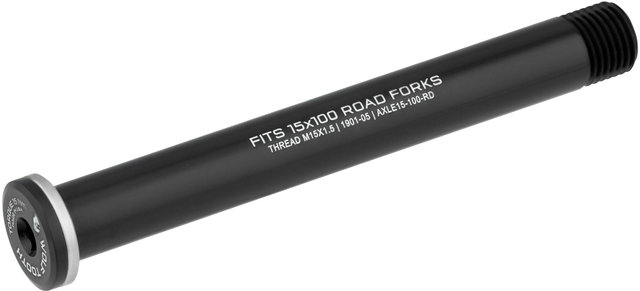

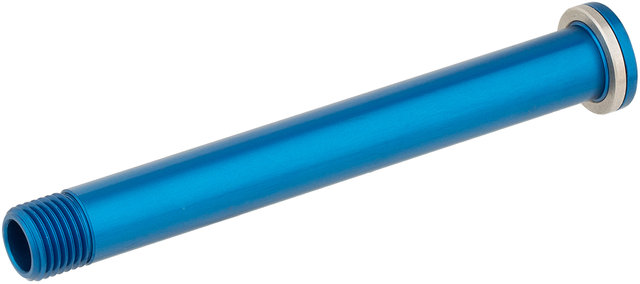

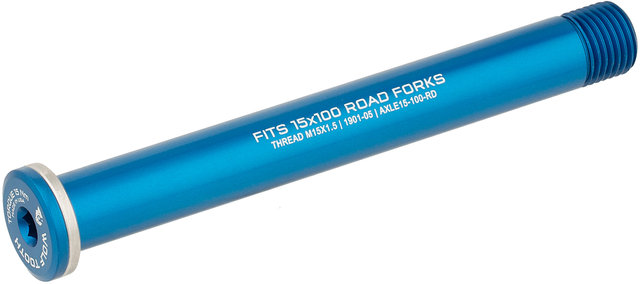

The 15 mm Road thru-axle from Wolf Tooth Components can be used for road bikes with 15 x 100 mm front over locknut dimension.

Specifications:

Over Locknut Dimension:

Front: 100 mm

Axle Diameter:

Front: 15 mm

Technical Information:

Use:

Front: 15 x 100 mm

Type:

thru-axle

Axle Material:

aluminium (7075-T6)

Axle Length:

126 mm

Nominal Diameter:

M15

Thread Pitch:

1.5

Features:

• for Road and Cyclocross
• simple to use, low weight and attractive appearance
• with fixed stainless steel washer, protects the fork
• stiffer interface, protection against jamming
• 5 and 6 mm hex fitting
• Made in the USA

Note from the manufacturer:

Always apply a small amount of grease to the washer and thread before installation.

Manufacturer Numbers:

black:

AXLE15100RD

blue:

AXLE15100RDBLU

red:

AXLE15100RDRED

Contents:

• 1 x Wolf Tooth Components 15 mm Road thru-axle
