The Campagnolo Bora WTO 60 Disc Carbon wheelset with its 60 mm deep rims has been optimised in a wind tunnel to minimise side-pull and maximise aerodynamic advantage at any wind angle.

Specifications:

Application:

Road, Triathlon & Time Trial, Gravel, Cyclocross

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

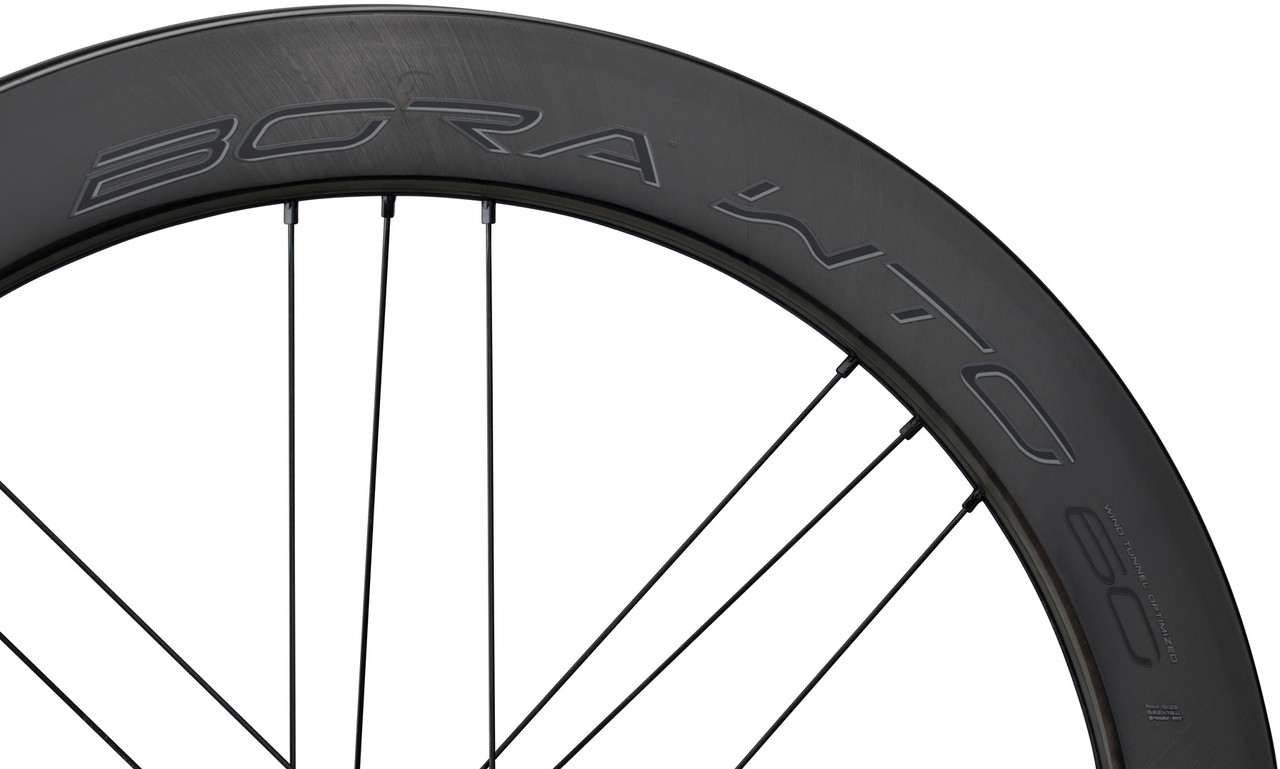

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

26.1 mm

Depth:

60 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon (UD)

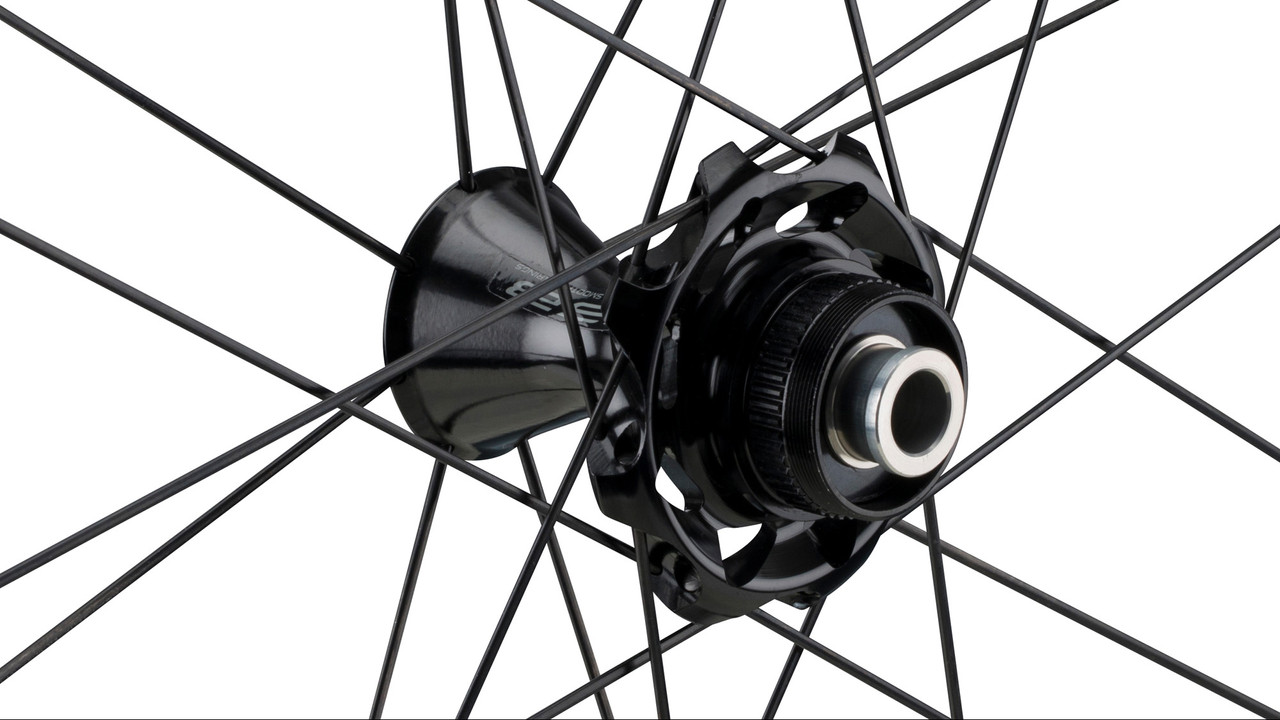

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

ceramic deep groove ball bearings (USB cup & cone)

Body Material:

aluminium

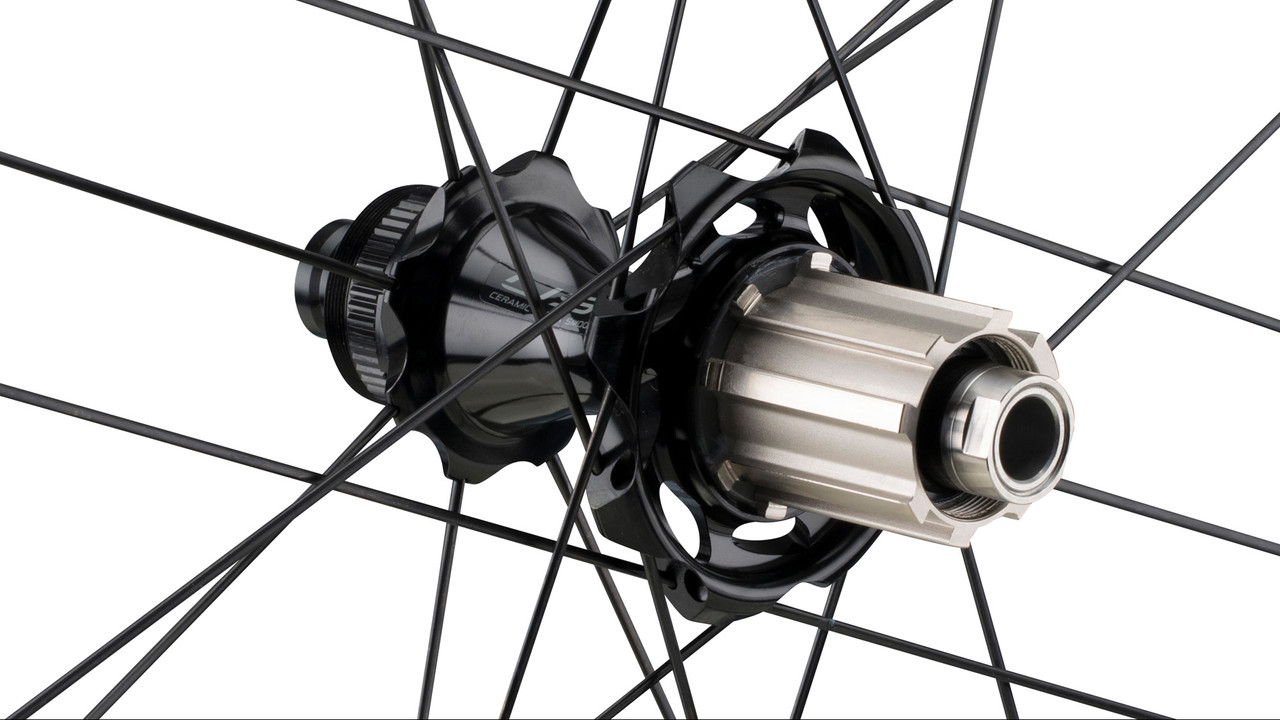

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

ceramic deep groove ball bearings (USB cup & cone)

Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

G3

Rear Lacing Pattern:

G3

Spoke Type:

straight pull / double butted / bladed spoke

Spoke Material:

stainless steel

Nipple Type:

self-lock

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (rider + bicycle)

Recommended Tyre Width:

23 - 28 mm, for cyclocross up to 33 mm

Features:

• optimised in a wind tunnel
• less side draught, aerodynamic advantage
• ceramic cup & cone bearings 50% smoother than standard bearings
• unpainted, water transfer decor
• completely assembled by hand
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

USB™:
Campagnolo has always been respected for the extreme smoothness and reliability of its hubs. These characteristics are due to the fact that all projects are developed in the R&D department and an almost manic attention is paid to every detail. The hubs with USB (Ultra Smooth Bearings) ceramic bearings further increase wheel smoothness and reduce weight and maintenance. Comparative tests have shown that USB bearings are 50% smoother than standard bearings. An increase in your competition performance or even a ride with your friends is now easier.

G3™:
In G3 geometry, the right side of the rear wheel has twice the number of spokes compared to the left side. This enables an improved energy transfer. It also reduces the stress on the spokes on the right side and increases lateral stiffness. The advantages of the G3 system are astonishing: better transmission of power, greater lateral rigidity and reduction of spoke tension on the rear wheel. Thanks to the G3 system, which compensates for the forces acting on 2 sides of the wheel, vibrations are eliminated, even for people with heavier weights.

2-Way Fit™:
2-Way Fit stands for the innovative rim profile on which both tubeless tyres and classic clincher tyres can be mounted. With 2-Way Fit you can try out for yourself which of the two solutions suits you best. You can also use the clincher solution for daily training and the tubeless solution for competition.
The tubeless tyre is without doubt the tyre of the future for Road cycling. In addition to greater comfort, there are numerous other important advantages: When using a tubeless tyre, you benefit from the better rolling characteristics, as the friction between tyre and tube is completely eliminated. A tubeless tyre cannot lose air abruptly through a hole and suddenly become flat. This therefore means a clear advantage in terms of safety. What to do in case of a tubeless flat tyre? Campagnolo's 2-Way Fit system allows you to fit a normal tube by simply removing the sealing valve, so you can go home without issue.

Colour Index:

black-dark label:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black
• Lettering: black

Models:

28" set (front 12x100 + rear 12x142) Campy:

Freehub:

Campagnolo

Gearing:

9-/10-/11-/12-speed

Manufacturer Number:

WH21-BOWTODFR60DK

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

WH21-BOWTODFR60XDK

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Number:

WH21-BOWTODFR60SDK

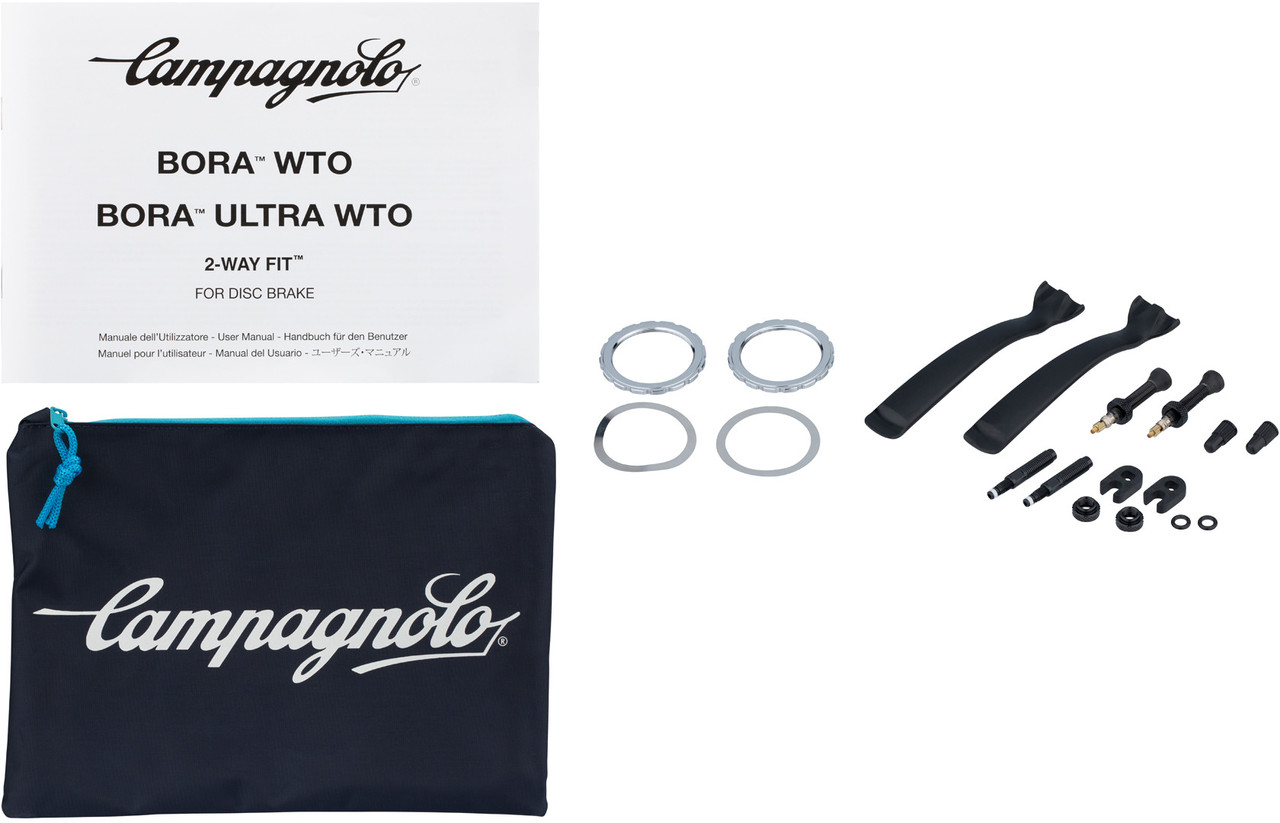

Contents:

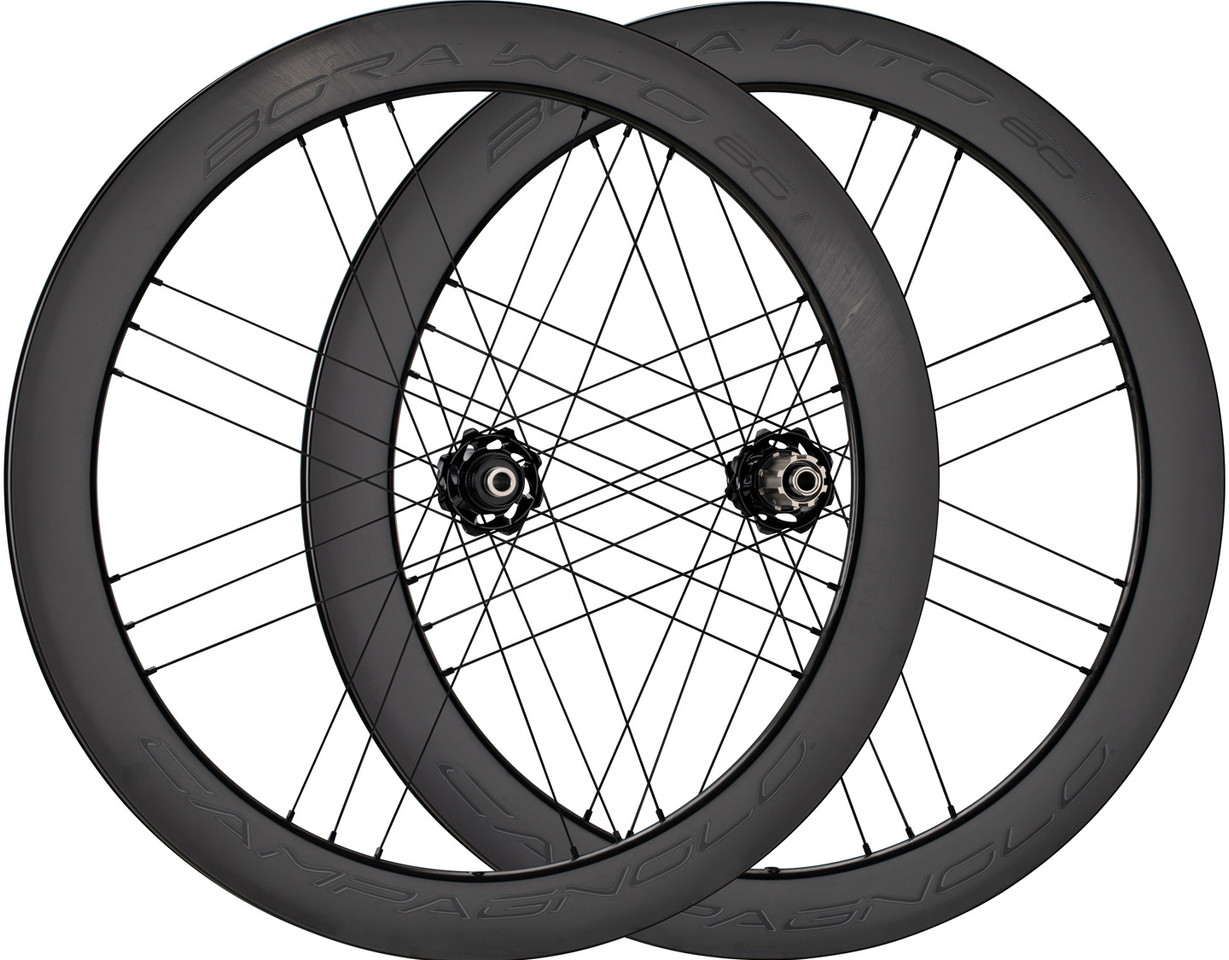

• 1 x Campagnolo Bora WTO 60 Disc Center Lock wheelset (front and rear)
• 2 x Campagnolo tubeless valves, 44 mm
• 2 x Campagnolo valve extensions, 40 mm
• 2 x Campagnolo reducers for valves
• 2 x tyre lever
