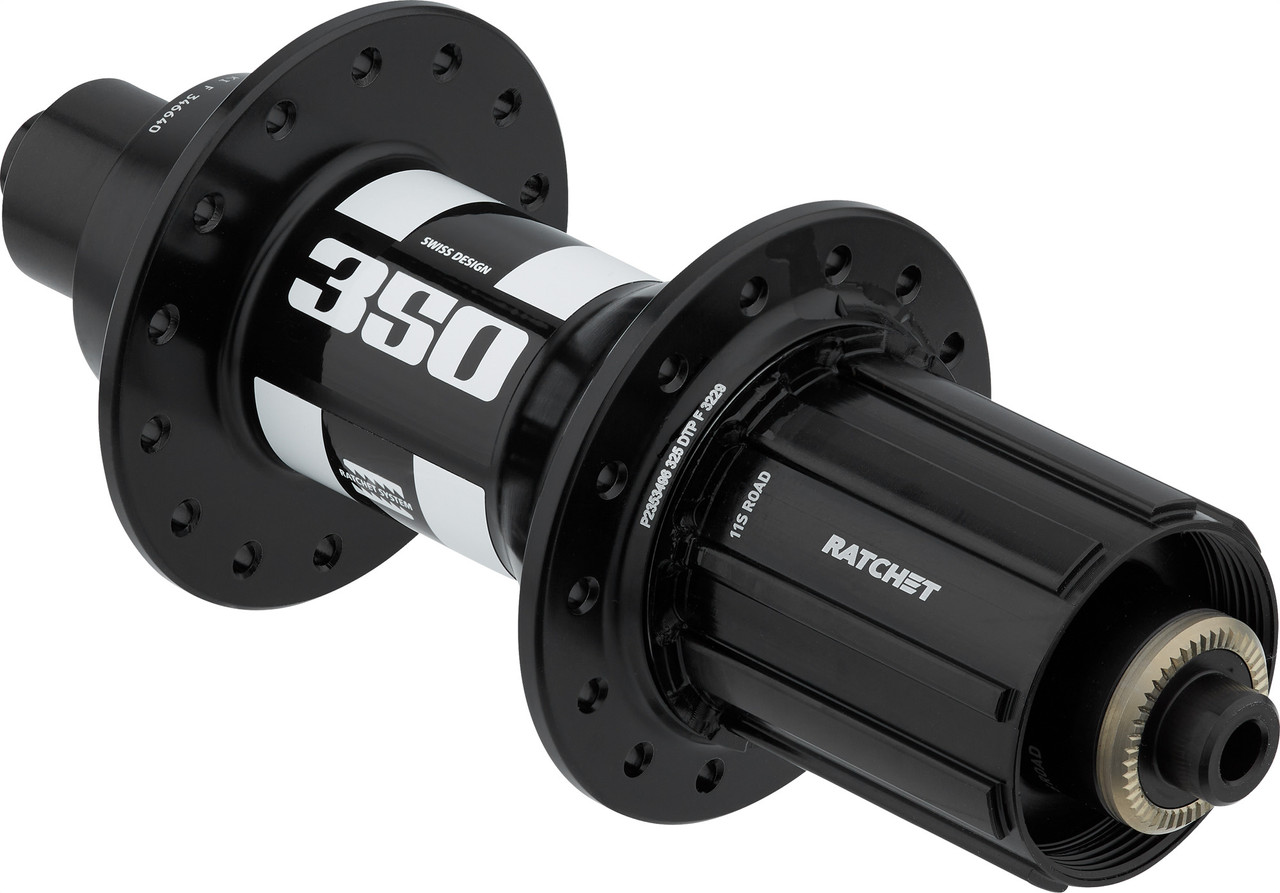

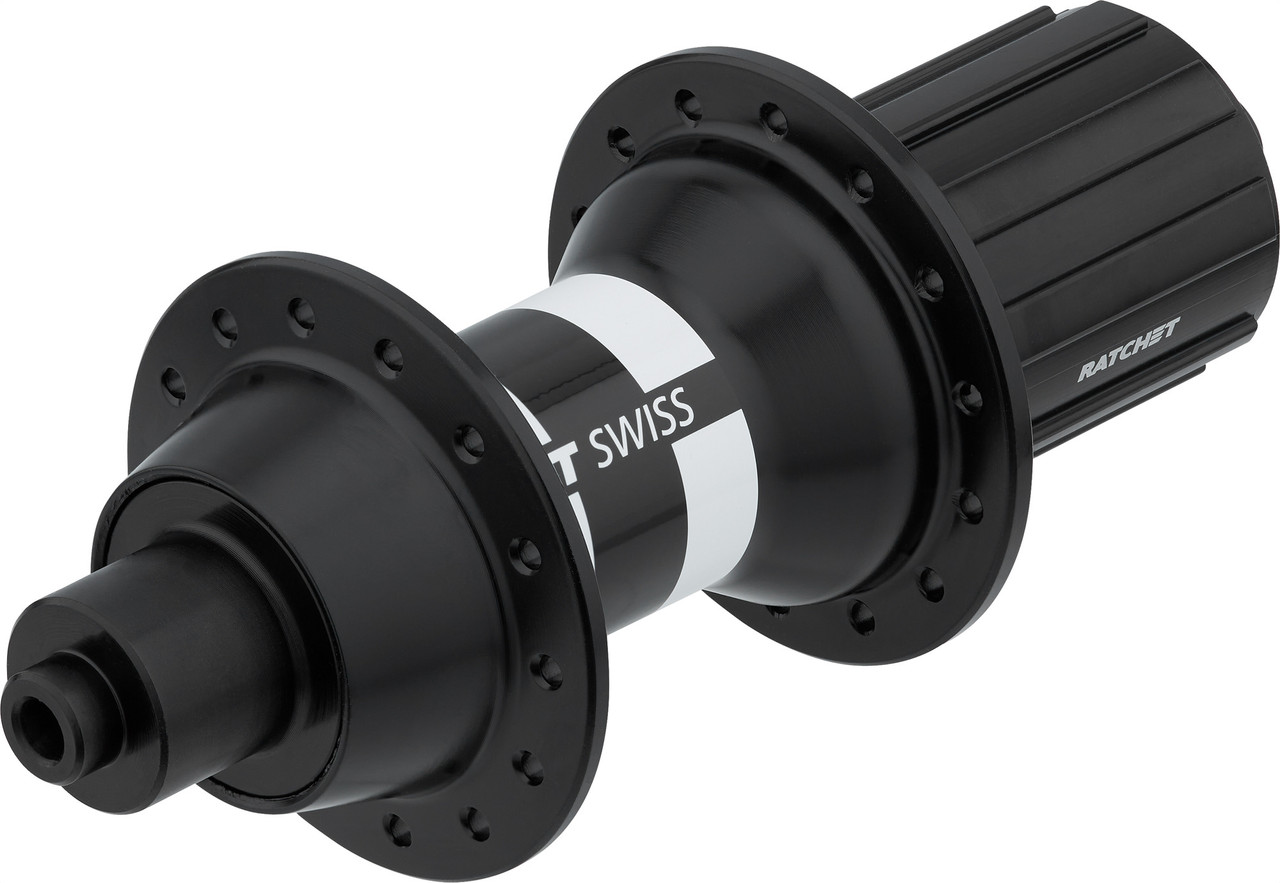

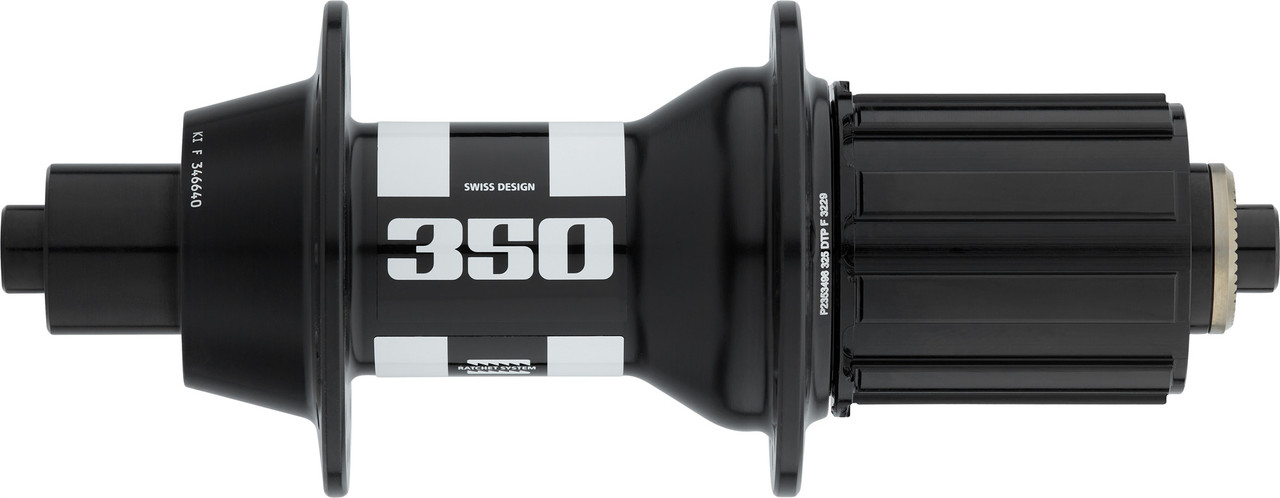

The 350 Non Disc Road is a reliable hub with Ratchet System®, which is compatible with all 11-speed derailleurs. Exactly the right hub for cyclists who want reliability and high-end performance.

Specifications:

Series:

350

Application:

Road Race, Road All-round, City & Touring

Over Locknut Dimension:

10 x 130 mm quick release

Spoke Hole Count:

24 hole, 28 hole, 32 hole

Brake Type:

rim brake

Freehub Compatibility:

8/9/10/11-speed Shimano/SRAM (Road) or 9-/10-/11-/12-speed Campagnolo

Note:

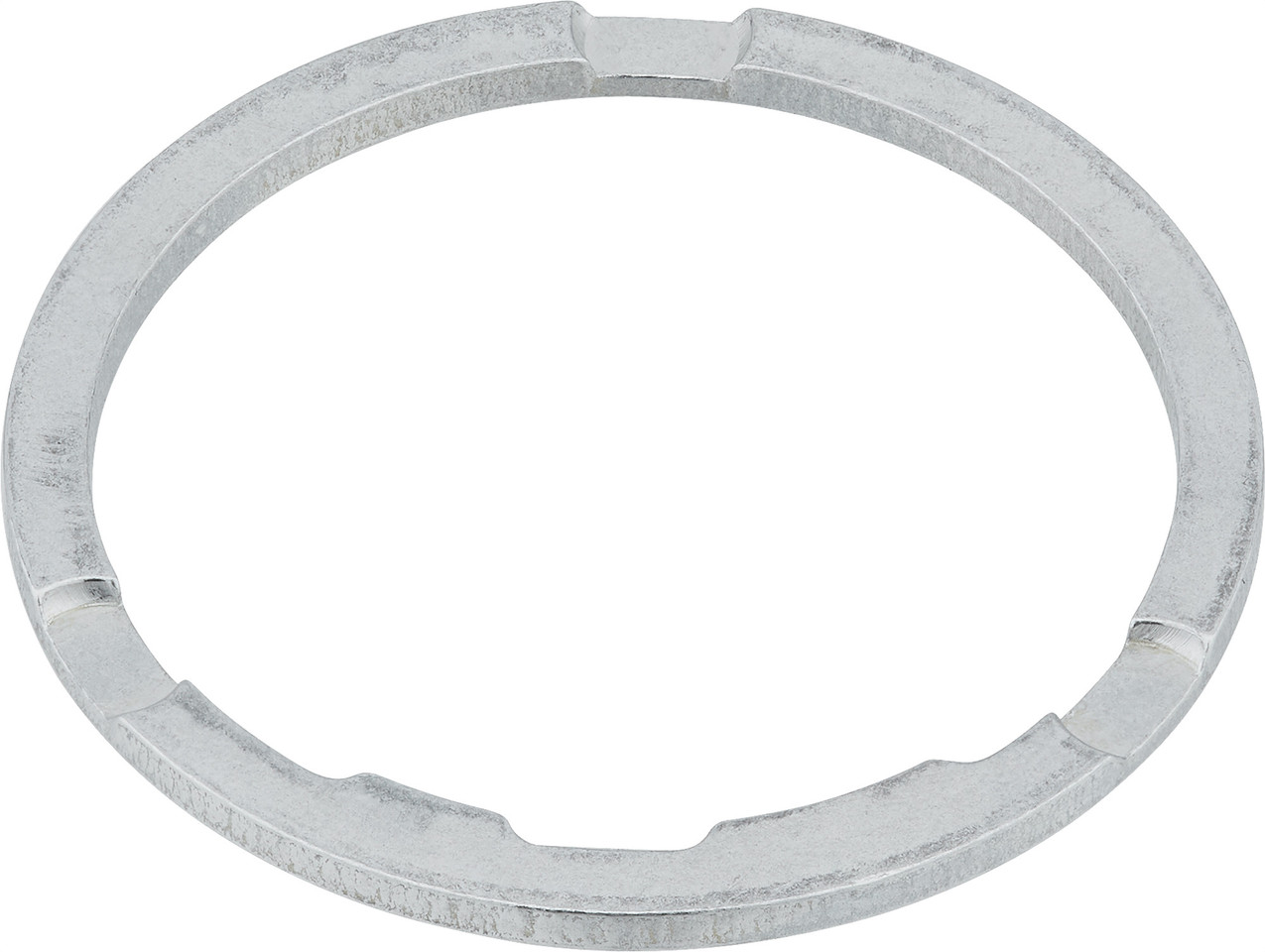

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Freehub:

Ratchet System®

Technical Information:

Body Material:

aluminium

Bearings:

precision

Seals:

labyrinth

Flange Distance (L/R):

50.3 mm (31.0 mm/19.3 mm), 50.3 mm (33.5 mm/16.8 mm)

Partial Bolt Circle Diameter (L/R):

46.0 mm/46.0 mm

Spoke Hole Diameter:

2.6 mm

Features:

• extremely reliable
• with the proven Ratchet System® Freehub
• can be converted to any rear axle standard
• no special tools are required for normal maintenance
• 100% Swiss-made

Technology:

Ratchet System®:
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

Models:

5 x 130 mm / 24 hole / Shimano:

• Over Locknut Dimension: 10 x 130 mm quick release
• Spoke Hole Count: 24
• Partial Bolt Circle Diameter (L/R): 46.0 mm/46.0 mm
• Flange Distance (L/R): 50.3 mm (33.5 mm/16.8 mm)
• Freehub Body Compatibility: 8-/9-/10-/11-speed Shimano/SRAM (Road)
• Manufacturer Number:

5 x 130 mm / 28 hole / Shimano:

• Over Locknut Dimension: 10 x 130 mm quick release
• Spoke Hole Count: 28
• Partial Bolt Circle Diameter (L/R): 46.0 mm/46.0 mm
• Flange Distance (L/R): 50.3 mm (33.5 mm/16.8 mm)
• Freehub Body Compatibility: 8-/9-/10-/11-speed Shimano/SRAM (Road)
• Manufacturer Number: H350HRQHR28SA3229S

5 x 130 mm / 32 hole / Shimano:

• Over Locknut Dimension: 10 x 130 mm quick release
• Spoke Hole Count: 32
• Partial Bolt Circle Diameter (L/R): 46.0 mm/46.0 mm
• Flange Distance (L/R): 50.3 mm (33.5 mm/16.8 mm)
• Freehub Body Compatibility: 8-/9-/10-/11-speed Shimano/SRAM (Road)
• Manufacturer Number: H350HRQHR32SA3229S

5 x 130 mm / 28 hole / Campagnolo:

• Over Locknut Dimension: 10 x 130 mm quick release
• Spoke Hole Count: 28
• Partial Bolt Circle Diameter (L/R): 46.0 mm/46.0 mm
• Flange Distance (L/R): 50.3 mm (33.5 mm/16.8 mm)
• Freehub Compatibility: 9-/10-/11-/12-speed Campagnolo
• Manufacturer Number:

5 x 130 mm / 32 hole / Campagnolo:

• Over Locknut Dimension: 10 x 130 mm quick release
• Spoke Hole Count: 32
• Partial Bolt Circle Diameter (L/R): 46.0 mm/46.0 mm
• Flange Distance (L/R): 50.3 mm (33.5 mm/16.8 mm)
• Freehub Compatibility: 9-/10-/11-/12-speed Campagnolo
• Manufacturer Number: H350HRQCR32SA4672S

Contents:

• 1 x DT Swiss 350 Road hub (rear)
• not incl. quick release / thru-axle
