Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

16 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

DT Swiss Tubeless Ready

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-speed

Freehub Compatibility:

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Technical Information - Rim:

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

27 mm

Depth:

62 mm

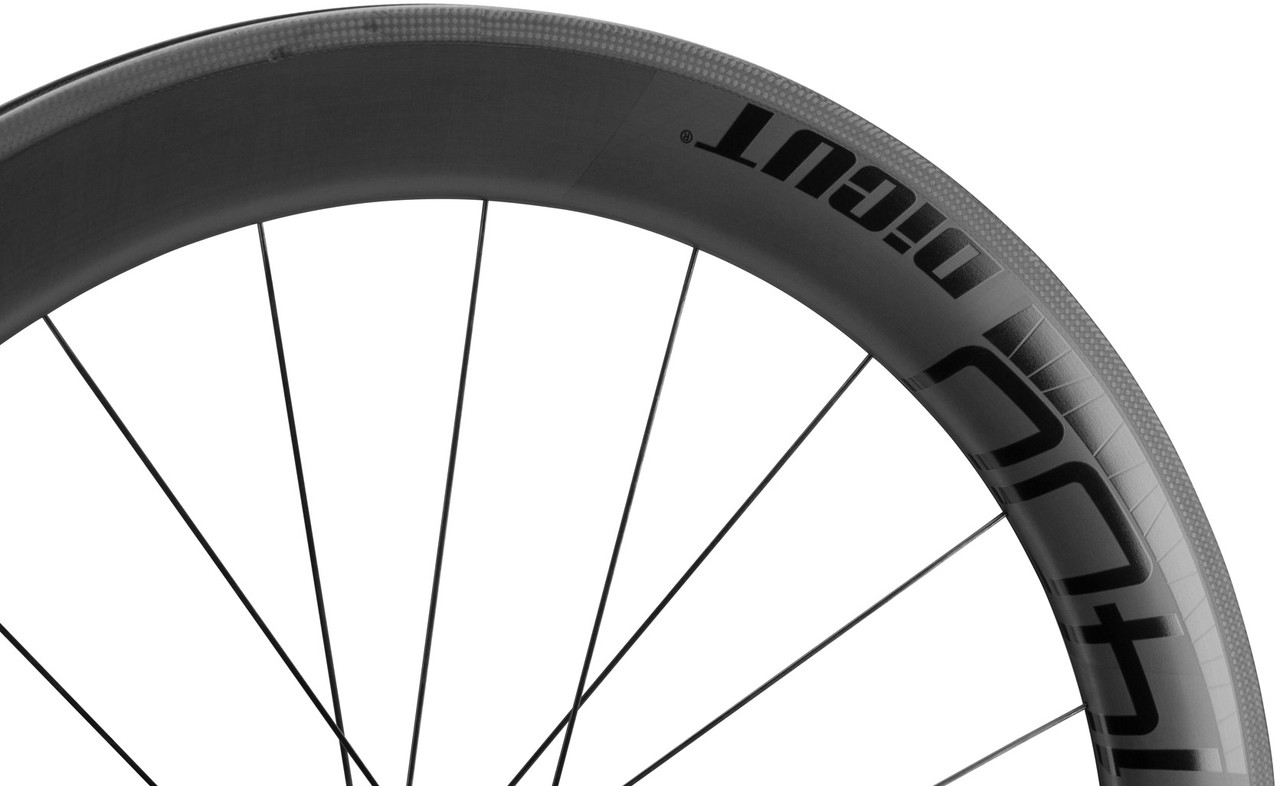

Rim Material:

Carbon

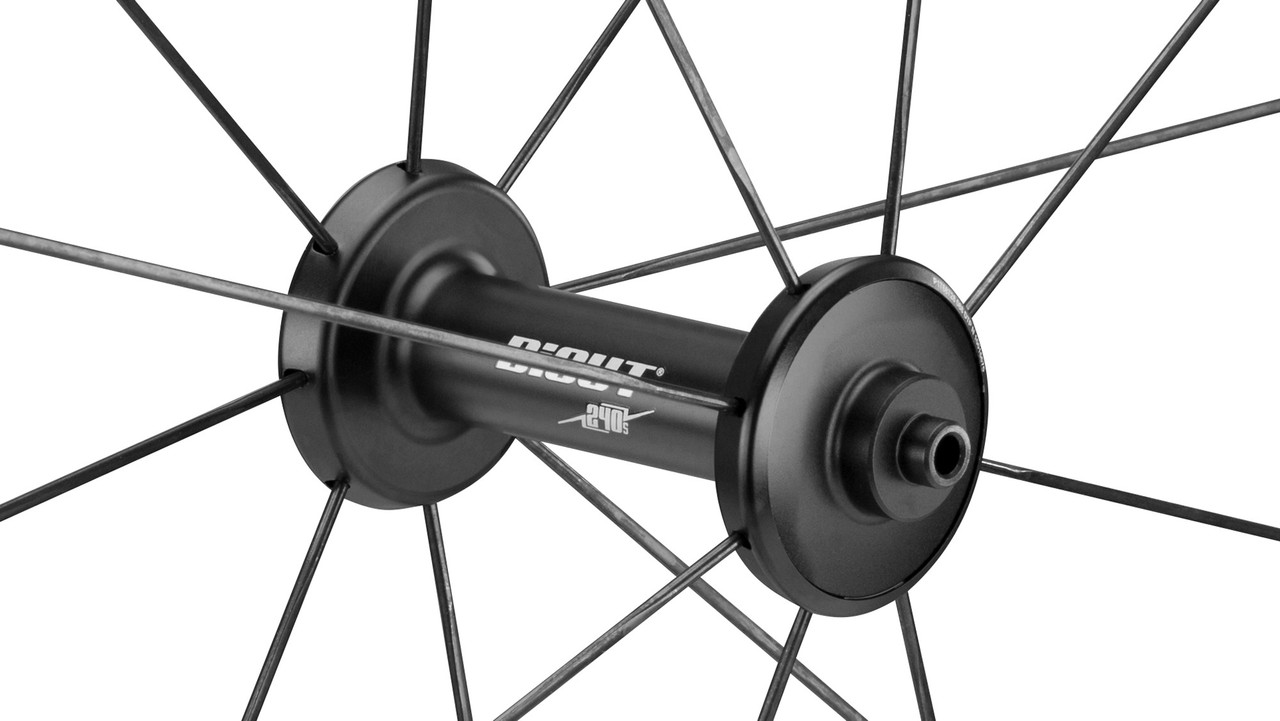

Technical Information - Front Hub:

Type:

240

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

precision bearings, sealed

Body Material:

Aluminium

Technical Information - Rear Hub:

Type:

240

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

precision bearings, sealed

Body Material:

Aluminium

Freehub Body:

DT Swiss Ratchet System® 18

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial, 2-cross

Spoke Type:

DT Aero Comp®, straight pull, double butted

Spoke Size:

250 mm (front), 250 mm / 256 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

DT Pro Lock hidden

Nipple Material:

Aluminium

Approved For:

Weight Limit:

100 kg (system weight)

Air Pressure (max.):

9.5 bars

Recommended Tyre Width:

20 - 35 mm

Features:

• adhesive type Waterslite
• versatile application possibilities
• Aero Stability
• Industry leader in aerodynamics and handling

Technology:

DICUT®
The RRC DICUT line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System hubs, DICUT wheels are high-end and made for fast times.

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

Ratchet System
The patented freehub system with high-precision toothed ratchets guarantees maximum load capacity and reliability. Thanks to the No-Tool concept, the system is very easy and quick to maintain.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Double Butted
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.

RWS
Patented wheel fastening system. Stiffer, safer and easier to use than a quick release. 100 % disc brake compatible.

Manufacturer Numbers:

28" front 9x100:

WARC140AAQXCA07107

28" rear 10x130 Shimano WARC140HRQICA07108

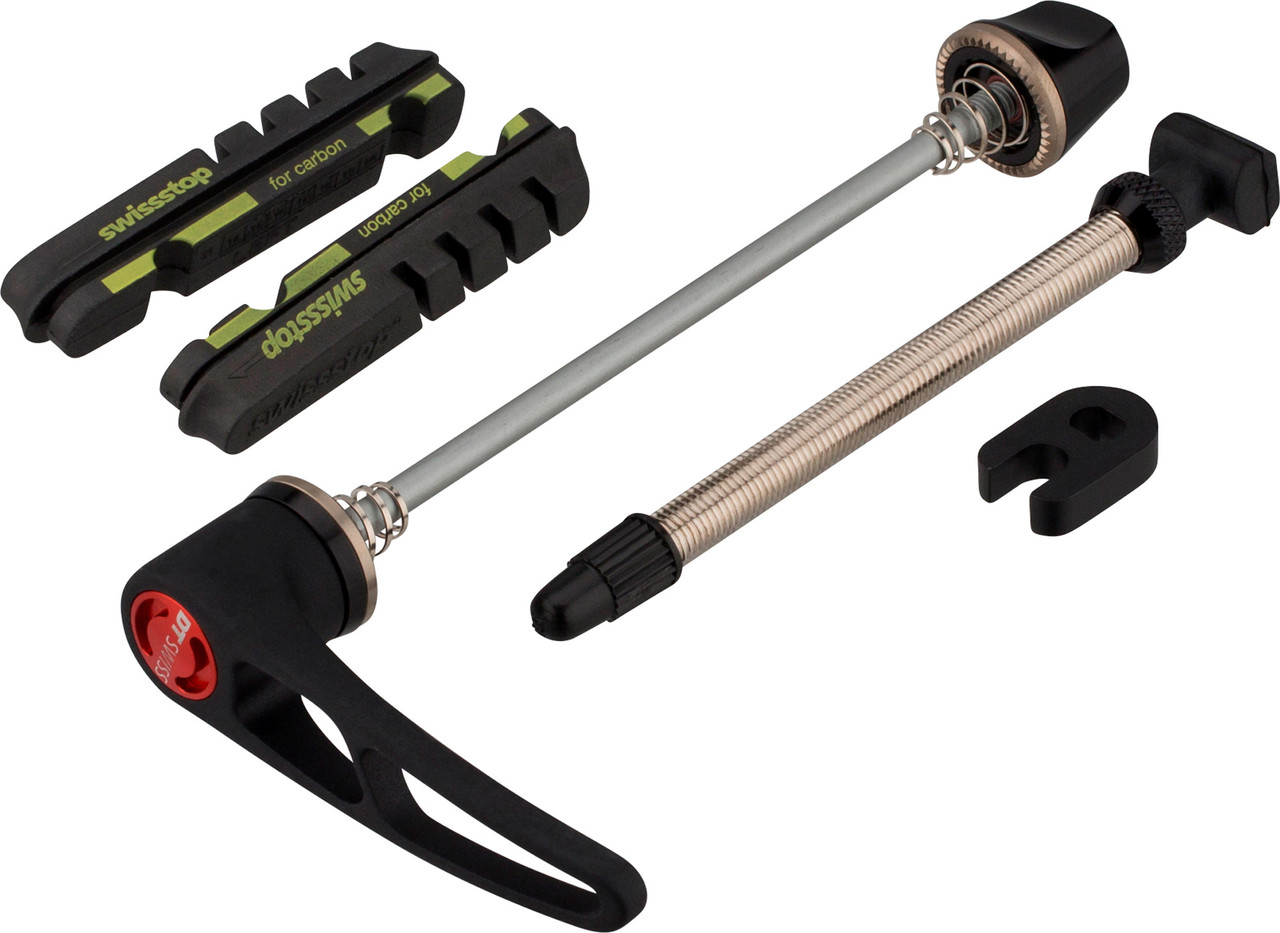

Contents:

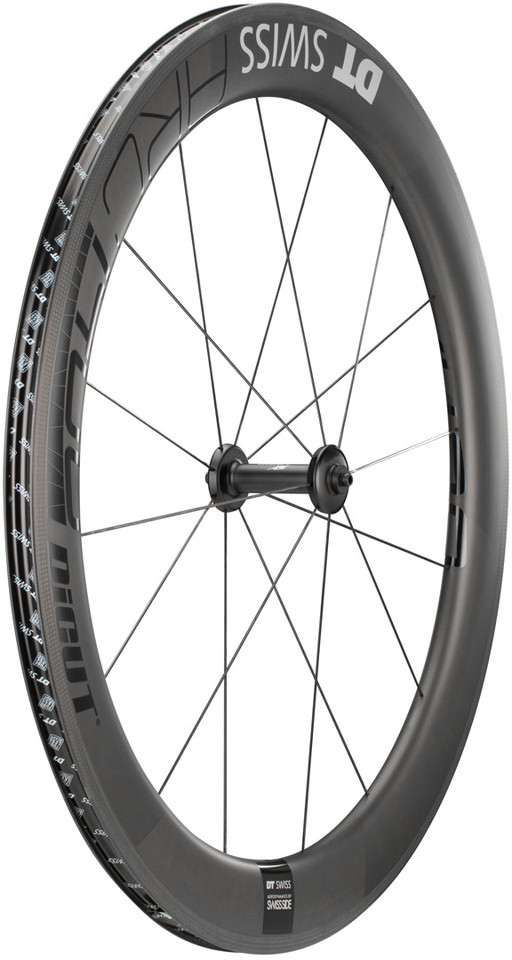

• 1 x DT Swiss ARC 1400 Dicut Carbon 62 Road 28" Wheel (front or rear wheel)
• 1 x roll 19 mm rim tape
• 1 x RWS steel mounts
• 1 x Road 73 mm tubeless valves
• 1 pairs of Swissstop Black Prince Carbon brake pads
• 1 x valve protection stickers
