Elite Novo Force Trainer

The Novo Force Trainer by Elite - Powerful and Innovative

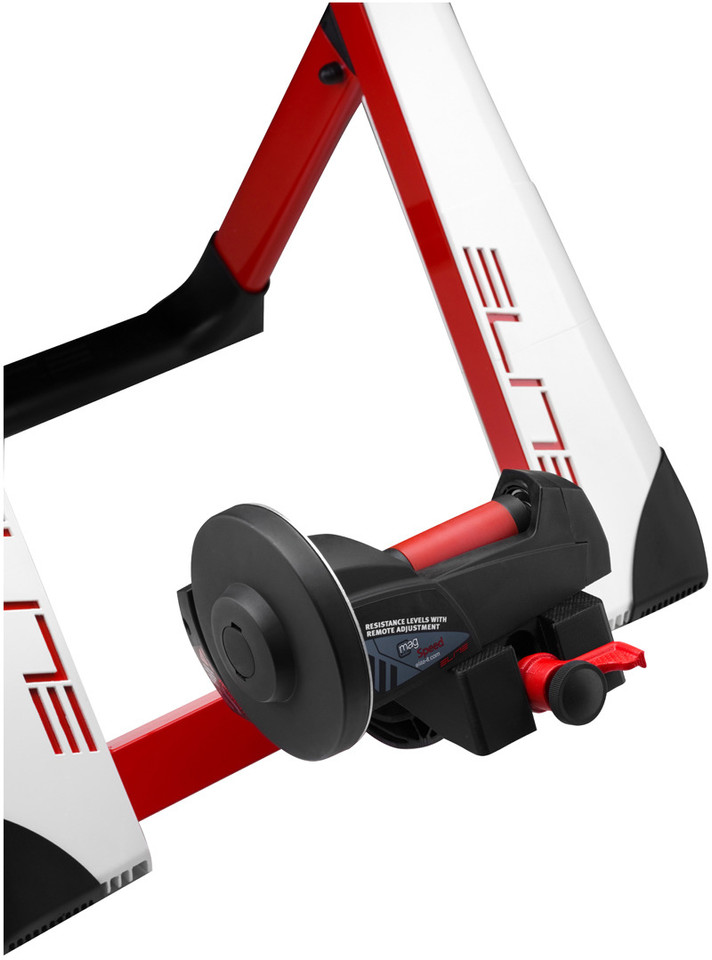

The Novo Force Trainer by Elite impresses with a powerful unit and an innovative frame. The Fast Fixing System allows the bicycle to be fixed and released with a single movement. A practical, large lever helps here. The adjustable support system allows a suitable, constant pressure to be maintained between the roller and the tyre. The roller itself is made of Elastogel, which guarantees better tyre grip. This also reduces the noise level by a good 50%.

Specifications:

Type:

fixed trainer

Resistance Adjustment:

handlebar lever

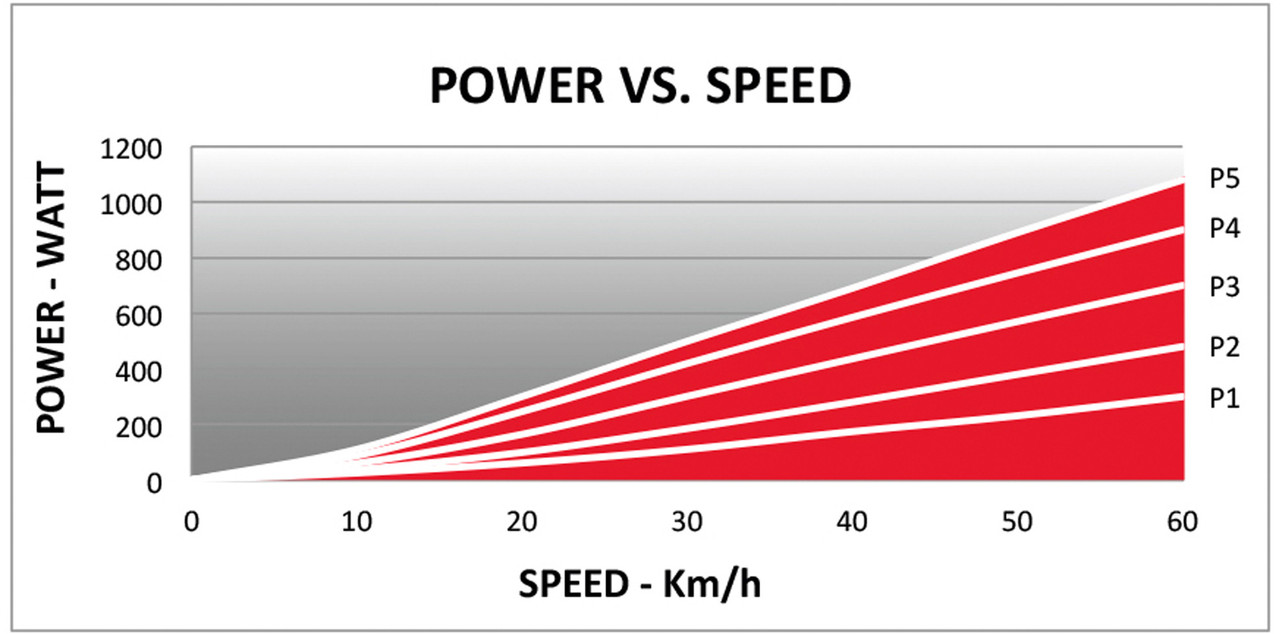

Brake Power (max.):

690 W at 40 km/h

Simulated Slope (max.):

7%

Data Transfer:

ANT+

Protocol:

PWR (Power)

Resistance Type:

magnetic (adjustable)

Technical Information:

Resistance Unit:

magnetic brake

Resistance Levels:

8

Fly Wheel:

2.79 kg

Resistance Adjustment:

handlebar lever

Power Source:

not, operable without power

Compatibility:

Wheel Size:

24" , 26" , 27.5" , 28" , 29"

Axle Type:

quick release, 10/12 mm thru-axle optional with thru-axle adapter kit for trainers

Clamp Width:

130 mm, 135 mm

Features:

• the Misuro B+ sensor is required to use training software with the Novo Force trainer
• Novo frame: steel and technological plastic materials complement each other
• new, very compact resistance unit
• 8 resistance levels adjustable via a practical switch on the handlebars
• the absorbing structure of the frame guarantees maximum stability at high speeds or maximum effort
• the lifting of the bicycle is limited to a minimum

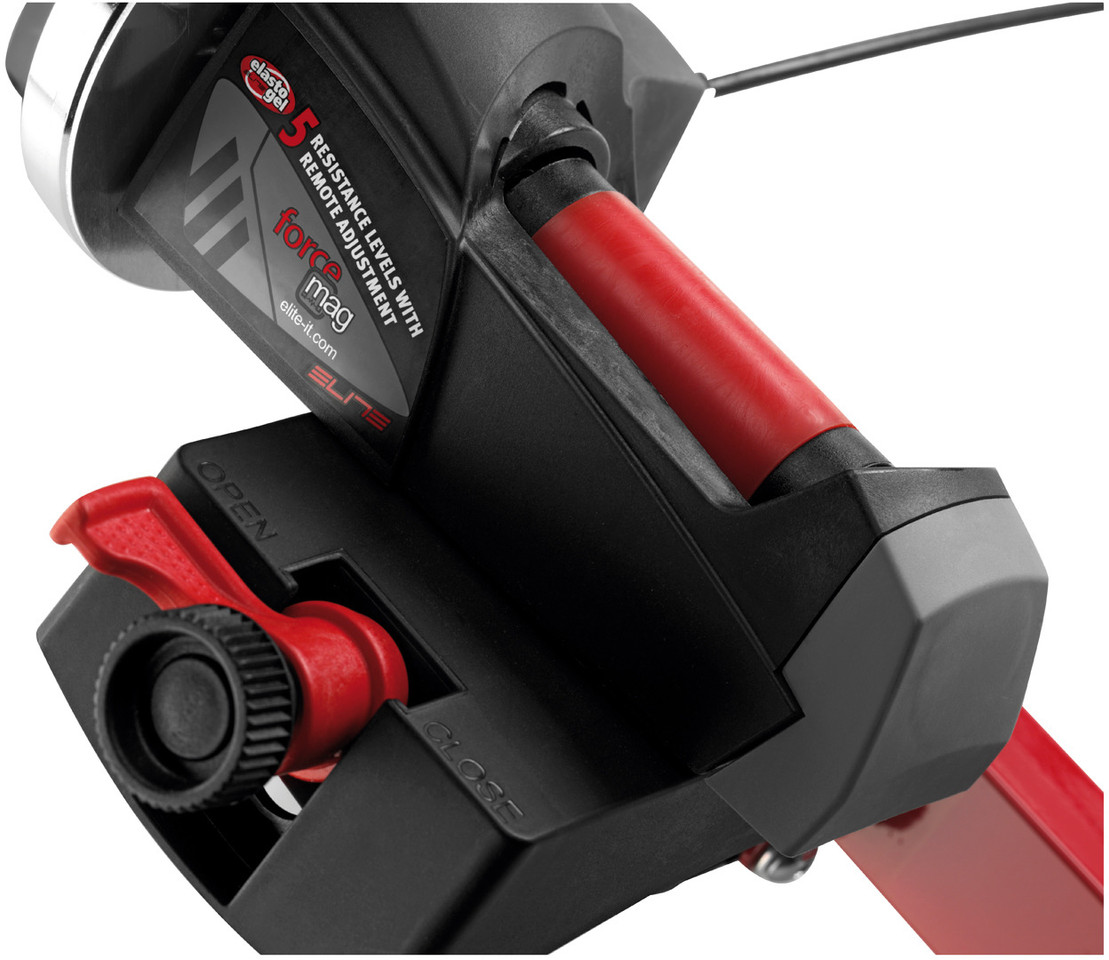

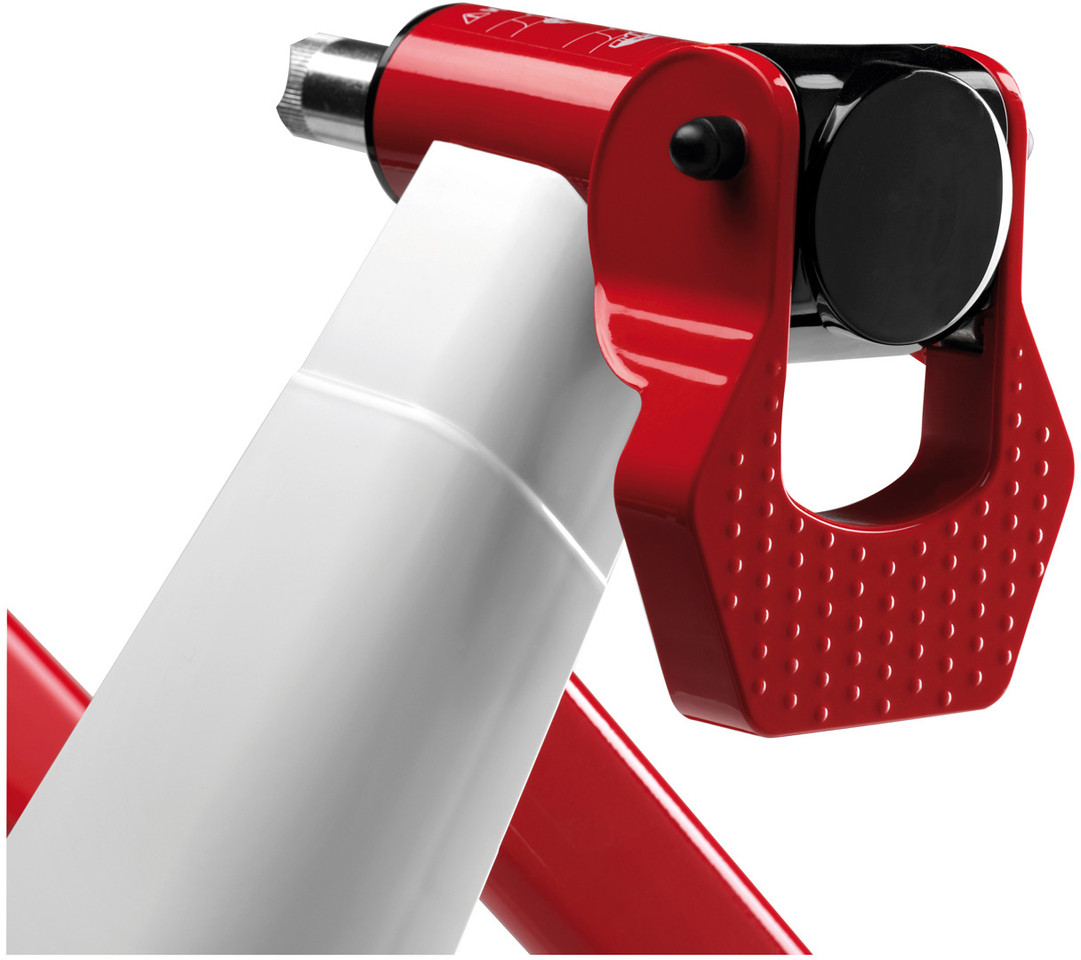

• Fast-Fixing fastening system: the bicycle can be fastened and released in a single quick operation
• new adjustable support system for the unit, which allows a suitable and constant pressure between the roller and the tyre
• Elastogel roller with 30 mm diameter
• the trainer can be easily folded to a small size for easy transport or storage when not in use

Technology:

Elastogel:
Thanks to the specific properties of the material, the Elastogel roller allows the tyre to adhere better, minimising friction losses and improving performance. The Elastogel reduces noise and prolongs the life of the product due to the higher resistance of the material.
Elastogel is a specially cast polyurethane elastomer and is the result of long research and functional tests that have enabled the optimisation of its elastic properties and mechanical resistance: Its resistance to wear and abrasion is exceptional, while permanent deformation is minimal even under the most severe loads. It retains these properties at temperatures from -30° to +80° C. Polyurethane is obtained by the controlled polymerisation reaction of a polyol and an isocyanate at certain temperatures and times.

Manufacturer Number:

0111303

Contents:

• 1 x Elite Novo Force frame
• 1 x Elite Novo Force resistance unit
• 1 x Elite mount unit
• 1 x quick releases
• 2 x plugs for wheel sizes over 28"
• 1 x Elite mount lever
