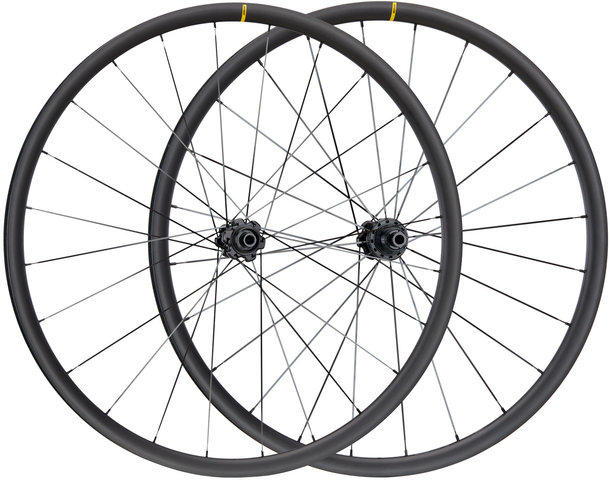

The Mavic Allroad Pro Carbon SL Wheelset - For gravel, rough roads and pavé

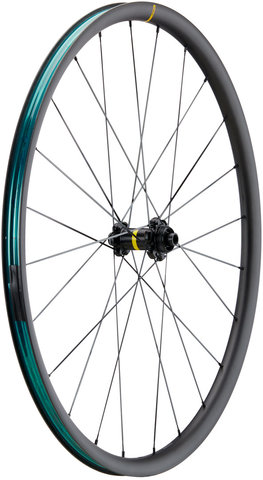

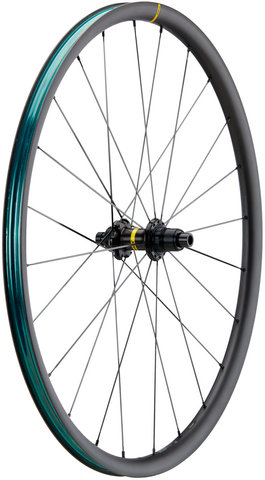

The Allroad Pro Carbon SL Disc Center Lock 28" wheelset by Mavic was designed for gravel use and impresses on changing surfaces with speed, versatility and durability. It is based on tubeless-compatible, 23 mm wide carbon rims and thru-axle hubs with self-adjusting bearings and was laced with 24 double butted straight pull spokes each front and rear.

Specifications:

Application:

Gravel, Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Road Tubeless

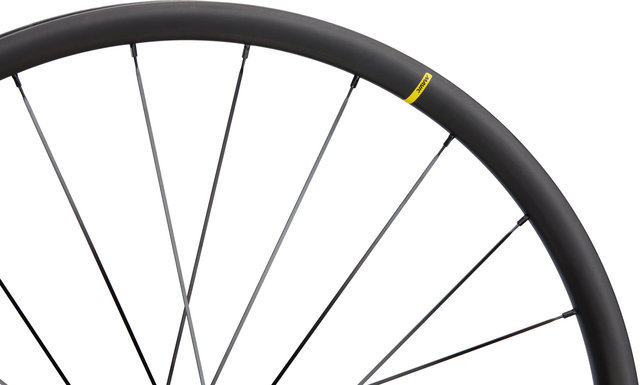

Technical Information - Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

23-622

Inner Width:

23 mm

Outer Width:

28.2 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon (UD)

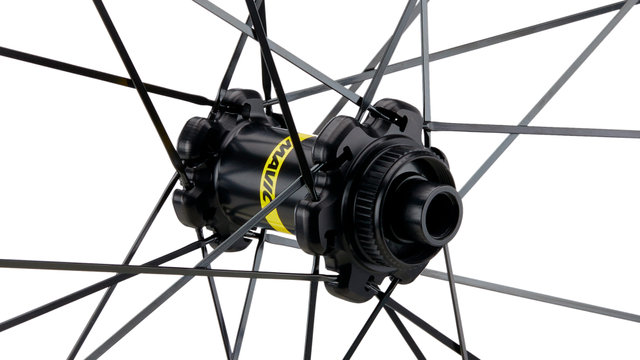

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

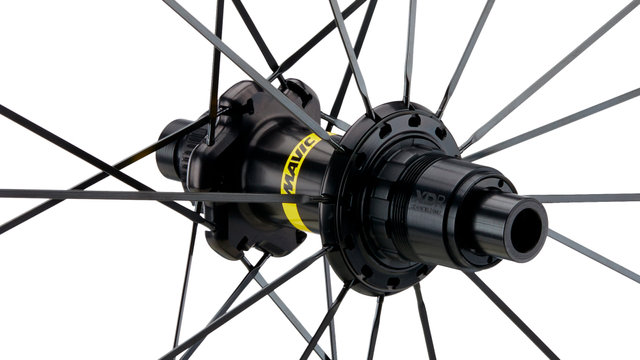

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

Isopulse

Spoke Type:

straight pull / double-butted

Spoke Size:

291 mm (front), 291 mm/274 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

ABS

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

28 - 64 mm (1.1 - 2.5" )

Tyre Type:

Due to its hookless rims, the Allroad Pro Carbon SL is only approved for use with UST Tubeless tyres and tubular wired tyres. Follow the tyre manufacturer's instructions for use.

* recommended for increased durability

Features:

• efficient climbing characteristics and fast acceleration
• smooth, fast ride on rough terrain with reduced risk of punctures
• rim profile optimised for disc brakes: powerful, reliable braking performance for more confidence and control
• aluminium axles
• conventional rim drilling
• front can optionally be converted to quick release with separately available adapters, conversion to 15 x 100 mm thru-axle possible by replacing the complete axle
• rear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adapters
• rear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapter
• extra-light Shimano freehub body optionally available
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Isopulse (Rear)
This special lacing (right radial, left double-crossed) increases the stability of the wheels and ensures optimal power transmission - thanks to more even spoke tension on the left and right hub flange. Isopulse means higher stiffness under heavy load, resulting in immediate power transmission. Also, sturdier wheels have lower maintenance requirements.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

P1447155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

P1448160

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

Contents:

• 1 x Mavic Allroad Pro Carbon SL Disc wheelset (front and rear)
• 2 x UST valve with accessories
