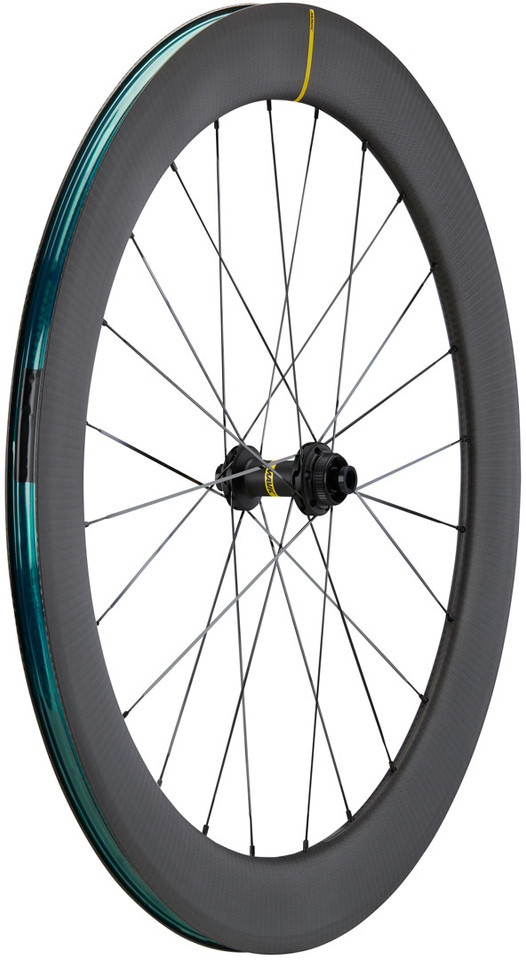

Mavic Cosmic SL 65 Center Lock Disc Carbon Wheelset

The Mavic Cosmic SL 65 Carbon Disc Wheelset - Tubeless compatible aero wheelset

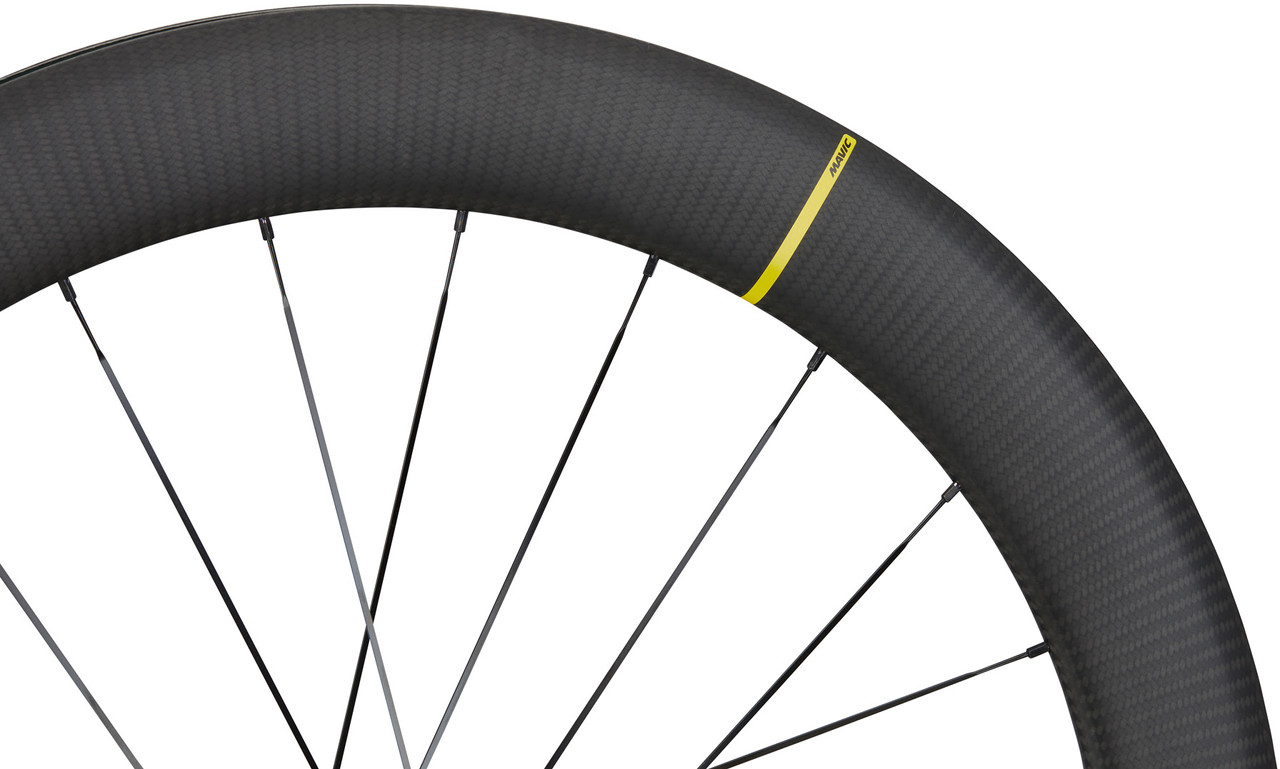

The Cosmic SL 65 Center Lock Disc wheelset from Mavic is based on 19 mm wide and 65 mm high, streamlined carbon rims that provide top speed on flat ground. Tubeless compatibility opens up further advantages such as more puncture resistance, less rolling resistance and weight savings. Thru-axle hubs with self-adjusting bearings and optimised spoke holes are used, with 24 double butted straight pull spokes at the front and rear.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Road Tubeless

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

26 mm

Depth:

65 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

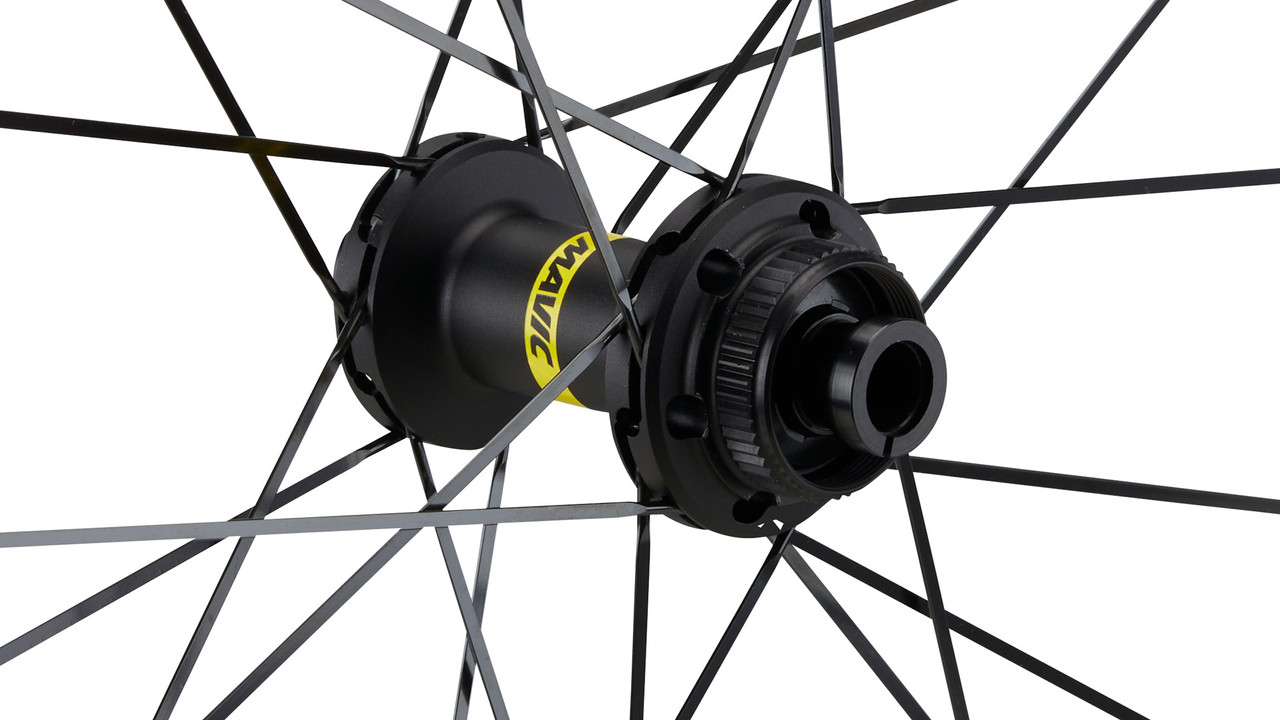

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

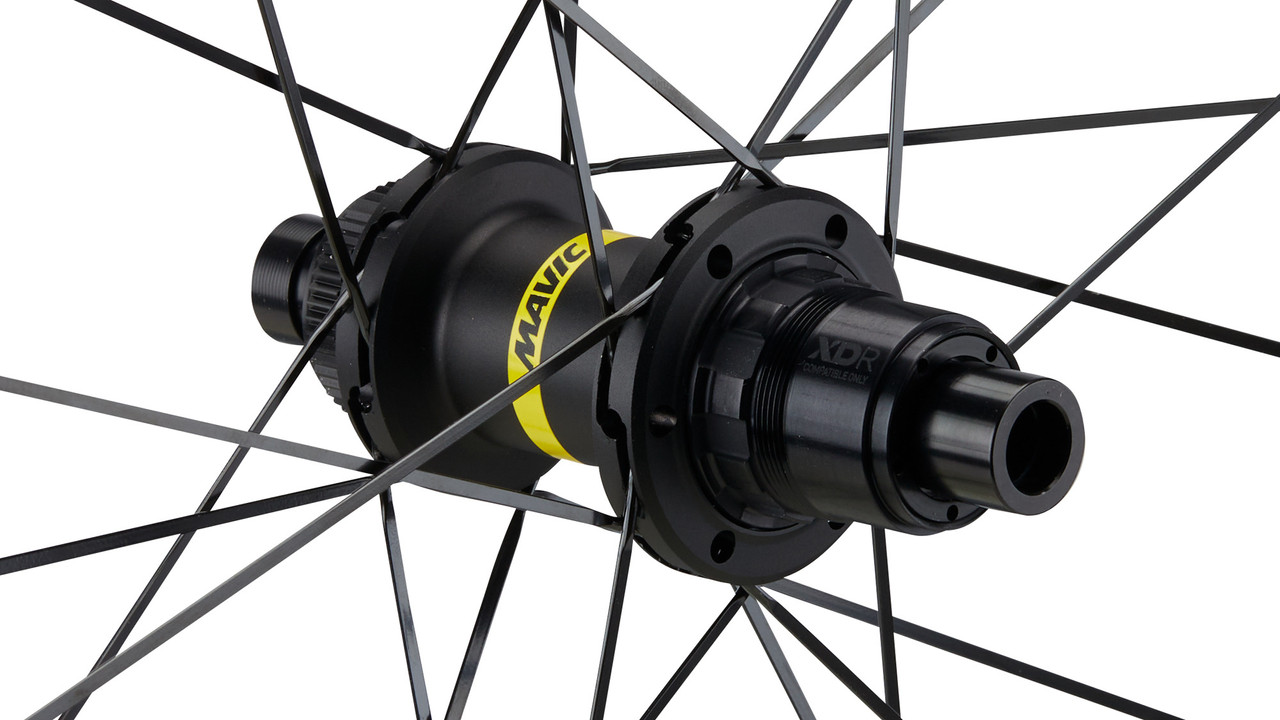

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / double-butted

Spoke Size:

254 mm

Spoke Material:

steel

Nipple Type:

ABS

Nipple Material:

brass

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

25 - 32 mm

* recommended for increased durability

Features:

• proven aero efficiency and more stability in crosswinds
• faster acceleration and safer braking thanks to disc brake optimisation
• user-friendly UST-Road system for more speed, control and comfort
• conventional rim drilling
• Infinity hub design for optimal lacing
• aluminium axles
• front can be converted to quick release (with supplied adapters), not compatible with 15 mm thru-axles
• rear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)
• extra-light Shimano freehub body optionally available
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

P1323155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

P1458160

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

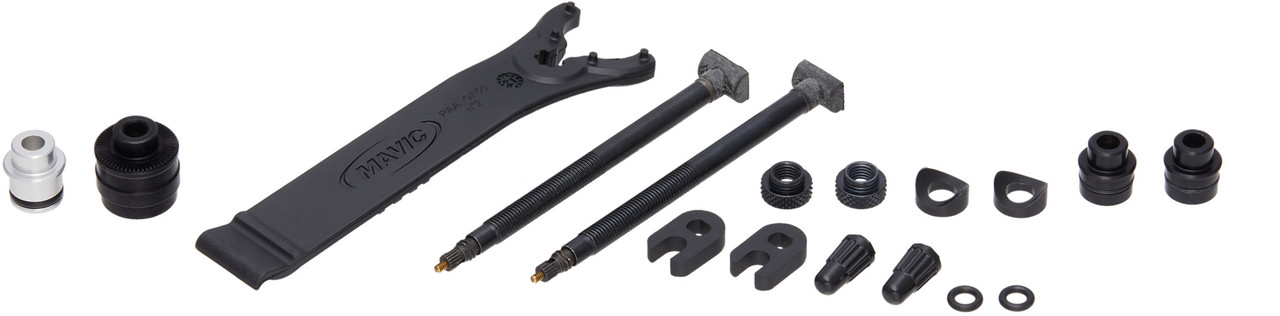

Contents:

• 1 x Mavic Cosmic SL 65 Disc Carbon Wheelset (front and rear)
• 1 x pair end caps for quick release, front
• 1 x pair end caps for quick release, rear
• 2 x UST valve with accessories
