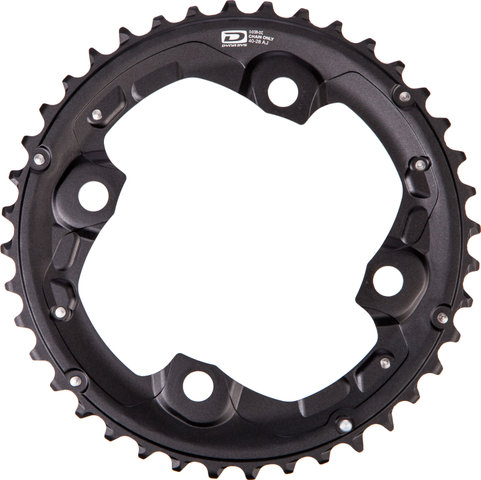

The Shimano SLX 10-speed chainring for the FC-M675 crankset


The Shimano SLX FC-M675 10-speed chainring has been optimised for perfect interaction with the other front drivetrain components (HyperDrive technology). It has a bolt circle diameter of 104 or 64 mm and can be used for different 2x gradations. The 24, 26 and 28 tooth versions are also compatible with the FC-M615 Deore cranks.

Specifications:


Application: All Mountain, Trail, Cross Country
Mount: 104/64 mm bolt circle diameter, 4-arm
Teeth: 24 t, 26 t, 28 t, 38 t, 40 t
Gearing: 2x10-speed

Technical Information:


Combinations: 24-38 t, 26-38 t, 28-40 t
Material: steel (22 t to 28 t), aluminium (38 t + 40 t)

Technology:


HyperDrive
Shimano´s front shifting system is based on the HyperDrive concept. The front derailleur, the HG chain and SG-X chainrings work in a coordinated combination to make shifting more reliable, faster and more accurate. Without HyperDrive, problems are quick to appear when shifting on the big chainring, especially when under load. Shimano's HyperDrive system solves those problems. The SG-X chainrings, Wide Link front derailleur and HG chain work together to improve chain control to provide precise and reliable front derailleur shifting that is especially beneficial in severe off-road riding conditions. The chainrings have an exceptionally high torsional stiffness. The tooth profile is specifically shaped to allow the chain to glide in both directions and be picked up smoothly while shifting.

Models:


24 tooth:
- Type: AM / AZ
- Compatibility: SLX FC-M675, FC-M677 / Deore FC-M615 / FC-M625, FC-M627, can also be used for XT FC-M785
- Bolt Circle Diameter: 64 mm
- Manufacturer Part Number: Y-1NA24000

26 tooth:
- Type: AK
- Compatibility: SLX FC-M675 / Deore FC-M615, can also be used for XT FC-M785
- Bolt Circle Diameter: 64 mm
- Manufacturer Part Number: Y-1NA26000

28 tooth:
- Type: AJ
- Compatibility: SLX FC-M675 / Deore FC-M615, can also be used for XT FC-M785
- Bolt Circle Diameter: 64 mm
- Manufacturer Part Number: Y-1NA28000

38 tooth (x24):
- Type: AM
- Compatibility: SLX FC-M675, can also be used for XT FC-M785
- Bolt Circle Diameter: 104 mm
- Manufacturer Part Number: Y-1NA98020

38 tooth:
- Type: AK
- Compatibility: SLX FC-M675, can also be used for XT FC-M785
- Bolt Circle Diameter: 104 mm
- Manufacturer Part Number: Y-1NA98030

40 tooth:
- Type: AJ
- Compatibility: SLX FC-M675, can also be used for XT FC-M785
- Bolt Circle Diameter: 104 mm
- Manufacturer Part Number: Y-1NA98040

Note to Type Designation:


The type designations (with one or two letters) indicate that the chainrings can be combined with each other. Since the large rings have specially shaped teeth and shifting aids that make it easier for the chain to climb, full shifting performance is only guaranteed with matching small rings - and vice versa. A chainring of type XY should therefore only be ridden with a chainring of type XY. The same applies to all other types.

Contents:


- 1 x Shimano SLX FC-M675 chainring


Models:

in stock 2 to 7 days up to 10 days Out of stock inform me
  • black/24 tooth
    5.46€
  • black/26 tooth
    5.03€
  • black/28 tooth
    5.03€
  • black/38 tooth
    19.75€
  • black/38 tooth (x24)
    16.80€
  • black/40 tooth
    17.64€
