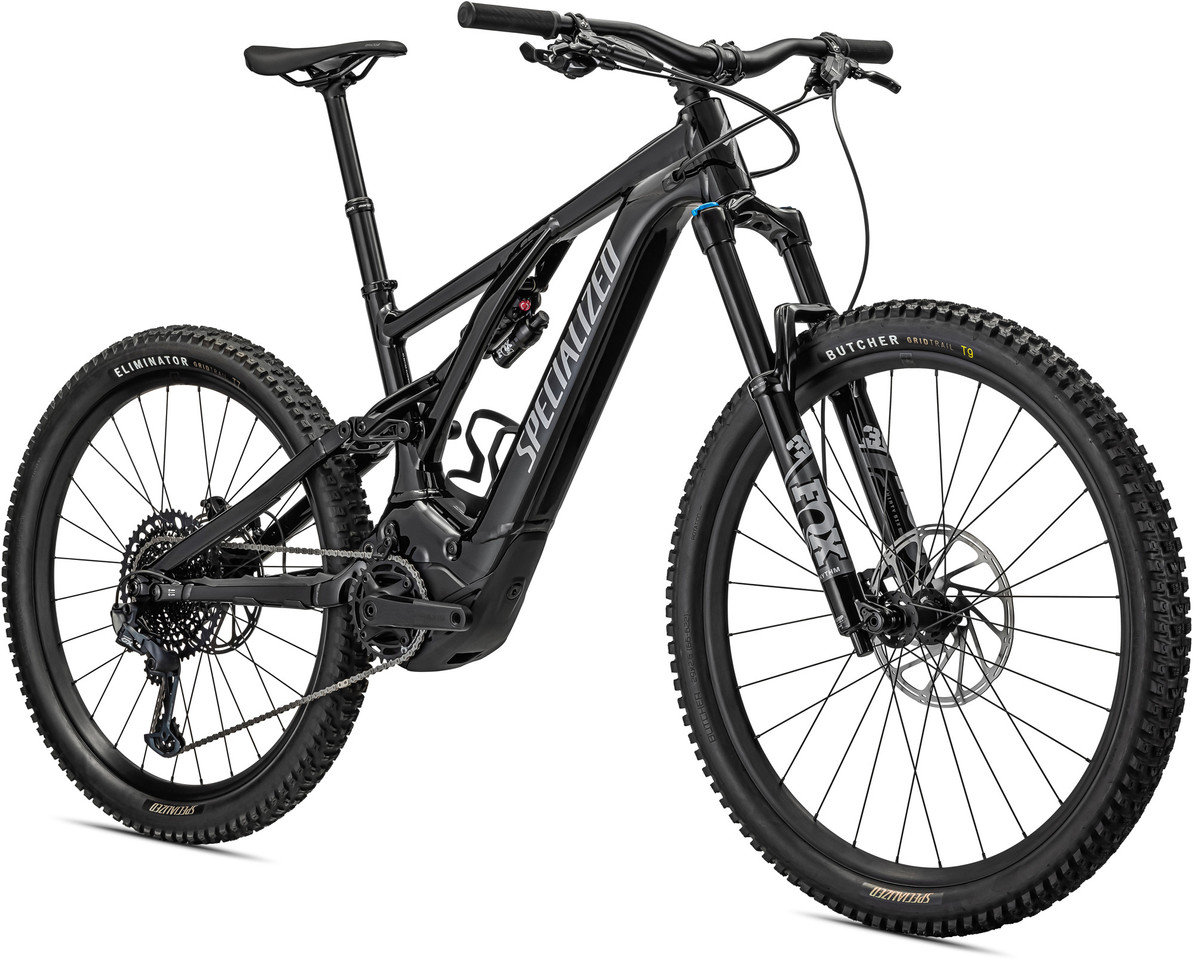

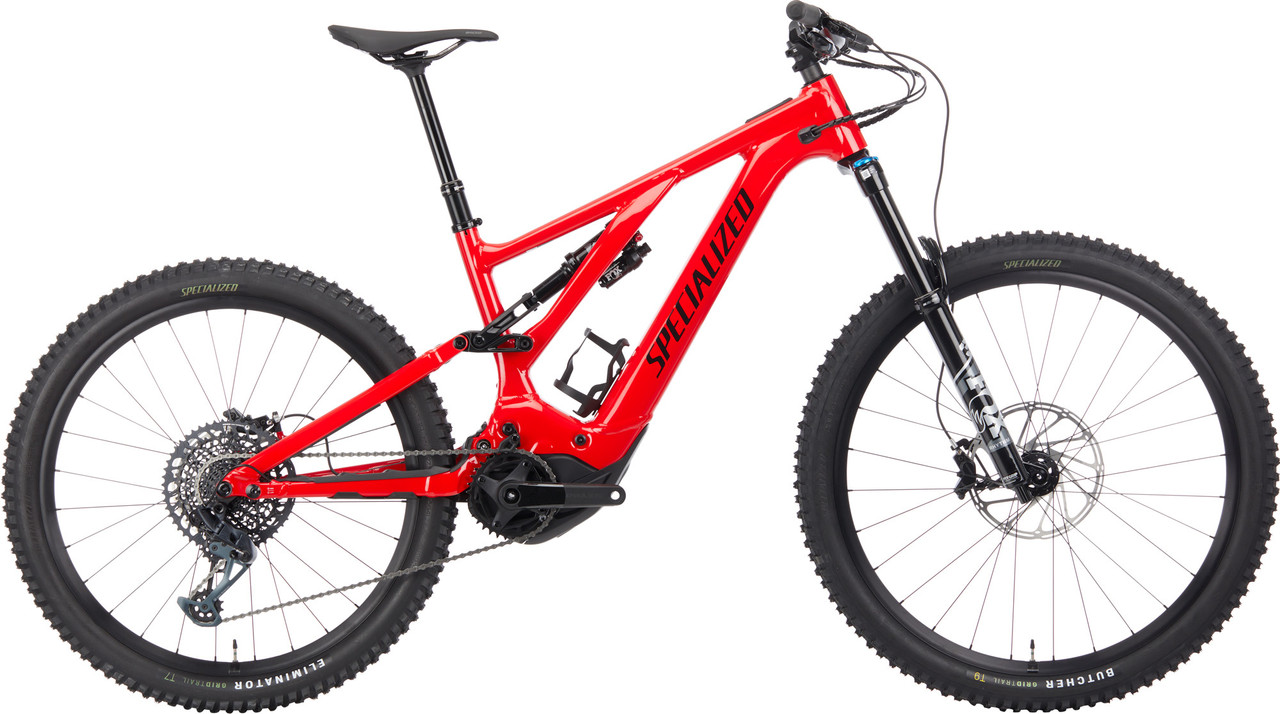

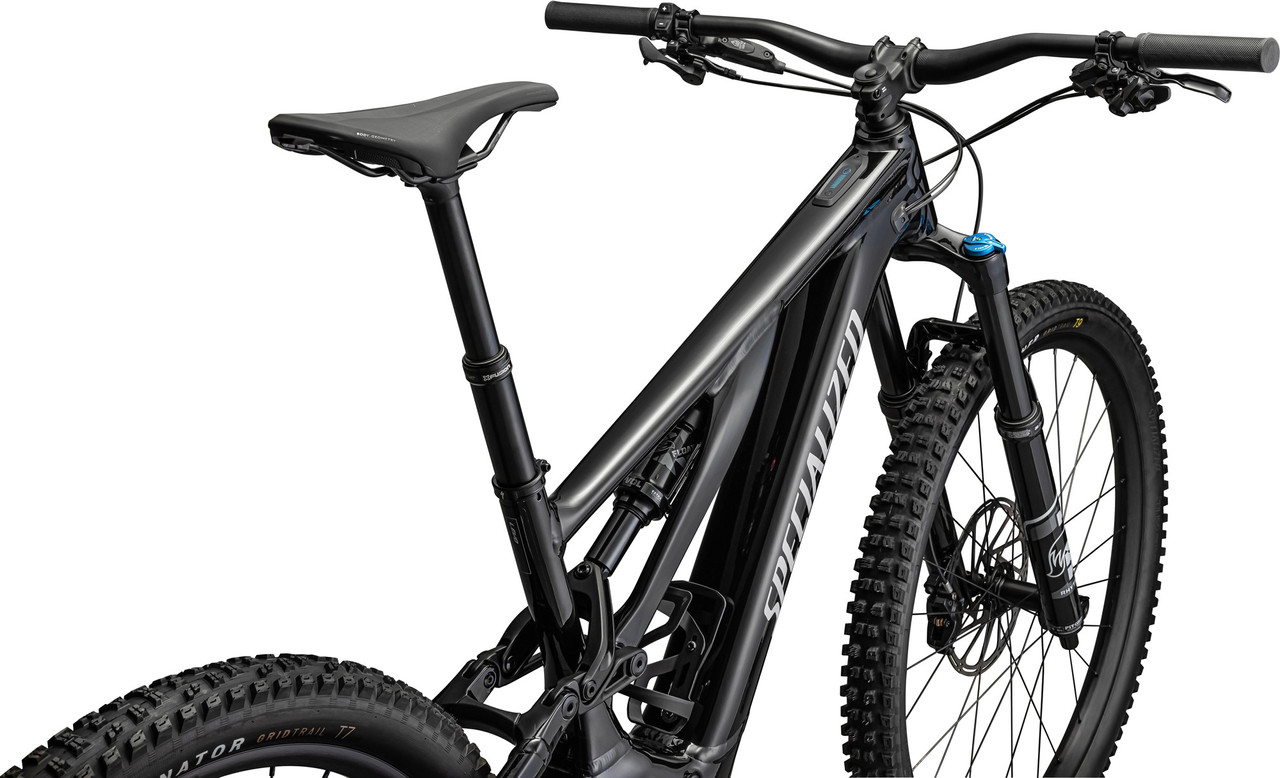

Specialized Turbo Levo Comp Alloy 29" / 27.5" E-Mountain Bike

The Turbo Levo Comp Alloy - Mullet E-mountain bike for more power on the trail

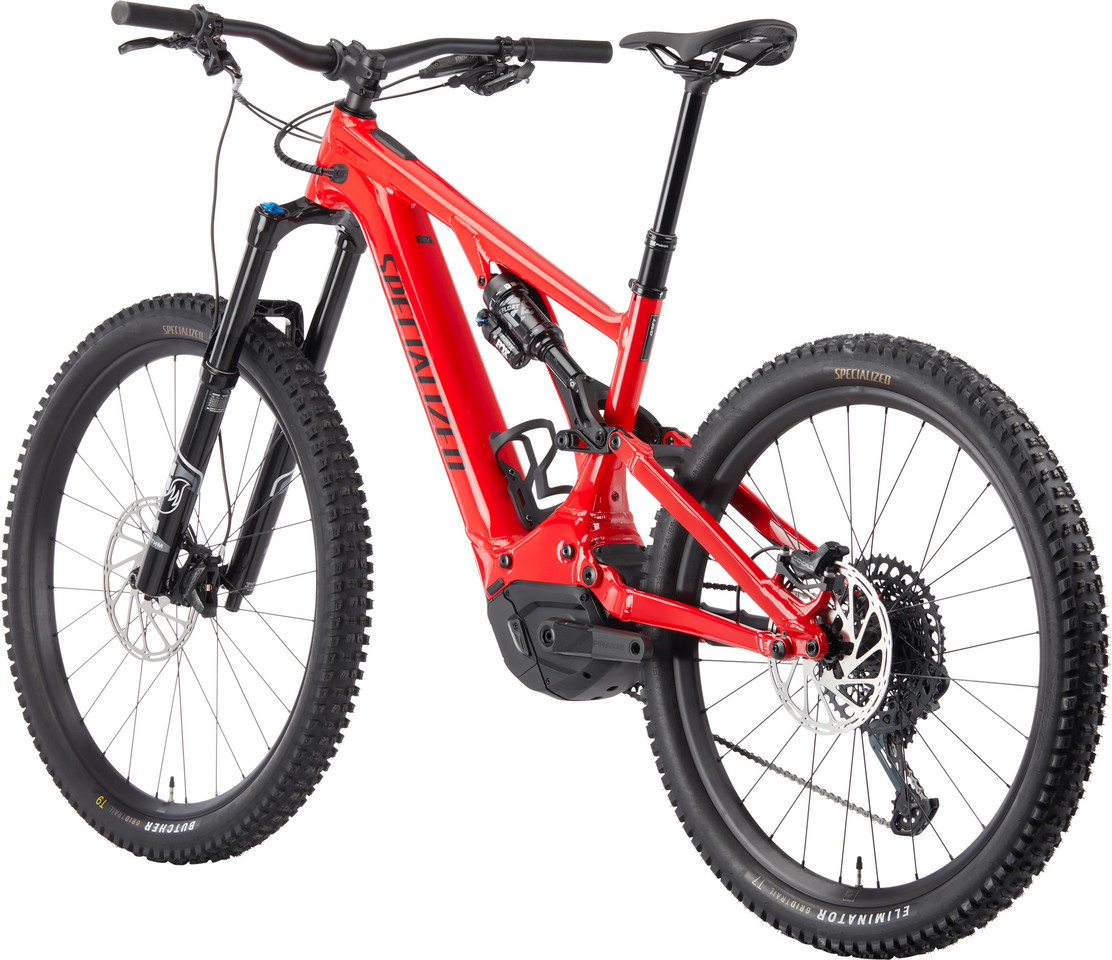

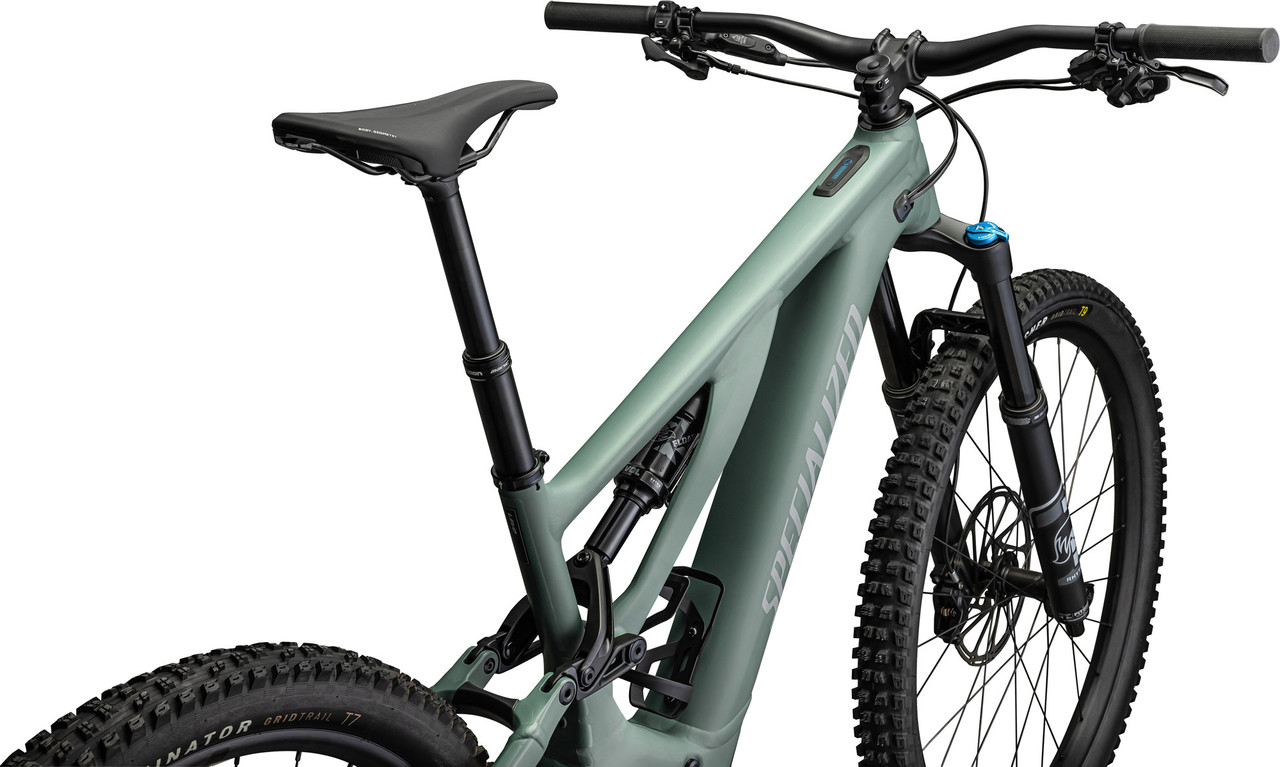

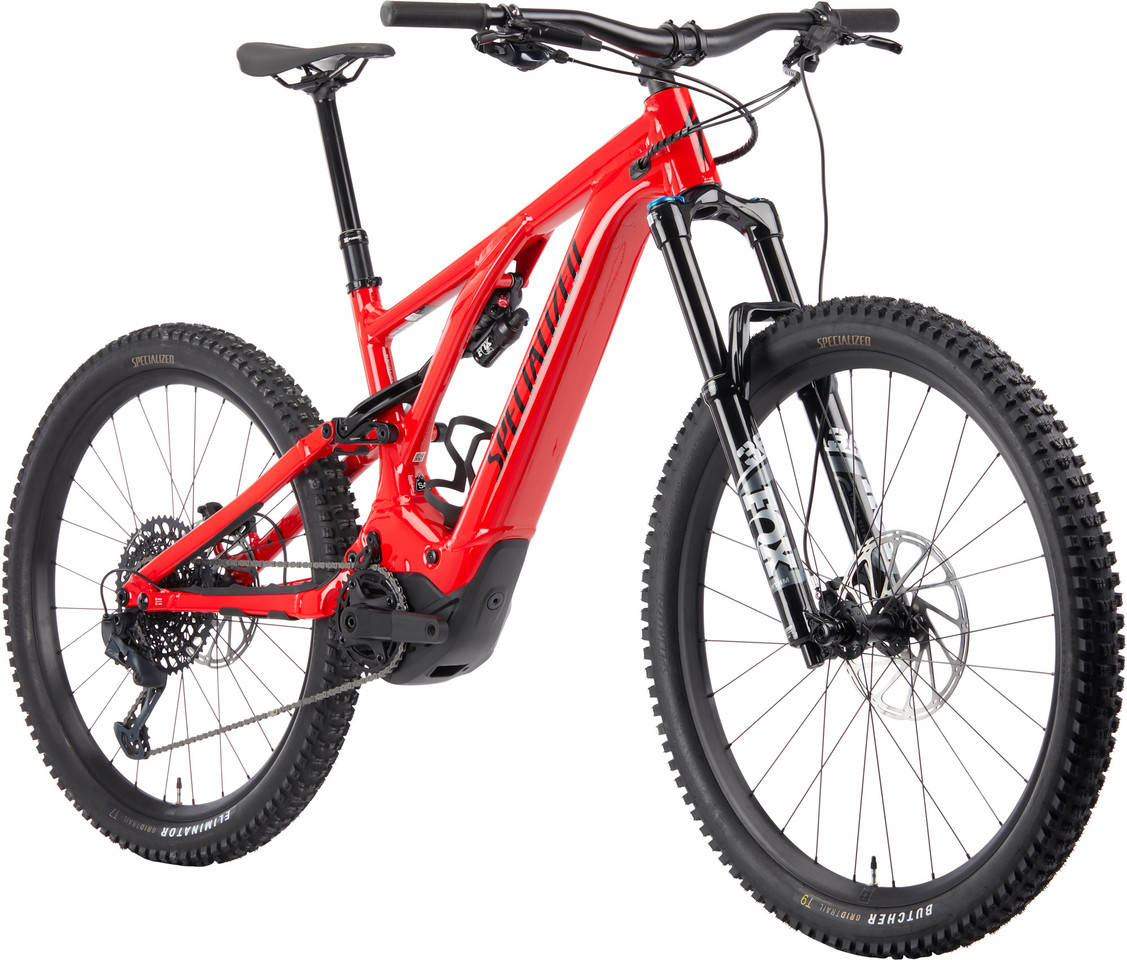

The Turbo Levo Comp from Specialized is an attractive trail pedelec with an aluminium frame and 150 mm suspension travel. It has SRAM GX Eagle 12-speed gears, suspension elements from Fox and SRAM Code R brakes. Its 565-watt motor and 700-Wh battery equip you with incredible power that increases your own strength fourfold and considerably expands your scope for mountain biking. A 29" wheel is used at the front, while a 27.5" wheel is found at the rear - a combination that ensures smooth rollover and excellent handling at the same time. In addition to the mullet set-up, the modern geometry and the FSR linkage design, a four-link design with Horst link in the chainstay, also deliver agility and efficiency. The bottom bracket height can be changed via Flip Chip and you can adjust the head tube angle via headset cups, so that the right setting can be found for every type of rider and every situation.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

Scaled Sizing

Front Travel:

160 mm

Rear Travel:

150 mm

Sizes:

S2, S3, S4, S5, S6

Front Triangle Material:

aluminium (M5)

Rear Triangle Material:

aluminium

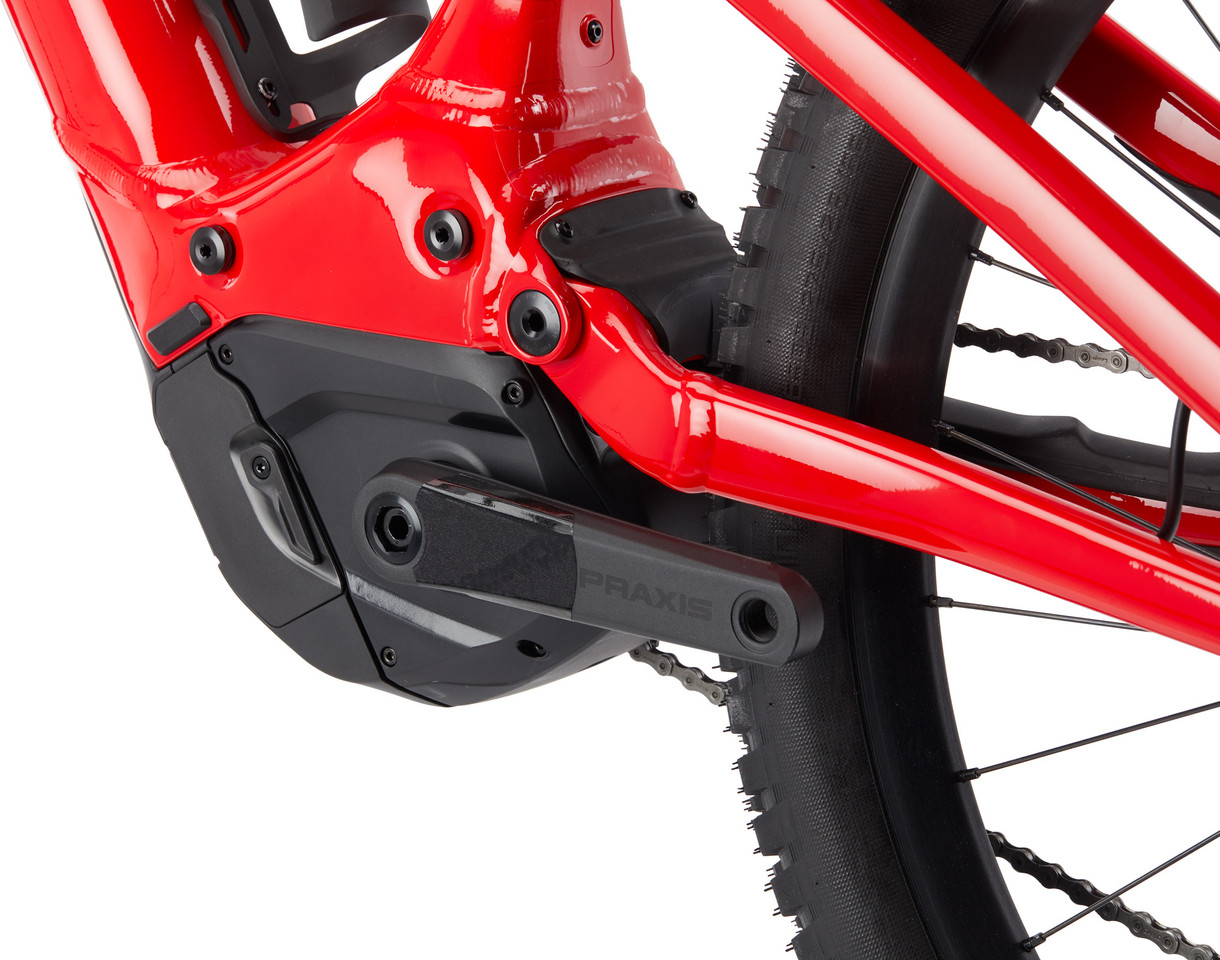

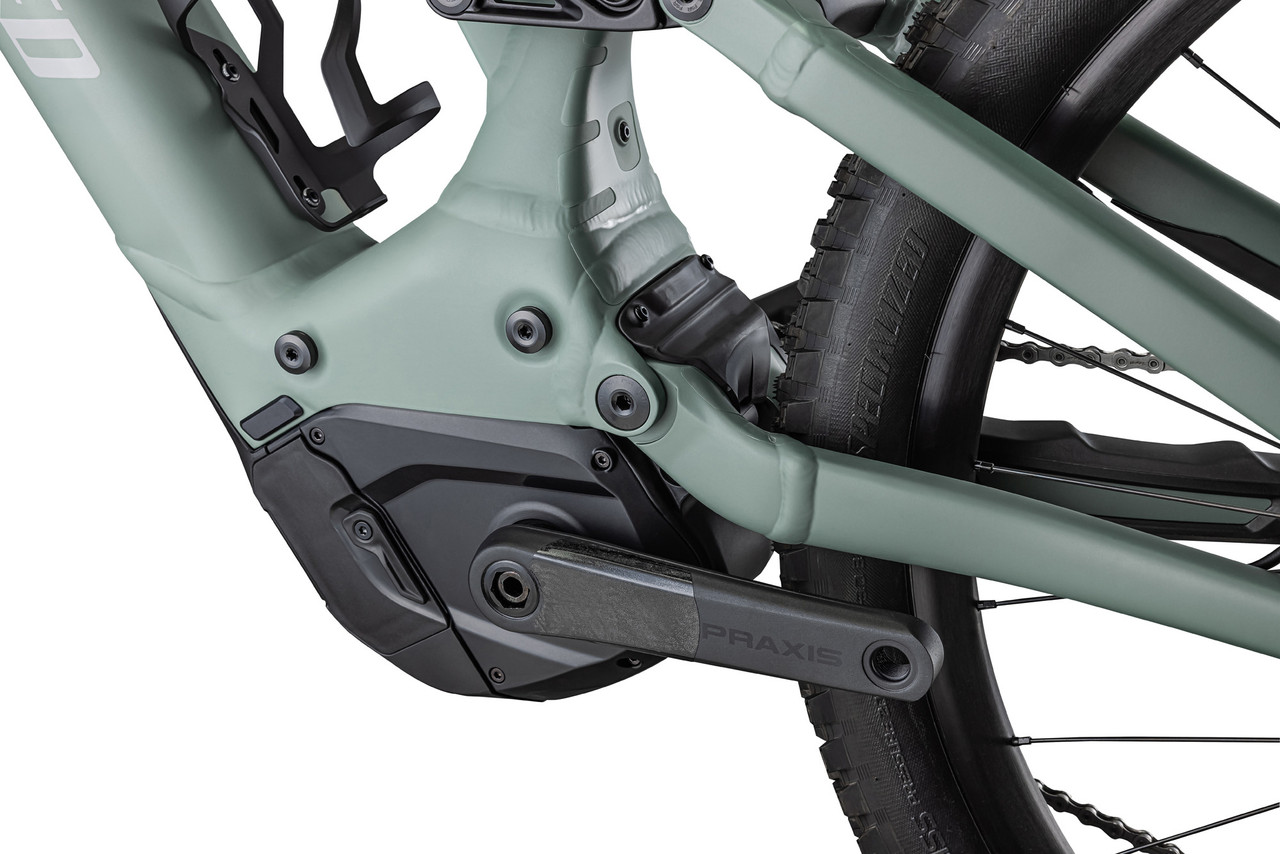

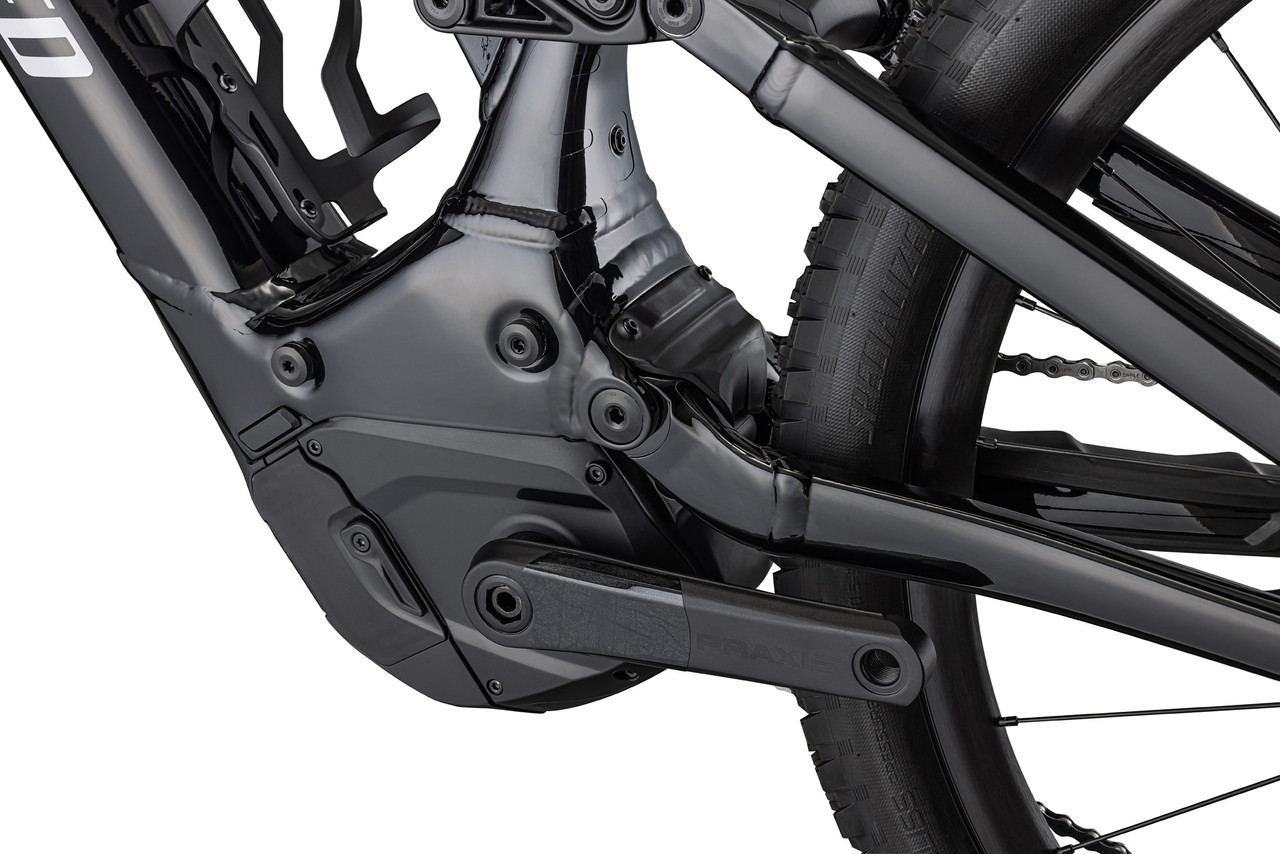

E-Motor:

Type:

mid-drive motor

Motor Type:

Specialized Turbo Full Power System 2.2, RX Trail Tune, 90 Nm

Pedal Assist (max.):

25 km/h

Power:

565 W

Battery Type:

Specialized M3-700, integrated, SBC-B22*

Capacity:

700 Wh

Display:

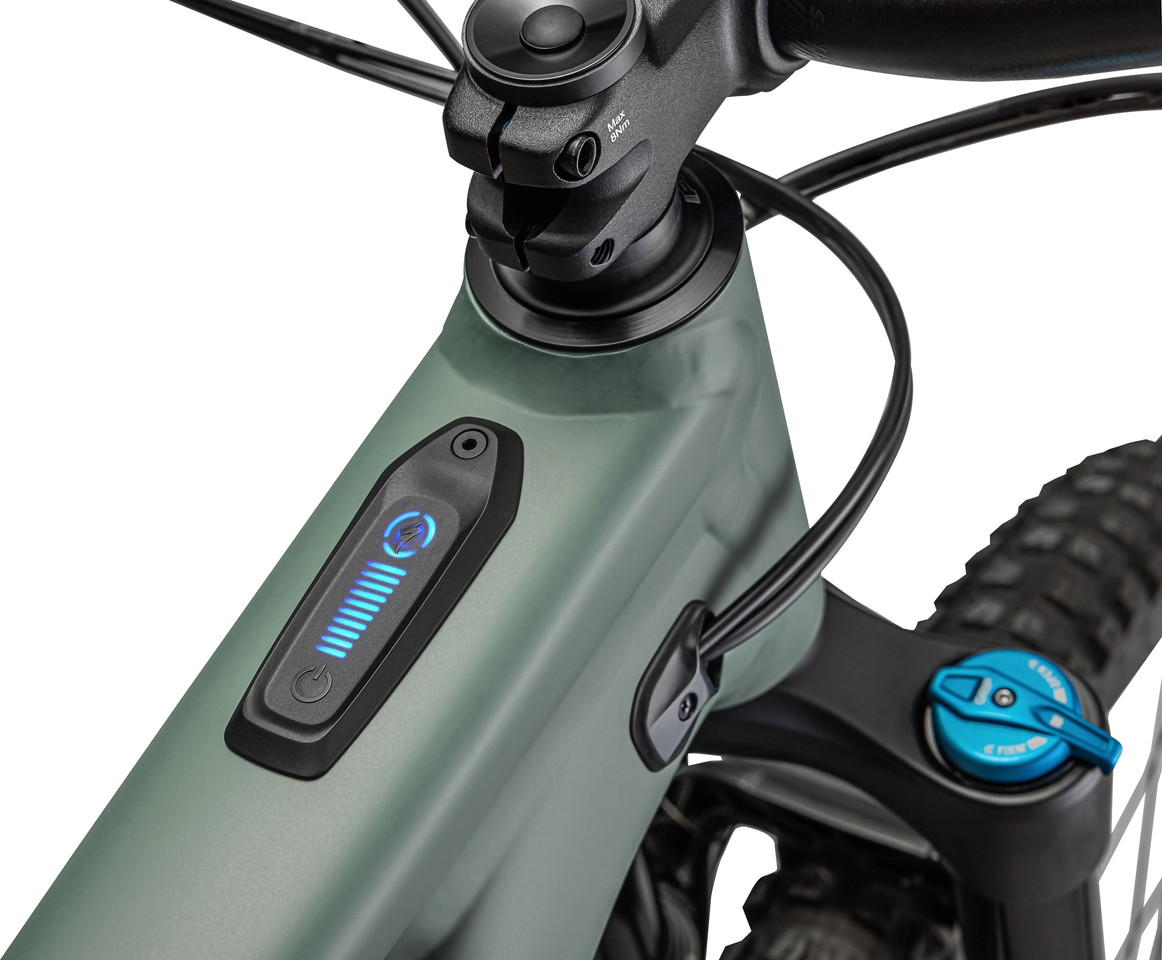

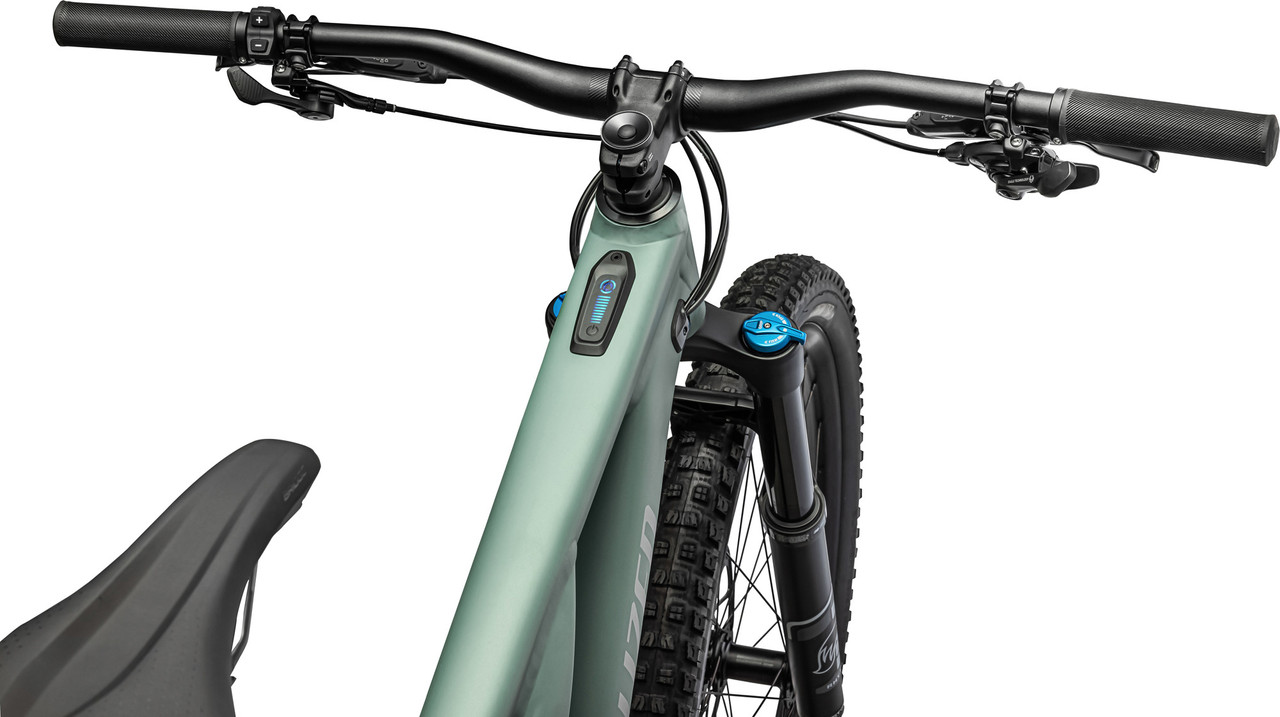

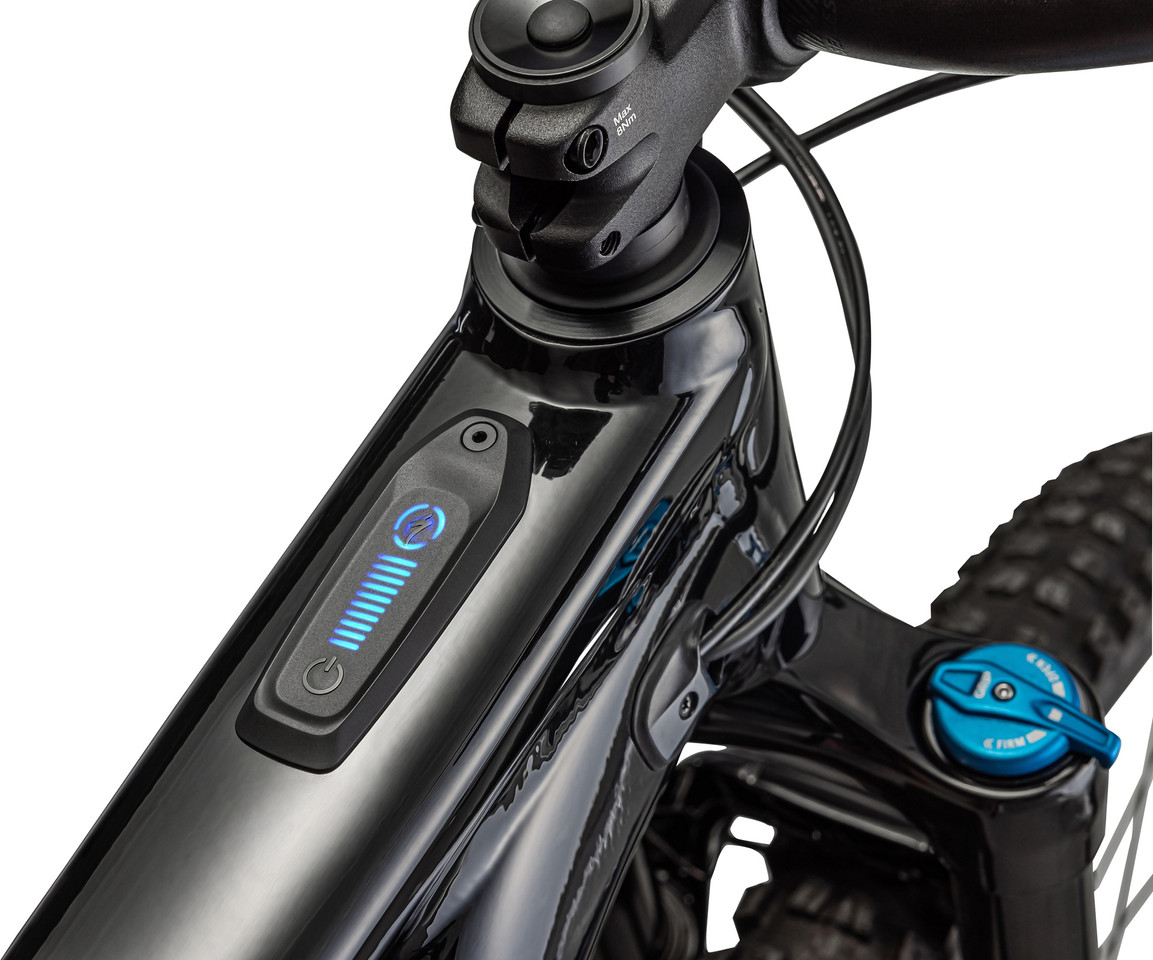

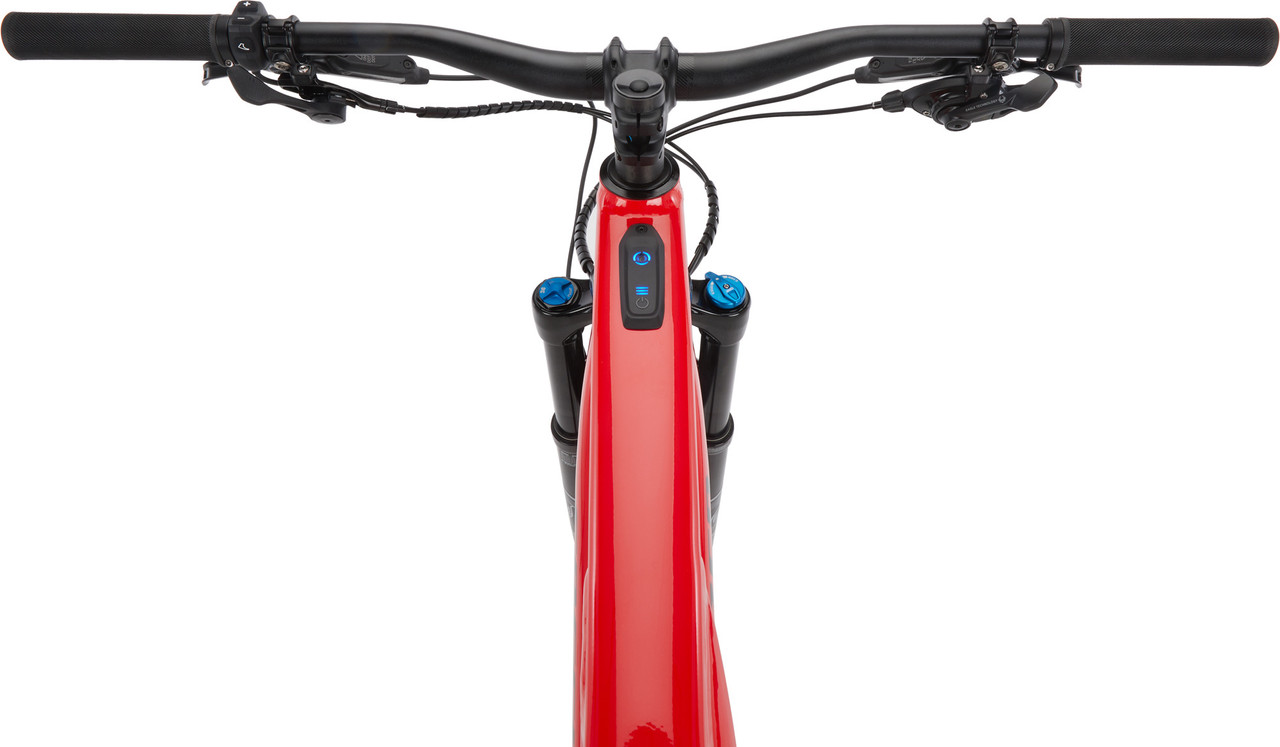

Specialized TCU, 10-LED battery status, 3-LED riding mode, ANT+ / Bluetooth, with handlebar remote

* The battery is located in the down tube and is charged directly there, which is why a bicycle parking space with an electrical socket is advantageous. Removal is possible, but requires tools or a workshop and possibly in-depth technical knowledge.

Components:

Frame:

Specialized Turbo Levo M5 Premium Alloy, internal cable routing, 12 x 148 mm Boost

Fork:

Fox Racing Shox Rhythm 36

Stem:

Specialized Alloy Trail, 35 mm handlebar clamp

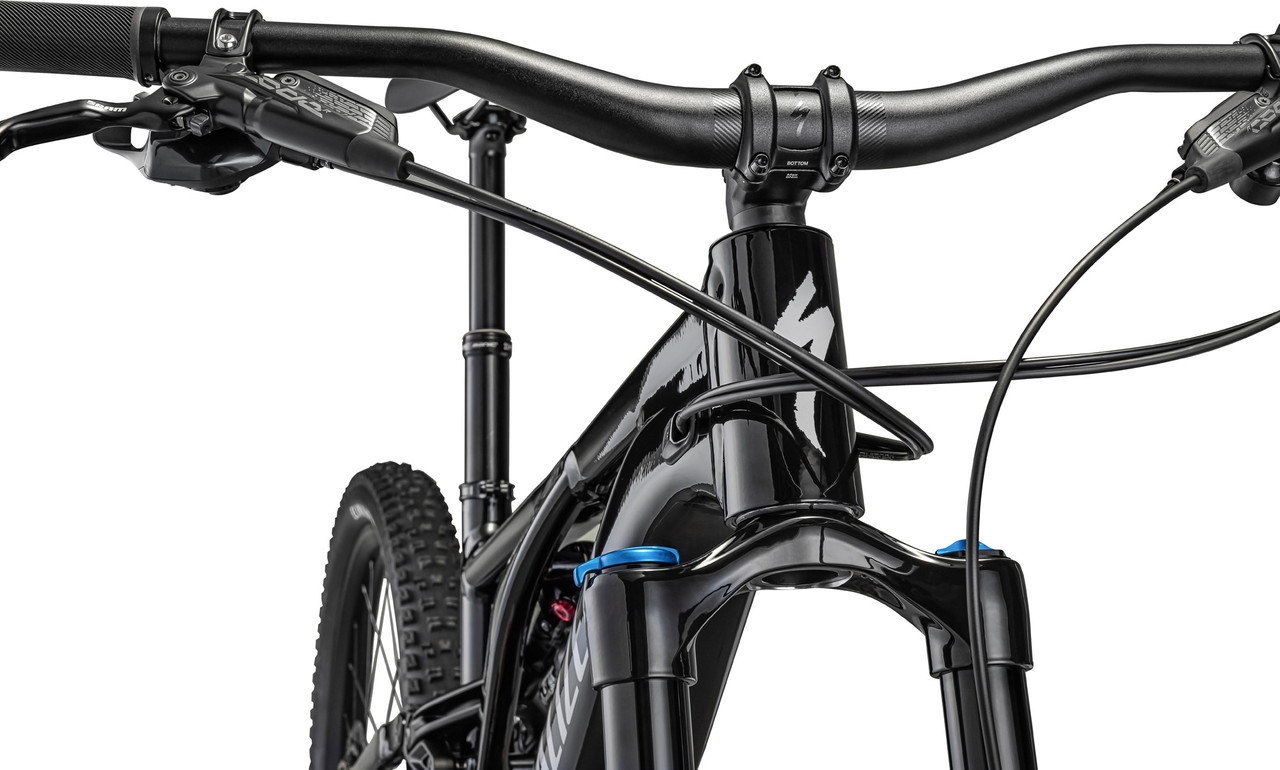

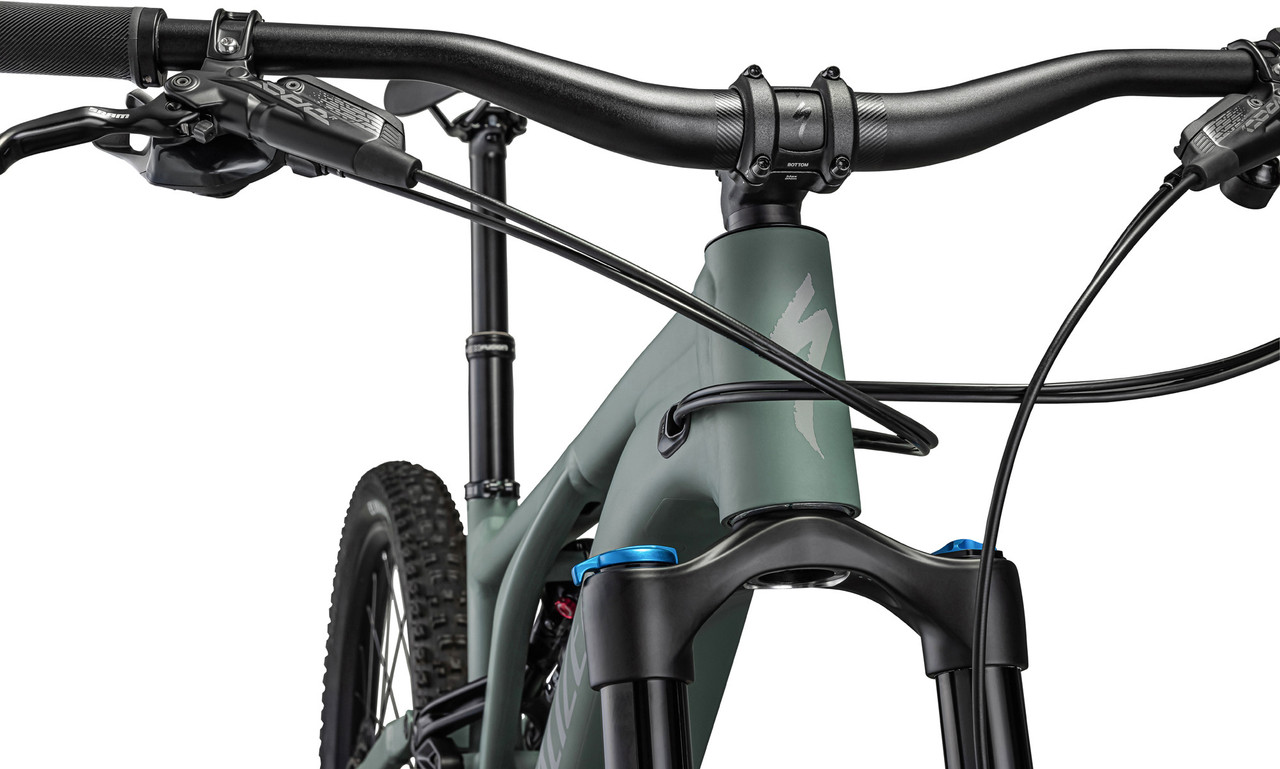

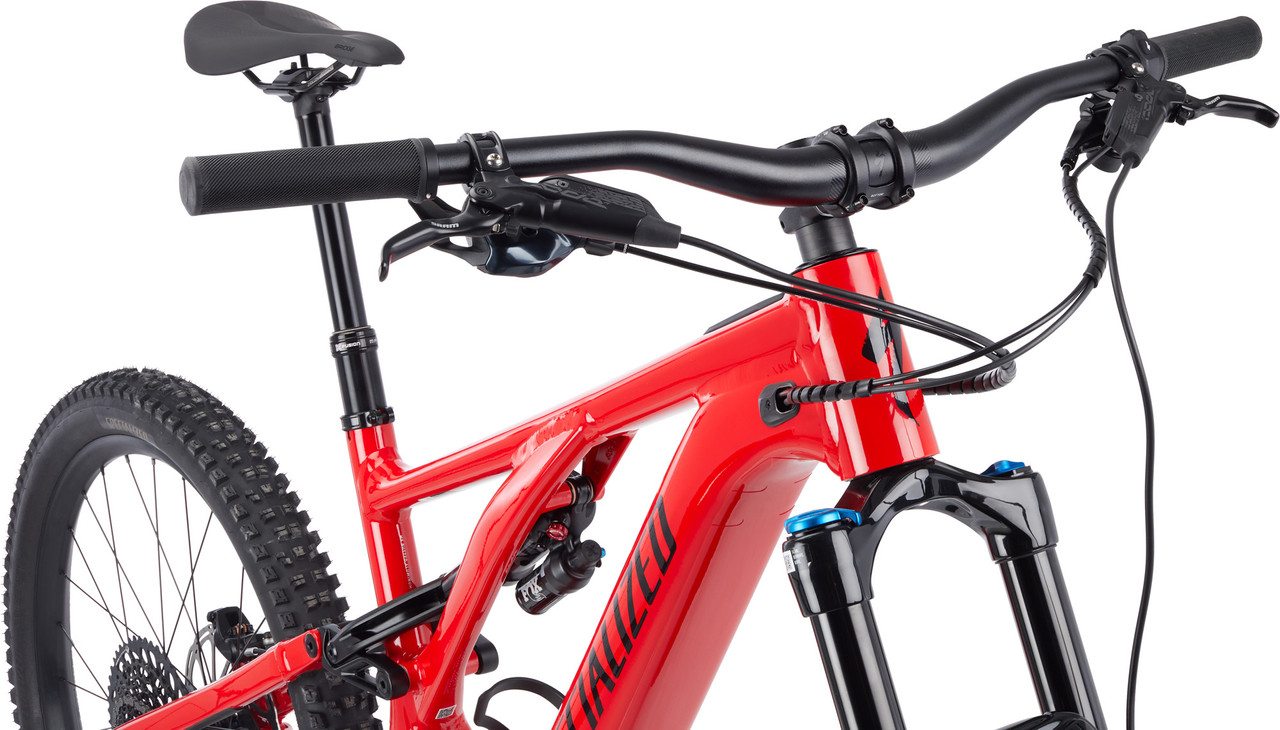

Handlebars:

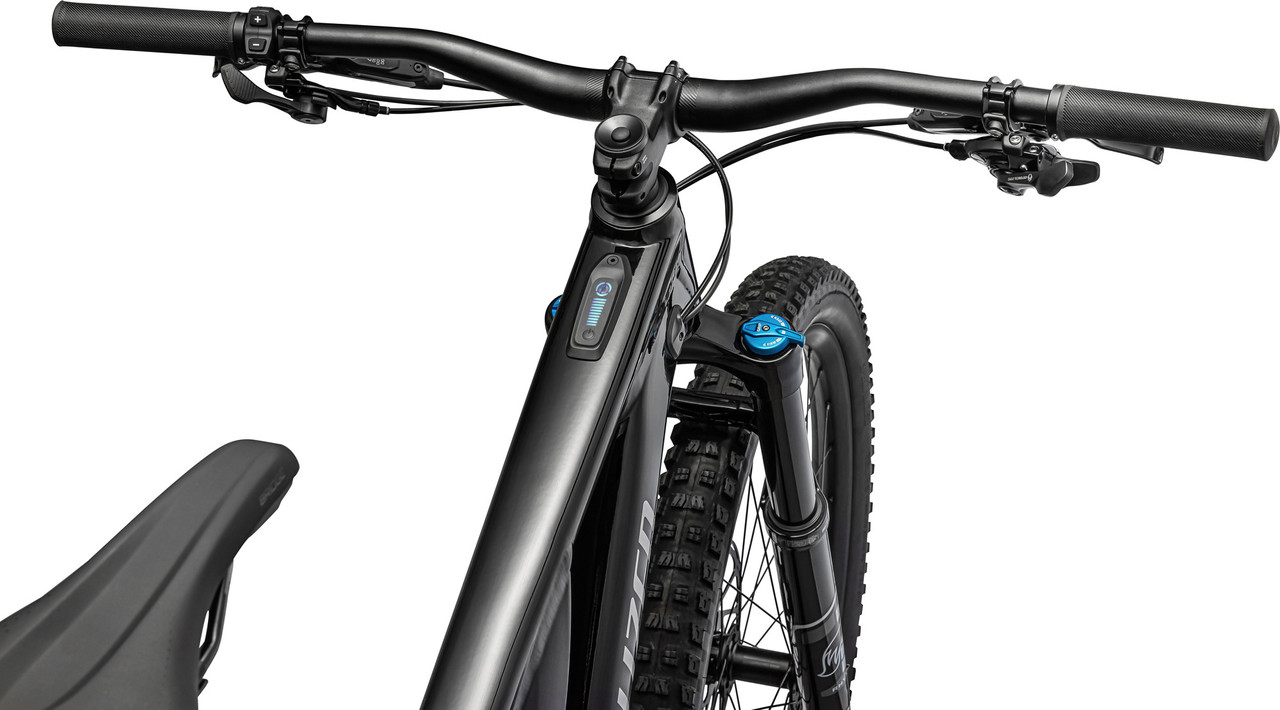

Specialized Alloy, 8° backsweep, 6° upsweep, 35 mm clamp

Grips:

Specialized Trail

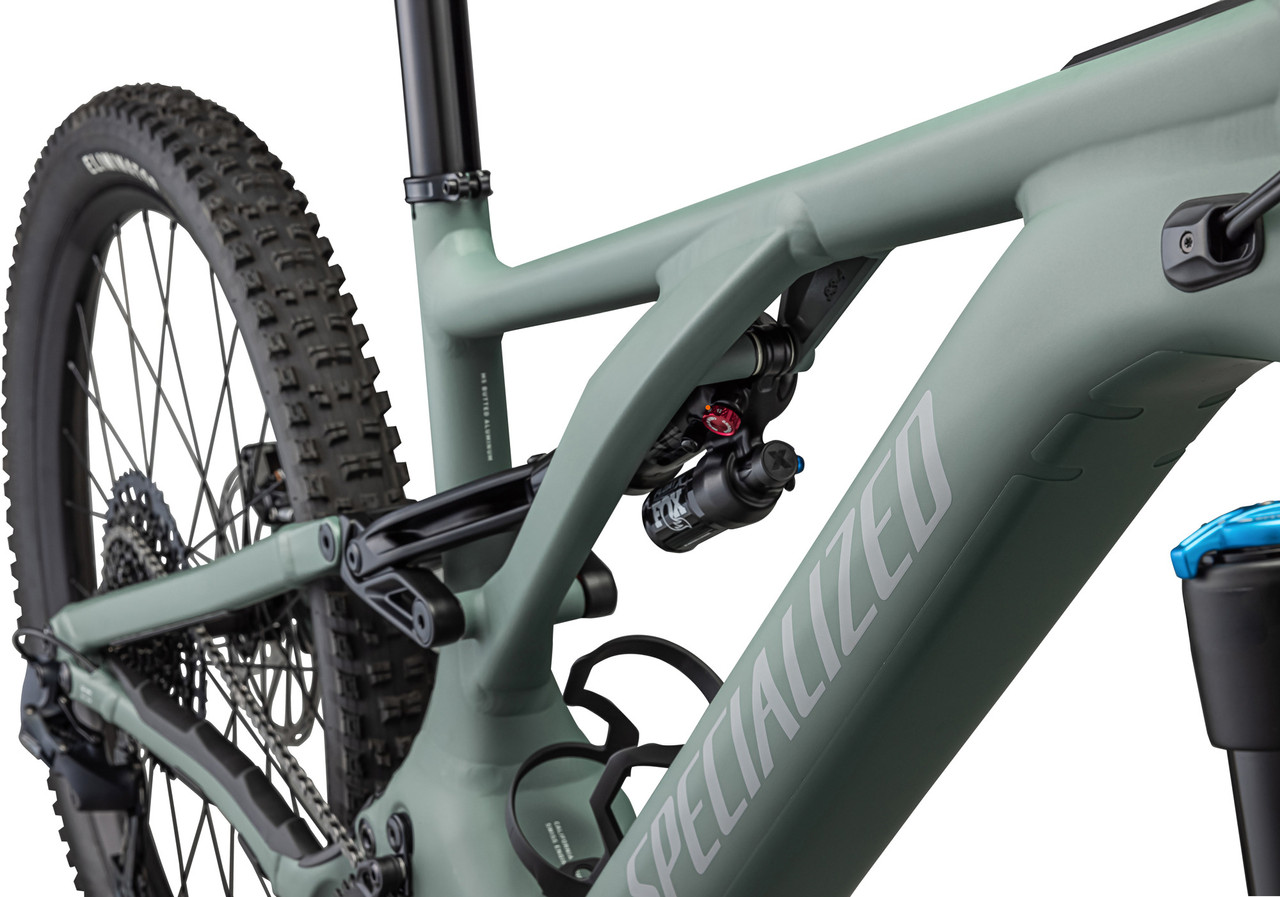

Rear Shock:

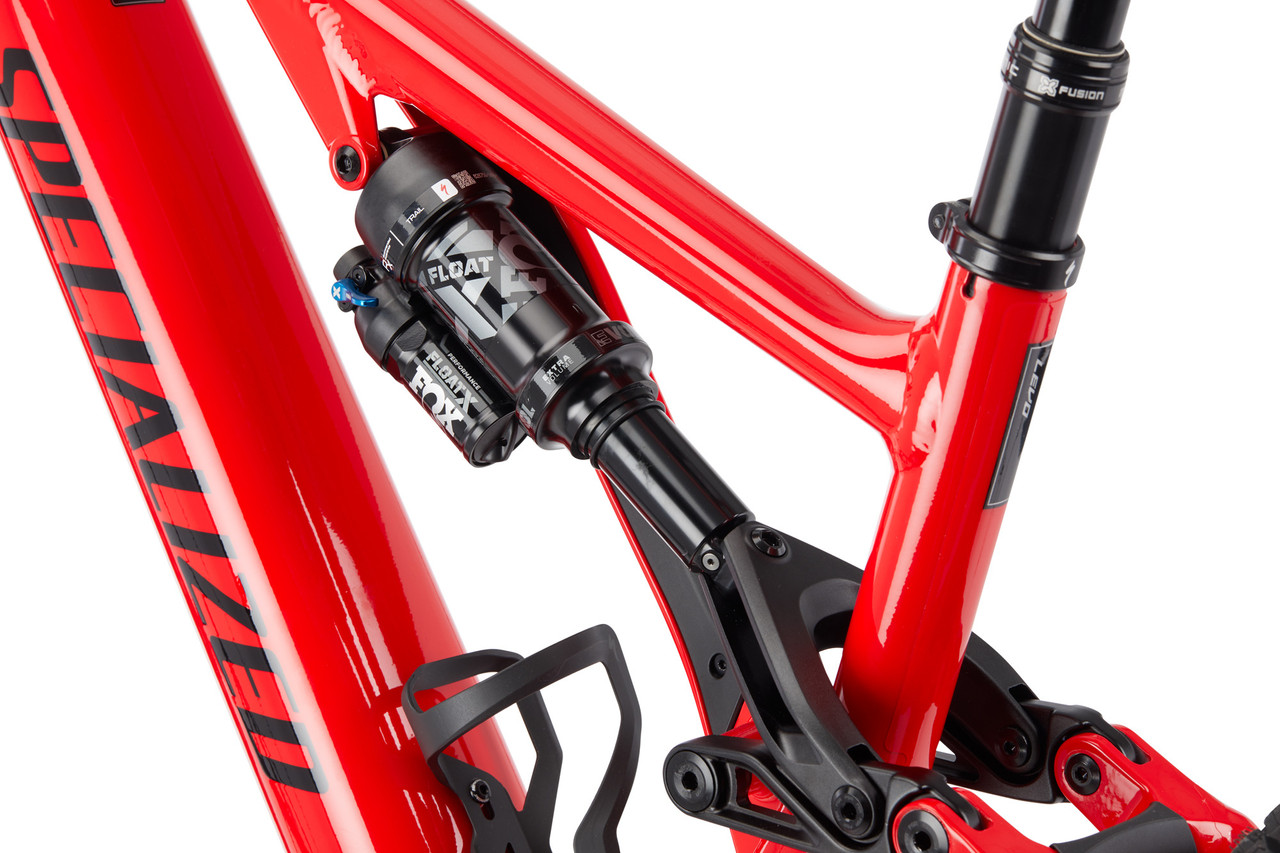

Fox Racing Shox Float X Performance, LSR, 2-position lever, 55 x 210 mm

Remote System:

none

Headset:

Specialized S182500005 (NO.42/ACB/S/F/N, 1 1/8" - 1.5" )

Seatpost:

X-Fusion Manic, infinitely adjustable, 2-bolt clamp, cable routing from below, Remote SLR LE lever, 34.9 mm, insertion depth min. 80 mm

Saddle:

Specialized Bridge Comp, hollow CrMo steel rails

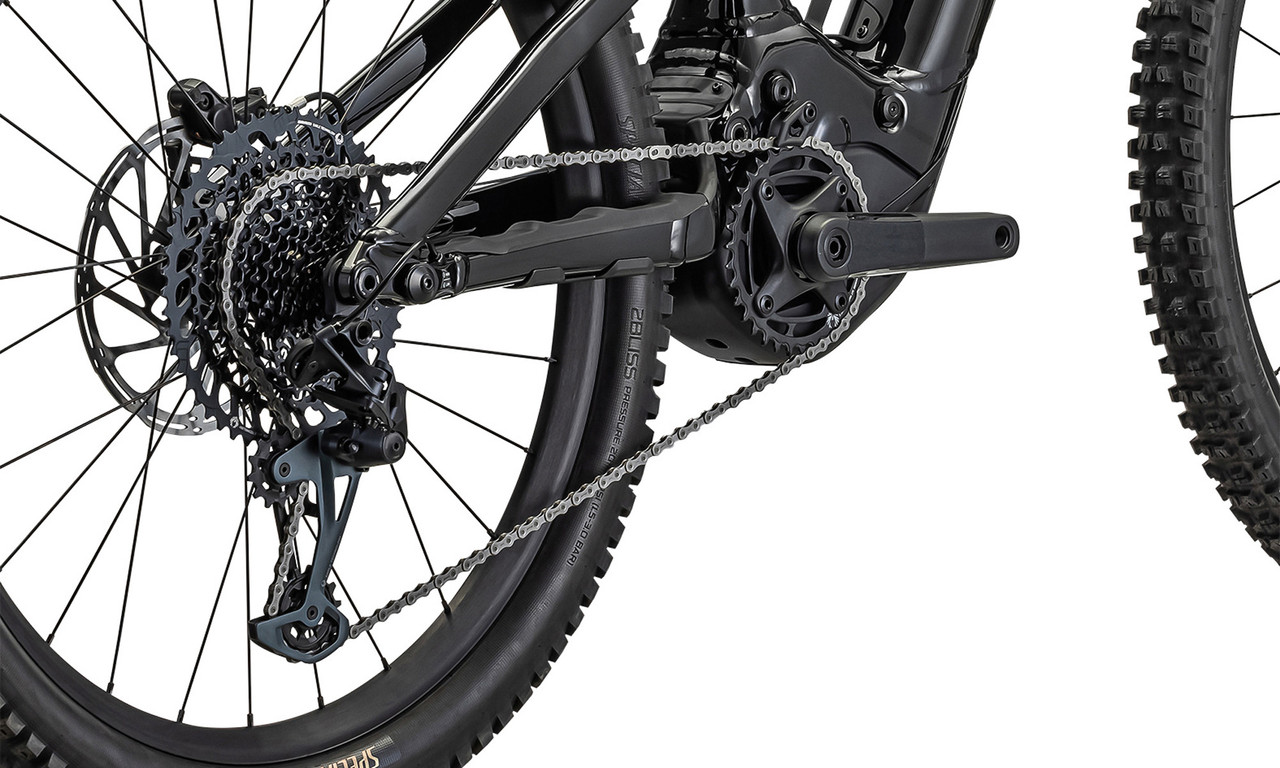

Crank:

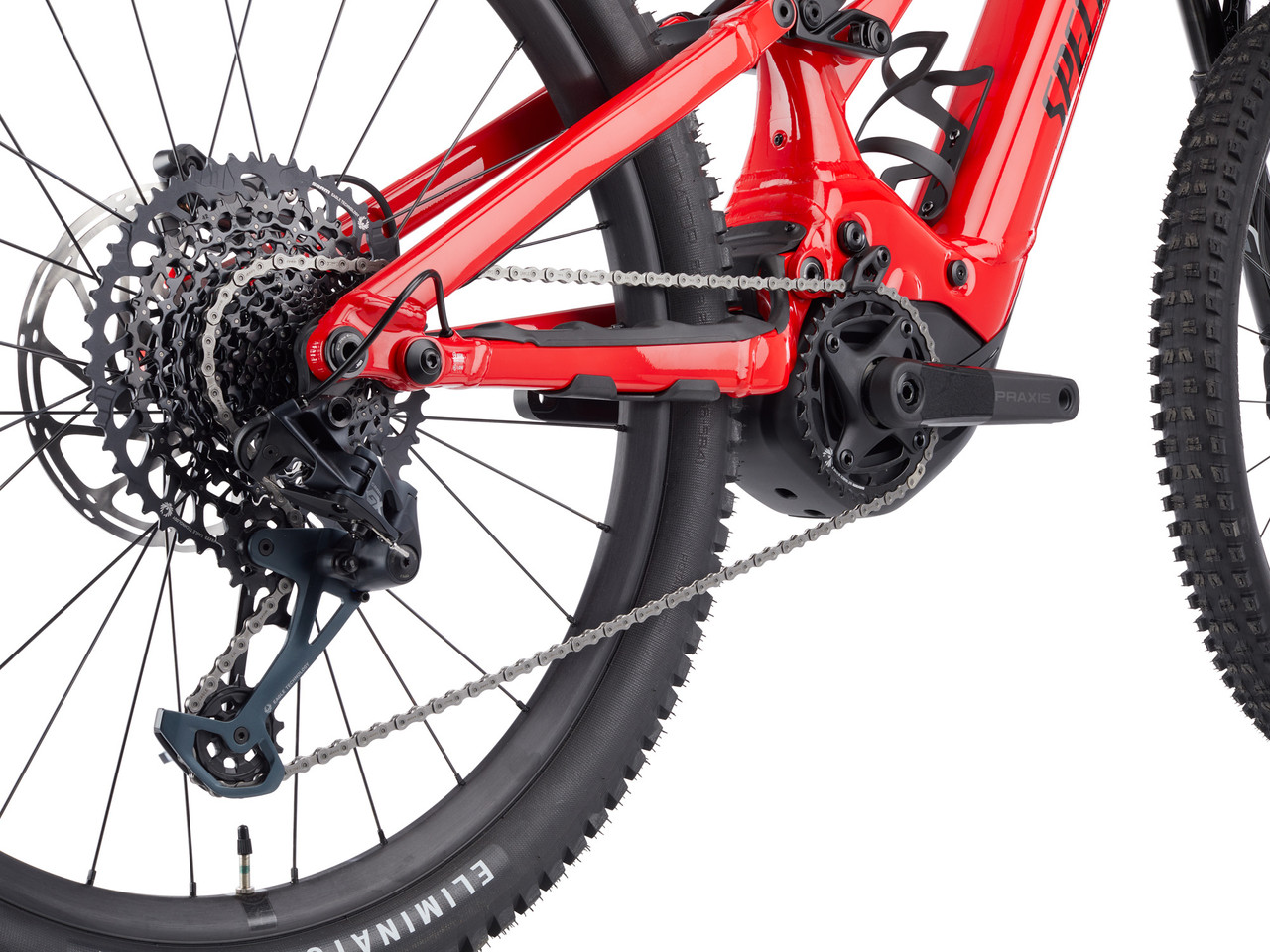

Praxis Works M30, forged, custom offset, SRAM X-Sync Eagle 32 T steel chainring, 104 BCD

Pedals:

none

Brakes:

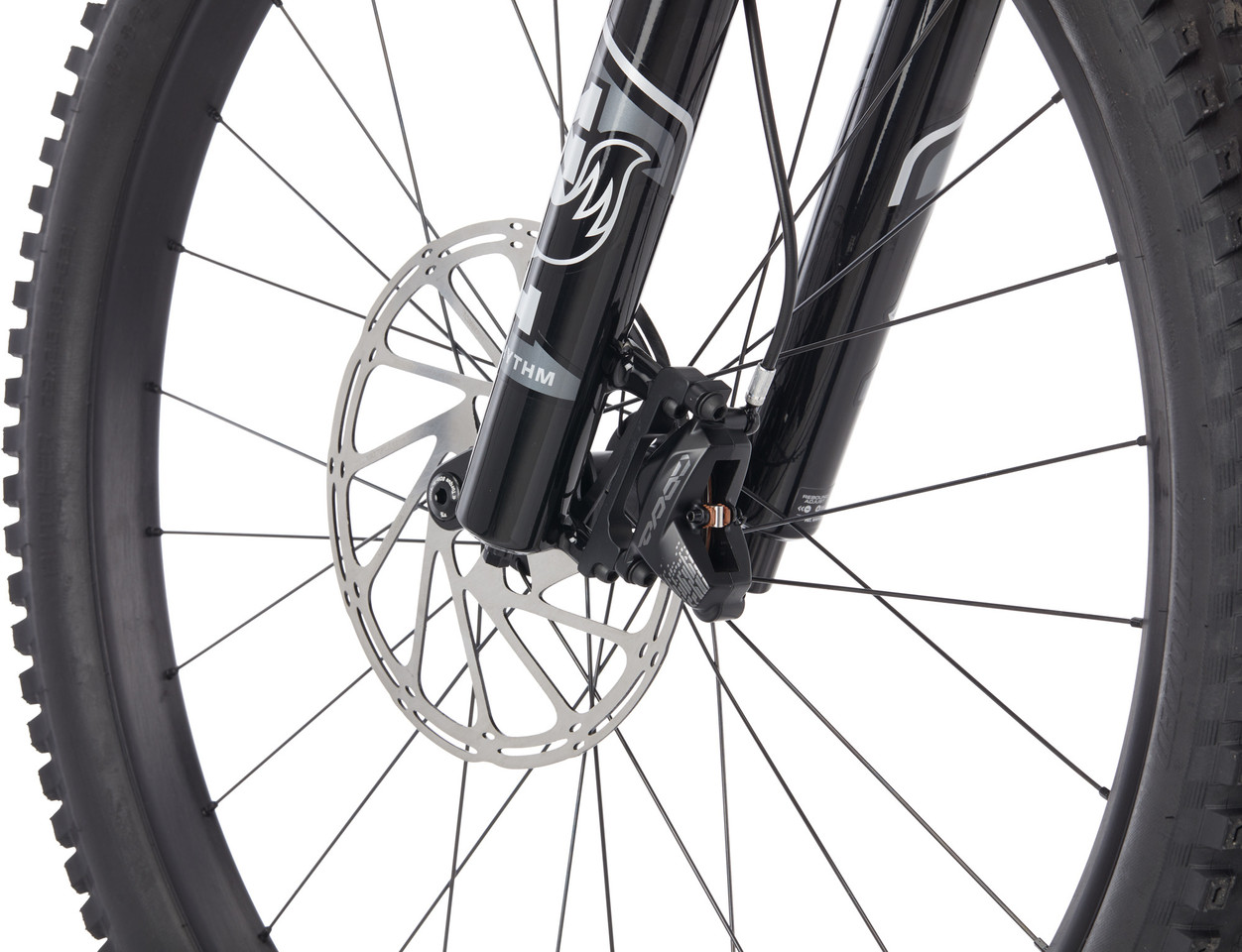

SRAM Code R, hydraulic disc brake, 4 pistons, 200 mm rear

Shift Lever:

SRAM GX Eagle, 12-speed

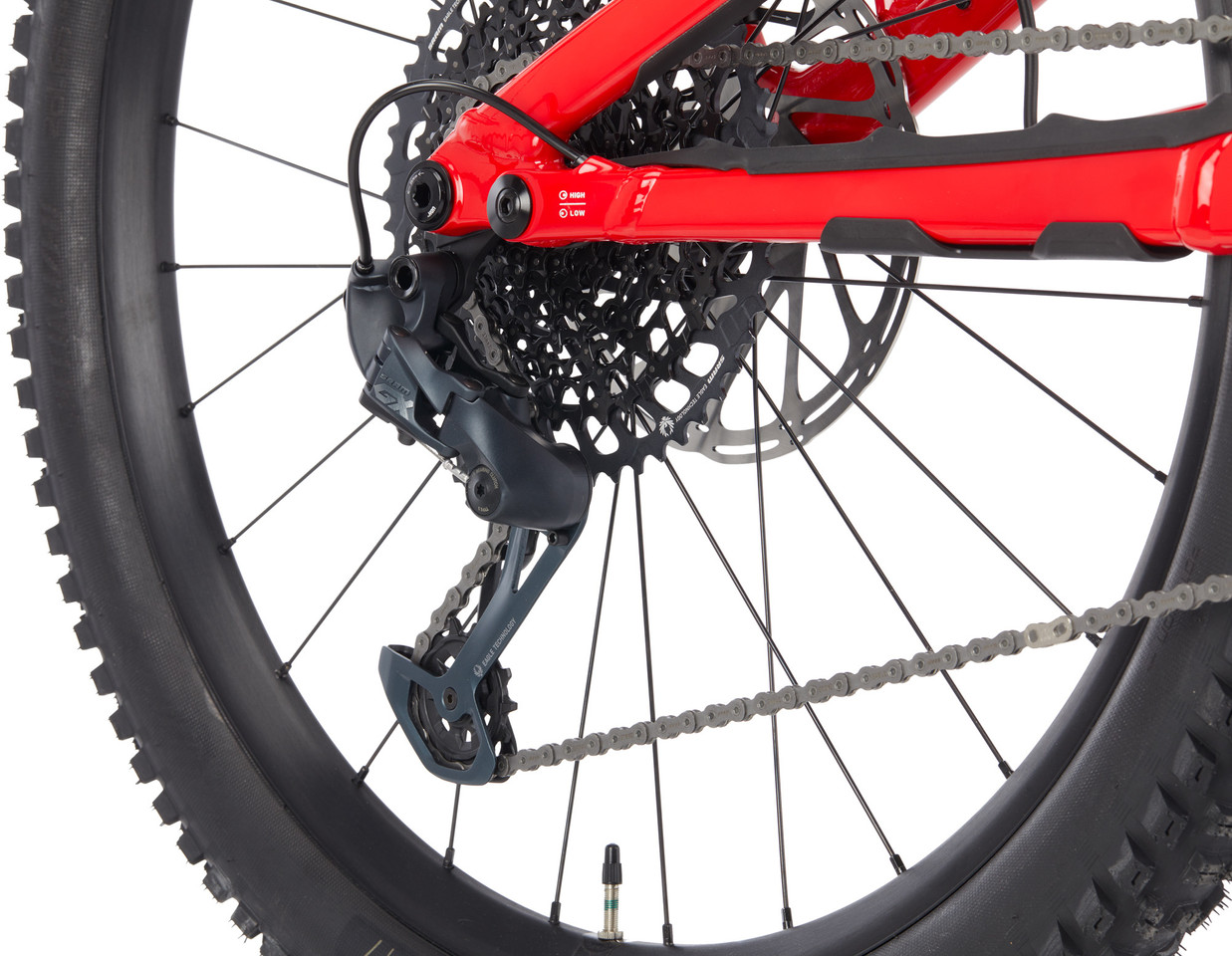

Rear Derailleur:

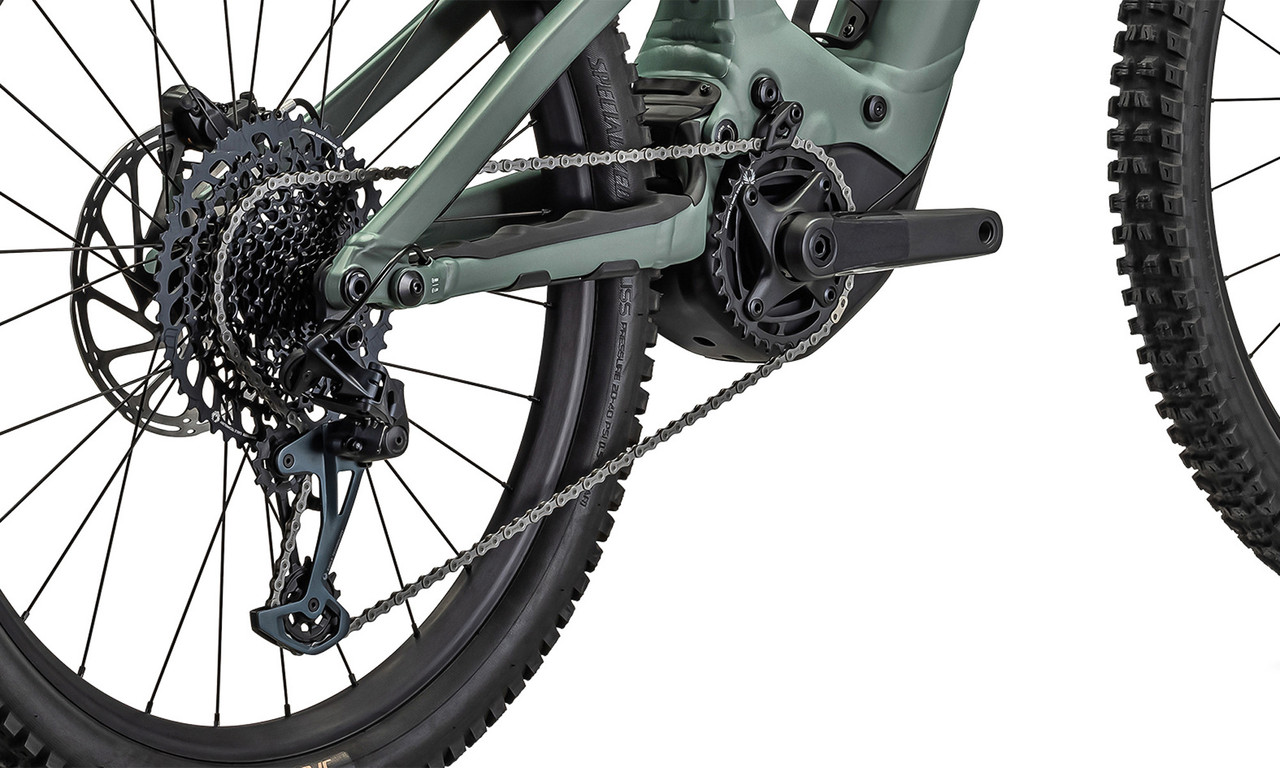

SRAM GX Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10-52 t

Chain:

SRAM NX Eagle, 12-speed

Rims:

Specialized 29 / 27.5, hookless, aluminium, 30 mm jaw width, Tubeless Ready

Spokes:

DT Swiss Industry

Front Hub:

Specialized, aluminium, sealed cartridge bearings, 15 x 110 mm thru-axle, 28 holes

Rear Hub:

Specialized, aluminium, sealed cartridge bearings, 12 x 148 mm thru-axle, 28 holes

Front Tyre:

Specialized Butcher, Grid Trail casing, GRIPTON® T9 rubber compound, 2Bliss Ready, 29 x 2.6"

Rear Tyre:

Specialized Eliminator, Grid Trail casing, GRIPTON-T7 rubber compound, 2Bliss Ready, 27.5 x 2.6"

Approved For:

Weight Limit:

136 kg (rider + gear)

Rotor Size (max.):

220 mm

Tyre Size (max.):

2.6"

Chainrings:

1x

Chainring Size (max.):

34 T

Features:

• boosts your own power 4-fold with up to 565 watts and 90 Nm
• agility through modern geometry, revised linkage design and mullet set-up
• head tube angle adjustable via headset cups: 63.5°, 64.5° or 65.5°
• bottom bracket height adjustable via Horst-Link flip chip: 350 or 344 mm

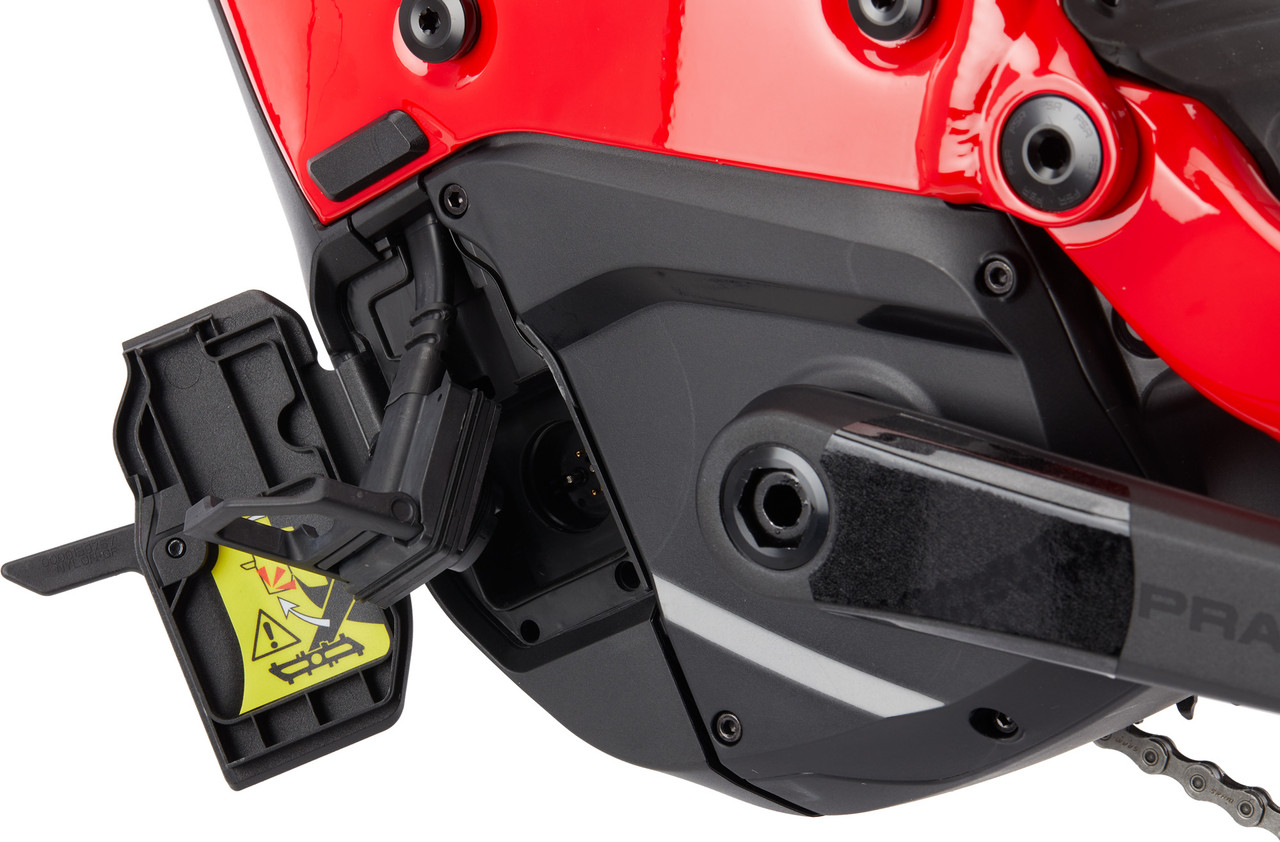

• 3-fold sealed charging socket
• completely revised motor cable
• regular software updates
• standard tubes with SV / Presta valves
• Specialized aluminium seat clamp, 38.6 mm
• Mission Control App available for download in the App Store or Google Play Store
• Turbo Control Display (TCD) bicycle computer for mounting on the stem is available as an optional accessory

Technology:

FSR

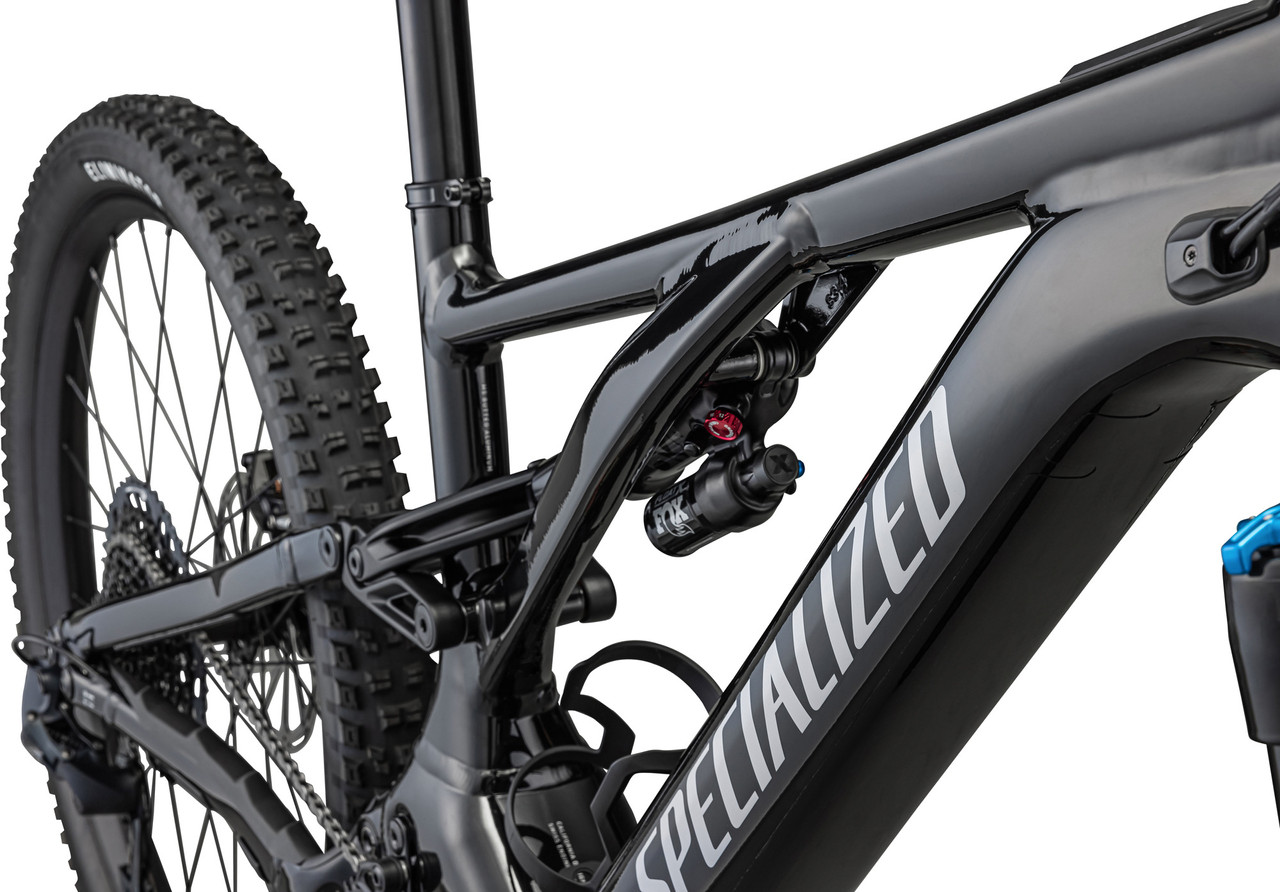

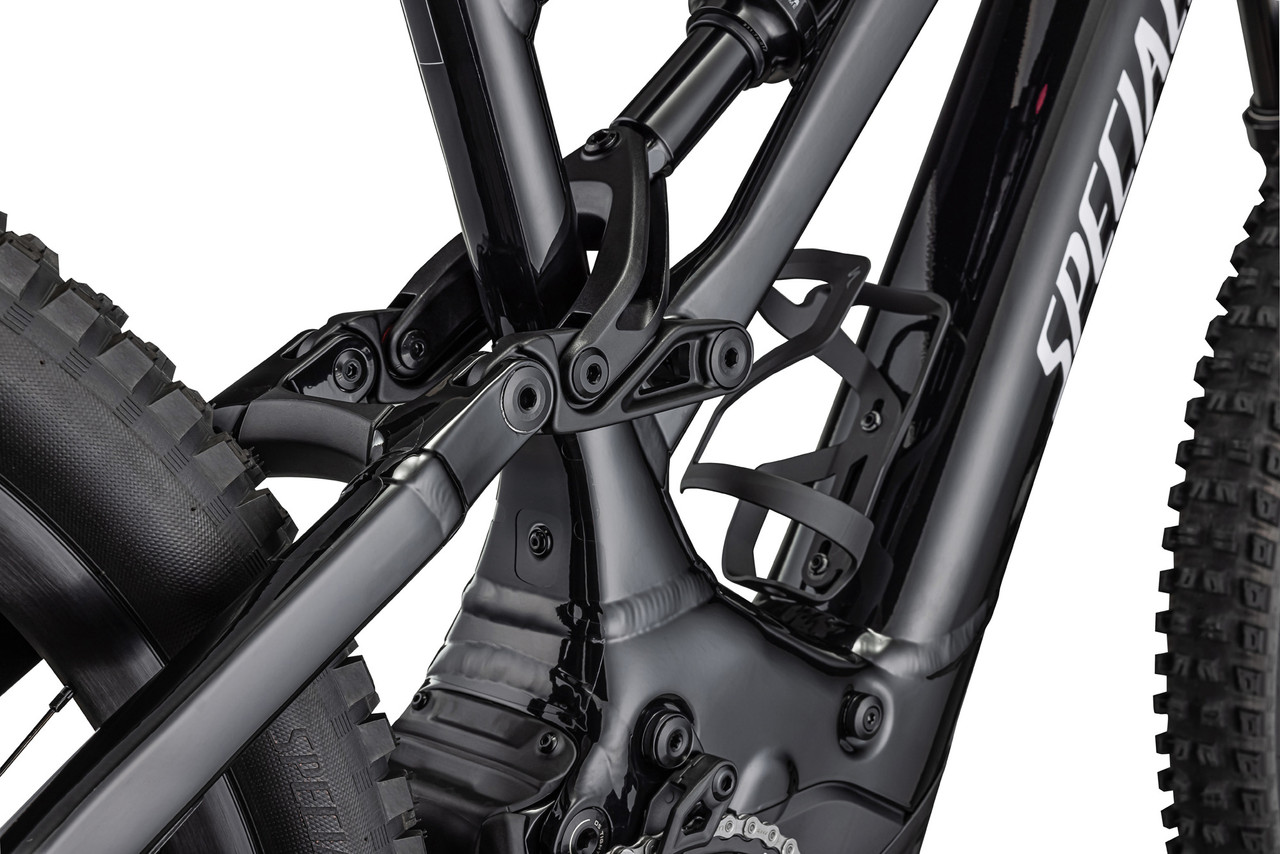

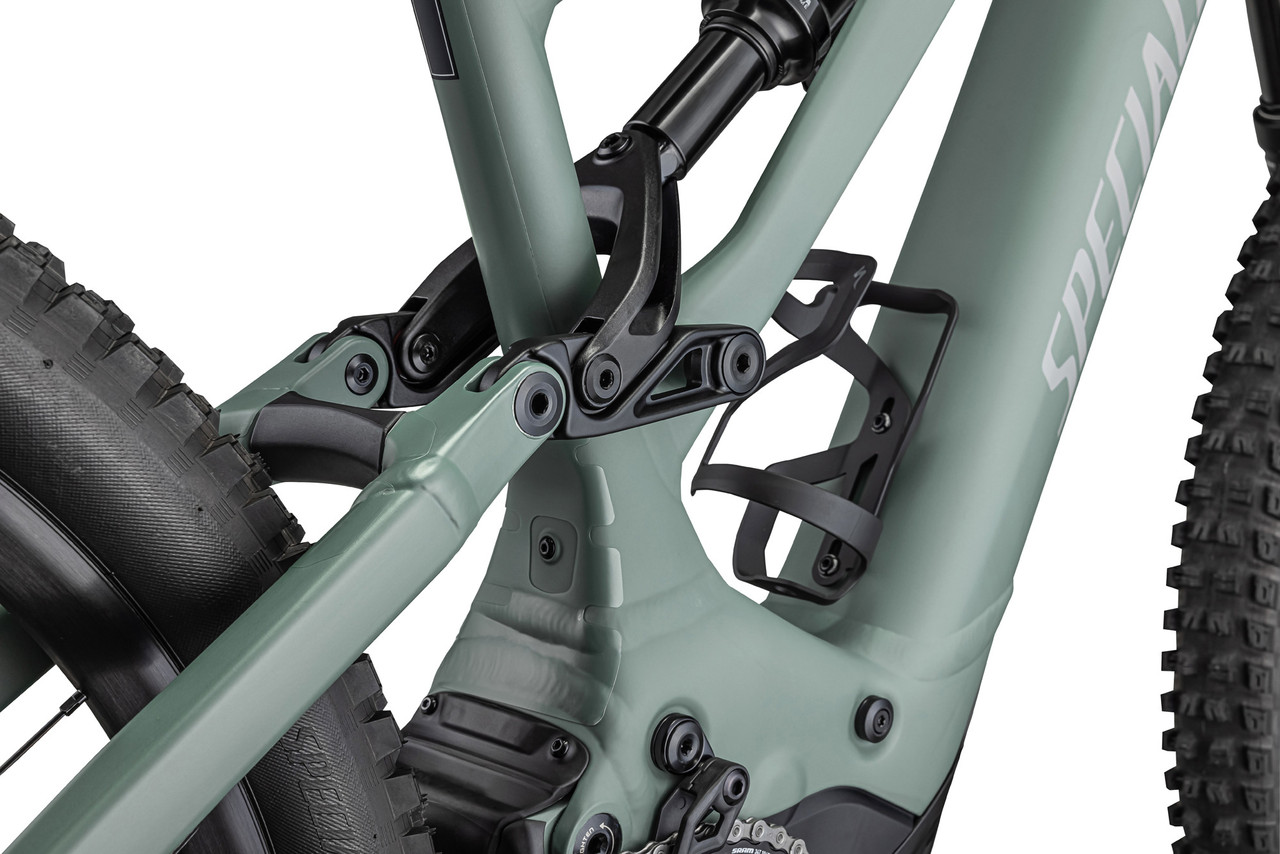

The Specialized FSR linkage design is based on a four-joint design with Horst Link in the chainstay, which separates the seat stay from the main pivot point of the rear triangle. This allows the pedal and brake force to be decoupled from the suspension, so that the compression and rebound are solely dependent on the nature of the terrain. This not only converts more energy into forward drive which is direct and without rocking, but also leads to more traction and thus more control. In addition, the FSR system can be fine-tuned to all the possible areas of applications and terrains.

S-Sizing
S-Sizing means a frame size classification that not only takes your inner leg length into account, but also your riding characteristics. Here Specialized employs Sidearm Design, an asymmetric shock mount that contributes to the stiffness and agility of the bike without increasing its weight. The Turbo Levo 3.0 shares geometry adjustability with the Stumpjumper EVO. The head tube angle can be altered via headset cups, and the bottom bracket can be raised or lowered via Horst Link flip chip, so there are practically six different geometries to choose from. This way you can ensure that the set-up fits exactly to your preferences as a rider, and also suits your riding style.

E-Bikes by Specialized
Specialized e-bikes are designed in California and developed with Swiss technology. They take the " It's you, only faster" approach, which means that you have the impression of riding a " normal" bike without motor assistance, but with at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Due to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well protected integrated in the down tube. An innovative Battery Management System (BMS) is used to maximise battery life and protect the cell structure. The bike communicates with the rider via the Turbo Connect Unit (TCU), which connects via Bluetooth and ANT+ to a Turbo Connect display, third-party devices and/or the Specialized Mission Control app. This offers additional options such as route planning, route recording or automatic capacity management.

Geometry:

(based on a fork axle to crown length of 567 mm, related to high nominal setting)
S2:

Frame Size:

S

Recommended Height:

157 - 173 cm

Stack:

617 mm

Reach:

432 mm

Seat Tube Length:

390 mm

Top Tube Length:

572 mm

Head Tube Length:

105 mm

Chainstay Length:

442 mm

Wheelbase:

1200 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

77.2°

Head Tube Angle:

64.5°

Standover Height:

776 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

160.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Saddle width:

155 mm

Seatpost adjustment travel:

125 mm

Seatpost Insertion Depth (max.):

220 mm

Front Rotor Size:

200 mm

S3:

Frame Size:

M

Recommended Height:

165 - 180 cm

Stack:

626 mm

Reach:

452 mm

Seat Tube Length:

405 mm

Top Tube Length:

600 mm

Head Tube Length:

115 mm

Chainstay Length:

442 mm

Wheelbase:

1225 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.7°

Head Tube Angle:

64.5°

Standover Height:

783 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

160.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Saddle width:

143 mm

Seatpost adjustment travel:

150 mm

Seatpost Insertion Depth (max.):

240 mm

Front Rotor Size:

200 mm

S4:

Frame Size:

L

Recommended Height:

173 - 188 cm

Stack:

635 mm

Reach:

477 mm

Seat Tube Length:

425 mm

Top Tube Length:

633 mm

Head Tube Length:

125 mm

Chainstay Length:

442 mm

Wheelbase:

1255 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.2°

Head Tube Angle:

64.5°

Standover Height:

787 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

160.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Saddle width:

143 mm

Seatpost adjustment travel:

175 mm

Seatpost Insertion Depth (max.):

255 mm

Front Rotor Size:

220 mm

S5:

Frame Size:

XL

Recommended Height:

178 - 193 cm

Stack:

644 mm

Reach:

502 mm

Seat Tube Length:

445 mm

Top Tube Length:

661 mm

Head Tube Length:

135 mm

Chainstay Length:

442 mm

Wheelbase:

1284 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.2°

Head Tube Angle:

64.5°

Standover Height:

788 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

160.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Saddle width:

143 mm

Seatpost adjustment travel:

175 mm

Seatpost Insertion Depth (max.):

275 mm

Front Rotor Size:

220 mm

S6:

Frame Size:

XXL

Recommended Height:

188 - 203 cm

Stack:

653 mm

Reach:

532 mm

Seat Tube Length:

465 mm

Top Tube Length:

693 mm

Head Tube Length:

145 mm

Chainstay Length:

442 mm

Wheelbase:

1318 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.2°

Head Tube Angle:

64.5°

Standover Height:

790 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

160.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Saddle width:

143 mm

Seatpost adjustment travel:

190 mm

Seatpost Insertion Depth (max.):

295 mm

Front Rotor Size:

220 mm

Manufacturer Numbers:

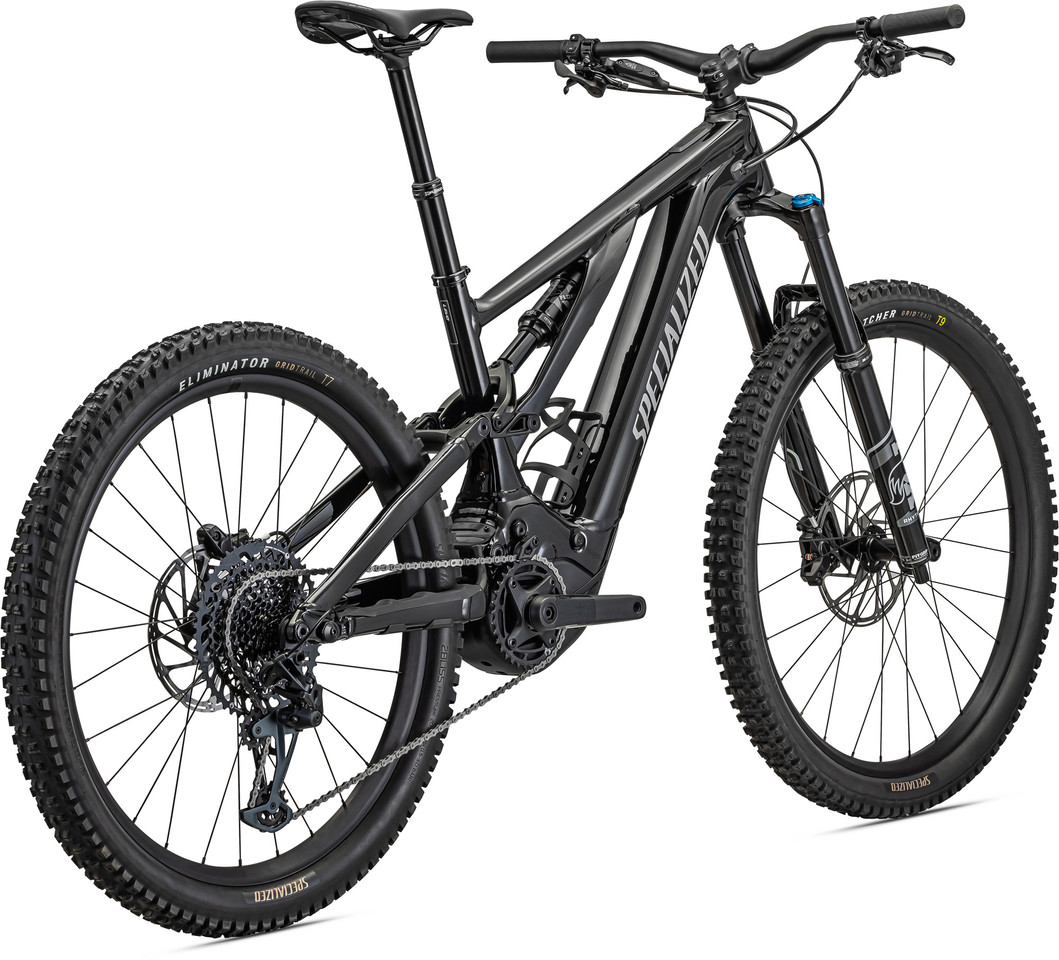

black-dove grey-black:

95222-540

flo red-black:

95222-560

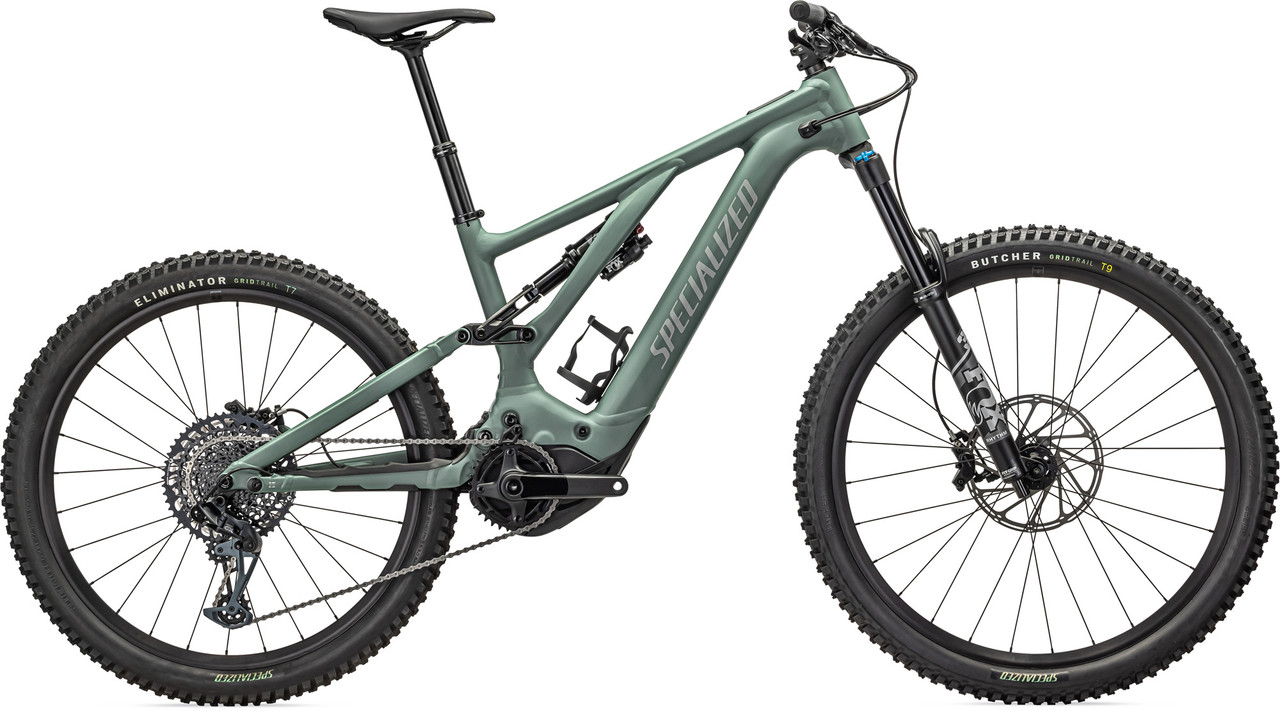

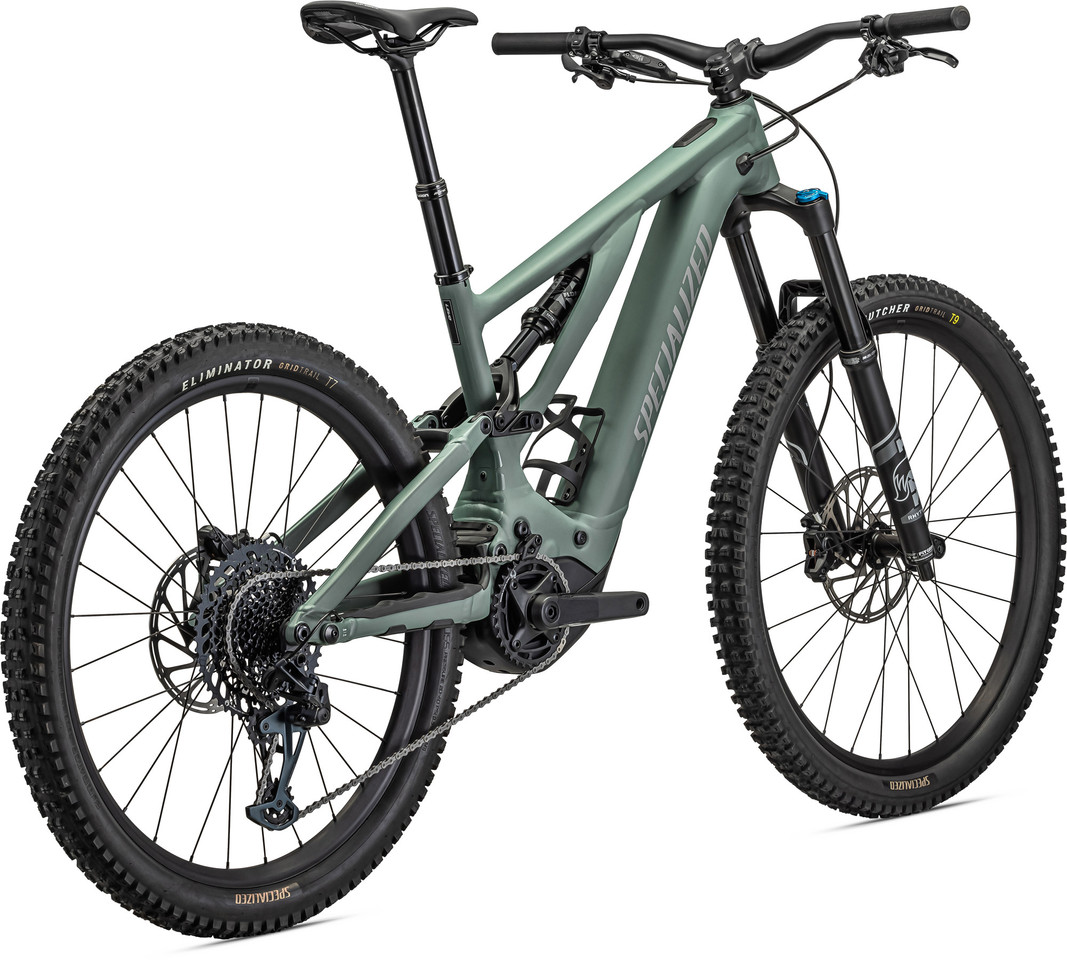

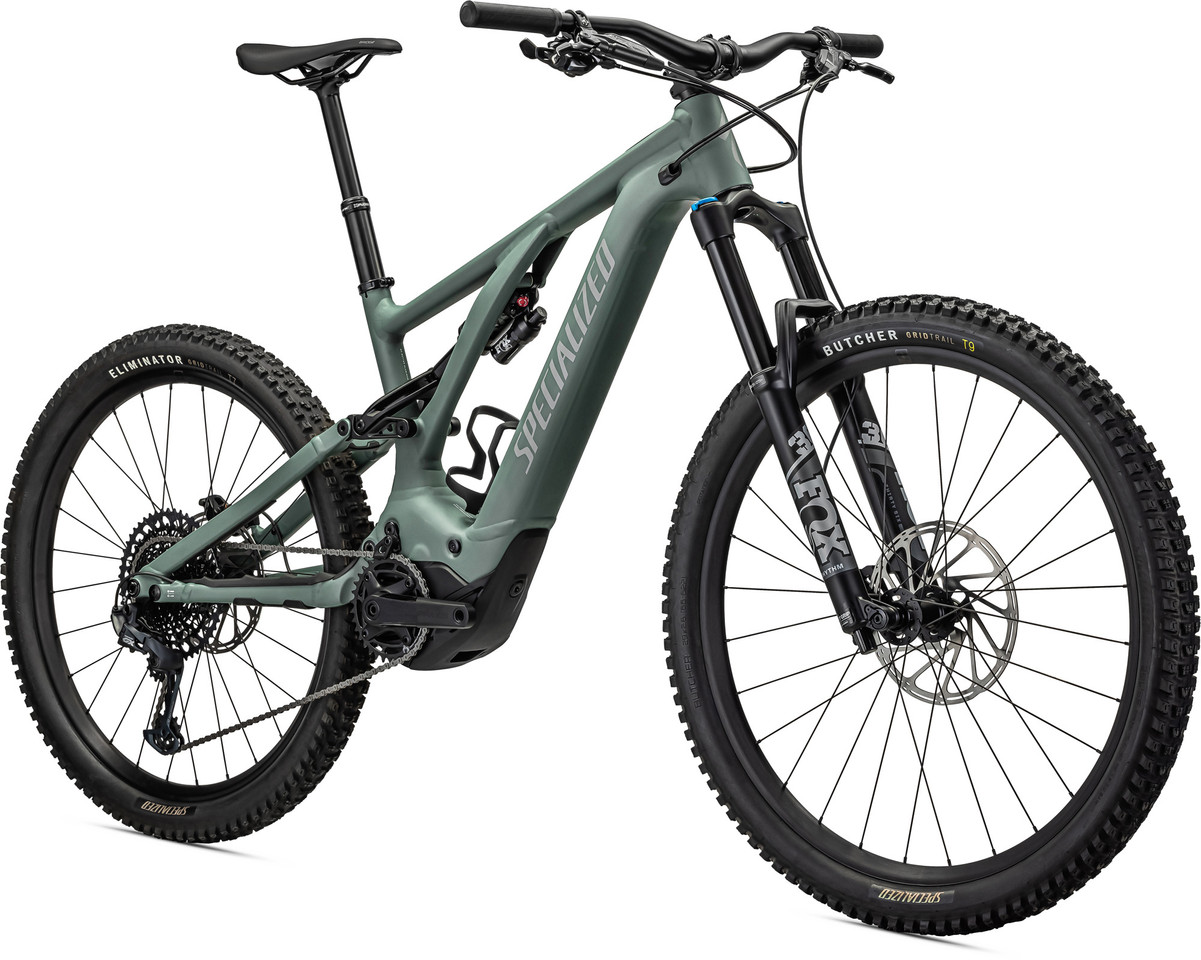

sage green-cool grey-black:

95222-570

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Levo Comp Alloy 29" / 27.5" E-Mountain Bike

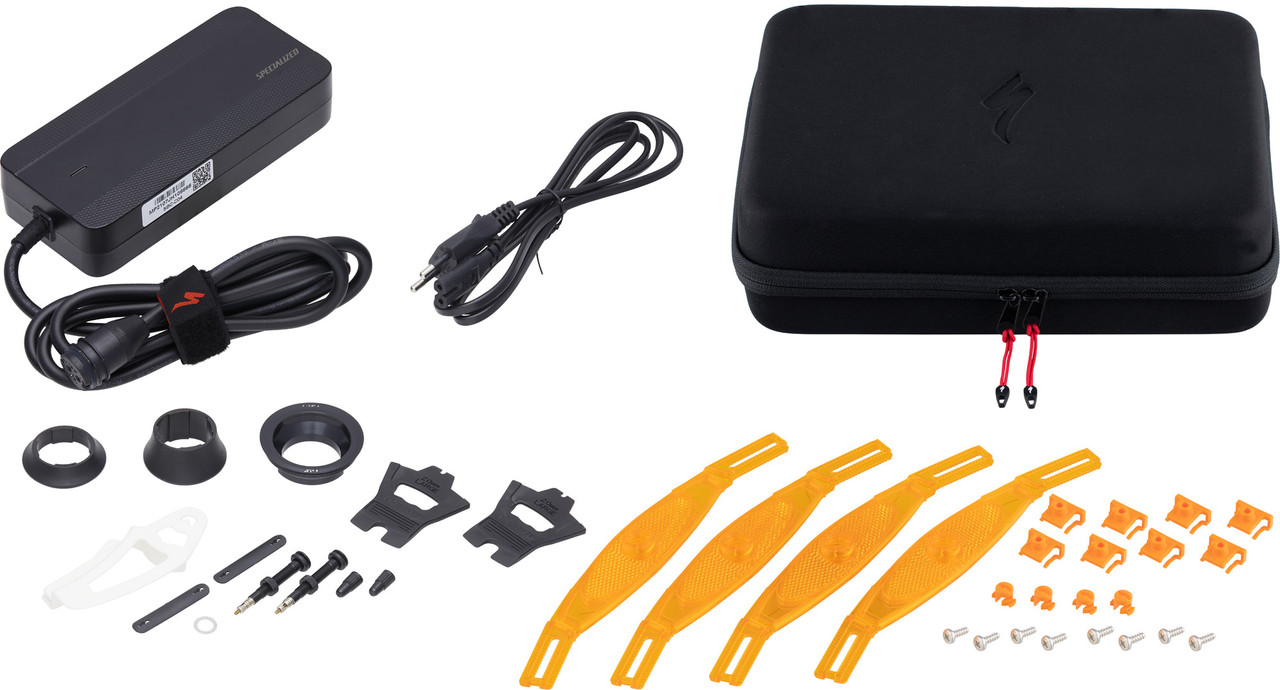

• 1 x charger 42 V/4 A with Rosenberger plug
