Specialized Turbo Levo SL Comp Carbon 29" / 27.5" E-Mountain Bike

The Specialized Turbo Levo SL Comp carbon e-mountain bike with mullet setup for wild trail rides

The Turbo Levo SL Comp e-mountain bike from Specialized is made of carbon and delivers maximum trail fun for all-mountain riding. The mullet setup of 29-inch front wheel and 27.5-inch rear wheel combines the best of both worlds and provides a balance of stability and agility. Compared to the previous model, the motor is quieter and more powerful, but without sacrificing the natural riding feel that characterises Specialized e-bikes. When it comes to choosing your pedal assist level, evaluating ride data, configuring and fine-tuning, the TCU display on the top tube including handlebar remote as well as the Specialized Mission Control app are at your side. Thanks to the revised geometry and linkage design, you will rock the world's trails both uphill and downhill. Speaking of geometry: the bottom bracket height and head tube angle are adjustable, opening up further possibilities for you. If you want to switch to a 29-inch rear wheel, this is possible thanks to the flip chips on the chainstays. Fox suspension as well as the GX Eagle series 1x12 drivetrain from SRAM and Code RS four-piston brakes shine with reliable, consistent performance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

Scaled Sizing

Front Travel:

150 mm (S1), 160 mm (S2 - S6)

Rear Travel:

144 mm (S1), 150 mm (S2 - S6)

Sizes:

S1, S2, S3, S4, S5, S6

Front Triangle Material:

carbon (11m)

Rear Triangle Material:

carbon (11m)

E-Motor:

Type:

mid-drive motor

Motor Type:

Specialized 1.2 SL Custom Rx Trail Tune, 50 Nm

Pedal Assist (max.):

25 km/h

Power:

320 W (peak), 250 W (nominal)

Battery Type:

Specialized SL 1-320, fully integrated, 48 V

Capacity:

320 Wh

Display:

Specialized MasterMind TCU colour display, Gorilla Glass, battery status in percent, Micro Tune, ANT+ / Bluetooth, with handlebar remote

Components:

Frame:

Specialized Levo SL, FACT carbon, aluminium shock mount, 12 x 148 mm (Boost)

Fork:

Fox Racing Shox 36 Rhythm, GRIP shock, 15 x 110 mm (Boost), 44 mm offset

Stem:

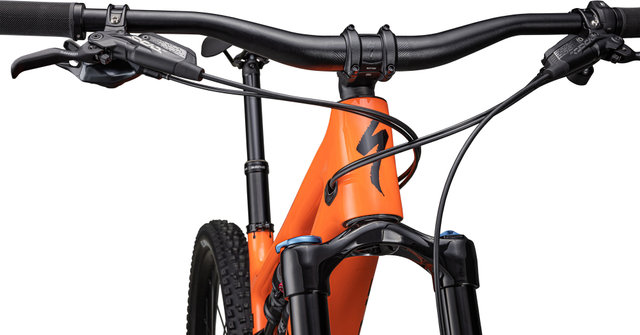

Specialized Trail, aluminium, 35 mm handlebar clamp, 40 mm length

Handlebars:

Specialized, 6061 aluminium, 8° backsweep, 6° upsweep, 30 mm rise, 780 mm width

Grips:

Specialized Trail Grips

Rear Shock:

Fox Racing Shox Float DPS Performance, 210 x 50 mm (S1), Fox Racing Shox Float X Performance, 210 x 55 mm (S2 - S6)

Remote System:

none

Headset:

Specialized S182500005

Seatpost:

X-Fusion Manic, 2-bolt clamp, internal cable guide, with SLR LE remote, 34.9 mm diameter, stroke: 100 mm (S1), 125 mm (S2), 150 mm (S3), 175 mm (S4, S5), 190 mm (S6)

Saddle:

Specialized Bridge Comp, hollow CrMo steel rails, width: 155 mm (S1, S2), 143 mm (S3 - S6)

Crank:

SRAM FC S699 MHL Gen2 Wide Aluminium, DUB

Pedals:

none

Brakes:

SRAM Code RS, 4 piston, hydraulic disc brake, with 200 mm brake rotor (front/rear)

Shift Lever:

SRAM GX Trigger, 12-speed

Rear Derailleur:

SRAM GX Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10-52 t

Chain:

SRAM NX Eagle, 12-speed

Rims:

Specialized, aluminium, 30 mm jaw width, tubeless ready

Spokes:

DT Swiss Industry

Front Hub:

Aluminium, sealed cartridge bearings, 15 x 110 mm, thru-axle, 28 holes

Rear Hub:

Aluminium, sealed cartridge bearings, 12 x 148 mm, thru-axle, 28 holes

Front Tyre:

Specialized Butcher, Grid Trail casing, GRIPTON-T9 rubber compound, 2Bliss Ready, 29 x 2.3"

Rear Tyre:

Specialized Eliminator, Grid Trail casing, GRIPTON-T7 rubber compound, 2Bliss Ready, 27.5 x 2.3"

Approved For:

Weight Limit:

125 kg (rider + gear)

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

27.5 x 2.6" / 29 x 2.6" (rear)

Chainrings:

1x

Chainring Size (max.):

1x 34-tooth

Features:

• lightweight e-trail bike with natural feel and adjustable geometry
• torsionally stiff, robust carbon frame
• mullet construction with 29-inch front wheel and 27.5-inch rear wheel, thus smooth-running but more manoeuvrable than pure 29-inch bikes
• conversion to 29" rear wheel for more control while staying true to the geometry possible thanks to flip chips on the chainstays
• optimised linkage design with responsive, speed-dependent damping
• higher anti-squat than the previous model, thus more efficient pedalling, especially uphill
• adjustable geometry: bottom bracket height high / low via flip-inserts on the rear shock, head tube angle steep / medium / flat via interchangeable headset cups
• boosts your performance by double
• Rx Tune: sophisticated suspension tuning for responsive handling
• excellent performance over the entire suspension travel
• modern, progressive geometry with short chainstays
• colour display: the most important data and parameters at a glance while riding
• motor support configurable in 10% increments while riding
• motor 40% quieter than previous model
• with 50 Nm, 43% more torque than the previous model, also higher performance
• internal cable routing
• SRAM UDH universal derailleur hanger
• range can be extended with optionally available range extender
• with Turbo System lock
• standard tubes with SV / Presta valves
• aluminium seat clamp, 38.6 mm

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

S-Sizing
S-Sizing means a frame size classification that not only takes your inner leg length into account, but also your riding characteristics. Here Specialized employs Sidearm Design, an asymmetric shock mount that contributes to the stiffness and agility of the bike without increasing its weight. The Turbo Levo 3.0 shares geometry adjustability with the Stumpjumper EVO. The head tube angle can be altered via headset cups, and the bottom bracket can be raised or lowered via Horst Link flip chip, so there are practically six different geometries to choose from. This way you can ensure that the set-up fits exactly to your preferences as a rider, and also suits your riding style.

Micro Tune
The remote button can be used to increase motor support and peak power in 10% increments. This results in less-drastic changes when alternating from Trail to Turbo, for example. This gives you certain advantages when riding in groups, as it allows you to adapt better. In addition, fine adjustments save battery power and thus increase your riding range.

E-Bikes by Specialized
Specialized e-bikes are designed in California and developed with Swiss technology. They take the " It's you, only faster" approach, which means that you have the impression of riding a " normal" bike without motor assistance, but with at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Due to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well protected integrated in the down tube. An innovative Battery Management System (BMS) is used to maximise battery life and protect the cell structure. The bike communicates with the rider via the Turbo Connect Unit (TCU), which connects via Bluetooth and ANT+ to a Turbo Connect display, third-party devices and/or the Specialized Mission Control app. This offers additional options such as route planning, route recording or automatic capacity management.

Geometry:

(based on a fork axle to crown length of 560 mm (S1) / 570 mm (S2 - S6), low bottom bracket height and medium head tube angle)
S1:

Recommended Height:

150 - 160 cm

Stack:

609 mm

Reach:

405 mm

Seat Tube Length:

385 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

95 mm

Chainstay Length:

433 mm

Wheelbase:

1158 mm

Bottom Bracket Height:

343 mm

BB Drop:

34 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

727 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29" (front), 27.5" (rear)

S2:

Recommended Height:

157 - 173 cm

Stack:

617 mm

Reach:

425 mm

Seat Tube Length:

385 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

100 mm

Chainstay Length:

432 mm

Wheelbase:

1184 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

763 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29" (front), 27.5" (rear)

S3:

Recommended Height:

165 - 180 cm

Stack:

626 mm

Reach:

445 mm

Seat Tube Length:

405 mm

Effective Top Tube Length:

604 mm

Head Tube Length:

110 mm

Chainstay Length:

432 mm

Wheelbase:

1208 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

766 mm

Crank Arm Length:

170.0 mm

Wheel Size:

29" (front), 27.5" (rear)

S4:

Recommended Height:

173 - 188 cm

Stack:

635 mm

Reach:

470 mm

Seat Tube Length:

425 mm

Effective Top Tube Length:

631 mm

Head Tube Length:

120 mm

Chainstay Length:

432 mm

Wheelbase:

1238 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

767 mm

Crank Arm Length:

170.0 mm

Wheel Size:

29" (front), 27.5" (rear)

S5:

Recommended Height:

178 - 193 cm

Stack:

645 mm

Reach:

495 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

659 mm

Head Tube Length:

130 mm

Chainstay Length:

432 mm

Wheelbase:

1267 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

773 mm

Crank Arm Length:

170.0 mm

Wheel Size:

29" (front), 27.5" (rear)

S6:

Recommended Height:

188 - 203 cm

Stack:

654 mm

Reach:

525 mm

Seat Tube Length:

465 mm

Effective Top Tube Length:

691 mm

Head Tube Length:

140 mm

Chainstay Length:

432 mm

Wheelbase:

1301 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

778 mm

Crank Arm Length:

175.0 mm

Wheel Size:

29" (front), 27.5" (rear)

Manufacturer Number:

gloss blaze-black-silver dust:

96822-52

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Levo SL Comp Carbon 29" / 27.5" e-mountain bike
