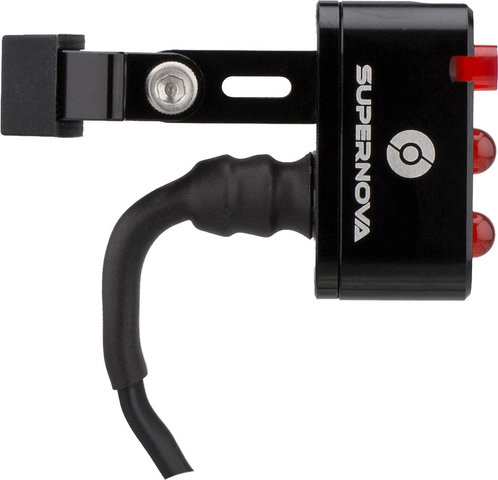

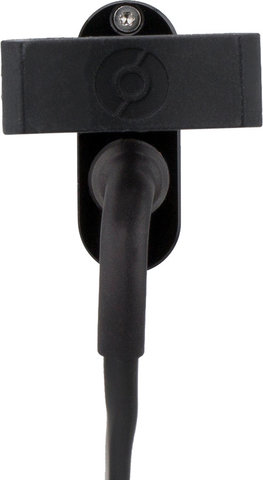

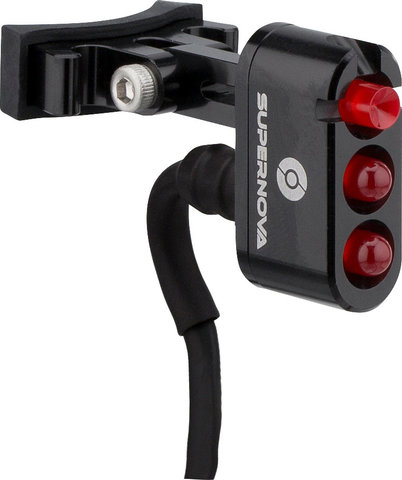

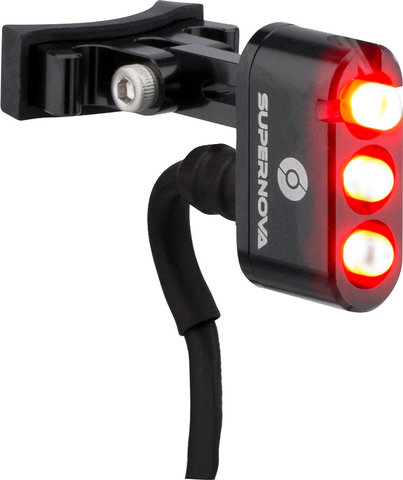

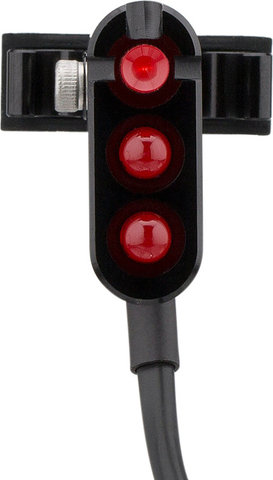

Supernova E3 LED Tail Light 2 6 V for Seatpost Mount - StVZO Approved

This E3 Tail Light 2 rear light with StVZO approval from Supernova is mounted on the seatpost and operates with 6 volts. It is the ideal complement for your E3 front light with a dynamo, but can also be powered by an E-bike battery. The twin-beam technology for bright, wide illumination and the parking light, which shines for five minutes and receives energy from the front light or E-bike battery, offer additional safety. At the same time, the rear light is very small, light and of course waterproof.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

rear light (red)

Mount:

seatpost

Light Source:

5 mm LED (3)

Power Source:

Hub dynamo (in conjunction with E3 front light), E-bike battery (directly or via V1260 front light)

Technical Information:

Voltage:

6 V

Dimensions (H x W x D):

30.6 x 11.5 x 37 mm

Cable Length:

1300 mm

Material:

aluminium (6061)

Standing Light:

Yes, cannot be switched off (5 minutes)

Approved For:

Street Use in Germany:

yes, for bikes according to §67 StVZO

Check Number:

K~~937

Compatibility:

• round 31.6 or 27.2 mm diameter seatposts

Features:

• supplied with power for sidelights in dynamo mode by the E3 Pro 2
• extremely bright Twin Beam technology
• wide 250° side illumination through combination of two complementary beam angles
• waterproof
• very light
• CNC-milled, anodised aluminium housing
• vertical mounting

Technology:

Twin Beam
Twin-Beam technology optimally combines the light of the three LEDs by using two different beam angles and brightly illuminates the entire danger zone.

Manufacturer Number:

N-TK2-S-BLK

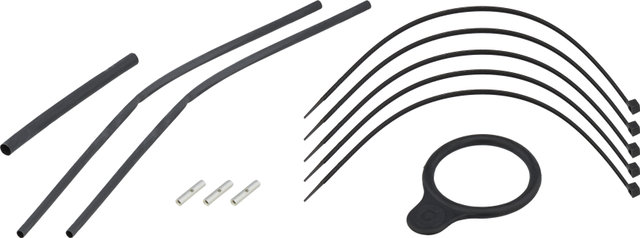

Contents:

• 1 x Supernova E3 Tail Light 2
• 1 x clamp ring
• 3 x shrink tubes
• 5 x cable ties
• 3 x connector crimp sleeve

Optional accessories:

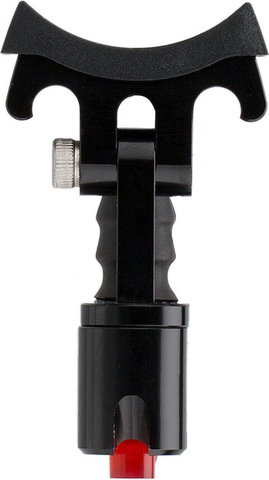

• seatpost clamp
• connection cable for compatible E-bike drivetrains

• black: 18 g
